S29 Series Technical Manual

- 2 -

Manufacturer

Taiwan Scale Mfg. Co., Ltd

Model

S29

Report No

ASZ091201012S-2

Applicable

Standards

IP67

Taiwan Scale Mfg. Co., Ltd.

282, Sec.3, Hoping W. Rd.

Taipei,

Taiwan

TEL:886-2-23068203

FAX:886-2-23044354

e-mail: [email protected]

W & P Scales Mfg. (Kunshan) Co., Ltd.

No. 99 Shunchang Road

Zhoushi, Kunshan

Jiangsu

China

TEL:86-512-57669080

FAX:86-512-57669100

e-mail: [email protected]

publication may be reprinted or translated in any form or by any means without the

prior permission of Taiwan scale.

Taiwan Scale reserves the right to make changes to the technology, features,

specifications and design of the equipment without notice.

All information contained within this publication was to the best of our knowledge

timely, complete and accurate when issued. However, we are not responsible for

misimpressions which may result form the reading of this material.

Visit our Website at: www.taiwanscale.com

S29 Series Technical Manual

- 3 -

CONTENTS

1. PRECAUTIONS……………………………………………………………..4

2. IN STALLATIO N…… …. … ……… ……… ………………… ……… ……… .5

3. PARTS DESCRIPTION….....................................................................6

4. OPERATION………………………………………………………………...8

5. PARAMETER………………………………………………………………..9

6. CALIBRATION… ………………………… ………………………………..1 0

7. ERROR DISPLA Y……………………………………………… …………11

8. DRAW ING ………… …… …… ……………… ……… ………… …… …… . 12

PARTS NAME……………………………………………………………..12

9. SPECIFICATIONS………………………………………………………...15

DIMENSION………………………………………………………………..15

LOAD CELL SPECIFICATION...…………………………………………16

S29 Series Technical Manual

- 4 -

1. PRECAUTIONS

Avoid installing the scale in direct sunlight, which may cause discoloration.

Avoid overloading that could cause damage to the scale.

If the scale is not to be used for a long period of time, remove all batteries from

the battery compartment to avoid leakage.

Avoid stack materials on the scales, when scale is not in use.

Avoid unsuitable tables. The tables or floor must be rigid and not vibrate. Do

not place near vibrating machinery.

Avoid unstable power sources. Do not use near large users of electricity such

as welding equipment or large motors.

Do not mix the type of batteries. Replace all the batteries at the same time.

Only use original S29 adaptor, other could cause damage to the scale.

When the scale is used with an adaptor, the does not conform to IP-67

protection.

IP 6 7

Protected against immersion of water:

Protected against entry of dust

IPCode (International Protection Rating) of IEC 60529

S29 Series Technical Manual

- 5 -

2. INSTALLATION

Unpacking

Carefully take the balance out of its package, make it sure its not damaged and all

accessories are included.

Accessories,

1. Balance

2. Adaptor

3. Pan

4. Product manual

Keep the packaging material for your future use.

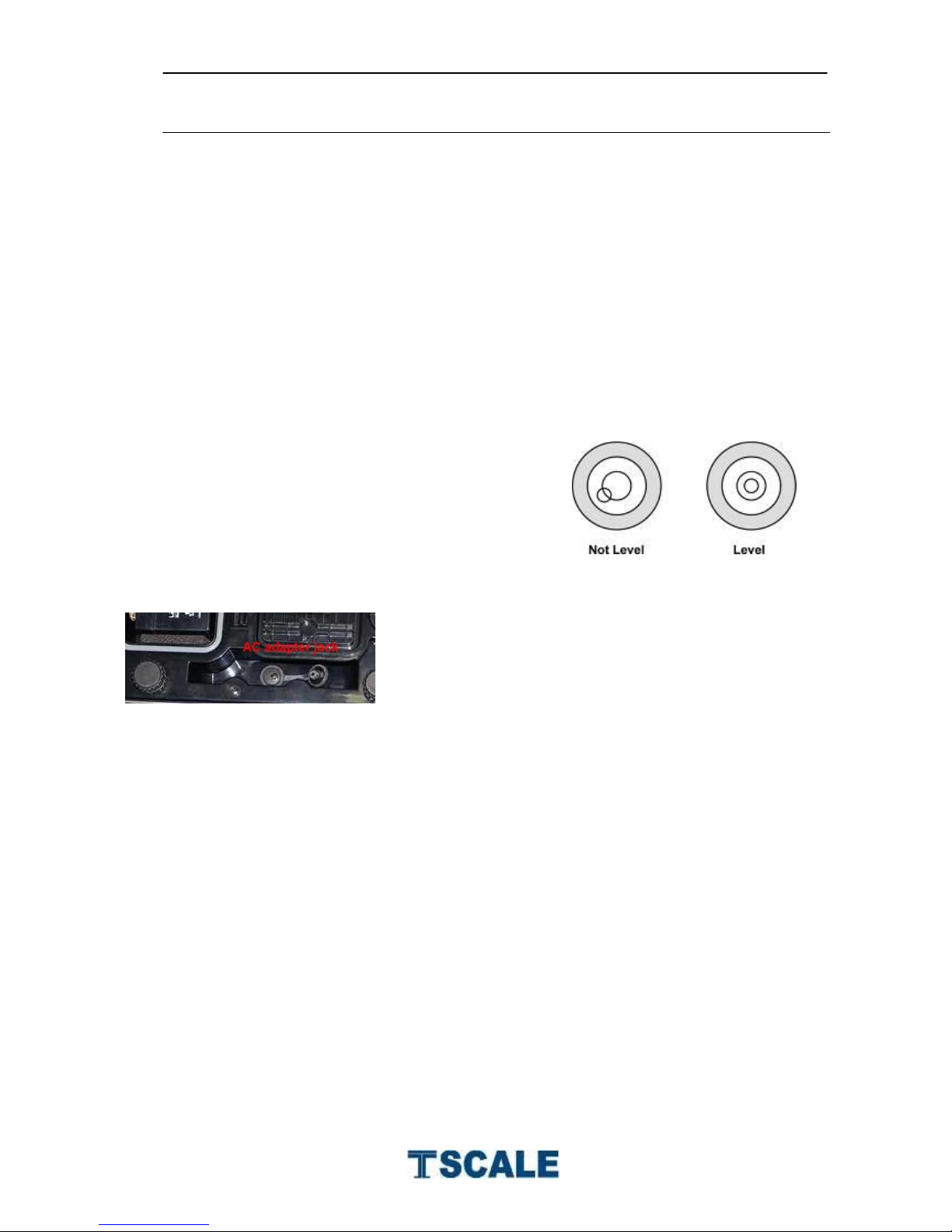

Level Adjusting

Place the scale on a table.

Check the water mark. If, bubble is not centre

adjust the leveling feet until reach centre. Check

the level when you change the location.

Charging Battery

To charge the battery insert the adaptor pin to jack.

Adaptor simply plug into the mains power. The

scale no needs to be turned on.

The battery should be charged for 12 hours for full

capacity.

Left side of the display there is an LED to indicate the status of battery charging.

When the scale is plugged into the mains power the internal battery will be

recharged. If the LED is green, the battery has a full charge. If it is red, the

battery is nearly discharged and if yellow, the battery is being charged.

Do not use any other type of power adaptor than the one supplied with the

scale.

Verify that the AC power socket outlet is properly protected.

Note: Please charge the battery before using the scale for the first time

S29 Series Technical Manual

- 6 -

3. PARTS DESCRIPTION

Optional Dry and Rechargeable Battery Adaptor jack

Sealing Ring

Platform

Leveling Feet

Key board

Spirit Level

S29 Series Technical Manual

- 7 -

Key Board

Weight Display

Zero

Zeroing Display

Stable

Stable Display

Net

Net Weight Display

Low Battery

Lb / kg

Current Weighing Mode

Keys

: Turns the scale power On / Off

: Subtracts weight of container

: Sets display to Zero

S29 Series Technical Manual

- 8 -

4. OPERATION

Initial Start-up

Warm-up time of 15 minutes stabilizes the measured values after switching on.

1. Power ON/OFF

. Switch on the scale by pressing . The display is switched on and the

self test is started.

If you want to switch off press the key again.

2. Zero

Environmental conditions can lead to the balance exactly zero in spite

of the pan not taking any strain. However, you can set the display of

your balance to zero any time by pressing key and therefore

ensure that the weighing starts at zero.

3. Tare

The weight of any container can be tared by pressing button so that with

subsequent weighing the net weight of the object being weighed is always

displayed.

Load weight on the pan.

Press key. Zero is displayed, and tare is subtracted.

Remove weight from the platform. Tared weight is displayed. It can

set only one tare value. It can display with a minus value.

Press key. Zero is displayed, tare weight is cleared.

4. Unit

Press both keys in the weighing mode to change the

weighing unit kg / lb

S29 Series Technical Manual

- 9 -

5. PARAMETERS

Enter the Menu

Turn on the scale. Press during that start up until display will be shown

Enter the Selected Menu

Press , it can confirm which will be shown displayed.

Select the Menu

Press , it can choose menu block one by one.

Description

F1 cal

Calibration

F2 res

3 000

Set Resolution

6000

dual

F3 cap

3 kg

Set Scale Capacity

6 kg

15 kg

3 0 kg

F4 inp

Internal Counts

F5 0ff

Set automatic turn off the scale

3 min

Scale will be auto off three minutes later

5 min

Scale will be auto off five minutes later

15 min

Scale will be auto off 15 minutes later

off

Auto off function disable

Back

Back to weighing mode

F1C al

S29 Series Technical Manual

- 10 -

6. CALIBRATION

Turn on the scale. Press during that start up until display will be shown.

Press to confirm and display will be shown

Press , display will be shown current calibration weight value. If

necessary press to change the value and keep the weight on the

platform. After stable indicator on press

key to confirm.

Scale will be restart.

Incase display will show any error message or incorrect measurement, repeat

the calibration again.

F1C al

unload

5 kg
