TSC Alpha-2R Series Manuel utilisateur

SERVICE

MANUAL

Alpha-2R

Direct Thermal Portable Printer

Contents

1. FUNDAMENTAL OF THE SYSTEM................................2

1.1 Overview.........................................................................................................2

2. ELECTRONICS ..............................................4

2.1 Summary of Board Connectors .....................................................................4

3. MECHANISM ...............................................11

3.1 Replacing the Platen Roller Assembly ........................................................11

3.2 Replacing the Linerless Platen Roller Assembly ........................................12

3.3 Replacing the 1" / 2"paper core adapter .....................................................13

3.4 Replacing the NFC module ..........................................................................15

3.5 Replacing the LED & Keys Panel Board......................................................17

3.6 Replacing the Gear Assembly & Stepping Motor........................................20

3.7 Replacing the Wi-Fi/Bluetooth Module ........................................................21

3.8 Replacing the Main Board Assembly...........................................................22

3.9 Replacing the Print Head Assemble ............................................................24

3.10Replacing the Hand Open Sensor Assemble ..............................................26

3.11Replacing the Black Mark Sensor Assembly ..............................................27

4. TROUBLESHOOTING ........................................28

4.1 Common Problems.......................................................................................28

5. MAINTENANCE .............................................30

Revise History................................................31

1. FUNDAMENTAL OF THE SYSTEM

1.1 Overview

Front View

1. Media cover

2. Platen roller

3. LED indicator

4. Feed/Pause button

5. Power on/off button

6. Interface cover

7. Media cover release button

8. Tear bar

9. Black mark sensor

10. Print head

11. USB interface

12. Power jack

Lab

roll

gua

Rear View

1. Li-ion battery

2. Battery open clasp

3. Printer serial number label

4. Belt chip

int

erf

2. ELECTRONICS

2.1Summary of Board Connectors

Main board top

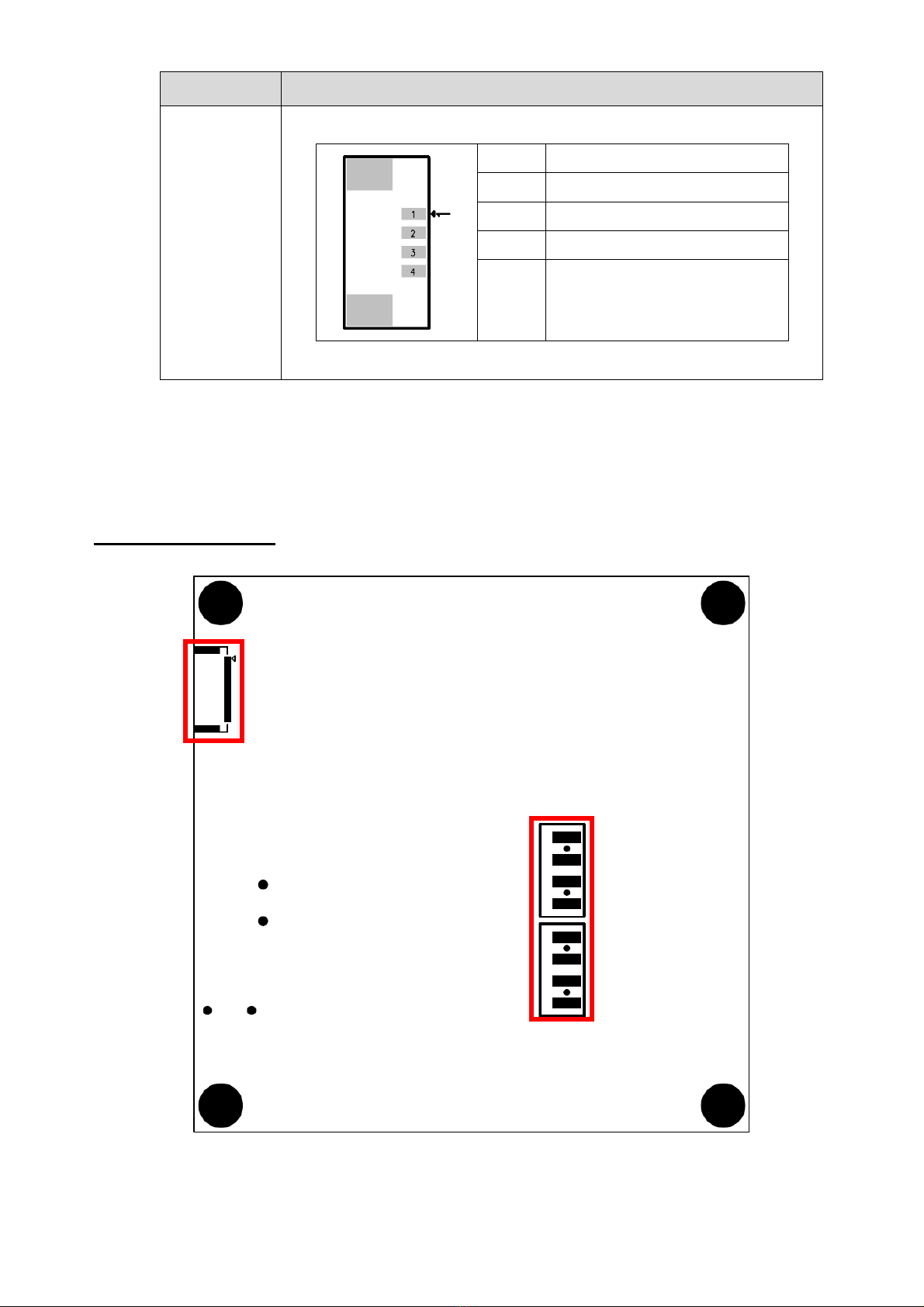

Connector

Description

DCIN1

DC Jack

Description

12V

GND

12V

CON1

CON5

CON6

CON12

CON11

CON9

CON3

CON2

DCIN1

Connector

Description

CON1

Firmware download

Description

3.3V

Data0

Data1

Data2

Data3

Clock

Command

GND

CON2

USB&RS-232

Description

VBUS

D-

D+

RTS

CTS

GND

Connector

Description

CON3

Wi-Fi module:

Description

3.3V

Reset

SPI (MISO)

SPI (RTS)

SPI (MOSI)

SPI (CTS)

Interrupt

SPI (Clock)

Mode:

High : BT/Low : Wi-Fi

GND

Bluetooth module:

Description

3.3V

Reset

UART (RX)

UART (RTS)

UART (TX)

UART (CTS)

Configurable Functional

GPIO

Bluetooth link status

indication

Boot mode selection

GND

Connector

Description

CON5

Head open sensor

Description

Head open sensor receiver

GND

CON6

Black mark sensor

Description

3.3V

Black mark sensor emitter

Black mark sensor receiver

3.3V

CON9

LED Board

Description

VDDBU_3.3V

LED Wi-Fi (Green)

LED Bluetooth (Blue)

LED Wi-Fi/Bluetooth (White)

LED Charge status (Red)

LED Battery capacity (Green)

LED Error (Red)

LED System status (Green)

3.3V

Feed key

Power key

GND

Connector

Description

CON12

Print head

Description

Data output

/Latch

Clock

TPH 3.3V

Strobe1

Strobe2

Strobe3

GND

/AEO1

/AEO2

Strobe4

Strobe5

Strobe6

Data input

GND

Connector

Description

CON11

Stepping motor

Description

Main board bottom

CON14

CON13

CON8
