TruVision TVW-DVM Manuel utilisateur
TruVision
Wedge Dome
Back Box and Dual View
Mount Installation Guide
P/N 1073093-EN • REV C • ISS 28JUL21
© 2021 Carrier. All rights reserved. Specifications subject to change
without prior notice.
TruVision names and logos are a product brand of Aritech, a part of
Carrier.
Contact information
EMEA: https://firesecurityproducts.com
Australian/New Zealand: https://firesecurityproducts.com.au/
Product documentation
Please consult the following web link to retrieve the electronic version
of the product documentation. The manuals are available in several
languages.
Installation Guide 1
Content
Product overview 2
Product and package contents 2
TVW-DVM dual view mount 2
TVW-AWB-1 outdoor angled back box 5
TVW-AWB-2 indoor angled back box 7
TVW-2G-AD adapter plate 9
Installation 11
Specifications 23
TruVision wedge camera bracket and mount 23
2 Installation Guide
Product overview
This is the installation guide for the following TruVision wedge
camera models:
TVW-DVM (dual view mount) (use with TVD-PPB)
TVW-AWB-1 (angled back box for outdoor application)
TVW-AWB-2 (angled back box for indoor application)
TVW-2G-AD (adapter plate for wedge camera with 2-gang
box)
Product and package contents
Check the package and contents for visible damage. If any
components are damaged or missing, do not attempt to use the
unit; contact the supplier immediately. If the unit is returned, it
must be shipped back in its original packaging.
TVW-DVM dual view mount
The TVW-DVM dual view mount (purchased separately) allows
you to install two panoramic cameras on a single mount. You
then obtain a view of the surrounding area without requiring a
complex integration effort when connecting to your storage
device or video management system (VMS).
Installation Guide 3
Camera mount:
Tube adapter (30 x 12 mm):
Conduit cover/plug:
Template A:
Template B:
4 Installation Guide
Screw 3 x 10 m (5 pcs m):
Screw (10 pcs):
Drywall anchor 7.5 x
24.5 mm
M4 screw 4 x 25 mm
Screw 3 x 8 mm (2 pcs):
Screw 4 x 10 mm (5 pcs):
Installation Guide 5

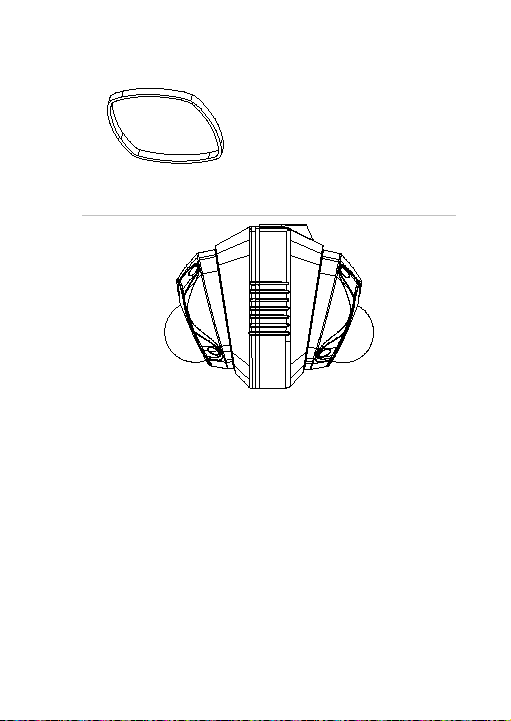

Rubber ring:
Figure 1: Cameras attached using the dual view mount
TVW-AWB-1 outdoor angled back box
The TVW-AWB-1 outdoor angled back box (purchased
separately) is weather resistant and includes a G1 threaded
conduit access and plug. It conceals the interconnect cables
and eliminates the blind area below the camera when the
camera is installed on a wall.
6 Installation Guide
Camera back box:
Tube adapter (30 x 12 mm):
Conduit cover/plug:
Template A:
Rubber ring:
Installation Guide 7
Screw (5 pcs):
Drywall anchor 7.5 x 24.5 mm
M4 screw 4 x 25mm
Screw 3 x 10 mm
(5 pcs):
Screw 3 x 8 mm (2 pcs):
Screw 4 x 10 mm
(3 pcs):
Figure 2: Camera mounted on an outdoor back box
TVW-AWB-2 indoor angled back box
The TVW-AWB-2 indoor angled back box (purchased
separately) conceals the interconnected cables and eliminates
the blind area below the camera when the camera is installed
on a wall.
8 Installation Guide
Camera back box:
Template B:
Screw 5 pcs:
Drywall anchor (7.5 x
24.5 mm)
M4 screw (4 x 25 mm)
Screw 3 pcs (4 x
10 mm):
