Trust ASUN-650 Manuel utilisateur

www.trust.com

Item 71017-02 Version 1.0

Always read the instructions

before using this product

SUN BLINDS SWITCH

USER MANUAL

MULTI LANGUAGE

START-LINE

RECEIVER ASUN-650 SWITCH-IN

ASUN-650 SUN BLINDS SWITCH

3-4

L L COM

230V

Motor

Wire 1

(brown)

Neutral wire

(blue)

Ground (yellow/green)

230V Neutral

(Blue)

230V Live

(brown)

Wire 2

(black)

ASUN-650 SUN BLINDS SWITCH

12-24V

Motor

Switch wire A

Switch wire B

230V Neutral

(blue)

230V Live

(brown)

0 V

12-24V DC

Adapter

L L CO M

L L COM

230VAC

power supply

L LN COM

1 SEC

Set

Learn

Learn Set

ASUN-650 SUN BLINDS SWITCH

L LN COM

Learn Set

OFF

LED will blink fast

ASUN-650 SUN BLINDS SWITCH

L LN

COM

OFF

L LN COM

1 SEC

L LN COM

LED will blink fast

ASUN-650 SUN BLINDS SWITCH

L LN COM

6 SEC 1 SEC LED will blink fast

ASUN-650 SUN BLINDS SWITCH

1. Switch o the mains power (electric meter box)

before installing this product

2. Remove the existing switch

Detach the existing switch and disconnect the wires.

The existing wall switch is replaced by this product and can

no longer be used. Consult the supplier of your sun blind

system when in doubt about motor type and wire colors.

3. Connect 230V power supply

Connect the (brown) live wire to the [L] contact.

Connect the (blue) neutral wire to the [N] contact.

Contact an electrician when in doubt about wire colors.

Tighten the clamping screws.

4. Connect motor wiring

How to connect the motor wiring depends on

the type of motor:

• Read step 5 for a 230V motor.

• Read step 6 for a 12-24V motor.

• Read step 7 for a motor with a momentary switch.

5. Connect 230V motor

1. Connect the (blue) neutral wire from the motor to

the [N] contact.

2. Use a seperate piece of wire to connect [L] with [COM].

3. Connect the live wires from the motor (brown and black)

to the [ ] and [ ] contact. These positions can

be interchanged to reverse the up and down motion of

the motor.

6. Connect 12-24V motor

1. Connect the 24V+ wire to [COM].

2. Connect switch wires A and B to the [ ] and [ ]

contact. These positions can be interchanged

to reverse the up and down motion of the motor.

Never connect 230VAC wires to low-voltage wires.

7. Motor with momentary switch

The motor only has 2 wires.

1. Connect one wire to [ ] and the other wire to [COM].

These positions can be interchanged to reverse the up

and down motion of the motor.

2. Use a seperate piece of wire to connect both

[ ] and [ ] contacts. Never connect 230VAC wires to

low-voltage wires.

8. Switch on the mains power (electric meter box)

to continue the installation

Shock hazard! Do not contact any exposed wiring.

Only touch the plastic housing of this product.

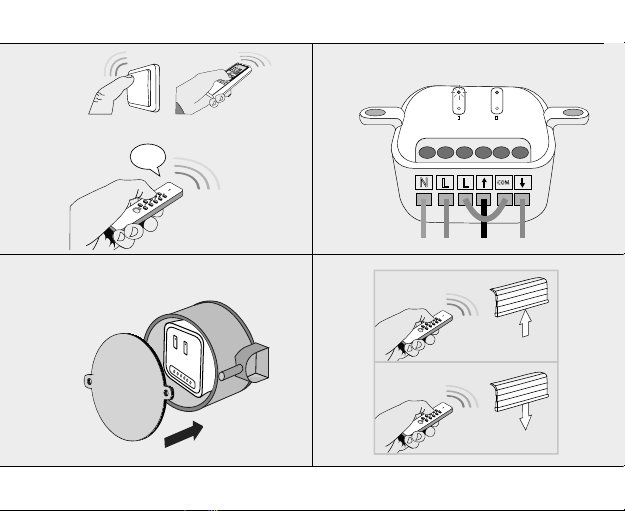

9. Activate learn-mode

Press the learn-button on the receiver for 1 second.

The learn-mode will be active for 12 seconds and the

LED-indicator will blink slowly.

10. Assign Trust Smart Home transmitter code

While the learn-mode is active, send an ON-signal with any

Trust Smart Home transmitter to assign the code to the

receiver’s memory.

ASUN-650 SUN BLINDS SWITCH

11. Code conﬁrmation

The LED indicator of the receiver will blink fast to conﬁrm

the code has been received. The receiver can store up to

32 dierent transmission codes in its memory. The memory

will be preserved when the receiver is moved to another

location or in case of power failure.

12. Install the receiver

Install the receiver in a standard junction box or other type

of housing (break o the mounting tabs if necessary).

Close the housing with a blind cover.

13. Manual operation with a Trust Smart Home

transmitter

1. Send an ON-signal to raise the screen.

2. Send an ON-signal again to stop.

3. Send an OFF-signal to lower the screen.

4. Send an OFF-signal again to stop.

Momentary switch only: every command (up/down/stop)

needs to be given twice.

14. Explanation COM-contact

The module contains 2 voltage-free contacts: [ ] and [ ].

In the neutral position, the contact [COM] is not switched.

After an on/o signal from a Trust Smart Home transmitter,

[COM] switches either to the [ ] or [ ] contact. After

2 minutes, the COM contact switches back to its neutral

position.

Single code delete

1. Press the learn-button for 1 second. The learn-mode

will be active for 12 seconds and the LED-indicator will

blink slowly.

2. While the learn-mode is active, send an OFF-signal to

delete the code of a speciﬁc Trust Smart Home transmitter.

3. The LED indicator will blink fast shortly to conﬁrm

transmitter code deletion.

Full memory delete

1. Press and hold the learn-button on the receiver

(aprox. 6 sec.) untill the LED-indicator starts blinking fast.

The delete mode will be active for 12 seconds.

2. While the delete mode is active, press the learn button

on the receiver again for 1 second.

3. The LED indicator will blink fast shortly to conﬁrm

memory deletion.

For information about the SET button please go to

www.trust.com/71017
