TrueNAS M Series Manuel

Version 3.4

TrueNAS®M-Series Basic Setup Guide

3rd Generation

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Contents

1 Introduction �� 1

1�1 Safety �� 1

1�1�1 Static Discharge �� 1

1�1�2 Handling the System �� 1

1�2 Requirements �� 1

2 M-Series Components �� 2

2�2 Front Indicators �� 3

2�3 Rear Components and Ports �� 3

2�4 M-Series Expansion Slots �� 4

3 Rack the M-Series �� 5

3�1 Install Chassis Rails �� 5

3�2 Install Rack Rails �� 6

3�3 Mount the System in the Rack �� 7

4 Install Drives �� 8

5 Install Bezel (Optional) �� 9

6 Storage Expansion �� 10

6�1 Connect SAS Cables �� 10

6�2 Connect Expansion Shelves �� 11

7 Connect Network Cables �� 12

7�1 Short-Reach (SR) NIC Network Setup �� 12

7�2 Ethernet NIC Network Setup �� 13

8 Connect Monitor and Keyboard �� 14

9 Connect Power Cables �� 14

10 Boot the System �� 15

10�1 Connect to the TrueNAS CORE Enterprise WebUI �� 15

10�2 Connect to the TrueNAS SCALE Enterprise WebUI �� 15

10�3 Out-of-Band-Management �� 15

11 Additional Resources �� 16

12 Contacting iXsystems �� 16

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 1

The 3rd Generation M-Series Uniﬁed Storage Array is a 4U, 24-bay, hybrid data storage array. It has redundant

power supplies and up to two TrueNAS controllers�

1 Introduction

1.1 Safety

1.2 Requirements

1.1.1 Static Discharge

1.1.2 Handling the System

We recommend these tools when installing an M-Series system in a rack:

• #2 Philips head screwdriver

• Flat head screwdriver

• Tape measure

• Level

Warning

Static electricity can build up in your body and discharge when touching conductive materials� Electrostatic

Discharge (ESD) is harmful to sensitive electronic devices and components� Keep these safety recommendations

in mind before opening the system case or handling non-hot-swappable system components�

• Turn o the system and remove power cables before opening the case or touching internal components.

• Place the system on a clean, hard work surface like a wooden tabletop. Use an ESD dissipative mat if possible to

protect the internal components�

• Touch the metal chassis with your bare hand to dissipate static electricity in your body before handling any

internal components, including components not yet installed in the system. We always recommend wearing an

anti-static wristband and using a grounding cable�

• Store all system components in anti-static bags�

Hold the system from the sides or bottom whenever possible. Always be mindful of loose cabling or connectors,

and avoid pinching or bumping these elements�

These instructions use “left” and “right” according to your perspective when facing the front of a system or rack�

Your system comes with the TrueNAS operating system preloaded�

Review the safety considerations and hardware requirements before installing an M-Series system into a rack�

Warning

The M-Series weighs 75 lbs unloaded and requires a minimum of two people to lift�

Never attempt to lift an M-Series system loaded with drives! Install the system in a rack before adding drives,

and remove drives before uninstalling the system�

When handling rails, system components, or drives, never force movement if a component seems stuck. Gently

remove the component and check for pinched cables or obstructing material before installing it again� Installing a

component with excessive force can damage the system or cause personal injury�

Note

The 3rd Generation TrueNAS M-Series systems have a uniﬁed chassis design that allows customers to upgrade

them with more powerful controllers. Customers can upgrade an M30 to an M40, an M40 to an M50, or an M50 to

an M60� Speak with an iXsystems Sales or Support Representative for more information�

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 2

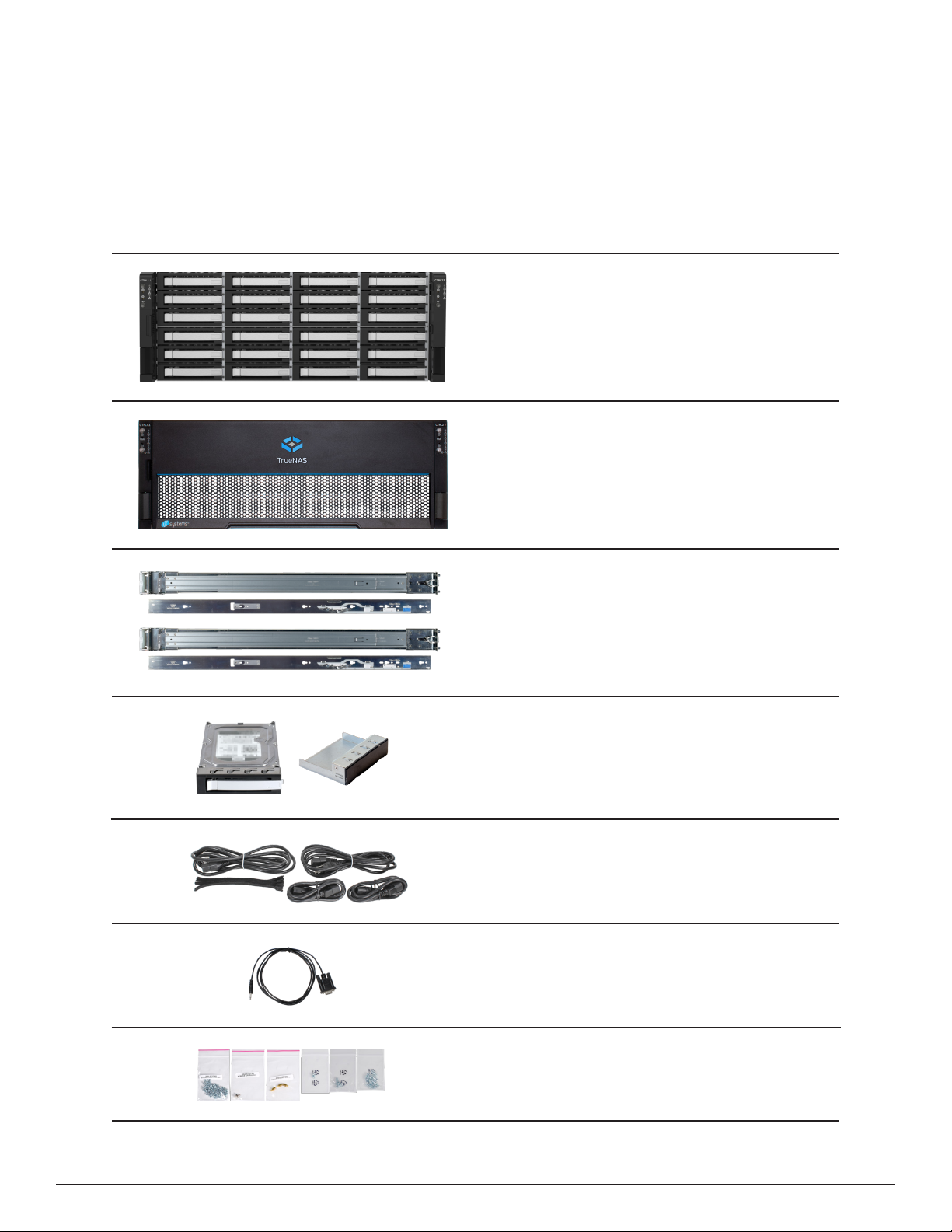

2 M-Series Components

M-Series Uniﬁed Storage Array

Set of rack-mount rails

2 IEC C13 to NEMA 5-15P power cords, 2 IEC C13

to C14 cords, and a set of cable ties

Hardware for mounting the system in a rack

DB9 to 3�5mm serial cable

Bezel

Up to 24 drive trays or air baes, depending on

the number of drives purchased with the system

TrueNAS units are carefully packed and shipped with trusted carriers to arrive in perfect condition�

If there is any shipping damage or missing parts, please take photos and contact iXsystems support immediately at

support@ixsystems�com, 1-855-GREP4-iX (1-855-473-7449), or 1-408-943-4100�

Please locate and record the hardware serial numbers on the back of each chassis for quick reference�

Carefully unpack the shipping boxes and locate these components:

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 3

The front ears have power, locate ID, fault, and network activity indicators. The fault indicator is on during the initial

power-on self-test (POST) and turns o during normal operation. It turns on if the TrueNAS software issues an alert.

2.3 Rear Components and Ports

2.2 Front Indicators

Light / Button Color and Indication

Blue: System On

N/A: Reset Button

Blue: Locate ID Active

Red: Fault / Alert

Amber: Link Active

The M-Series includes one or two TrueNAS controllers in an over-and-under conﬁguration.

NVMe

Fan & Drives

Controller 1

Controller 2

Power Supply 1

Power Supply 2

PCIe Slots

IPMI

Ethernet

Serial Port

VGA

Port

USB 3.0

USB 2.0

10 Gb Ethernet

IPMI

Sticker

TrueNAS

Controller

Management

Port

Serial

Number

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 4

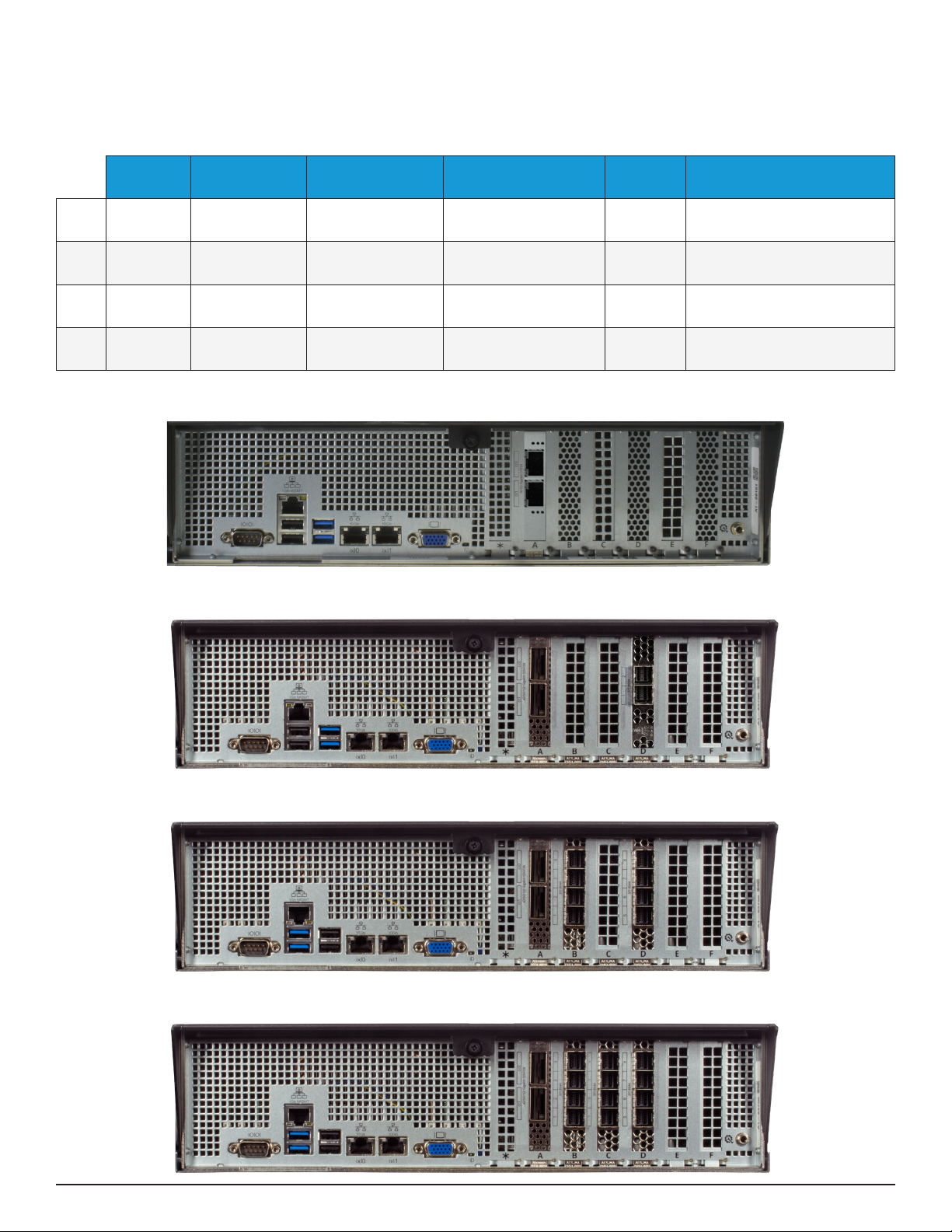

2.4 M-Series Expansion Slots

Expansion slots on the M-Series are reserved for speciﬁc cards or internal use:

M30 Controller Expansion Slots

M40 Controller Expansion Slots

M60 Controller Expansion Slots

M50 Controller Expansion Slots

Slot A Slot B Slot C Slot D Slot E Slot F

M30 NIC or FC N/A NTB N/A Internal

SAS Secondary NIC

M40 NIC N/A NTB External SAS Internal

SAS 4x NVME Riser, NIC2, or FC

M50 NIC1 External SAS1 NIC2 or FC External SAS2 NTB Internal SAS

M60 NIC1 External SAS1 External SAS3,

NIC2, or FC External SAS2 NTB Internal SAS

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 5

3 Rack the M-Series

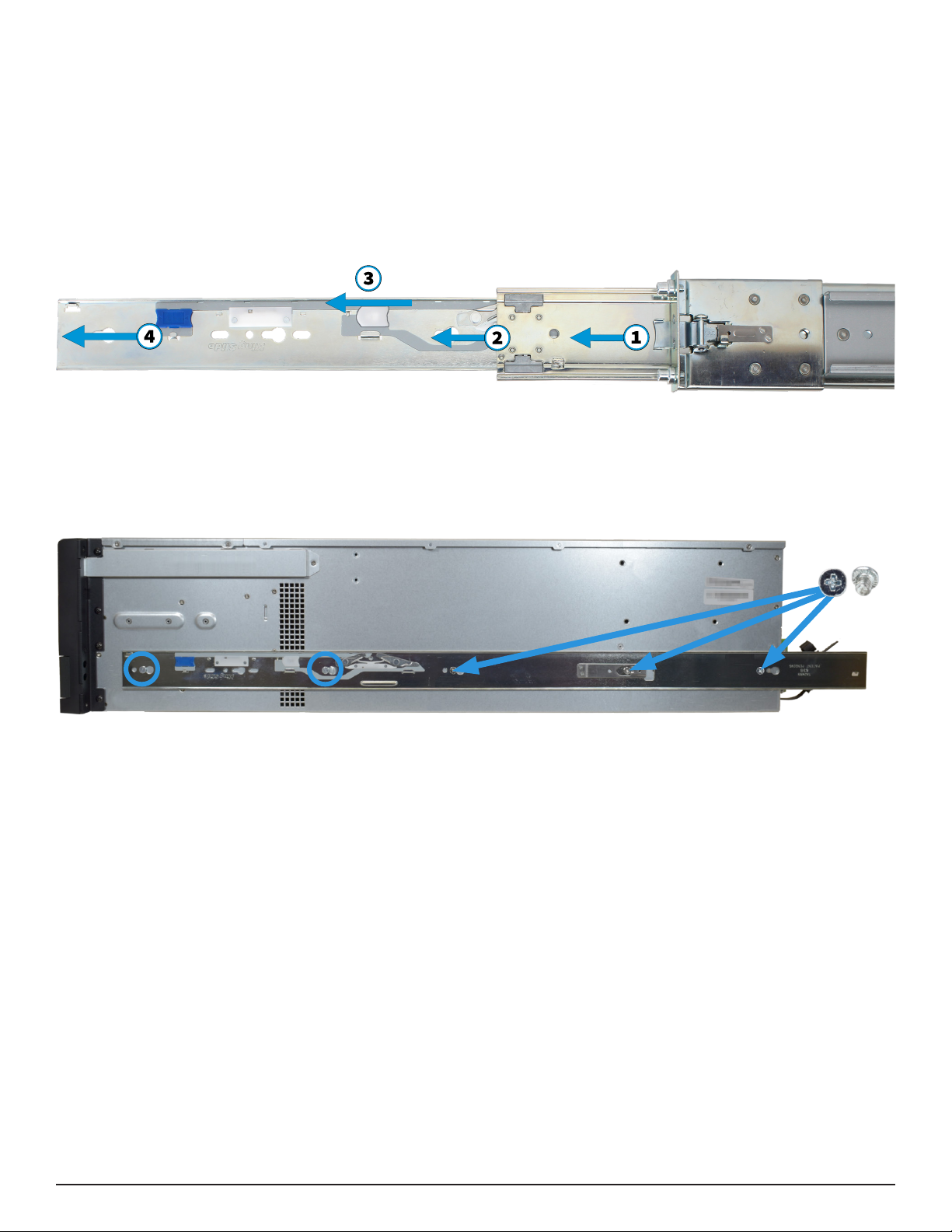

3.1 Install Chassis Rails

The M-Series requires 4U of space in an EIA-310 compliant rack that is 27” (686mm) deep, frame to frame.

The vertical rack posts must be between 26” (660�4mm) and 36” (914�4mm) apart to install the rails properly�

The chassis rails mount on each side of the system�

Place the chassis rail keyholes over the posts on the side of the chassis so the posts go through the keyholes, then

slide the rail towards the rear of the system until the metal tab clicks and secures the rail in place�

Secure the rail to the chassis using three low-proﬁle M4 screws. Repeat this process on the other side.

Extend the inner rack rail until it locks in place (1)� Slide out the chassis rail until it stops (2)� Remove the chassis rail

by sliding the white release tab away from the inner rack rail (3), then pull the chassis rail free (4)�

M4 Screws

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 6

Place the rail in the rack with the front end towards the front of the rack� Align the pins with the front rack mounting

holes� Push the pins into the holes until the latch clicks�

At the rear of the rail, align the pins with the rack holes. Swing the gray latch handle outwards and pull it to extend

the rail until the rail pins are fully seated in the rack holes� Release the latch to lock the rail in place�

Repeat the process for the second rack rail�

Front Rear

The rack rails install in the center of the bottom 2U of the total 4U of reserved rack space�

Unlock and retract the inner rack rail before installing it in the rack� Rotate the release lever on the back of the inner

rail as shown on the arrow label, then push the inner rail towards the back of the assembly until it stops.

3.2 Install Rack Rails

Ensure the rails are positioned in the middle of the bottom 2U of rack space� The pins that go through the rack

should be in the middle holes of each U�

Front Rear

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 7

3.3 Mount the System in the Rack

Extend both inner rack rails out from the rack until they lock. Align the chassis rails with the rack rails, then slide the

chassis rails in until they are fully seated�

When both chassis rails are secured in the rack rails, gently push the chassis until it stops half way in.

Slide the blue release tabs on both chassis rails towards the front of the system and push the unit into the rack�

To anchor the unit in the rack, insert a long M5 screw through the retention port on each ear. The screw hole is

behind a small door on each ear�

Screws

Warning

The M-Series requires two people to safely lift in and out of a rack� Do not install drives until after you mount the

M-Series in the rack� Remove all drives before taking the M-Series out of the rack�

Support: 855-473-7449 or 1-408-943-4100 Email: [email protected]

Page 8

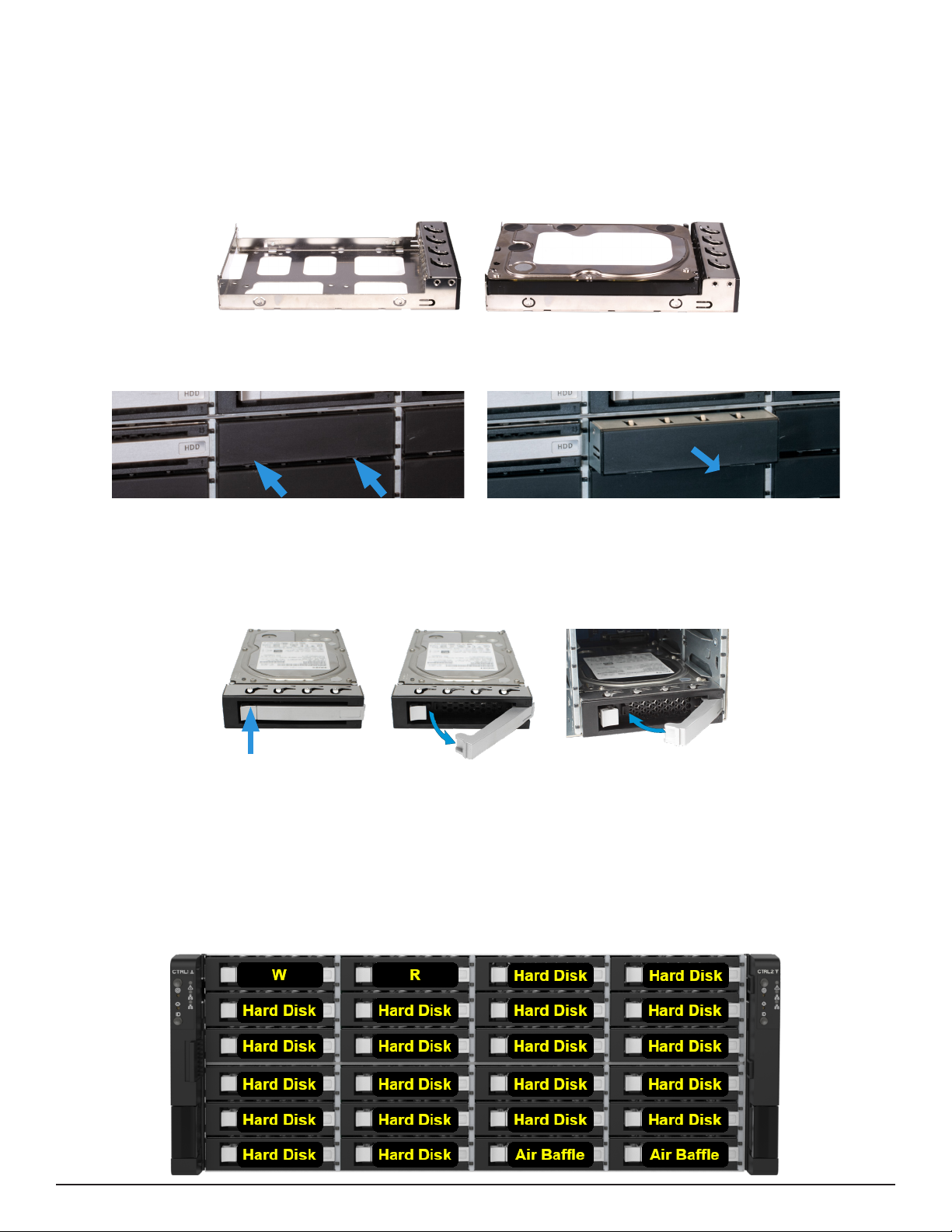

4 Install Drives

TrueNAS systems only support qualiﬁed HDDs and SSDs. Contact the Sales Team for more drives or replacements.

Adding unqualiﬁed drives to the system voids the warranty. Call Support if drives are improperly installed in trays.

Place a tray on a at surface. Mount a hard drive by aligning the drive connectors to the rear of the tray and pushing

the drive screw holes into the drive tray pegs�

Baes maintain proper air ow in systems with fewer than 24 drive trays. When installing a new drive, insert a at-

head screwdriver in the bae groove and gently pull to remove the bae.

Each drive bay in the chassis has two indicator lights to the right of the tray� The upper light is blue when the drive is

active or a hot spare� The lower light is solid red if a fault has occurred�

Press the silver button on the drive tray to open the latch� Carefully slide the tray into a drive bay until the right side

of the latch touches the metal front edge of the chassis, then gently swing the latch closed until it clicks into place.

We strongly recommend a standard drive tray installation order to simplify support:

• SSD drives for write cache (W), if present

• SSD drives for read cache (R), if present

• Hard drives or SSD drives for data storage

• Air bae ﬁller trays to ﬁll any remaining empty bays

Install the ﬁrst drive in the top left bay. Install the next drive to the right of the ﬁrst. Install remaining drives to the

right across the row. After a row is ﬁlled, move down to the next row and start again with the left bay.
