TrueNAS®Mini E and X
Out of Band Management
Version 1.1
Copyright © 2021 iXsystems, Inc. All rights reserved. All trademarks are the property of their respective owners.
Contents
1 Access the BIOS ............................................................................. 1
1.1 IPMI Options .................................................................................... 2
1.2 DHCP Address Conguration ................................................................ 3
1.3 Conguring a Static IP Address .............................................................. 4
2 Logging in to the IPMI Web Interface .................................................... 5
3 Contacting iXsystems ...................................................................... 6
Page 1
Out of Band Management enables remote control of the system. Administrative control options include powering
the system on and o, resetting the conguration, and viewing the system log. Before attempting to congure Tru-
eNAS for out-of-band management, ensure that the out-of-band management port is connected to an appropriate
network. Refer to the TrueNAS Mini Basic Setup Guide included with your TrueNAS Mini for detailed instructions on
how to connect to physical ports on the system.

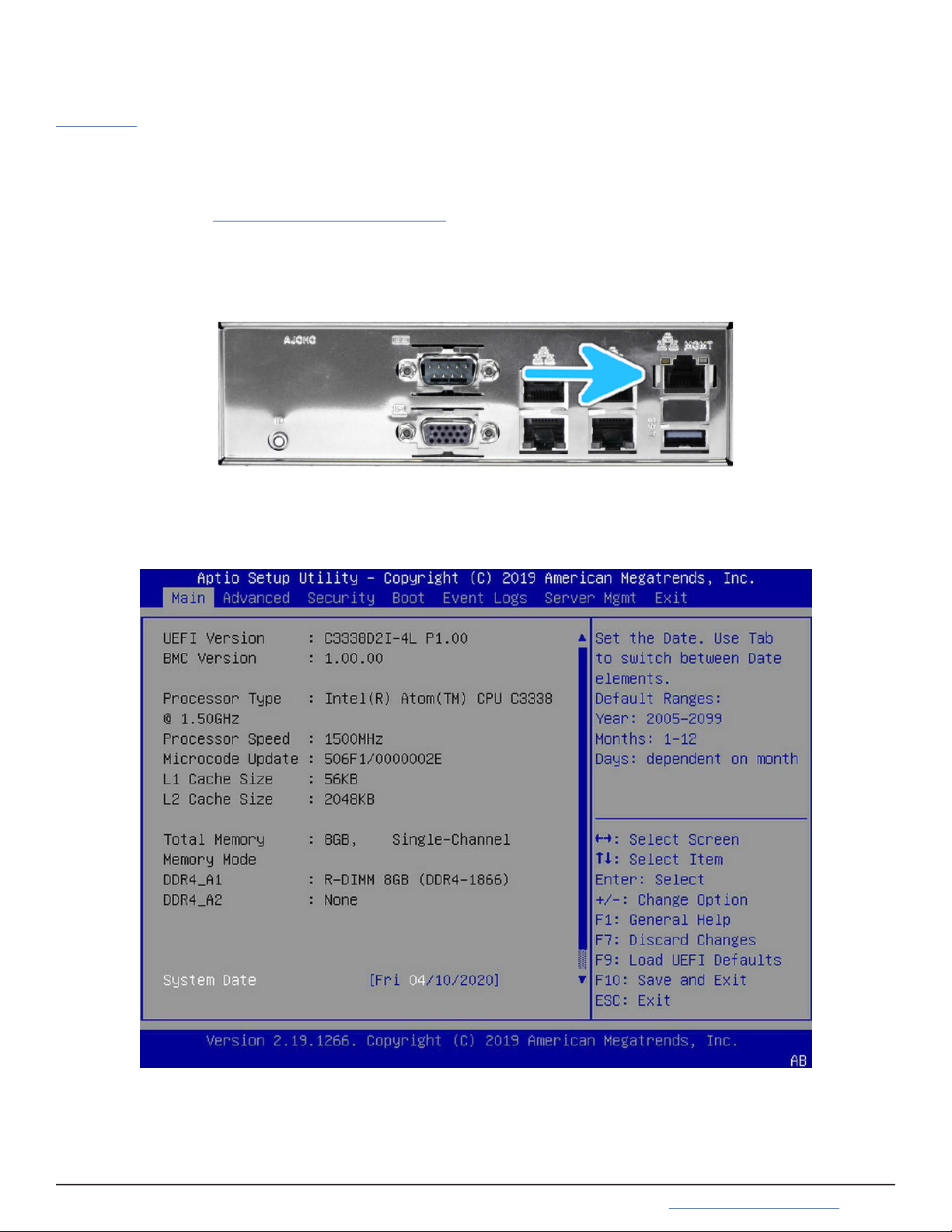

Connect the out-of-band management port before powering on the TrueNAS Mini. You might also need to connect
a monitor and keyboard to the system.
1 Access the BIOS
Press Delete at the splash screen while the TrueNAS Mini is booting to access the system BIOS.
This document contains instructions for conguring out-of-band management from the BIOS, if needed. When the
hardware supports IPMI, the TrueNAS web interface also has IPMI conguration options. For more details, see the
IPMI article on the TrueNAS Documentation Hub.
Page 2
1.1 IPMI Options
Select the Server Mgmt tab and open the BMC Network Conguration options.
Page 3
1.2 DHCP Address Conguration
Set Out of band Access to Enabled. Set the Manual setting IPMI to No to assign the out-of-band management IP
address dynamically. The menu shows any IP addresses that have been assigned by DHCP.
Page 4
1.3 Conguring a Static IP Address
Set Out of band Access to Enabled. Set the Manual setting IPMI to Yes to manually assign the out-of-band manage-
ment IP address. Enter the correct values for the Station IP address, Current subnet mask, and Current router
IP elds to assign a static IP address for out-of-band management. Be sure to completely ll all four octets for the
Station IP address.
Save the changes, exit the BIOS, and allow the system to boot.
Page 5
2 Logging in to the IPMI Web Interface
Connect to the TrueNAS Mini out-of-band management port by entering the IP address into a web browser from a
system that is either within the same network or which is directly wired to the array. A login prompt appears.
Log in using the default credentials:
• Username: ADMIN
• Password:
If no password sticker is located here, check the back
of the system. If the sticker on your unit has been
lost or damaged, contact the iXsystems Support Team.
Page 6
3 Contacting iXsystems
For assistance, please contact iXsystems Support:
Contact Method Contact Options
Web https://support.ixsystems.com
Email [email protected]
Telephone Monday-Friday, 6:00AM to 6:00PM Pacific Standard Time:
• US-only toll-free: 855-473-7449 option 2
• Local and international: 408-943-4100 option 2
Telephone Telephone After Hours (24x7 Gold Level Support only):
• US-only toll-free: 855-499-5131
• International: 408-878-3140
(International calling rates will apply)
