Troyka Med FE-100 MRI Manuel utilisateur

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

OPERATORS MANUAL

FE-100 MRI Fire Extinguisher

MRI CONDITIONAL

TO 3 T.0 TESLA

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

Introduction

Thank you or purchasing the FE-100 MRI Fire Extinguisher. This product is manufactured and tested

to the highest standards and is guaranteed MR Conditional up to 3 Tesla.

To ensure that you obtain maximum benefit from the FE-100 MRI Fire Extinguisher, please take a few

minutes to read the enclosed information regarding operation, service and maintenance. After

reading this manual, store it in a safe place for future reference.

If you have any problems in the meantime or would like any advice about this or any other MR

products from the Troyka Med range, please contact us at the following address

Troyka Med Inc.

Tel: +90 312 2650096

E-mail: info@troykamed.com

Website: www.troykamed.com

Protect from

direct sunlight

Protect from rain and

humidity

MRI conditional up to 3 Tesla

Read user manual

Manufacturer

ISO13485

ISO 9001

Class I medical devises

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

1 Safety Information

1.1 MRI Safety Definition for MRI as Defined by International Standards ASTM

F2503-13

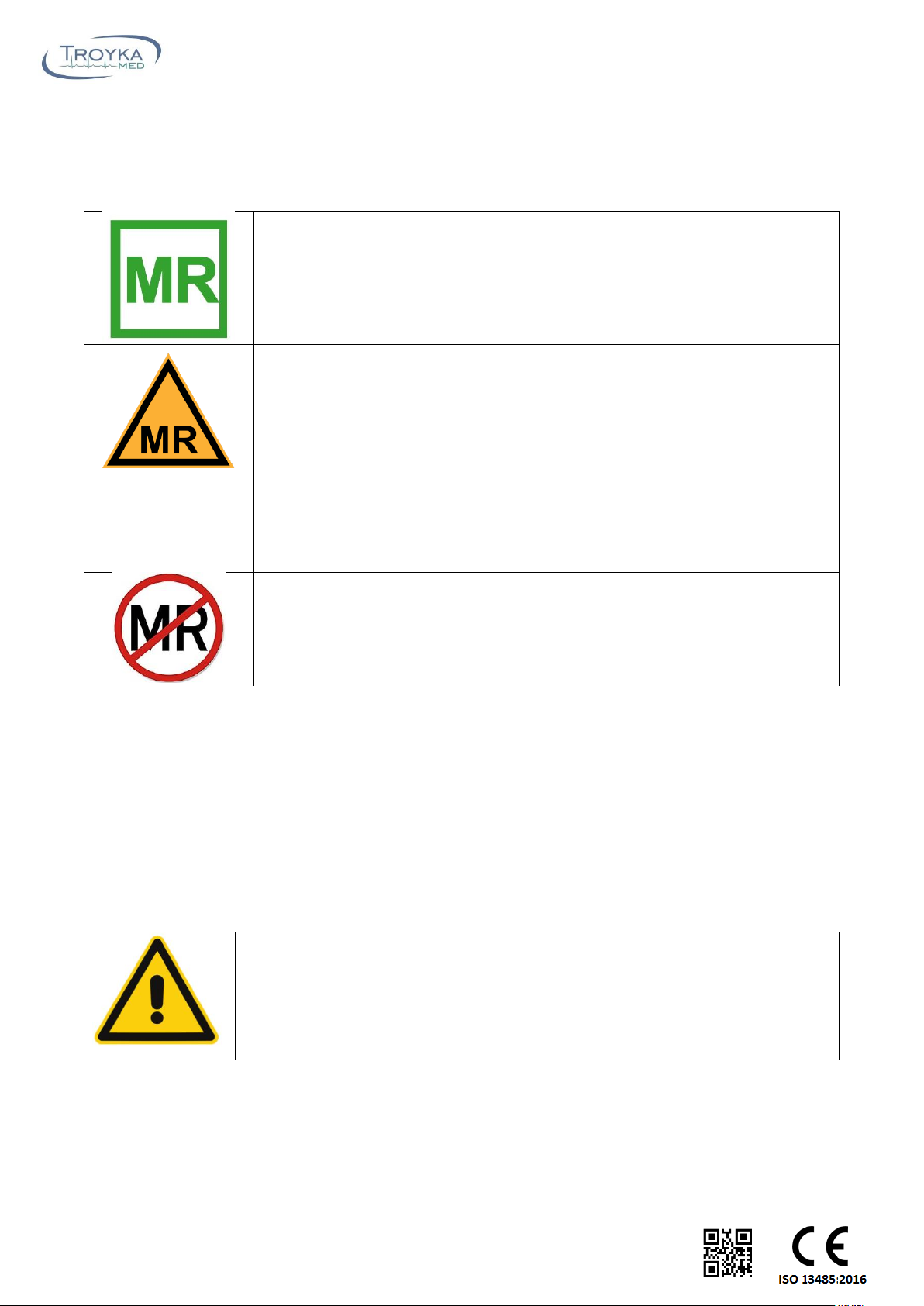

MR SAFE

An item that poses no known hazards resulting from exposure to any MR

environment MR SAFE items are composed of materials that are electrically

nonconductive, non-metallic, and nonmagnetic.

MR CONDITIONAL

An item with demonstrated safety in the MR environment within defined

conditions. At a minimum, address the conditions of the static magnetic

field, the switched gradient magnetic field and the radiofrequency fields.

Additional conditions, including specific conditions of the item, may be

required.

Supplementary marking –additional information that, in association with

marking as “MR CONDITIONAL” states via additional language the

conditions in which an item can be used safely within the MR environment.

MR UNSAFE

An item with poses unacceptable risks to the patient, medical staff or other

persons within the MR environment.

1.2 General Safety Information and Intended Use

It is required that as personnel handling the MRI fire extinguisher are familiar with the safety instructions

given in the manual and other documentation provided to ensure safe operation of the fire extinguisher and

associated equipment.

The system comes with a one-year warranty on all parts and labor, and a shelf life of two years starting from

the day of its original installation.

1.3 Health Concerns

Warning!

If any of the components become damaged, notify Troyka Med Inc. customer service

for assistance. Use of broken components can cause injury to the clinician or the

patient.

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

1.5 Warnings for MRI

Caution!

In addition, no persons with ferromagnetic prosthetic devices, such as pacemakers

or joints replacement, should enter the MRI suite at any time. Extreme, high

magnetic fields inside the magnetic room have the potential to dislodge items at

high velocities and can result in serious injury, or death.

Caution!

For questions regarding operating procedures or technical support, call Troyka Med

service team or contact via email at [email protected].

2 General Information

2.1. Inspection of Delivered Goods

Each of fire extinguisher has been thoroughly tested prior to delivery and is ready for immediate use.

Upon receipt, please report any transportation damage or missing accessories immediately. Troyka

Med can only accept liability for such damages if it is claimed prior to initial operation. In case of

transportation damage, please contact the Troyka Med service department. For faster support please

have ready all shipment details and damage description. It is recommended to keep and store the

original crate/box used to ship the fire extinguisher for all future transportation needs.

The fire extinguisher is sent empty because of the shipping regulations. You should bring it to the fire

extinguisher service where your normal fire extinguishers are filled. The fire extinguisher is CO2 type

and it should be filled with CO2.

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

3 System Overview and Installation Guide

3.1 Parts Included

Fire extinguisher tube with valve

Fire extinguisher hose

Table 1: MRI Fire Extinguisher list of components

3.2 System Overview

The FE-100 MRI Fire Extinguisher is designed to be MR conditional and is manufactured and tested to the

highest standards. The fire extinguisher is designed to be used with all MRI scanners up to 3 Tesla magnetic

field strength.

3.3 Technical Specification

Fire Extinguisher

Material

AA 6061 TL

Manufacturing Process

Cold Backward Extrusion

Water Capacity

Min. 5,0 Lt.

Body OD

140 mm

Total Height

600 mm

Torque

Min. 95 N/m Max. 110 N/m

Test Pressure

300 bar

Working Pressure at 60°C

200 bar

Burst Pressure

over 468 bar

Net Weight

7 kg

Certified according to Pressure Equipment Directive

99/36/EC

Designed in accordance with

EN 1975

Troyka Med Inc

IOSB Mah. 2284. Cad. No: 48 Yenimahalle Ankara TURKEY

Tel: +90 3122650096- info@troykamed.com –www.troykamed.com

MRI Fire Extinguisher Op. Man. Pub. 022018 Pub. No: 0 Rev:0

3.4 Using Instruction

1.The cylinder shall only be filled with compressed gases.

2.The cylinder shall be stored as upward position.

3.The storage area shall be protected against corrosion.

4.The threads shall be protected against any damage.

5.The cylinder shall not be over torqued during the assembly

of fitting valves.

6.The inner and outer surfaces of the cylinders shall be kept away

from oil, dust any other contamination.

7.During handling, the plastic nets shall not be removed over the

cylinders.

8.The cylinder shall not be dropped.

9.The cylinder shall be carefully handled during the transportation.
