Tronfy TP60 Plus Manuel utilisateur

TRONFY TP60+ PROJECTOR

CONTENTS

Range of Remote Control Signal Reception:.................................................................... 2

Description of The Projector’s Interface ......................................................................... 3

Keystone correction horizontal (±15°) ............................................................................ 4

How to use TRONFY TP60+............................................................................................ 4

FAQ.............................................................................................................................. 5

How to connect the projector with iPhone5/5s/6/6plus and iPad device: ..................... 5

What cable do I need to connect a laptop without HDMI port? .................................... 5

How to connect a laptop with projector with HDMI or VGA cable?............................... 6

What do I need to run this with video from my Android phone /Tablet?....................... 6

Can I use the projector with HDMI cable directly From a TV or PC?............................... 6

Can I connect the DVD player with AV Slot? ................................................................ 7

About the Projection Distance and Projection Size ...................................................... 7

How to change the Aspect Ratio:................................................................................ 8

How to set up the projector's color: ........................................................................... 9

The projector would have to rotate/Horizontal flip OFF as a whole 180 degrees ........... 9

Trouble Shooting ........................................................................................................ 10

How to reduce the noise of projector：.................................................................... 10

Over Temperature Protection: ................................................................................. 11

Dolby ......................................................................................................................... 11

Could the projector support the power point presentations?..................................... 11

How can I get a better movie experience? ................................................................ 11

No image and sound / Shuts off automatically .......................................................... 11

Have sound no image .............................................................................................. 12

Have image no sound .............................................................................................. 12

Daily maintenance of the projector .......................................................................... 12

TRONFY TP60+ PROJECTOR

Range of Remote Control Signal Reception:

The maximum effective remote control distance of the infrared remote control is 10M. In order

to ensure the sensitivity of infrared sensors, we recommend that the longest remote control

distance in about 7M.

The Remote Control Uses 2 x AAA 1.5v batteries (Not included)

Don’t use the new and old battery at the same time. Take out the batteries if no use for long time.

When operating the remote control, please make sure that the signal emission of the remote

control aims at the infrared receiving interface of projector.

TRONFY TP60+ PROJECTOR

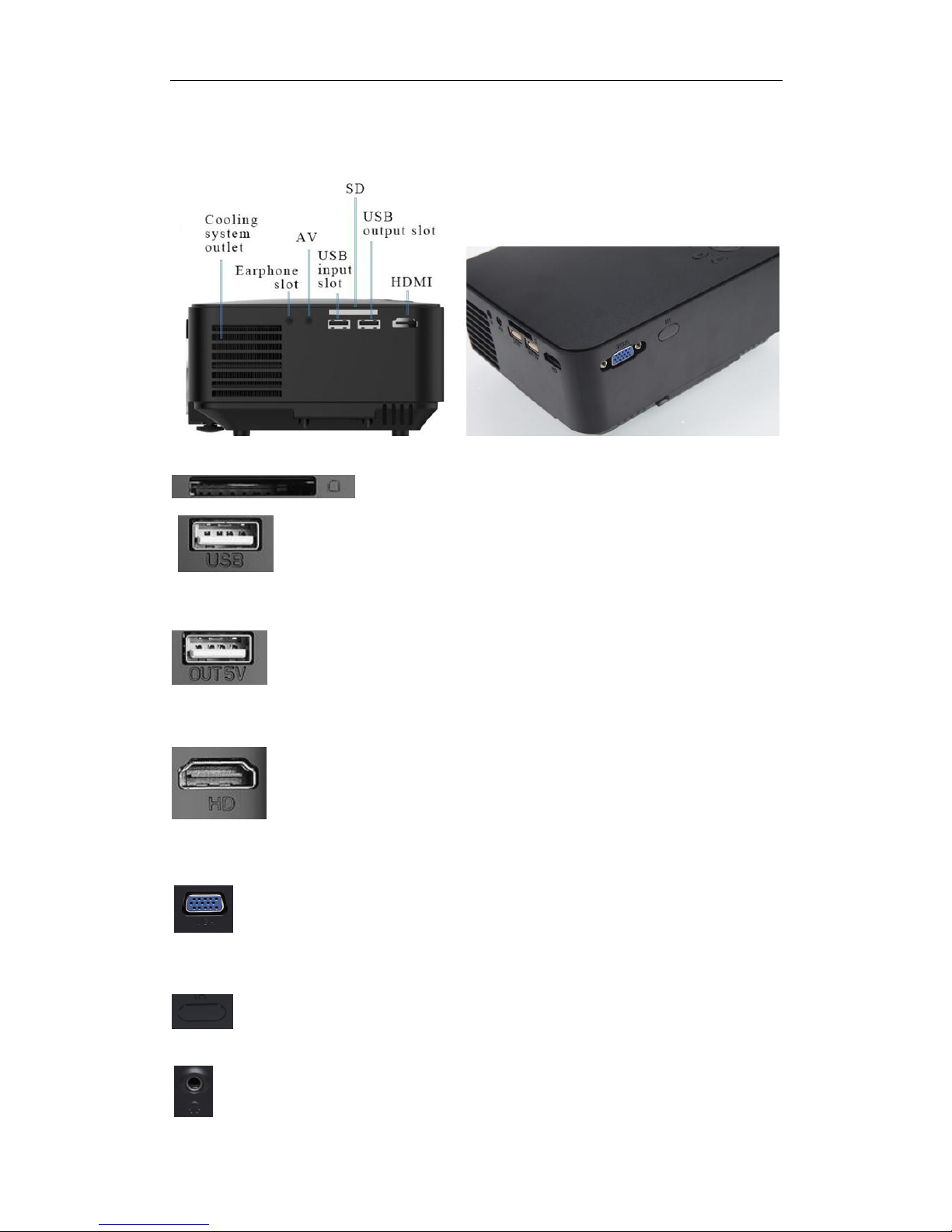

Description of The Projector’s Interface

SD Card Interface

USB 2.0 Slot:

Projector is only a device for projecting images. The USB port is only for U-Disk/Hard Disk Device

connecting, Not support reads the data from iPhone/iPad/Android Smartphones.

Out 5V Interface:

5V-Output USB for Mobile Tablet power supply. This means the usb output is only for power

supply.（NOT FOR iphone, iPad charging.）

HDMI Input Interface:

HD decoding: Support 1080P HD decoding, whether HD video, pictures, music, movie, e-books

can be played.

VGA Interface:

If you connect the projector with VGA Interface, there is a picture but no sound. Unless using a

VGA cable with audio.

The Signal Source of Remote Control:

Remote Control must be aligned to The Signal Source, which can control the projector.

Headphone jack:

TRONFY TP60+ PROJECTOR

Quiet enjoyment, you can connect a headphone via the 3.5mm headphone jack to avoid affecting

other people.

AV Interface:

For perfect sound, it is recommended to connect with an external speaker via the 3-In-1 audio&

video port, please choose good quality audio equipment.

Keystone correction horizontal (±15°)

How to use TRONFY TP60+

Image focus: place the projector vertical to the projection screen, and then turn the focusing ring

slightly, until the brilliant image presented.

TRONFY TP60+ PROJECTOR

FAQ

How to connect the projector with iPhone5/5s/6/6plus and iPad

device:

The projector can be connected with iPhone/iPad by HDMI input slot. You need to have a

Lightning Digital AV Adapter LOCALLY. (Picture for reference only)

1. Connect the HDMI TO HDMI Cable with Projector

2. Connect the HDMI to HDMI Cable with a Lightning Digital AV Adapter

3. Connect a Lightning Digital AV Adapter with your iPhone /ipad

What cable do I need to connect a laptop without HDMI port?

VGA!

TRONFY TP60+ PROJECTOR

How to connect a laptop with projector with HDMI or VGA cable?

If you connect the projector with VGA Interface, there is a picture but no sound. Unless using a

VGA cable with audio.

What do I need to run this with video from my Android phone

/Tablet?

You will need an HDMI cable with a micro connector to your phone and regular size HDMI end to

attach it to the projector. Make sure your Android phone is MHL ready, otherwise it won't work.

You need to order the HDMI to HDMI Cable and MHL Cable LOCALLY.

Can I use the projector with HDMI cable directly From a TV or PC?

All the projectors support HDMI-in input data. As long as ensure the output data of HDMI-out PC

and TV function. But in general, most of the PC and TV only have HDMI-in, no HDMI output data

TRONFY TP60+ PROJECTOR

output function. Please check if your television and PC have HDMI output function.

Notice for Connecting the PC with Projector:

The traditional desktop computer only have VGA interface, no HDMI. With VGA interface, you can

link computer and desktop through the VGA line, while there is only images no sound.

Can I connect the DVD player with AV Slot?

The projector has 3-in-1 AV-IN slot, supports AV-in input data, please make sure that the DVD has

AV-OUT data output function, because most of DVD players only support AV-IN, not AV-OUT.

PS：It is not recommended to connect devices through the AV port, which may cause image

distortion, lack of color, lost voice, etc… It will affect the projector’s performance.

When connection is completed, you should choose the Input Source: AV

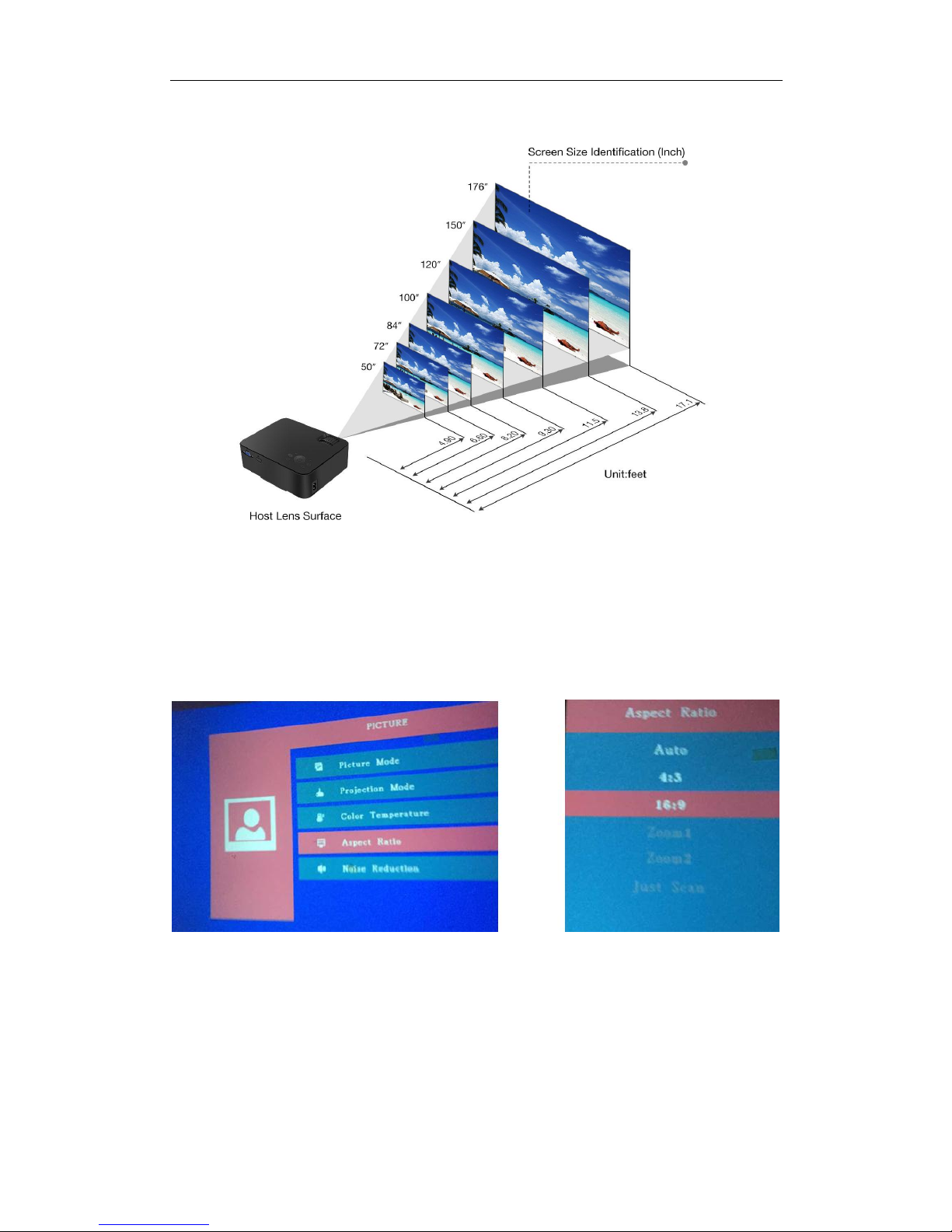

About the Projection Distance and Projection Size

Projection Distance: 4.9ft-17.1ft; Projection Size: 50”-176”. For Best Projection Distance:

6.6ft-8.2ft; Best Projection Size: 130”. Adjust the size of the image by changing the distance.

TRONFY TP60+ PROJECTOR

How to change the Aspect Ratio:

What’s about the 5V-OUT USB and the other USB:

Projector is only a device for projecting images, it only reads the data from USB drive directly via

the USB input slot. USB Output 5V for Mobile Tablet power supply. This means the USB output is

only for power supply. Not Supports iphone4/4S/5/5S/6/6 Plus/iPad power supply.

TRONFY TP60+ PROJECTOR

How to set up the projector's color:

Please try the following Step:

Turn on Projector, Click MENU –Color Temperature--- Click OK. There are four ways for you to

choose, you can click the left or right (Use remote) to choose.

At the end of the User Mode, You can adjust the color according as you like. You can add or

decrease the Number of the Red/Green/Blue to adjust the color.

The projector would have to rotate/Horizontal flip OFF as a whole

180 degrees

Please try the following Step:

Turn on Projector, Click MENU--- Click Projection Mode---Click OK

There are five ways for you to choose; you can click OK one more to choose.

TRONFY TP60+ PROJECTOR

How to Mount a Projector

Part 1 of 3: Think about the Screen Placement

1. Find the best location for the screen.

2. Consider your screen height.

3. Know your screen size.

Part 2 of 3: Think about the Projector Placement

1. Calculate your projector’s throw distance.

2. Determine the best throw distance for your projector.

3. Find out your projector’s vertical offset.

4. Calculate the vertical placement of your projector.

5. Determine horizontal lens shift.

Part 3 of 3: Mounting the Projector

1. Decide on the best mount to suit your projector and room.

2. Attach the mount.

3. Calculate the mount-to-lens distance and adjust throw distance accordingly.

4. Secure the projector.

5. Secure the cables.

6. Adjust the projector settings to fine tune the image.

When you complete all the steps, you can enjoy your Home theater life.

Notice:

When you use it, you should adjust the image 180 degrees flip first.

Trouble Shooting

How to reduce the noise of projector：

Usually, when the projectors works, the fan will make noise when cooling off the high

temperature. Please take a break after 3-4 hours of using to avoid overheating.
