Triumph Trophy Mode d'emploi

Alarm Fitting and Oper

struct

ions

Trophy

.Dayto

na.

Triden • Trid

ent

Spri t . Tiger

Alarm Fitting and

~perating

Instructions

Kit

Contents

Description Qty

Control

Box.

................ 1

LED Warning Lamp . . . . . . . . . . 1

M5 Self Tapping Screw . . . . . . . 1

M4 Nuts 4

Warning Label 2

Locknut M5 . . . . . . . . . . . . .. . . . 1

Fitting Ins

uctions

1. Unlock and remove the motorcycle seat. Remove the tool kit.

2. Disconnect the motorcycle battery, negative lead (black) first.

Description Qty

Speaker 1

Retaining Band 1

Pedestal 2

Flat Washers 2

Screw M5 1

3. On all except Tiger, remove the body side panels from the frame as follows:

a. Unbolt the grab rail (where fitted).

b. Remove the screws securing the side panels to the frame. The side panels are further retained by 4 "push

fit" bayonets on both sides which locate into grommets in the frame. To detach the side panels, support the

panels and gently pull each bayonet horizontally from its grommet.

On Tiger, remove the screws securing the seat end cap to the frame/body and remove the end cap.

Release the screws securing the right hand lower fairing panel to the fuel tank and cockpit. Remove the

panel.

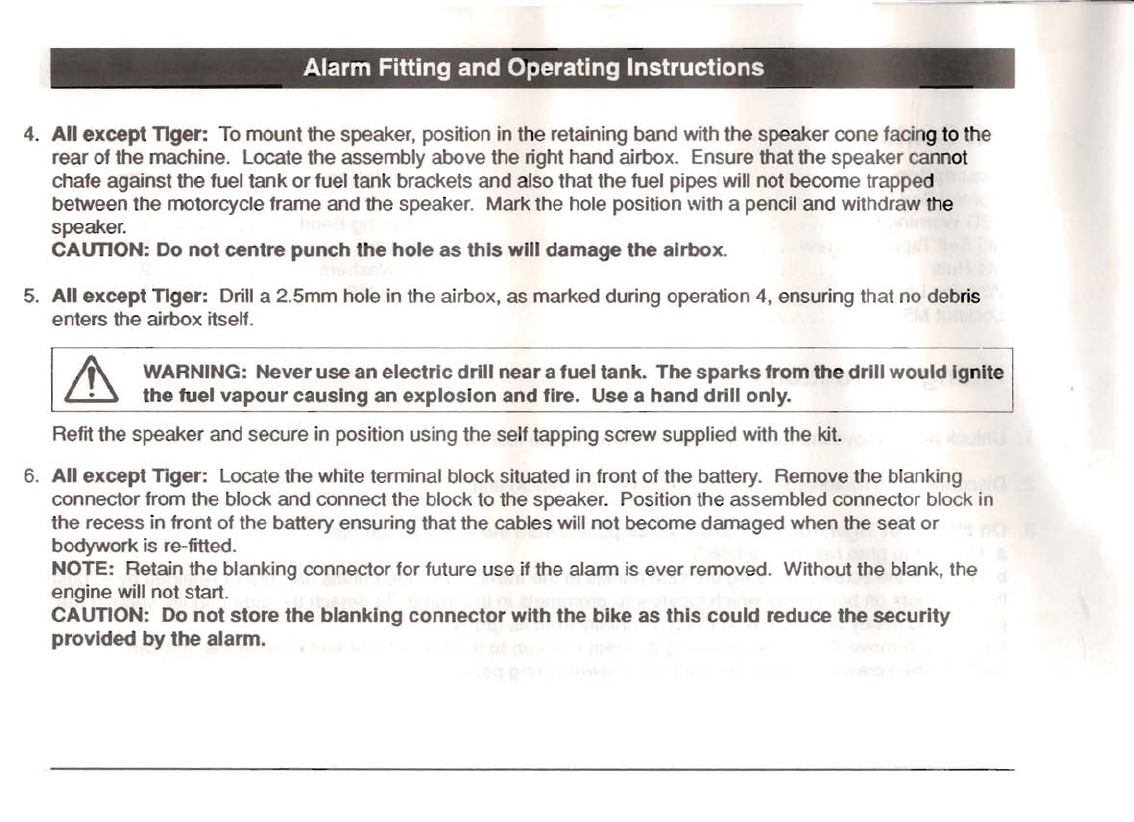

Alarm Fitting and Operating Instructions

All

except

Tiger:

To mount the speaker, position in the retaining band with the speaker cone facing to the

rear of the machine. Locate the assembly above the right hand airbox. Ensure that the speaker cannot

chafe against the fuel tank or fuel tank brackets and also that the fuel pipes will not become trapped

between the motorcycle frame and the speaker. Mark the hole position with a pencil and withdraw the

speaker.

CAUTION: Do

not

centre

punch

the

hole

this

JII

damage

the

alrbox.

All

except

Tiger:

Drill a 2.5mm hole in the airbox, as marked during operation 4, ensuring that no debris

enters the airbox itself.

If\.

WARNING:

Never

use

electric

drill

near

fuel

tank. The

sparks

from

the drJII

would

Ignite

the

fuel

vapour

causing

explos

ion

and

fire. Use a

hand

drill

only.

Refit the speaker and secure in position using the self tapping screw supplied with the kit.

All

except

Tiger:

Locate the white terminal block situated in front of the battery. Remove the blanking

connector from the block and connect the block to the speaker. Position the assembled connector block in

the recess in front of the battery ensuring that the cables will not become damaged when the seat or

bodywork is re-fitted.

NOTE: Retain the blanking connector for future use if the alarm is ever removed. Without the blank, the

engine will not start.

CAUTION: Do

not

store

the

blanking

connector

with

the

bike

this

could

reduce

the

security

provlded

the

alarm.

Speaker Fltment

(not Tiger)

Alarm Fitting and Operating Instructions .

Ensure

wiring

does

not

become trapped
