Triton Satellites CYRENE Manuel utilisateur

Installers please note these InstructIons are to be left wIth the user

2180529A September 2006

Installation

instructions

CYRENE

Fixed showerhead

kit

Part 2: Kit

CONTENTS Page

General installation notes 1

Main components 2

Installing the ceiling arm 3

Spare parts 5

Guarantee, etc. rear cover

To check the product suitability for commercial and multiple installations, please contact

Triton’s specification advisory service before installation.

Telephone: 0870 067 3767

Facsimile: 0870 067 3334

E mail: technical@tritonshowers.co.uk

The following notes are given as the

suggested steps for installing the Satellites

mixer shower and remote control:

1. Site survey

Determine the position of all parts of

the shower (kit, mixing unit and control)

before starting the installation.

2. Fit the mixing unit

3. Install the shower kit

Having determined the position of the

mixing unit install the shower kit.

4. Install the pipework and plumbing

Run the pipework from the mixing unit to

the shower kit outlet. Connect the inlet

pipework, outlet pipework and then the

outlet fittings.

5. Electrical connections

Connect the mixing unit to the electrical

supplies.

6. Register the remote control panel

unit.

7. Commission the unit

Commission the shower and select the

desired feature settings.

8. Fit the control panel to the wall

Install the remote control panel wall

mounting bracket within the showering

area. Fit the control panel onto the

bracket.

9. Operation

Operate the shower and set preferred

flow settings.

GENERAL INSTALLATION NOTES

A video detailing the installation of the

Satellites mixer shower can be seen at

www.tritonshowers.co.uk.

A DVD is also available on request.

Contact the Brochure request line for

details on

024 7632 4460

Fig.1 MAIN COMPONENTS

Cyrene ceiling arm kit (Fig.1)

1. Ceiling arm mounting plate

2. Olive

3. Locking nut

4. Ceiling trim

5. Ceiling arm

6. Emily fixed showerhead

7. Fixing screws and wall plugs

(not shown)

Instructions, guarantee, template etc.

INSTALLATION

IMPORTANT: Make sure all pipework

connections to and from the mixing unit

have been completed before connecting to

the outlet. Refer to ‘Part 3: Mixing unit for

details.

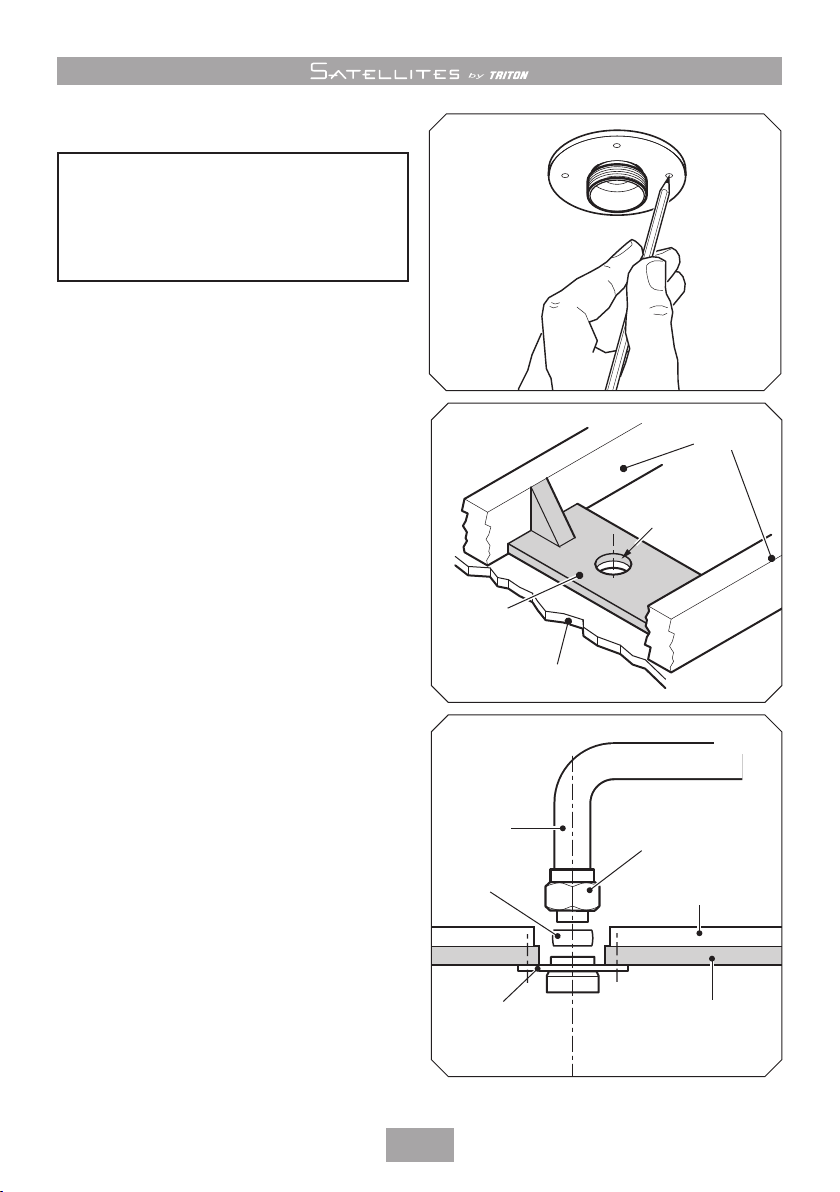

Decide the position for the ceiling arm on

the ceiling within the shower area.

Position the mounting plate on the ceiling.

Mark the centre hole and the four securing

holes on the ceiling (fig.2). Using a 26 mm

cutter, drill the ceiling opening.

Note: The installer may wish to consider

building a support (fig.3) or similar within

the loft space to provide extra support for

the ceiling arm and associated pipework.

Insert the mounting plate onto the opening

and secure using the screws supplied.

Plumbing connections

Complete the outlet pipework running from

the mixing unit into the top of the mounting

plate and finish the installation using an

olive and a 15 mm connector (fig.4).

IMPORTANT: Before completing the

connection of the water supply to the

ceiling arm flush out the pipework to

remove all swarf and system debris.

Joist

Plasterboard

Support

32 mm diameter

opening in support

Fig.3

WARNING!

The edges of the riser rail

are extremely sharp. Take

care when handling and

cutting the rails.

Fig.2

15 mm

incoming

pipework 15 mm connector

Olive

Mounting

plate

Support

Plasterboard

ceiling

Fig.4

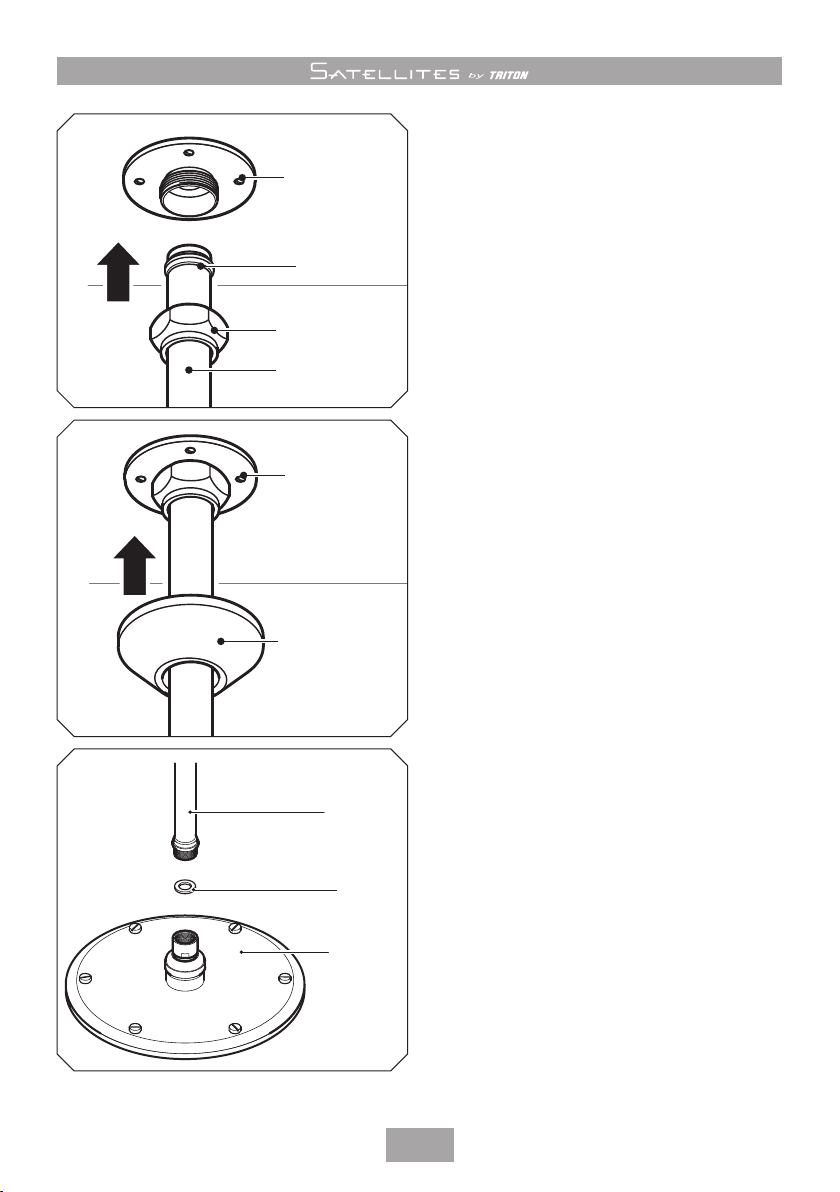

Fitting the ceiling arm

Wrap the exposed thread on the mounting

plate with PTFE tape.

Slide the locking nut and olive onto the

ceiling arm. Insert the ceiling arm into the

mounting plate and slide the olive up to the

plate base. Screw the locking nut onto the

mounting plate and tighten to secure the

ceiling arm in position (fig.5).

Slide the ceiling trim over the arm up to the

ceiling and push fit onto the mounting plate

(fig.6).

Screw the fixed showerhead to the arm,

making sure the supplied washer is in place

(fig.7).

Mounting

plate

Olive

Locking nut

Ceiling arm

Fig.5

)L[HGKHDG

&HLOLQJDUP

:DVKHU

Fig.7

Mounting

plate

Ceiling trim

Fig.6

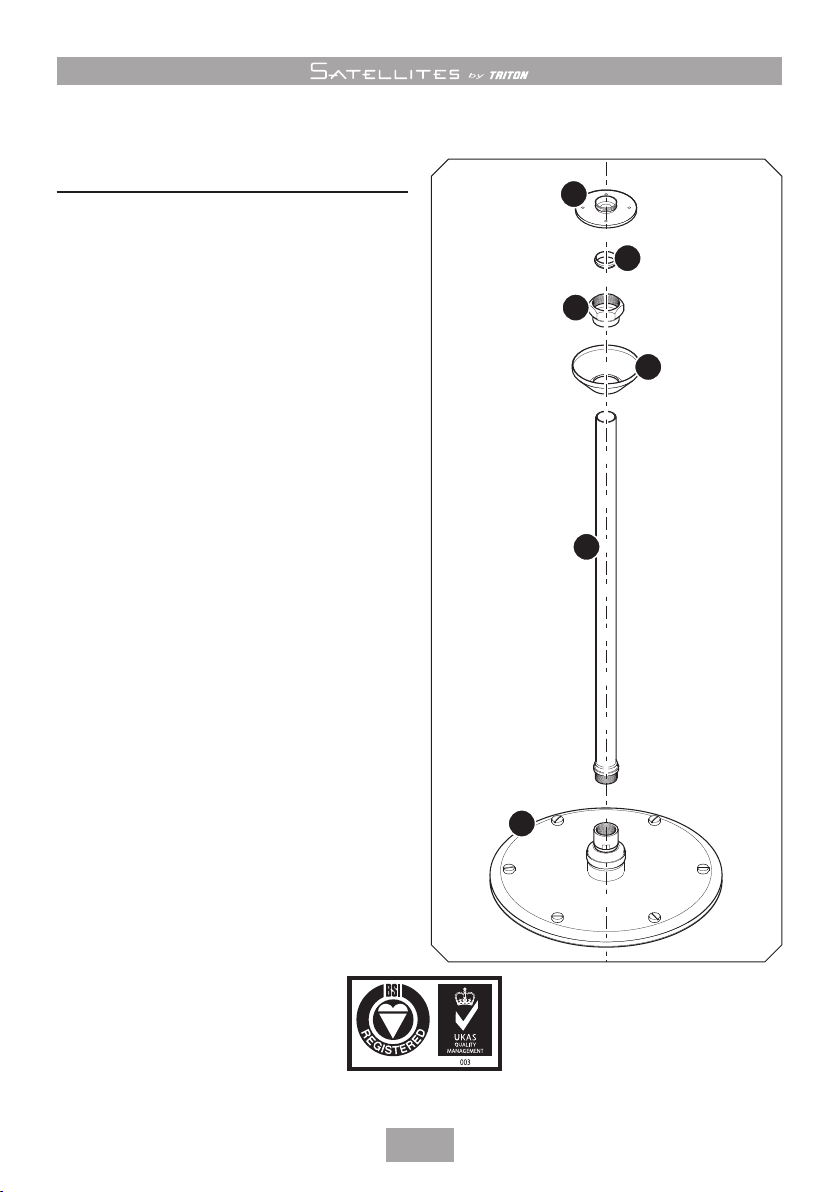

Ref. Description Part No.

1. Mounting plate 83310900

2. 19 mm olive 83310910

3. Locking nut 83310920

4. Ceiling trim 83310930

5. Ceiling arm 83310940

6. Emily fixed showerhead 88600006

SPARE PARTS

Triton Showers

Triton Road

Nuneaton

Warwickshire CV11 4NR

Triton is a division of Norcros Group (Holdings) Limited

Customer Service: % 0870 067 3333

Scottish and Northern Ireland

Customer Service: % 0845 762 6591

Trade Installer Hotline: % 0870 067 3767

Fax:

0870 067 3334

www.tritonshowers.co.uk

E mail: [email protected]

TRITON reserve the right to change product speciﬁcation without prior notice. E&OA. © TRITON SHOWERS 2008

TRITON STANDARD GUARANTEE

Triton guarantee this product against defects arising from faulty workmanship or materials for a period of

one year for domestic use only, from the date of purchase, provided that it has been installed by a competent

person in full accordance with the fitting instructions.

Any part found to be defective during this guarantee period we undertake to repair or replace at our option

without charge so long as it has been properly maintained and operated in accordance with the operating

instructions, and has not been subject to misuse or damage.

This product must not be taken apart, modified or repaired except by a person authorised by Triton.

This guarantee applies only to products installed within the United Kingdom and does not apply to products

used commercially. This guarantee does not affect your statutory rights.
