Tripp Lite NGI-U05E Manuel utilisateur

5-Port Unmanaged Industrial Gigabit

10/100/1000 Ethernet Switch with

EIP QoS, DIN or Wall-Mountable

Model: NGI-U05E

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Owner's Manual

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

Español 17 • Français 33 • Русский 49 • Deutsch 65

Package Contents

Product Features

• NGI-U05E 10/100/1000 Ethernet Switch with EIP QoS

• DIN Rail-Mounting Clip (Preinstalled)

• Wall-Mount Mask (Preinstalled)

• Owner’s Manual

• 5 auto-negotiable 10/100/1000 Mbps RJ45 ports

• Supports 10/100/1000Base-T, Full Duplex and auto MDI/

MDI-X crossover function

• Simple plug-and-play installation and operation with no

conguration required

• Rugged high-strength case

• Industrial temperature switch models support an operating

temperature range of -40°F to 167°F (-40°C to 75°C)

• Easy-to-read LEDs indicate connection and activity status for

each port

• Meets the following IEEE standards:

o IEEE 802.3 10Base-T

o IEEE 802.3u 100Base-T

o IEEE 802.3 Auto Negotiation

o IEEE 802.3x Flow Control

o IEEE 802.1p Class of Service

• Supports MAC address auto-learning and auto-aging

Optional Accessories

Product Features

• N001-Series Cat5e 350 MHz Snagless UTP Cables

• N002-Series Cat5e 350 MHz UTP Ethernet Cables

• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables

• N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet

Cables

• Preinstalled durable rail clip mounts rmly to any standard

35 mm DIN rail

• Pre-installed Wall mount mask (optional)

• Supports EIP/QoS/Flow and Storm Control

Product Overview

5-Port Unmanaged Industrial Fast 10/100/1000 Ethernet

Switch

Top View Front View

1000 Mbps

LNK/ACT

Grounding

Screw

Power

ATTENTION: The NGI-U05E is an open-type

device and shall be DIN-rail mounted or wall

mounted (optional) in a cabinet or rack enclosure.

The ambient temperature should not exceed

75°C (167°F).

Mounting the Switch

Place the switch on the DIN rail from above using the built-in

slot. Push the front of the switch toward the mounting surface

until it snaps into place. You will hear a “click” to indicate it has

successfully snapped into place.

DIN-Rail Mounting and Dismounting Instructions

Dismounting the Switch

Press the switch from the top, then pull out the lower edge of

the switch to remove it from the DIN rail.

Mounting the Switch Removing the Switch

Click

Push Push

Click

ATTENTION: A corrosion-free DIN mounting rail is

advisable. When mounting the switch, be sure to

allow enough space between devices to install the

cabling and to ensure proper airow.

Wall-Mounting Installation

1. Mount the switch by using mounting holes on the wall at the

appropriate places.

Mounting holes for

NFI-U05A

Mounting Holes for Drawing

of NGI-U05E Screw Installation Distance

50 mm

1.5 mm - 3 mm

50 mm

DIN-Rail Mounting and Dismounting Instructions

2. The switch can be wall mounted either vertically or

horizontally.

Grounding the Switch

Grounding and wire routing help limit the e󰀨ects of line noise

caused by electromagnetic interference (EMI). Run the ground

connection from the ground screw to the grounding surface,

then connect the ground connection from the terminal block to

the grounding surface prior to connecting devices.

ATTENTION: This switch is intended for mounting on a well-

grounded surface, such as a metal panel.

Horizontal Direction InstallationStraight Direction Installation

Mounting direction

with screw

Mounting direction

with screw

DIN-Rail Mounting and Dismounting Instructions

WARNING: Safety measures should be taken

before connecting the power cable. Turn o󰀨 the

power before connecting modules or wires. The

correct power supply voltage is listed on the product

label. Check the voltage of your power source to

make sure you are using the correct voltage. DO

NOT use a voltage greater than what is specied

on the product label. Calculate the maximum

possible current in each power wire and common

wire. Conrm all electrical codes dictating the

maximum current allowable for each wire size. If

current exceeds the maximum rating, the wiring

can overheat causing serious damage to your

equipment.

Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If

power wiring and device wiring paths must cross, make sure

the wires are perpendicular at the intersection point.

Note: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

dierent signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire

to determine which wires should be kept separate. Wiring

that shares similar electrical characteristics can be bundled

together.

• You should separate input wiring from output wiring.

Wiring Requirements

• Be advised that you should label the wiring to all devices in

the system.

Wiring Power Input

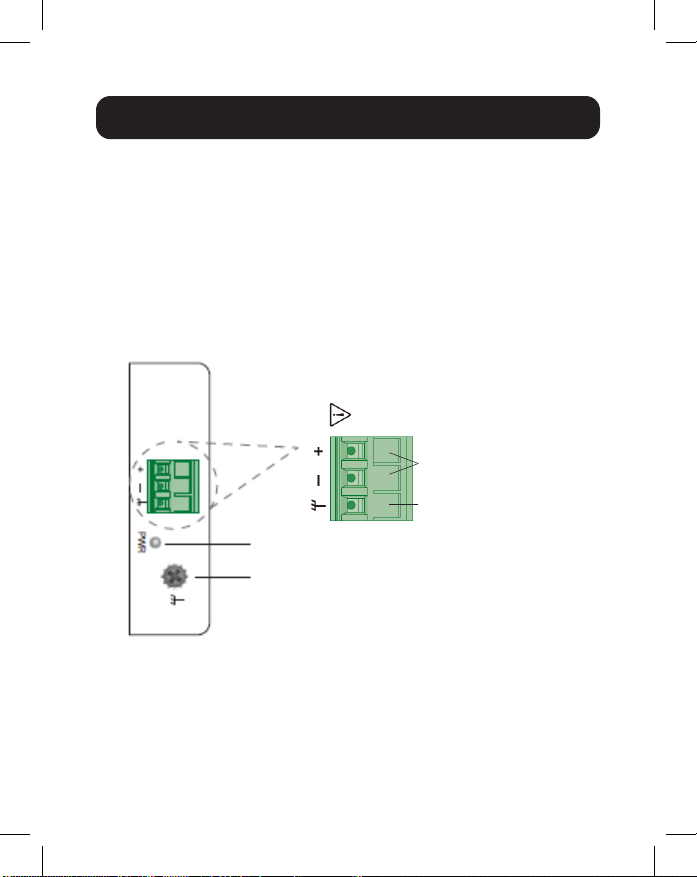

NGI-U05A with 3-Pin Terminal Block

Check the polarity while connecting. Top view of the Terminal

Block is shown in the gure below:

Power

12~48V DC

Grounding

Screw

Power Input Terminals

Grounding Terminals

12~48V DC
