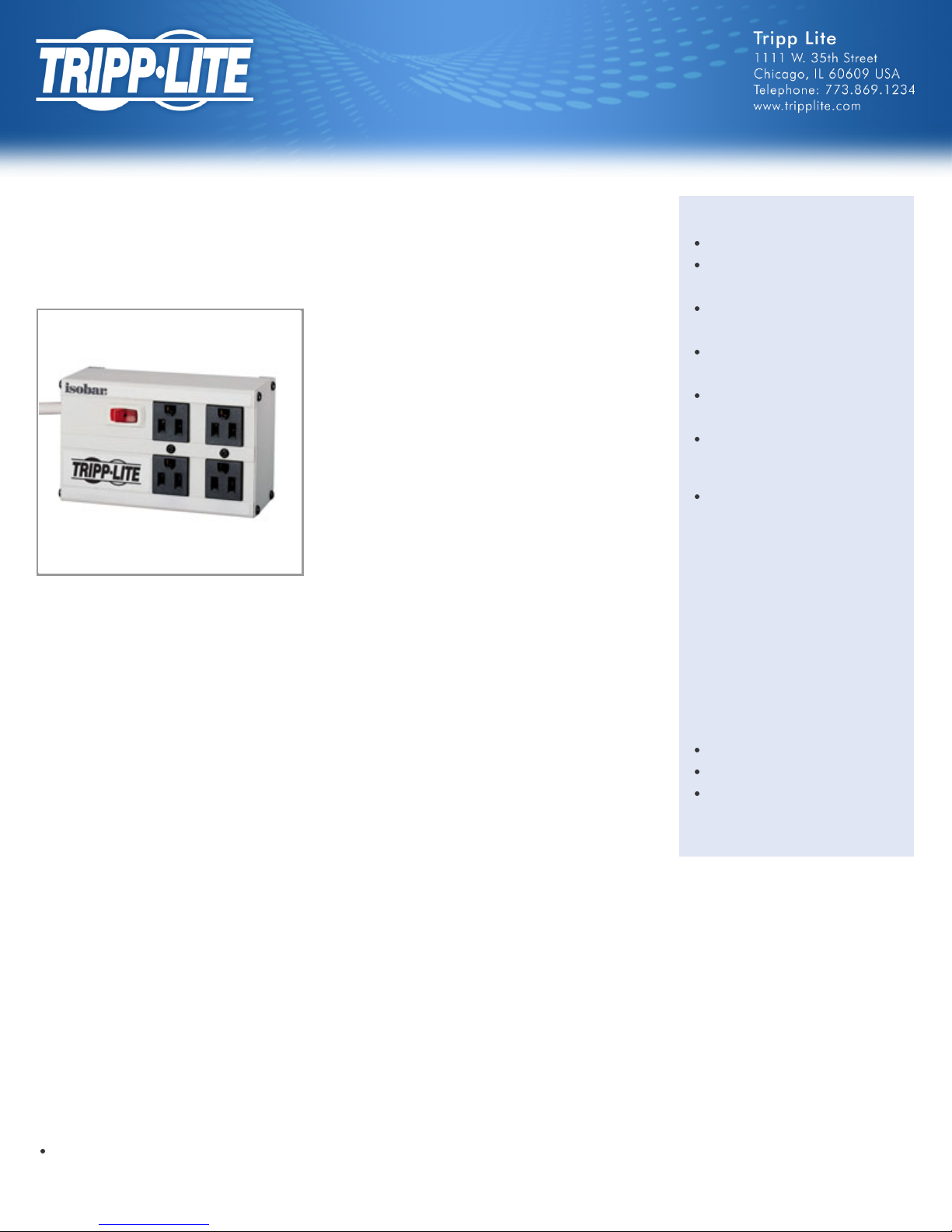

Tripp Lite IBAR4 Manuel utilisateur
4-Outlet Isobar Surge Protector with 6-ft cord and
All-Metal Housing
MODEL NUMBER: IBAR4
Description
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise
suppressors to protect sensitive computer, networking and telecom equipment. With more than 18 million
satisfied customers, the Isobar remains the world's #1 selling premium surge suppressor. Loaded with a
generous combination of high quality components, near indestructible all-metal case and unique noise filtration
system, the isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge
suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge
conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless
levels under 35 volts. Isobar's unique protection system combines large toroidal chokes, ferrite rod-core
inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that
remove EMI/RFI interference, even noise generated by other pieces of connected equipment. IBAR4 offers 4
outlets arranged in two filter banks to prevent system crashes, reboots and performance problems common as
noisy system peripherals are powered off and on. Surge suppression rated at 3330 joules / 85,000 amps offers network-grade protection. Widely spaced
NEMA5-15 outlets accommodate up to 2 large transformer plugs without blocking outlets. Includes 6 foot AC line cord with space-saving angled input plug and
keyhole mounting tabs.
PLUG / OUTLETS: Input: NEMA 5-15P / Output: 4 NEMA5-15R / 6 ft. AC line cord
ELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping / 3330 joules / 85,000 amps
FORMAT: Corded all-metal strip with transformer spaced outlets
Features
Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 18 million satisfied customers and a safety-tested history of 20+
years
Highlights
4 outlets/6-ft cord
3330 joule rating—more joules
mean more protection!
All-metal housing won’t crack,
burn or melt
Isolated filter banks remove
damaging line noise
$50,000 Insurance for connected
equipment (USA & Canada only)
Lifetime warranty
Applications
Ideal for premium protection of
personal computers with
peripherals, network and CAD /
CAM / CAE workstations,
internetworking accessories,
telecommunications systems,
point of sale equipment, audio /
video and home theater systems
in any home, office or industrial
application
Package Includes
IBAR4 Surge Suppressor
Set of 4 outlet safety covers
Instruction manual with warranty
information
1 / 4
years
Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and
reducing 6,000V test surges to harmless levels less than 35 volts.
Multi-component suppression circuits combine toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors
into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment.
4 outlets arranged in two filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on.
Network grade surge suppression rated at 3330 joules / 85,000 amps
Widely spaced outlets accommodate up to 2 large transformer plugs without blocking outlets
Lighted power switch with integrated 12 amp circuit breaker, offers power control & overload protection
6 foot AC line cord with space-saving angled input plug
Keyhole mounting tabs for installation in a variety of application
120V AC, 50/60Hz electrical compatibility
$50,000 Ultimate Lifetime Insurance (USA and Canada Only)
Specifications
OVERVIEW
Intended Application Home/Office, Computer Networks
OUTPUT
Frequency compatibility 50 / 60 Hz
Output watts 1440
Circuit Breaker (amps) 12
Outlet quantity / type 4 NEMA 5-15R
Transformer accommodation Supports up to 2 large transformer plug accessories without covering remaining outlets
INPUT
Nominal Input Voltage(s) Supported 120V AC
Recommended Electrical Service 120V (110-125V)
Input connection type NEMA 5-15P input plug
Input plug features Space-saving right angle input plug
Input cord length (ft.) 6
Input cord length (m) 1.83
Voltage compatibility (VAC) 120
Maximum Surge Amps 135000
UPC ASSIGNMENT
Unit Carton UPC# 037332010094
2 / 4
LEDS ALARMS & SWITCHES
Switches Combination AC circuit breaker & 2 position red illuminated on/off switch
SURGE / NOISE SUPPRESSION
AC suppression joule rating 3330
AC suppression response time NM = 0 ns. CM =
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS) 140
AC suppression surge current rating 85,000 amps (36,000 NM / 49,000 CM)
AC suppression components used Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing Prevents unsafe conditions during extreme extended overvoltages and catastrophic occurences
UL1449 let through rating 330V
IEEE587 Cat. A ringwave let through Less than 35 volts
EMI / RFI filtering 40-80 dB
Isolated filter banks Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to
prevent electrical noise interference between connected loads. Includes 2 filter banks.
Immunity Conforms to IEE 587 / ANSI C62.41
DATALINE SURGE SUPPRESSION
Cable (Coax) Protection No
Network (Ethernet) Protection No
PHYSICAL
Shipping Dimensions (HWD/in) 11.5 x 7 x 3
Shipping Dimensions (HWD/cm) 29.21 x 17.78 x 7.62
Shipping weight (lbs) 2.75
Shipping weight (kg) 1.25
Unit Dimensions (HWD/in) 2.5 x 6 x 3.5
Unit Dimensions (HWD/cm) 6.35 x 15.24 x 8.89
Unit weight (lbs) 1.88
Unit weight (kg) 0.85
Material of construction Metal
Integrated keyhole mounting tabs Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Housing Color Light Gray
Receptacle Color Black
AC line cord color Light Gray
3 / 4
Style Strip
Outlets center to center
measurement Distance between horizontal outlets = 39.45mm; Distance between vertical outlets = 39.30mm
Keyhole slot center to center
measurement Distance between horizontal outlets = 131.90mm; Distance between vertical outlets = 58.17mm
SPECIAL FEATURES
Appearance Rugged all-metal corded strip format with high quality duplex receptacles
Right-Angle Plug Yes
CERTIFICATIONS
UL1449 3rd Edition (AC
Suppression) Tested to UL1449 3rd Edition requirements by ETL
cUL / CSA (Canada) Approved for Canada by ETL
Approvals Exceeds IEEE 587 category A&B specifications
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico) $50,000 Ultimate Lifetime Insurance
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
4 / 4
