Tripp Lite PowerVerter APS512 Instructions d'installation et d'utilisation

Owner’s Manual

Addendum

IMPORTANT SAFETY INSTRUCTIONS.This addendum and the accompanying

manual contain information concerning the proper installation of Tripp Lite

equipment. SAVE THESE INSTRUCTIONS.

Hardwire AC Connection

Your PowerVerter is identical to the Inverter/Charger described in the accompanying owner’s manual with

the two exceptions (Hardwire Connection and Dip Switch Settings) described here.

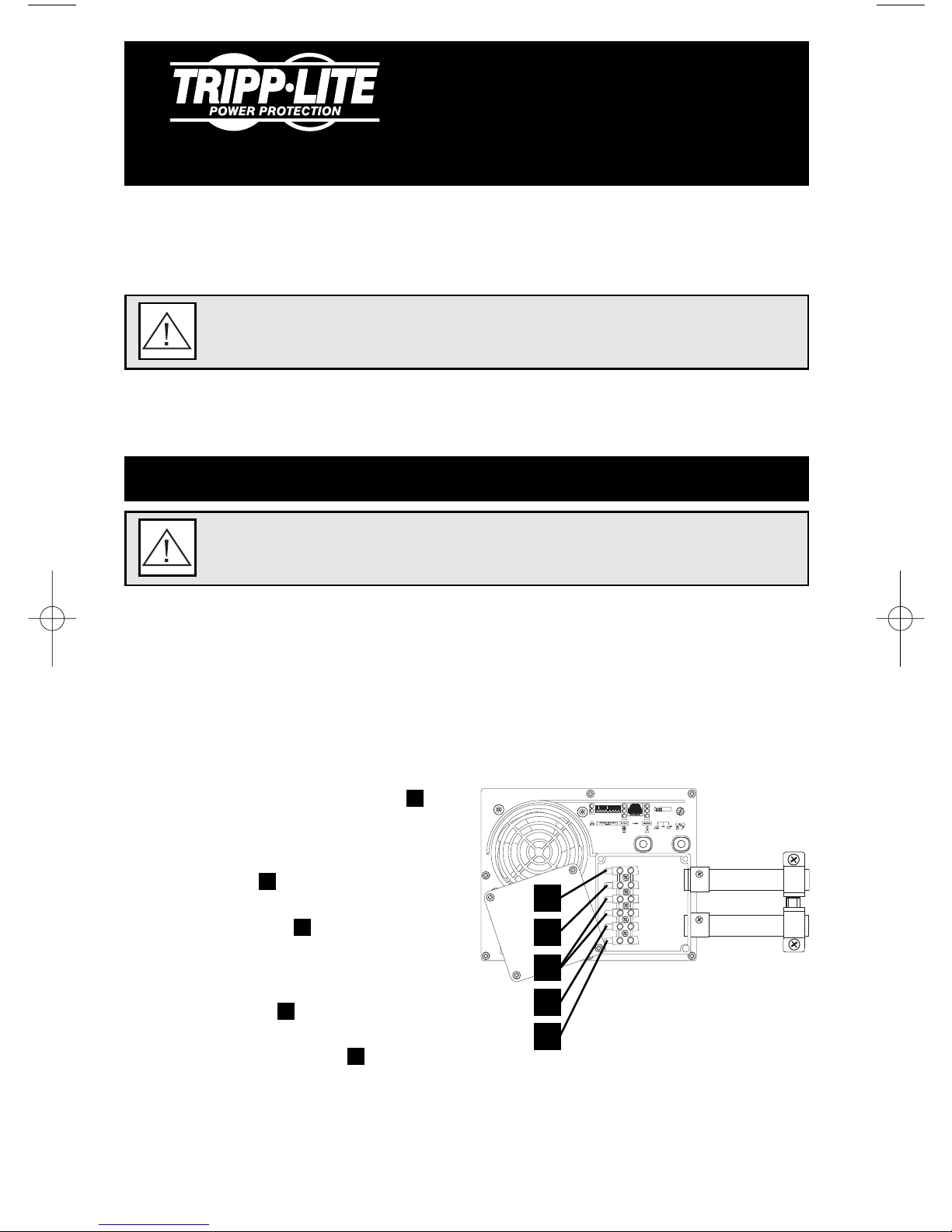

Connection for Models with Hardwire Terminals

Remove the screws and cover plate over the hardwire terminal box. Remove the knockout covers closest to

the desired electrical source and to your equipment. Attach ½" diameter conduits (user-supplied) to the

knockouts and thread wires through. Connect the conduits to each other with the ground bond connection

supplied.

Ground

• Connect the incoming and outgoing ground

wires to the GROUND (green) terminal.

AC Input

• Connect the incoming hot wire to the input hot

(brown) terminal.

• Connect the incoming neutral wire to the input

neutral (blue) terminal.

AC Output

• Connect the outgoing hot wire to the output

hot (black) terminal.

• Connect the outgoing neutral wire to the

output neutral (white) terminal.

Tighten and affix strain relief. Replace cover plate and tighten screws.

HOT IN

NEUTRAL IN

GROUND IN

GROUND OUT

HOT OUT

“FOR USE WITH COPPERWIRE ONLY”

NEUTRAL OUT

PowerVerter®Hardwired Electrical Connections

& Dip Switch Settings

Power Inverters (120V, 60 Hz)

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234

www.tripplite.com

Warning! Consult a qualified electrician and follow all applicable electrical

codes and requirements for hardwire connection. Disconnect DC input and

AC utility supply before attempting hardwiring.

200211057 PV Owner’s Manual Addendum.qxd 11/21/2002 1:57 PM Page 1

200211057

93-2105

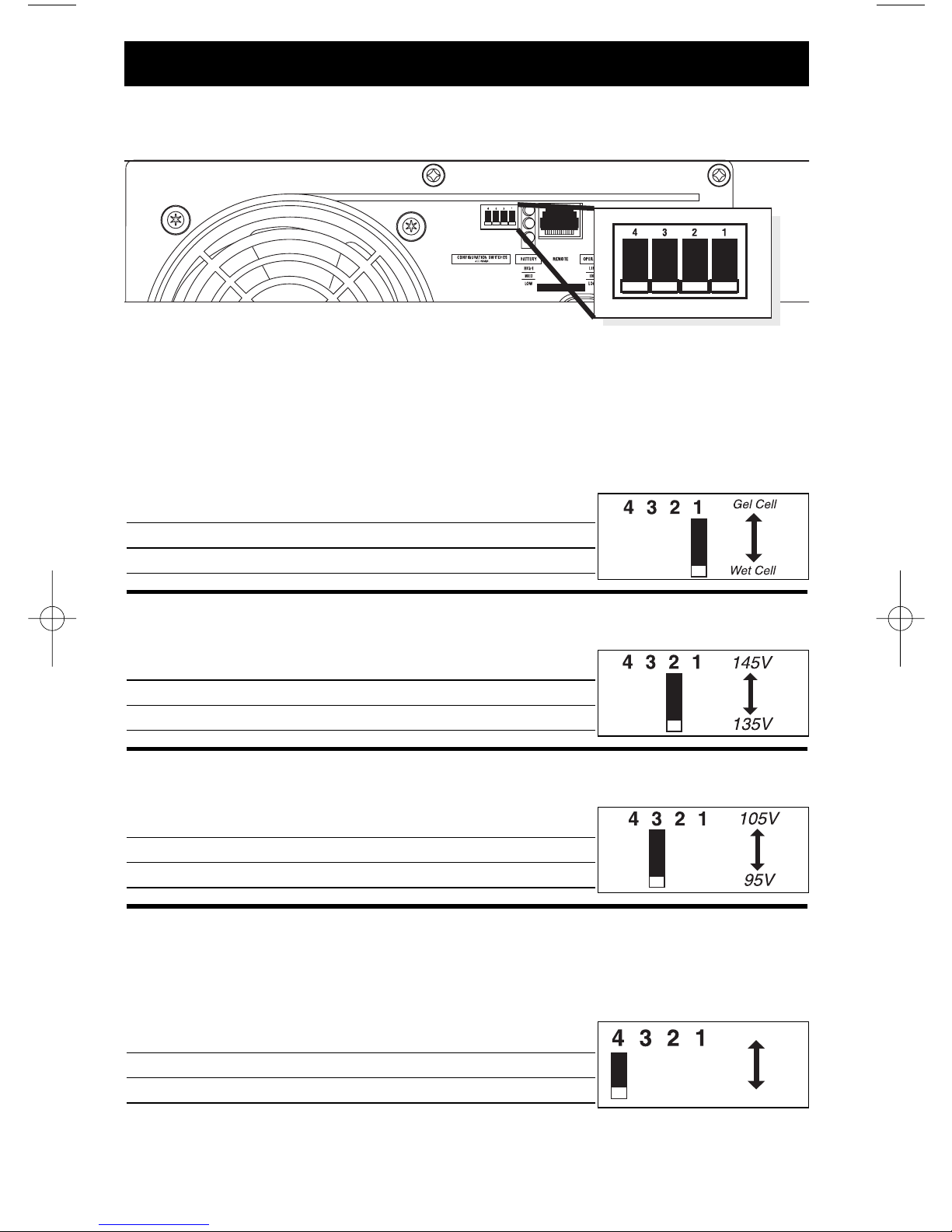

Dip Switch Settings

The Dip Switch settings described below replace the Dip Switch settings described in the accompanying

owner’s manual.

Using a small tool, configure your Inverter/Charger by setting the four DIP Switches (located on the front

panel of your unit; see diagram) as follows:

Select Battery Type—REQUIRED

(DIP Switch #1)

CAUTION: The Battery Type DIP Switch setting must match the type of batteries you connect, or your batteries may be degraded or damaged

over an extended period of time.

Battery Type Switch Position

Gel Cell (Sealed) Battery Up

Wet Cell (Vented) Battery Down (factory setting)

Select High AC Input Voltage Point for Switching to Battery—OPTIONAL

(DIP Switch #2)

Voltage Switch Position

145V Up

135V Down (factory setting)

Select Low AC Input Voltage Point for Switching to Battery—OPTIONAL

(DIP Switch #3)

Voltage Switch Position

105V Up

95V Down (factory setting)

Set Battery Charging Amps—OPTIONAL

(DIP Switch #4)

By setting on high charging, your batteries will charge at maximum speed. When setting on low charging,

you lengthen the life of your batteries (especially smaller ones).

Battery Charger Switch Position

High Charge Amp Up

Low Charge Amp Down (factory setting)

High Charge Am

Low Charge Amp

INPUT C/B 10A OUTPUT C/B 12A

200211057 PV Owner’s Manual Addendum.qxd 11/21/2002 1:57 PM Page 2
