Tripp Lite P909-18I-BL Manuel utilisateur

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

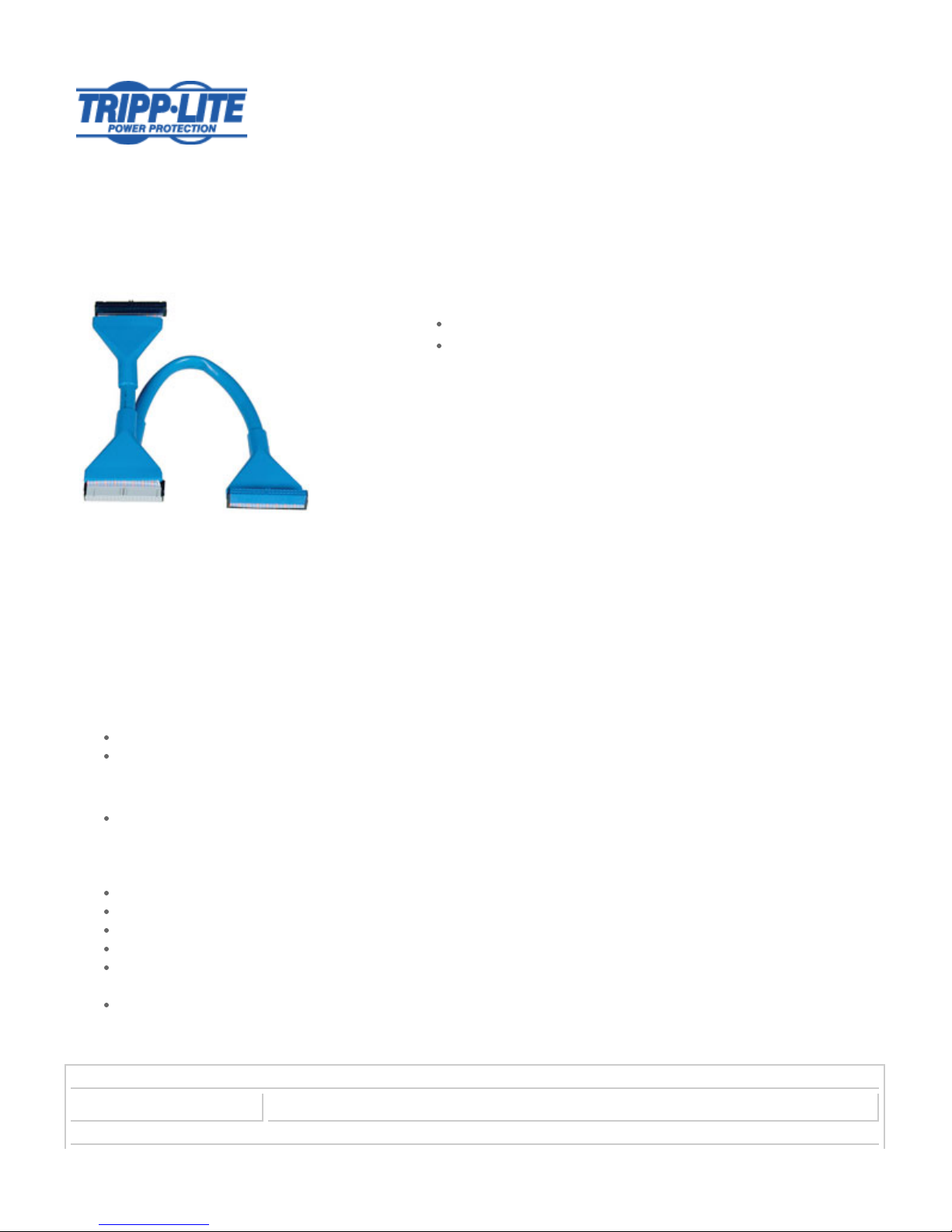

Model #: P909-18I-BL

18-inch Internal Dual Ultra 33/66/100 ATA/DMA EIDE Round Ribbon Cable, (3Conn 40P) - Blue

Highlights

Ideal for 1U servers and gaming/overclocked systems

Supports Ultra66/100/133 drives

Description

Tripp Lite's Round, enhanced IDE (EIDE) ribbon cable connects up to two internal IDE hard drives to a controller card. This internal dual Ultra

DMA/ATA ribbon supports UDMA/33, ATA/66 and ATA/100. This 18-inch cable is constructed with 80 conductor ribbon and contains three 40pin

socket connectors (one for the controller card and the other two for drives). Round cables reduce overheating and saves internal space within the

CPU unit for easy movement when adding or removing hard drives, PCI cards or other adapters. Tripp Lite warrants this product to be free from

defects in materials and workmanship for life.

System Requirements

EIDE device drive

EIDE controller channel with Pin 20 blocked

Package Includes

18-in. Int Dual Ultra 33/66/100 ATA/DMA EIDE Round Ribbon Cable 3Conn 40P, Blue

Features

Connects up to two internal IDE hard drives to a controller card

80 conductor cable

Supports UDMA/33, ATA/66, ATA/100, and Ultra ATA/133

Cable contains three 40pin socket connectors (one for the controller card and the other two for drives)

NOTE: pin 20 on the controller side is blocked so this is not a generic EIDE cable solution. controllers must be missing pin 20 to attach to

this cable

Connector Layout: Blue connector: System, Gray connector: Slave connector, Black connector: Master

Specifications

OVERVIEW

Intended Application Connecting Peripherals

INPUT

Cable Length (in.) 18

PHYSICAL

Color Blue

Style Ribbon & Internal Cables

CONNECTIONS

Connector A 40 POS. SOCKET (FEMALE)

Connector B 40 POS. SOCKET (FEMALE)

Number of Connectors 3

CPU Connector 1 40 POS. SOCKET (FEMALE)

WARRANTY

Product Warranty Period

(Worldwide)

Lifetime limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Power Cables P920-006 6-inch Internal Power Y Splitter Dual Drive Cable

(4Pin Male to 2x 4Pin SOK)

Ribbon Cables P906-18I 18-inch Internal Dual Ultra 33/66/100 ATA/DMA EIDE Ribbon Cable,

(3Conn 40P)

Ribbon Cables P906-24I 24-inch Internal Dual Ultra 33/66/100 ATA/DMA EIDE Ribbon Cable,

(3Conn 40P)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=2981.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
