Tripp Lite N520-01M Manuel utilisateur

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: N520-01M

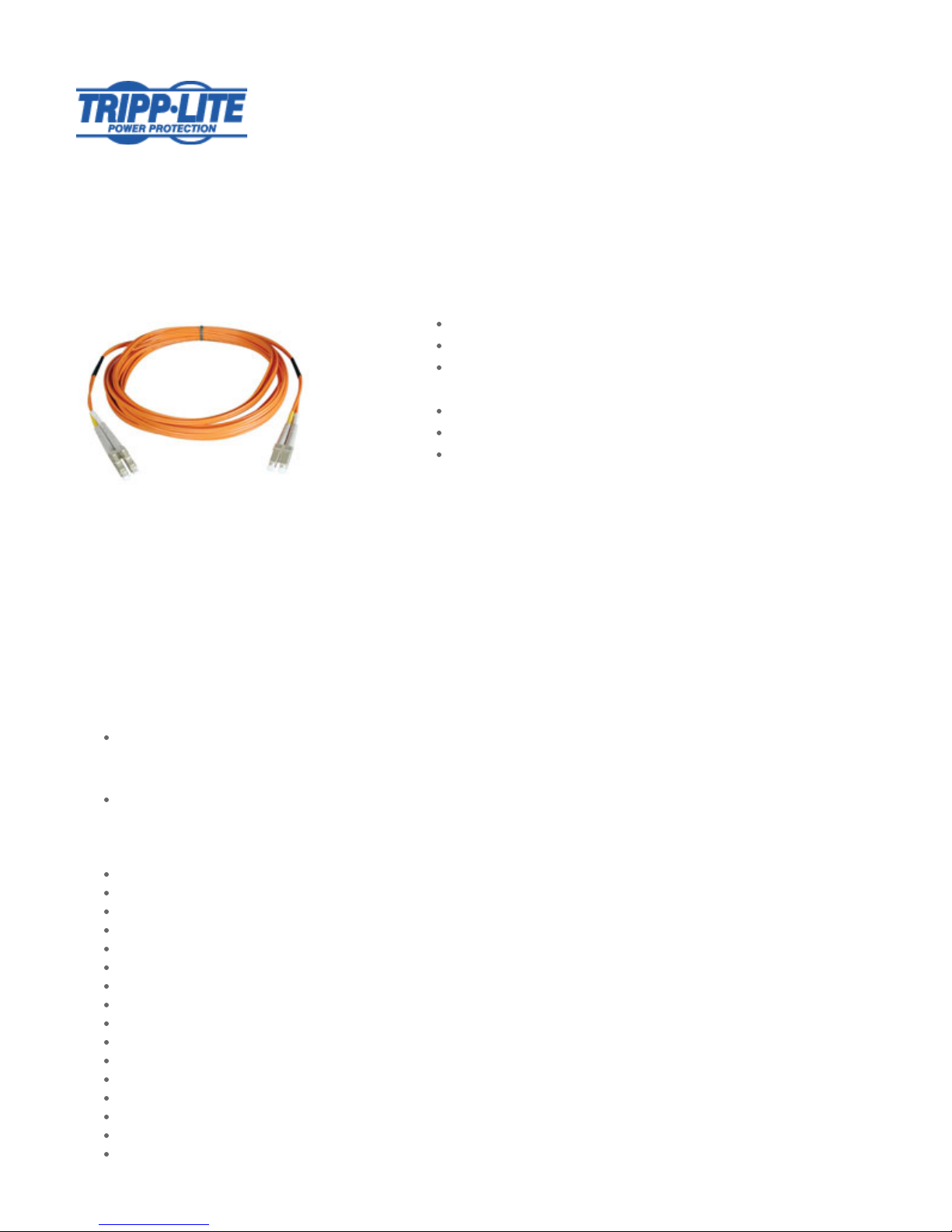

1M (3-ft.) Duplex MMF 50/125 Patch Cable (LC/LC)

Highlights

Premium PVC multimode patch cables

Attenuation loss meets or exceeds the latest industry standards

Loop-back cables provide an easier, "single-person" solution for testing fiber

optic cable systems

Higher bandwidth optimized for gigabit and 10Gbps networks

Backward compatible with 62.5 micron fiber

Built-in headroom for future applications

Description

Tripp Lite's 1-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC

connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel

applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher

bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring

up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors

Package Includes

1M duplex MMF cable LC/LC 50/125 fiber

Features

Constructed with 50/125 micron cable

Length: 1-meter

Use on fiber and fibre channel installations

LC male to LC male connectors

Higher bandwidth optimized for gigabit and 10Gbps networks

Backward compatible with 62.5 micron fiber

Built-in headroom for future applications

Number of fibers: 2

Fiber type: All glass graded index

Core diameter: Two 50+/-3 microns

CLAD diameter: 125+/-2 microns

Primary coating diameter: 245+/-15 microns

Primary coating material: Acrylate

Secondary coating diameter: 900+/-50 microns

Secondary coating material: PVC

Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum

Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum

Numerical aperture: .275 nominal

Proof test level: 100,000 PSI

Insertion loss testing performed on every connector (0.2db typical) and provided with cable

Beveled edge on ends of glass makes insertion of plug a breeze

Specifications

OVERVIEW

Attenuation @ 850NM 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum

Bandwidth @ 850NM 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum

Clad Diameter 125+/-2 microns

Core Diameter Two 50+/-3 microns

Fiber Type All glass graded index

Number of Fibers 2

Numerical Aperture .275 nominal

Primary Coating Diameter 245+/-15 microns

Primary Coating Material Acrylate

Proof Test Level 100,000 PSI

Secondary Coating Diameter 900+/-50 microns

Secondary Coating Material PVC

Intended Application Computer Networking (Fiber)

INPUT

Cable Length (m) 1

PHYSICAL

Color Orange

Style Fiber Optic

CONNECTIONS

Connector A

Connector B

Number of Connectors 4

CERTIFICATIONS

Certifications ROHS

WARRANTY

Product Warranty Period

(Worldwide)

Lifetime limited warranty

Related Items

Optional Products

Product Type Related Model Description Qty.

Fiber Optic Cables &

Adapters

N506-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable

(SC/SC)

Fiber Optic Cables &

Adapters

N516-01M 1M (3-ft.) Duplex MMF 50/125 Patch Cable

(LC/SC)

Fiber Optic Cables &

Adapters

N520-02M 2M (6-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-03M 3M (10-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-05M 5M (16-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-10M 10M (33-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-15M 15M (50-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-30M 30M (100-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

Fiber Optic Cables &

Adapters

N520-50M 50M (164-ft.) Duplex MMF 50/125 Patch Cable

(LC/LC)

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=2611.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
