Tripp Lite USA-19HS Manuel utilisateur

Table of Contents

•

Introduction

•

Capabilities

•

Installation Instructions

•

Configuring Your Serial Device

•

Keyspan Serial Assistant

•

Problem Solving

•

Appendices

•

Frequently Asked Questions (FAQs)

•

Compatibility List for Mac OS

•

Configuration Examples for Mac OS

•

Serial Port Pin Outs

•

TX Ack Advance

•Notices

•

Keyspan Warranty Information

Note:

This documentation applies to Keyspan's USB Serial Adapter

Software for Mac OS 8.6 - 9.x and covers the features and use of this

software on that platform. For Mac OS X information and instructions,

please read the

Keyspan USB Serial Software for Mac OS X

User Manual

or visit Keyspan's web page

<http://www.keyspan.com>.

User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 1

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

USB Serial Adapter

for MAC OS 8.6 - 9.x

(Software v 2.2)

Model: USA-19HS

1.1 - Introduction

Looking for a way to connect a graphics tablet, modem, GPS receiver, or Palm Organizer to your

USB equipped Macintosh computer? The

Keyspan

USB Serial Adapter

is a simple,

inexpensive, and reliable way to make the connection.

The Adapter plugs into any USB port on your Mac. It provides one DB9 serial port which can be

used to connect your Dt.

Up to 8 Keyspan USB Serial Adapters may be installed on one CPU if desired.

Requirements

The

Keyspan USB Serial Adapter Software for Mac OS

requires the following:

•

Macintosh

•

At least one available USB port

• Mac OS 8.6 - 9.x

Contents

The

Keyspan USB Serial Adapter

package includes:

•

Keyspan USB Serial Adapter (USA-19H)

• USB cable

•

Mac and Windows compatible CD with software and user manual

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 2

2.1 - Capabilities

The Keyspan USB Serial Adapter provides

one male DB9 serial port

which supports

RS-

232

asynchronous communications at

data rates up to 230 Kbps

. Please read our

Compatibility List for Mac OS

for a list of serial devices that have been tested with the Keyspan

USB Serial Adapter.

AppleTalk (LocalTalk) and Geoport are not supported on the Keyspan USB Serial Adapter's port.

Please note that AppleTalk (LocalTalk) and Geoport are not disabled by the Keyspan USB Serial

Adapter if you have these features installed already.

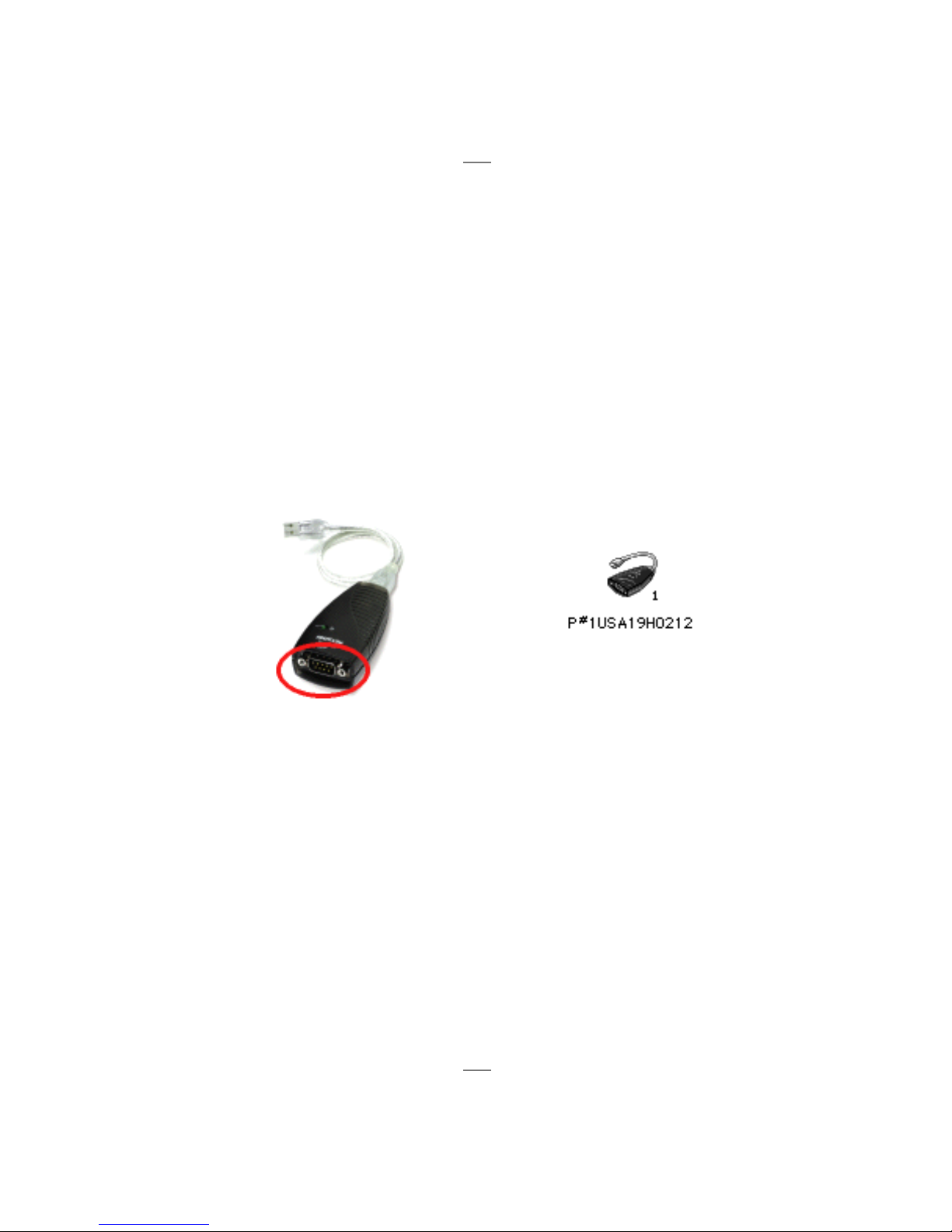

Keyspan USB Serial Adapter Port

Keyspan USB Serial Adapter

Serial Port

Keyspan USB Serial Adapter

Port Icon And Name

On Mac OS,

Port 1

on the Keyspan USB Serial Adapter is named "

P#1USA19H

yyxx

". This

port is accessible by selecting the "

P#1USA19H

yyxx

" port name or the USA19H icon in your

serial device's software or by selecting . This port is published via the

CommToolBox

and can be

accessed by

CommToolBox Savvy

software.

On Macs that do not have built-in serial ports (ie 'Blue and White' G3s, iMacs, iBooks, G4s,

etc...),

Port 1

can emulate the

PRINTER

port (as found on older Macintosh computers) for

serial devices that are

not

CommToolBox Savvy

and can't access the "

P#1USA19H

yyxx

port. Printer Port emulation can turned ON by using the

Keyspan Serial Assistant

Advanced

Setting's screen. Once you've emulated the Printer port, Port 1 will be accessible by selecting the

'PRINTER' port icon or 'Printer Port USB' port name in your serial device's software. Printer

port emulation is turned OFF by default.

Note: If you install more than one Keyspan USB Serial Adapter on your

Mac, Port 1 on subsequent adapters will have different names (please

contact Keyspan for details). The PRINTER port can only be emulated

once on your Mac.

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 3

3.1 - Installation Instructions

Installing the USB Serial Adapter Software for Mac OS

Note:

These instructions apply to installing the Keyspan USB Serial

Adapter on Mac OS 8.6 through 9.x. If you are installing this software

on Mac OS X via CLASSIC, please read the

Keyspan USB Serial

Software for Mac OS X User Manual

or visit Keyspan's web page

<http://www.keyspan.com> before proceeding.

Step 1

Insert the Keyspan Serial Adapter CD-ROM

Turn your computer ON. When your computer starts up, p

lace the

Keyspan USB Serial

Adapter

CD into the CD-ROM drive. When the CD icon appears on your desktop, double click

on this icon to display its contents.

Locate the Keyspan Mac OS 8.6 - 9.x folder and then locate the

yspan USA19H Installer

for Mac OS

Step 2

Run the Keyspan USB Serial Software for Mac OS Installer

If the Keyspan Adapter is connected to your computer,

disconnect

it now.

Run the

yspan USA19H Installer

for Mac OS

double clicking the installer icon. This

will start the installer. Once the installer is running, follow the instructions on screen.

The installer will install the following items:

• " KeyspanUSBLoader" (in the

Extensions

folder)

• "KeyspanUSA19Hdrvr" (in the

Extensions

folder)

• "

Keyspan Serial Assistant

" (in the Control Panels folder)

•

"Keyspan Manager"

(in the System Folder folder)

Step 3

Software Installation Complete!

Now that you have installed the Keyspan USB Serial Adapter software, you are ready to install the

Keyspan USB Serial Adapter hardware. Please proceed to the

nstalling the Keyspan USB

Serial Adapter Hardware

instructions.

(

continued on next page...)

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 4

Installing the Keyspan USB Serial Adapter Hardware

The following hardware installation instructions provide a basic overview on installing the

Keyspan USB Serial Adapter

in a USB port. For detailed instructions on how to connect

USB devices your specific computer, please refer to the USB Device Install section in your

computer's user's manual.

Step 4

- Connect the USB cable to the Adapter (if necessary)

If your Keyspan adapter does not have an attached USB cable, attach the included USB cable into

the Keyspan adapter's USB port.

Step 5

Connect the Adapter to your USB port

Attach the Adapter to your computer by connecting the Adapter's USB cable into any built-in USB

port on your computer or USB Hub. It is not necessary to turn off your computer when attaching

the Adapter.

Step 6

- Hardware Installation Complete!

Your Keyspan USB Serial Adapter is ready for use now that you have installed hardware and

software.

Please proceed to the

Configuring Your Serial Device

section in this manual for instructions on

what to do next.

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 5

4.1 - Configuring Your Serial Device

Prior to using your serial device (modem,UPS, etc.) with the Keyspan USB Serial Adapter, you

must:

connect your serial device (

hardware

) to the Keyspan port

configure your serial device's

software

to use the Keyspan port

The following instructions provide a general overview of this process however we do provide

specific configuration instructions for certain serial devices. For a list of these examples, please

read the

Configuration Examples for Mac OS

Appendix in this manual.

Connecting Your Serial Device (Hardware)

If your Keyspan adapter is not connected, please do so NOW.

Step 1

Connect Your Serial Device To The Keyspan Adapter

Attach your serial device's (ie Palm cradle, GPS, cell phone) serial cable to the serial port on your

Keyspan USB Serial Adapter.

Step 2

Determine Which Keyspan Port Your Serial Device Is Connected To

If your have a Keyspan product that has more than one serial port, please note which Keyspan

serial port your serial device is connected to (the serial port on the Keyspan product, not your USB

ports on your computer or USB hub). This information will become useful as we start

Configuring

Your Serial Device's Software

Configuring Your Serial Device's Software

The following configuration instructions provide a basic overview of how to configure your

software to use your Keyspan serial port(s). For specific instructions on how to operate your serial

device, please refer to your serial device's user's manual for detailed instructions...

Step 3

Check the Keyspan Serial Assistant

Now that your serial device is connected to the Keyspan adapter, you should check to see if the

Keyspan serial port is installed correctly.

(continued on next page...)

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 6

To do this, open the

Keyspan Serial Assistant

(located in Control Panels). When you open the

Keyspan Serial Assistant

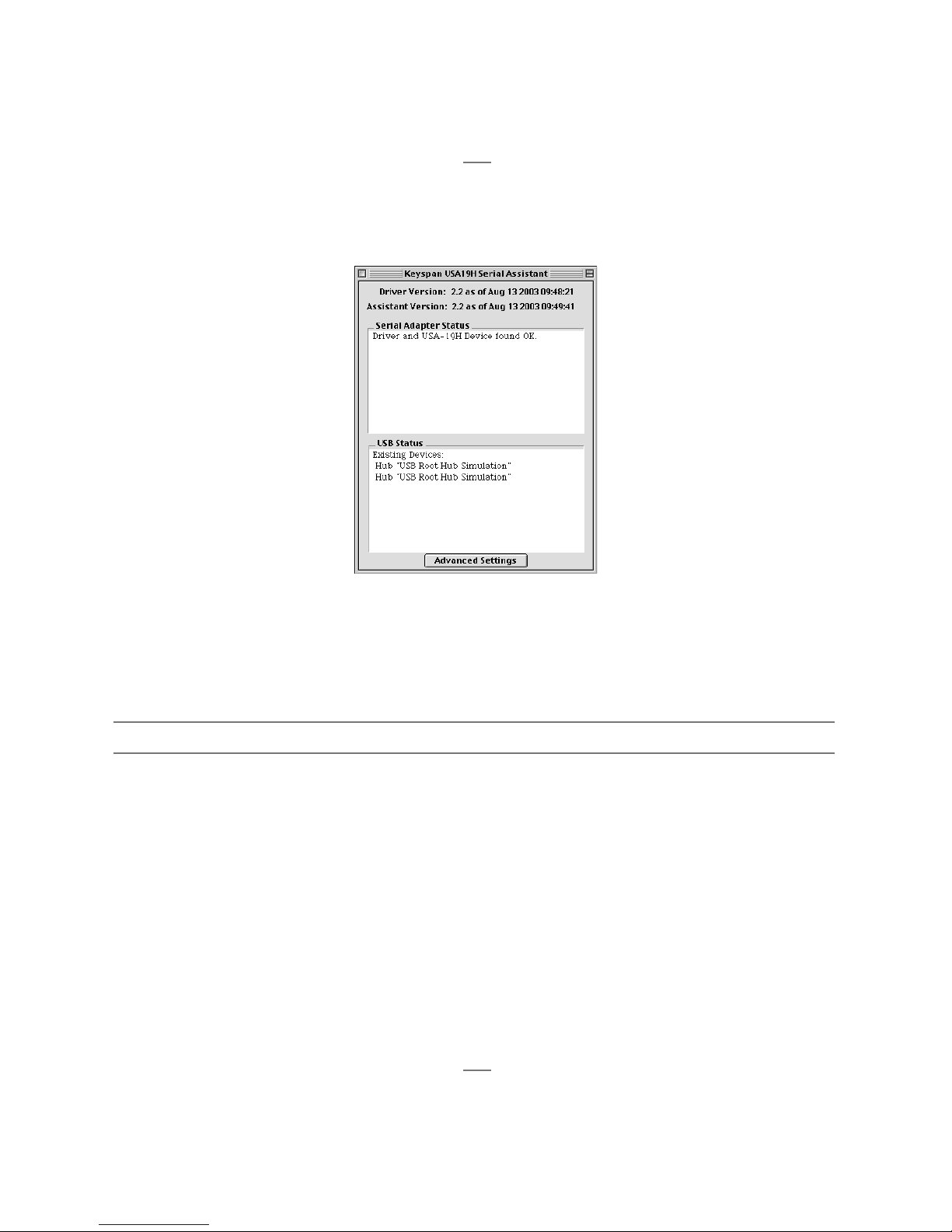

, you will see the following window:

the

Keyspan Serial Assistant

window

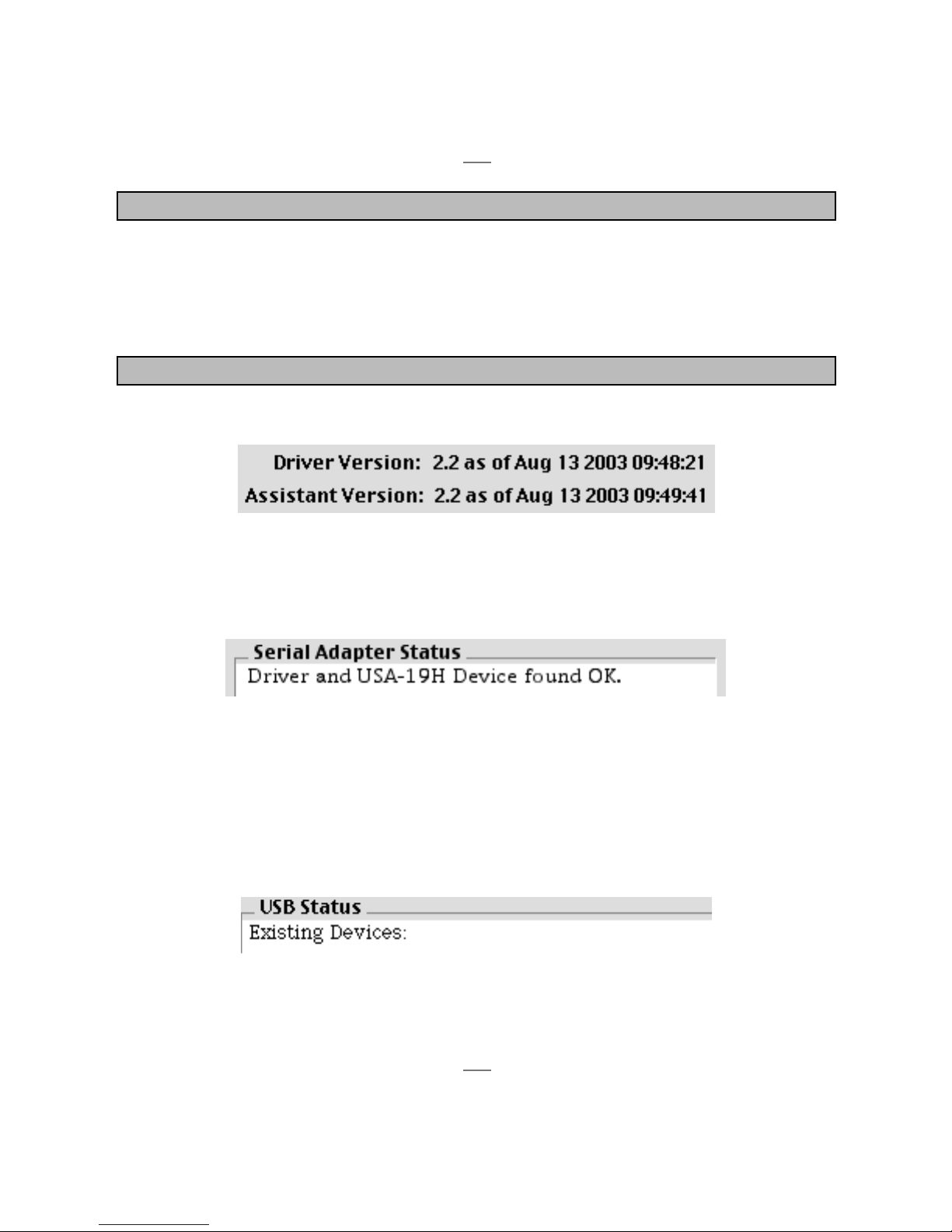

If your Keyspan hardware and software are installed correctly, the '

Serial Adapter Status

' text

box will report 'Driver and USA-19H Device found OK' or '...Renumerating...Done'.

If you see either of these messages, proceed to

Step 4

. If you do not receive either of these

messages, proceed

Problem Solving

section in this manual.

Step 4

Determine Where To Select/Configure The Keyspan Serial Port(s)

Prior to using your serial device with a Keyspan serial port, you must first tell that serial device's

software

which serial port your serial device

hardware

is connected to.

For example, if you have a Palm, you will have to tell the Palm Desktop

software

to look for

your Palm handheld (

hardware

) on a Keyspan serial port. By doing this, you establish

communication between your serial device's

software

(ie the Palm Desktop software) and your

serial device hardware (the Palm handheld unit).

Most serial devices will have software that will allow you to select which serial port the device is

connected to. Depending on your serial device and its software, you may have to configure: a

Control Panel (ie modems accessing ISPs), an application (ie UPSes), or some combination of

these (ie modems accessing terminals using Zterm).

(continued on next page...)

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 7

Please refer to your serial devices documentation on which method your serial device uses and

how to access that software's serial port "configuration" screen.

Once you've determined where to select or configure your serial device's software's serial port

settings, please proceed to

Step 5

Determine Which Serial Port To Select In Your Serial Device's Software

When you've found the port selection screen in your serial device's software, you may be

presented with a list of serial port names, a list of icons, or some combination of both.

At this point, you have to select the name or icon of the Keyspan serial adapter you are connecting

to. Please note that you can see the port name and icon port name of your Keyspan Serial Adapter

in the

Capabilities

section in this manual.

Step 6

Use Your Serial Device

Once you've configured your serial software to use the Keyspan serial port, you're ready to start

using your serial device under Mac OS.

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 8

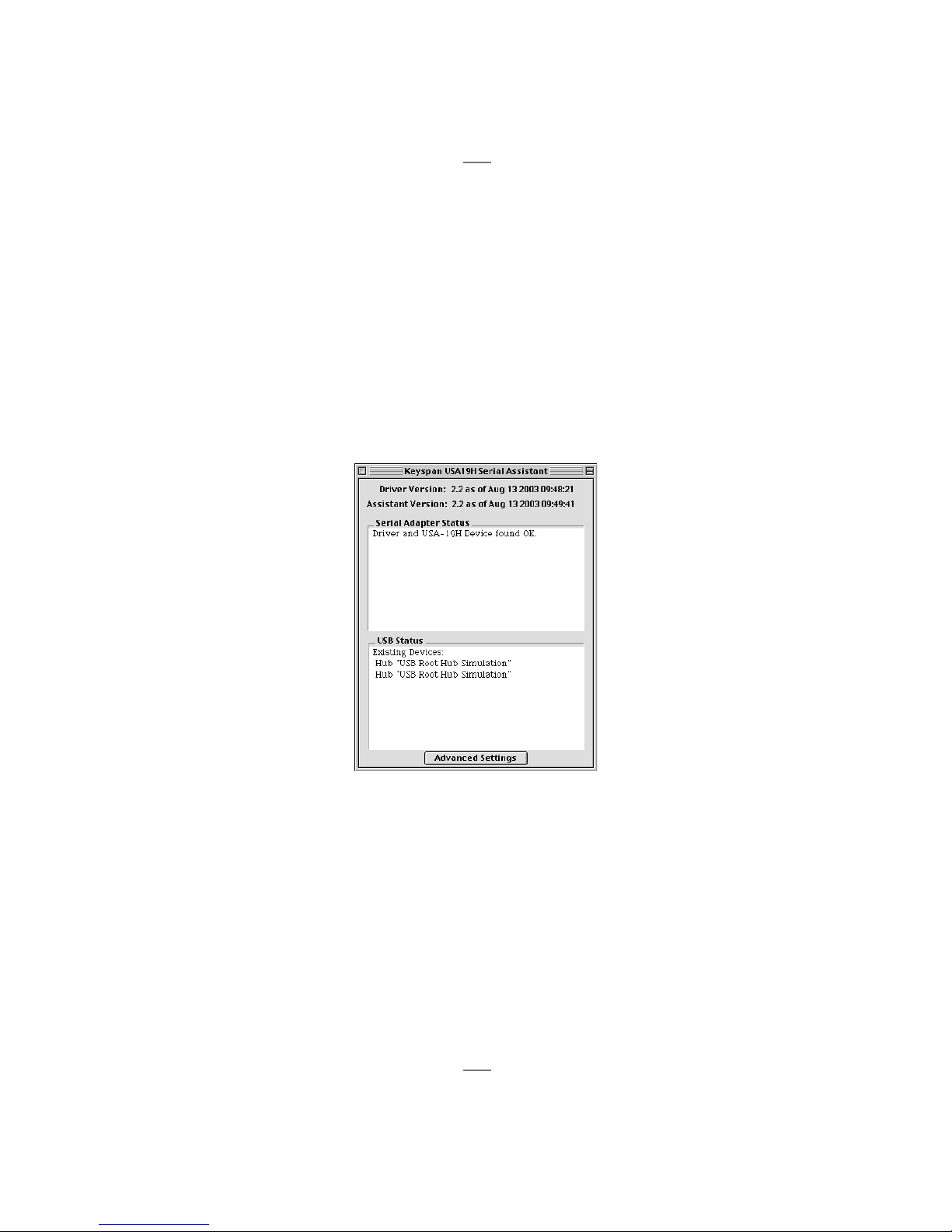

5.1 - Keyspan Serial Assistant

Besides the required drivers, the Keyspan USB Serial Adapter software installer installs an

application called

Keyspan Serial Assistant

. This application is used to:

•

Determine the status of the adapter software and hardware

•

Assist in problem solving

Launching the Keyspan Serial Assistant

To launch the Assistant, double click the "Keyspan Serial Assistant" icon in your

Control

Panels

folder. This will open the

Keyspan Serial Assistant

window.

the

Keyspan Serial Assistant

window

The Keyspan Serial Assistant will display any Keyspan USB Serial Adapters connected to your

computer. If your Keyspan adapter hardware and software are installed correctly you will see

'Driver and USA-19H Device found OK' or '...Renumerating...Done' in the

Serial Adapter

Status

text box. If you do not receive either of these messages, proceed

Problem Solving

section

in this manual.

(

continued on next page...)

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 9

Explanation of Assistant Features

The following is a description of all the relevant text boxes and menus found in the Keyspan Serial

Assistant. You can also obtain this information by selecting '

Show Balloons

' in the Help menu

and moving the cursor over any item in the Assistant.

Keyspan Serial Assistant Window

the

Driver and Assistant Version

items

The

Driver Version

and

Assistant Version

items show the version numbers of the

installed

Keyspan USA-19H driver and Assistant respectively. The two version numbers should always

match. If these numbers do not match, you should reinstall the Keyspan software.

the

Serial Adapter Status

text box

The

Serial Adapter Status

text box displays the status of your Keyspan adapter hardware and

software. It detects if the Keyspan driver (

software

) is installed (or found) and whether or not a

Keyspan adapter (

hardware

) is connected.

If your Keyspan adapter hardware and software are installed correctly you will see

'Driver and

USA-19H Device found OK' or '...Renumerating...Done' in the

Serial Adapter Status

text

box. If you do not receive either of these messages, proceed

Problem Solving

section in this

manual

the

USB Status

text box

The

USB Status

text box shows what USB devices (ie hubs, keyboards, mice, etc.) are

connected to your USB bus. This text box will not display serial devices connected to your

Keyspan adapter.

Keyspan:USB Serial Adapter for Mac OS-v2.2 User Manual

This User Manual applies to the Keyspan USB Serial Adapter Software for

Mac OS

Rev 03jul13 Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tripp Lite Adaptateur

Tripp Lite

Tripp Lite U436-06N-2P5 Manuel utilisateur

Tripp Lite

Tripp Lite U209-005-COM Manuel utilisateur

Tripp Lite

Tripp Lite USB to 8-Port Serial Adapter U209-008 Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-H4UBC2 Manuel utilisateur

Tripp Lite

Tripp Lite p150-000 Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-V-C Manuel utilisateur

Tripp Lite

Tripp Lite P131-000-A Manuel utilisateur

Tripp Lite

Tripp Lite U436-000-GB Manuel utilisateur

Tripp Lite

Tripp Lite U338-06N Manuel utilisateur

Tripp Lite

Tripp Lite U442-DOCK13-S Manuel utilisateur

Tripp Lite

Tripp Lite U218-000-R Manuel utilisateur

Tripp Lite

Tripp Lite U437-002 Manuel utilisateur

Tripp Lite

Tripp Lite S236-000 Manuel utilisateur

Tripp Lite

Tripp Lite P134-000 Manuel utilisateur

Tripp Lite

Tripp Lite DB9F-RJ45 Manuel utilisateur

Tripp Lite

Tripp Lite USB 2.0 to SATA/IDE Combo Adapter U238-000... Manuel utilisateur

Tripp Lite

Tripp Lite U336-002-GB Manuel utilisateur

Tripp Lite

Tripp Lite P960-001-MSATA Manuel utilisateur

Tripp Lite

Tripp Lite Keyspan-by-Tripp Lite USB Power Adapter... Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-HD8K6W Manuel utilisateur

Tripp Lite

Tripp Lite Thunderbolt MTB3-002-HD Manuel utilisateur

Tripp Lite

Tripp Lite P116-000-HDMI Manuel utilisateur

Tripp Lite

Tripp Lite P134-06N-DVI-DL Manuel utilisateur

Tripp Lite

Tripp Lite U444-06N-VGA-RA Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
