Trion FM 1000E Manuel utilisateur
Delivering Clean Air to Public Places
The Trion FM 1000 was specifically designed to
clean the air in rooms where people work or relax,
such as restaurants, bars, taverns, offices, conference
or computer rooms, waiting rooms, or designated
smoking areas. Because of its smart design, it fits in a
2' x 4' (610 x 1219 mm) ceiling panel, so it’s an easy
solution for most any situation.
The FM 1000 Provides:
•Multiple Model Selection — There are two models to choose from: the FM 1000E
(electronic air cleaner) and the FM 1000M (media air cleaner). So, there’s an
FM 1000 that can meet virtually any scenario.
•Easy Installation — These units feature a low-profile design that is not only appealing
to the eye, but requires no elaborate ductwork or installation.
•High Performance — Each of these units is capable of removing up to 95% of tobacco
smoke, dust, pollen, lint, bacteria, and mold spores from indoor air.
•Flexible Performance — Each unit features three convenient speeds, ranging from
400 to 1100 cfm (680 – 1879 m3/hr) to quickly and easily meet the demands of the
environment.
•Affordable Operation — Because these units recirculate indoor air, there’s no expense
to reheat or cool air. And the FM 1000E features a Forever Filter®that never needs to
be replaced; just clean, dry, and reinstall.
•Additional Odor Control — The optional charcoal after-filter helps control the smell of
gas and other odors.
•Super-Effective Air Cleaning — The optional remote discharge allows wider separation
between intake and discharge areas. This means more effective air cleaning.

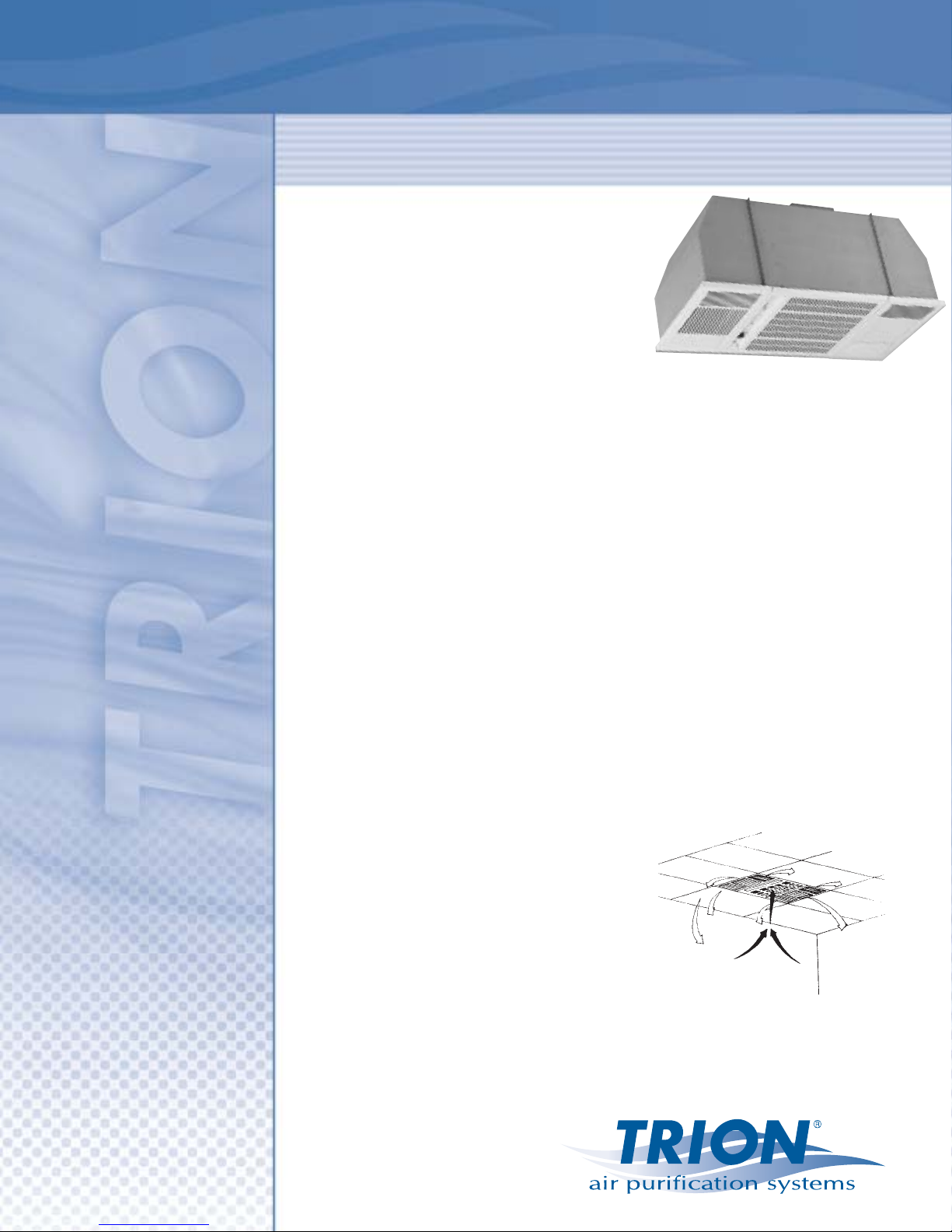

Powerfully-Effective
Airflow Pattern
The FM 1000E and FM 1000M models feature
“center suction” dirty air intake and discharge
returned clean air in six directions, so clean air
circulates faster. That means happier, more
comfortable patrons, employees, or guests.
FM 1000
ELECTRONIC / MEDIA AIR CLEANERS
FM 1000 ELECTRONIC / MEDIA AIR CLEANERS
FM 1000E
The Trion FM 1000E utilizes the principle of
“electrostatic precipitation.” Dirty air is drawn
into the center intake by the motor/blower,
and is moved through the washable, alu-
minum mesh pre-filter where lint and large
dust particles are trapped. The remaining
particles, some as small as .01 micron, pass
into a strong electrical field (ionizing section)
where each particulate receives an electrical
charge. These charged particles then pass
into a collector plate section made up of a
series of equally-spaced parallel plates. Each
alternate plate is charged with the same
polarity as the particles, which are repelled,
while the interleaving plates are grounded,
and attract and collect the particles. Clean air
is then discharged in six directions back into
the area.
FM 1000M
The Trion FM 1000M utilizes a principle
called “interception filtration.” In the first
stage of this two-stage process, dirty, polluted
air is drawn into the center intake by the
motor/blower and is moved through the
washable, aluminum mesh pre-filter to
remove lint and larger dust particles. In the
second stage, the micro-glass deep pocket
media filter strips smoke and other
submicron particles from the air stream by
interception. The small diameter fibers in the
filter intercept and retain these small
particles while the large surface area of the
filter provides long life and low pressure drop.
Clean air is then discharged in six directions
back into the area. The quiet blower is
designed specifically to handle the two-stage
filtration system at rated CFM (m3/hr) over
the useful life of the filter.

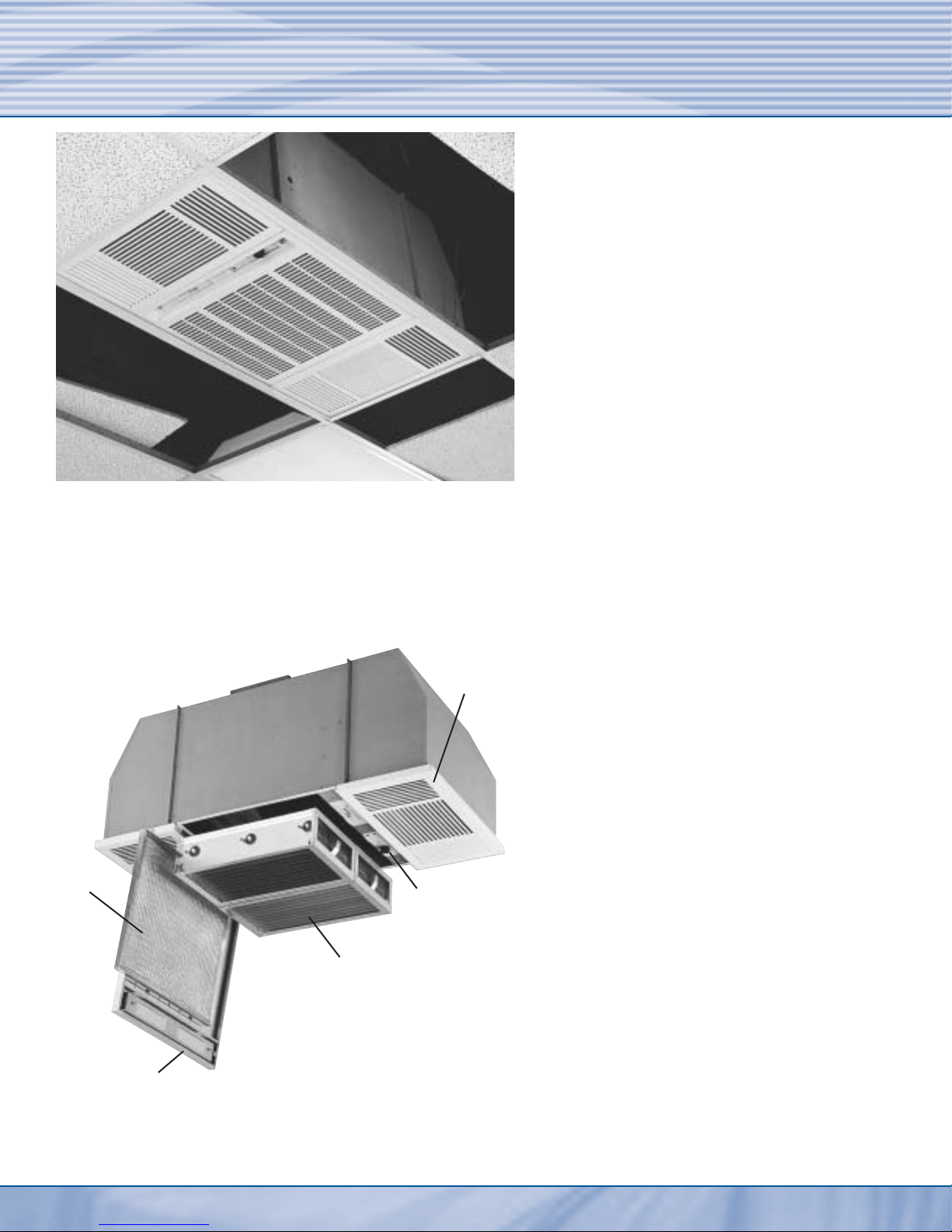

Aluminum Mesh
Pre-Filter
Removable
FilterAccess
Door
6-Way
Air Discharge
3-Speed
Switch
FM 1000E
Ionizer-
Collector
or
FM 1000M
Media Filter

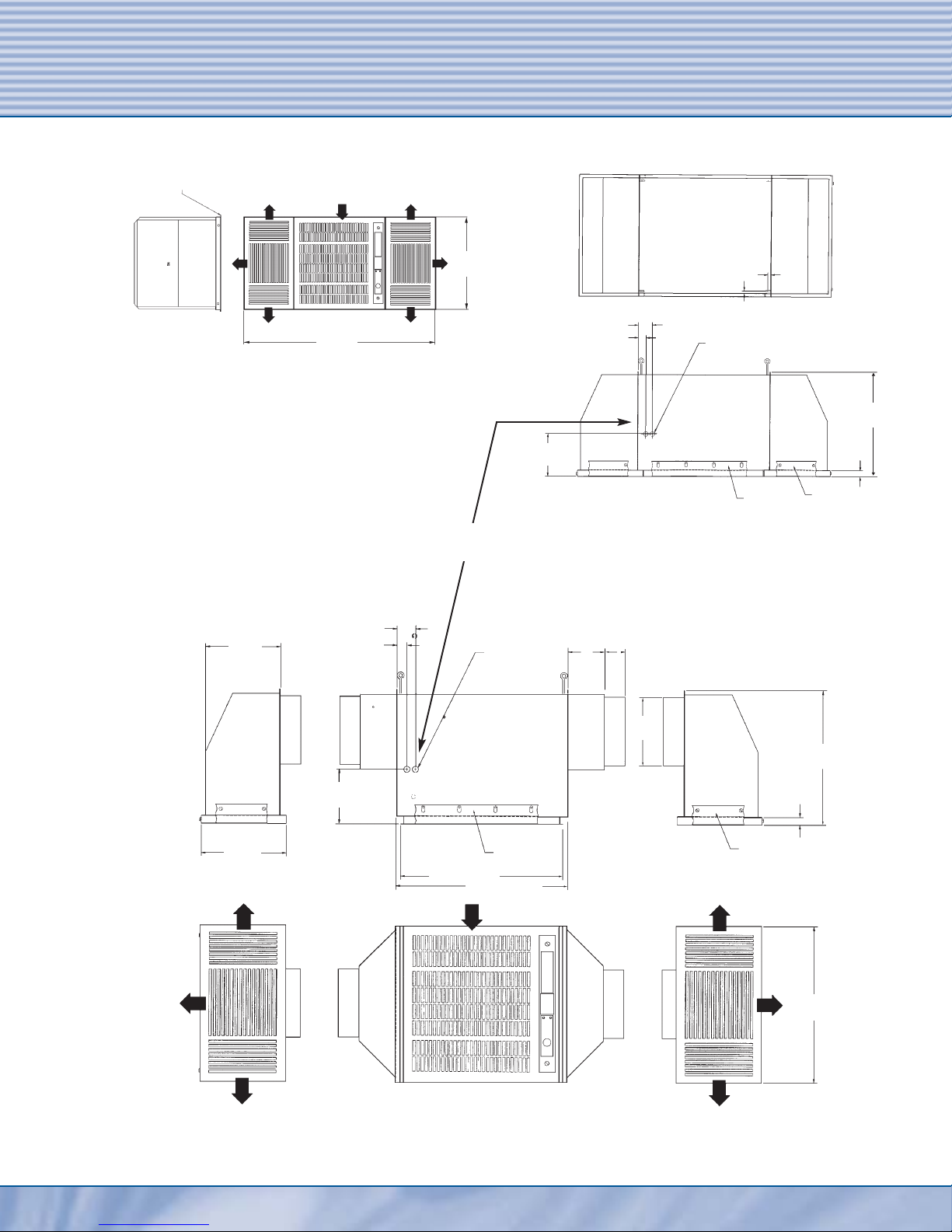

FM 1000 DIMENSIONS
REMOTE DISCHARGE OPTION
POSITIONING BRACKET
& FILLER STRIP
KNOCKOUTS FOR
POWER CONNECTION
7/8”(22 mm) DIA.
POSITIONING
BRACKET
2 REQUIRED
POSITIONING
BRACKET
2 REQUIRED
POSITIONING
BRACKET
2 REQ’D @ EACH END
POSITIONING
BRACKET
2 REQ’D @
EACH END
AIR
FLOW AIR
FLOW
AIR
INLET
AIR
FLOW AIR
FLOW
AIR
FLOW
END
47.25”
(1200 mm)
.50”
(13 mm)
TYP.
2.75”
(70 mm)
1.50”
(38 mm)
2.75”
(70 mm)
1.50”
(38 mm)
5.38”
137 mm 2.90”
(74 mm)
10.00”
DIA.
1.125”
(29 mm)
TOP
SIDE
22.88”
(581 mm)
AIR
FLOW
AIR
FLOW
AIR
FLOW
AIR
INLET
AIR
FLOW
AIR
FLOW
AIR
FLOW
22.88”
(581 mm)
KNOCKOUTS FOR
POWER CONNECTION
7/8”(22 mm) DIA.
8.00”
(203 mm)
8.00”
(203 mm)
0.54”
(14 mm)
12.25”
(311 mm)
FIELD WIRING
COMPARTMENT
COVER
19.63”
(499 mm)
1.125”
(29 mm)
19.63”
(499 mm)
AIR
FLOW
24.25” (616 mm)
25.08” (637 mm)
FM 1000 ELECTRONIC / MEDIA AIR CLEANERS SPECIFICATIONS
MODEL FM AIDEM•M0001MFCINORTCELE•E0001
PART NO. 200-515044100-515044
DIMENSIONS 47 1/2L x 22 7/8W x 19 5/8D(1207 x 581 x 499) 47 1/2L x 22 7/8W x 19 5/8D(1207 x 581 x 499)
INSTALLATION tnuomhsulf/gniliecevobAtnuomhsulf/gniliecevobA
WEIGHT 108 (49) / shipping 240 (109) 88 (40) / shipping 160 (72.6)
ELECTRICAL spma0.4-hp1,zH06,V021spma1.3-hp1,zH06,V021
MOTOR
1/3hp (.25 kW) ball bearing, direct drive, thermally protected 1/3hp (.25 kW) ball bearing, direct drive, thermally protected
BLOWER P nafrelleporPnafrellepor
AIR VOLUME 600, 800, 1100 cfm (1020, 1360, 1870 m 3/hr) 400, 500, 650 cfm (680, 850, 1105 m 3/hr)
CONTROLS 3-speed, power “ON” light, “to cell” light 3-speed, power “ON” light
SOUND RATING Bd96,46,55Bd56,65,94
FILTER EFFICIENCY
Up to 95% per ASHRAE 52.1 / dust spot 95% per ASHRAE 52.1 / dust spot
PRE-FILTER hsemmunimulAhsemmunimulA
PRIMARY FILTER Forever Filter®– permanent aluminum collector cell Multi-pleat lter module
Standard Specications For Each Unit
CABINET 20-Gauge (1.0 mm) galvanized steel
FINISH Almond epoxy powder-coat paint
AIR FLOW 6-Way discharge, Coanda ow
FILTER ACCESS Hinged, removable lter access door
MOUNTING Four eyebolts
HARDWARE Six trim brackets
SAFETY DEVICE Access door safety switch
ACCESSORIES Disposable charcoal after-lter
(OPTIONS) Remote ON/OFF switch
Remote air discharge
INCHES (mm)
LBS (kg)
