TRINITY PRO 72” 10-DRAWER STAINLESS STEEL

WORKBENCH W/ PEGBOARD

Model # TLSF-7210

OWNER’S MANUAL

Your TRINITY PRO 72in 10-Drawer Stainless Steel Workbench w/ Pegboard should include the following

parts. Please inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY

Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online at

www.trinityii.com (Help & More, Contact Us).

You will need 10mm wrench (for handles), 14mm wrench (for casters) and 12mm wrench (for pegboard)

for assembly. These are NOT included.

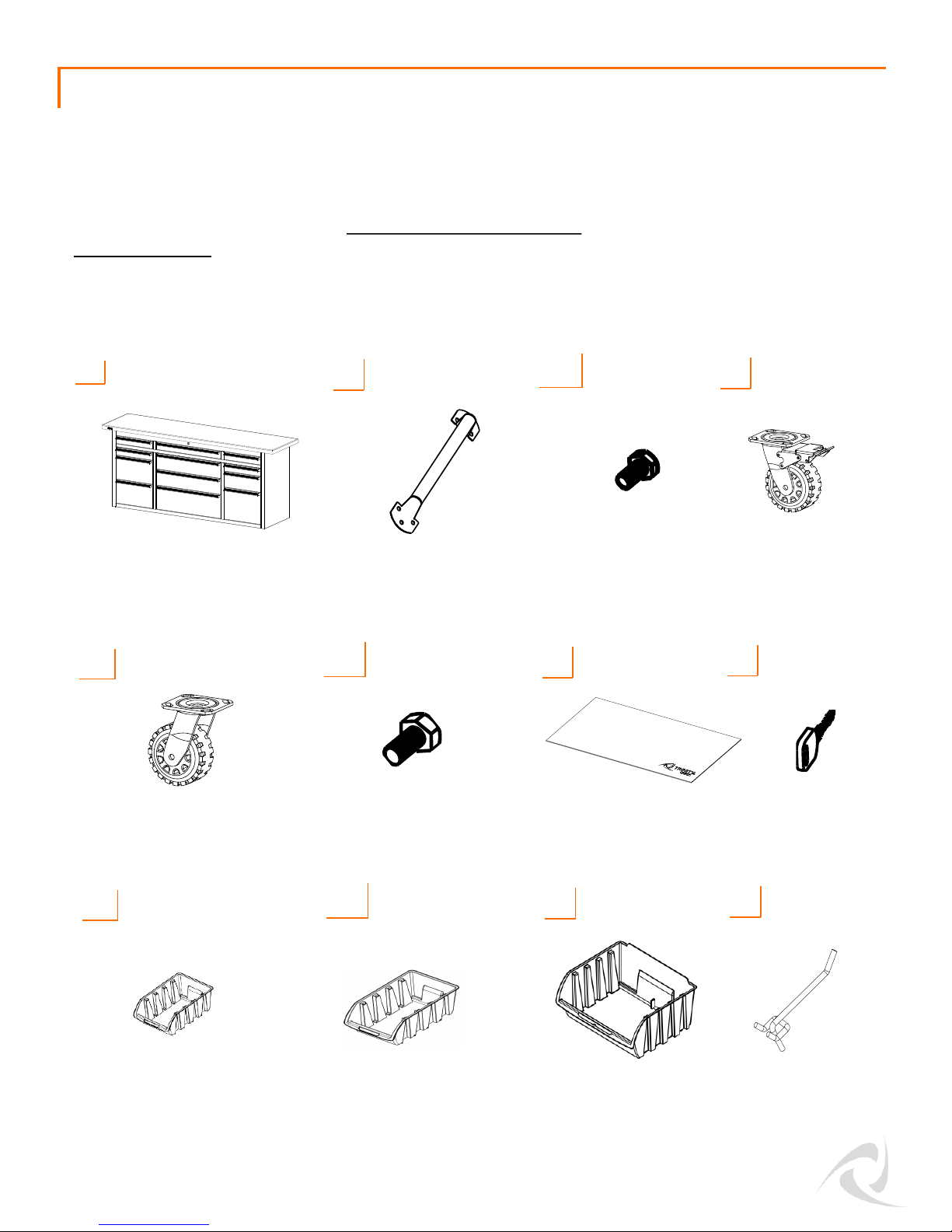

SIDE HANDLE (2)

CASTER BOLT (16)

M10

LINER (10)

E G H

HANDLE BOLT (12)

M6 LOCKING

CASTER (2)

NON-LOCKING

CASTER (2) KEY (2)

WORKBENCH

w/PEGBOARD (1)

PARTS LIST

SMALL BIN (6) MEDIUM BIN (2) LARGE BIN (1) HOOK (10)

I K LJ

ASSEMBLY INSTRUCTIONS

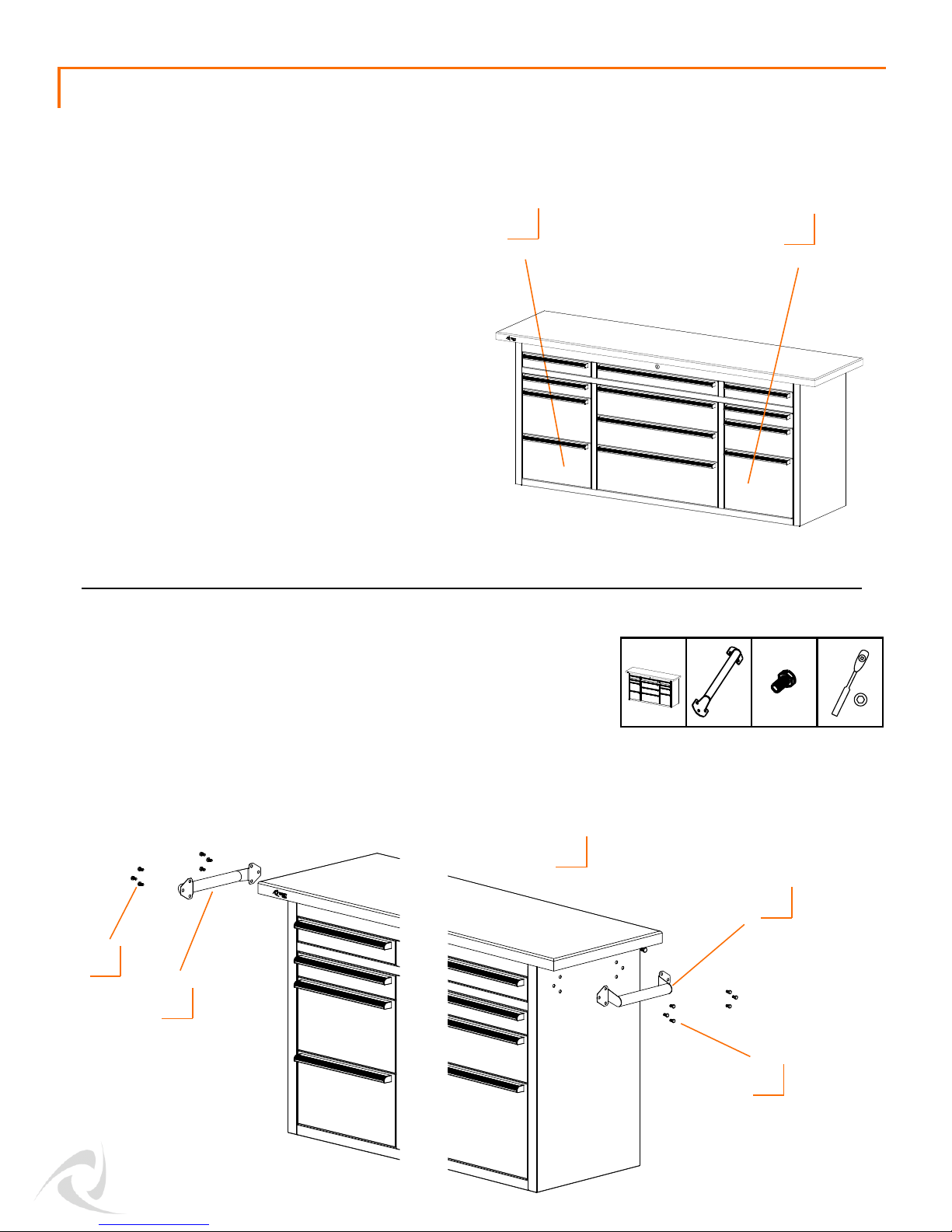

Position SIDE HANDLE (B) over pre-installed nuts on side of

WORKBENCH (A). Insert HANDLE BOLTS (C) through holes on

SIDE HANDLE (B). Use a 10mm socket wrench to fully tighten

HANDLE BOLTS (C) to WORKBENCH (A).

Repeat above steps to install remaining SIDE HANDLE (B).

STEP 1

STEP 2

10mmA (1) B (2) C (12)

Location of parts:

1) KEYS (H) are in a plastic bag taped on top of

the CASTERS (D/E/F) box in BOTTOM LEFT

Drawer.

2) LINERS (G) / SIDE HANDLES (B) and HANDLE

BOLTS (C) / BINS (I/J/K) and PEGS (L) are all in

BOTTOM RIGHT Drawer.

ASSEMBLY INSTRUCTIONS

STEP 3

D (2) E (2) F (16)

Lay WORKBENCH (A) on its backside. Lift

workbench by side handles. Do NOT lift

workbench by the wood top. Two people are

needed. Do NOT attempt this alone.

Position LOCKING CASTERS (D) on side of

WORKBENCH (A) of your choice and align holes to

pre-installed nuts on underside of WORKBENCH

(A). Use a 14mm socket wrench to fully tighten

CASTER BOLT (F) to WORKBENCH (A).

Repeat above steps to install NON-LOCKING

CASTERS (E).

Notes:

* Make sure to install both LOCKING CASTERS (D)

on same side of workbench.

** For ease of use, place LOCKING CASTERS (D) on

side you will regularly push or pull.

*** If you plan to push the workbench against a

wall, place LOCKING CASTERS (D) on front long

side for ease of access.

14mm

Place LINERS (G) in each drawer.

DO NOT place liner in TOP LEFT or TOP RIGHT

drawer which already has a wood work surface

installed inside.

STEP 4

G (10)

ASSEMBLY INSTRUCTIONS

STEP 5

Two people are needed for this step. Do NOT

attempt this alone.

Unscrew bottom Bolt on both left and right hand

side of Pegboard with a 12mm socket wrench. Lift

Pegboard upright. With one person holding the

Pegboard in place, have the other person insert

the bottom Bolt into the top hole of each bracket.

Tighten both Bolts fully back to the Pegboard with

wrench.

BOTTOM BOLT

TOP HOLE

BRACKET

PEGBOARD

BOTTOM BOLT

12mm

ASSEMBLY INSTRUCTIONS

STEP 6

Hang SMALL/MEDIUM/LARGE BINS (I/J/K) over four

rectangular hollow sections on top of pegboard as

shown.

Hang HOOKS (L) into holes on pegboard at your

desired location.

L (10)

I (6) J (2) K (1)

USAGE INSTRUCTIONS

DRAWER REMOVAL

DRAWER REPLACEMENT

Pull drawer out so that it is almost fully extended. On RIGHT-hand side, push black release lever DOWN.

On LEFT-hand side, pull black release lever UP. While holding levers as instructed, pull drawer forward

until released from the slides attached to Workbench (“Workbench Slides”).

Note: The slides attached to drawer (“Drawer Slides”) are an integral part of drawer and must be

removed along with drawer itself.

To replace drawer, pull slides out completely. Insert brackets on each side of Drawer Slides into

corresponding slots on the Workbench Slides, making sure they are properly positioned. Once the

brackets are inserted into the slots, completely close the drawer to set all slides in their proper positions.

USAGE INSTRUCTIONS

ENGAGE STOPPER

DISENGAGE STOPPER

Pull top left or right drawer out so it is almost fully extended. Engage stopper on back corner of each

side of drawer by turning it up, making sure stopper rests over drawer frame. Ensure both stoppers are

engaged when work surface is being used.

Disengage stopper by turning it inside drawer. Make sure stopper lays flat on work surface before

pushing drawer back into workbench.

STOPPER

SERVICE PARTS LIST –TLSF-7210

Part Number Description Part Number Description

1) XGR-21-007-0605 Medium Bin 17) XBK-10-003-0XXX Key

2) XDG-21-007-1205 Large Bin 18) XBK-22-006-1415 15” Drawer Liner

3) XBS-15-014-6428 Pegboard 19) XBK-22-006-2615 27” Drawer Liner

4) XSV-01-009-0816 Pegboard Bolt 20) XBS-07-009-2709 27” Large Drawer

5) XBS-19-008-0825 Bracket 21) ZSV-99-028-5020 Non-locking Caster

6) XSV-01-027-0816 Bracket Screw 22) XBS-07-009-1509 15” 2nd Medium Drawer

7) XSV-05-001-0900 Side Handle 23) AMA-05-007-1400 15” Drawer Handle

8) ZSV-01-001-0612 Handle Bolt 24) XBK-23-010-3012 End cap

9) XBK-02-024-0001 Stopper 25)XBS-07-009-2706 27” Medium Drawer

10) LNA-06-014-1514 Work Surface 26) AMA-05-007-2600 27” Drawer Handle

11) XBS-07-009-1506 15” 1st Medium Drawer 27) XBS-07-009-1503 15” Small Drawer

12) XBS-07-009-1512 15” Large Drawer 28) XBS-07-009-2703 27” Small Drawer

13) ZSV-01-001-1020 Caster Bolt 29) CSV-11-005-0XXX Lock

14) ZSV-99-027-5020 Locking Caster 30) LNA-06-013-7219 Wood Top

15) ZSV-12-002-1575 Slide (workbench side) 31) ZSV-02-025-0001 Hook

16) ZSV-12-001-1575 Slide (drawer side)

32)

XOR-21-007-0403 Small Bin

TRINITY Customer Service provides the following replacement parts:
