WARNING

Indicates a potentially hazardous situation which,

if ignored, can result in serious injury or substan-

tial property damage.

NOTICE

Indicates special instructions on installation, operation

or maintenance, which are important to equipment

but not related to personal injury hazards.

WARNING

For your safety, turn o electrical power supply

at service panel and allow unit to cool before pro-

ceeding to avoid possible electrical shock and

scald hazard. Failure to do so can cause severe

personal injury or death.

NOTICE

Upon completion of the conversion from Natural to Pro-

pane, ax the new rating label included in the kit to the

unit adjacent to the existing rating label. DO NOT ax

the new label over the existing rating label. Add propane

conversion labeling to the gas valve.

WARNING

Failure to follow instructions below can result in

severe personal injury or damage if ignored.

• Instructions are for a qualied installer/ ser-

vice technician only.

• Read all instructions before proceeding.

• Follow instructions in proper order.

NOTICE

These instructions cover NG to LP conversion for Instinct

boilers only. Each kit is supplied with one venturi suitable

for use with that particular boiler model.

Kit Part Number

• INSRKIT08 (Solo 110)

• INSRKIT10 (Solo/Combi 155)

• INSRKIT12 (Solo/Combi 199)

Kit Includes

• Rating Label

• Conversion Label

• (1) Propane Gas Venturi

• Acoustic Foam

Recommended Tools

• Adjustable Wrench / 10 mm Socket & Ratchet

• Phillips Head Screwdriver

• Flat Head Screwdriver

• Calibrated Combustion Analyzer

Instinct Solo/Combi

Natural to Propane Conversion Instructions

223042 A02

Revision Date: 07/2019

2019-18 Instinct NG to LP Conversion

NOTICE

When converting the appliace from Natural to Propane ensure that the conversion is completed before fully installing the

air inlet piping.

INSTINCT NATURAL TO PROPANE CONVERSION INSTRUCTIONS

1. Preliminary Instructions:

1. Verify that the \venturi replacement kit is correct

for the model of boiler. See page 1.

2. Turn o electrical power supply to the boiler.

3. Close the manual gas shut o valve to the unit.

4. Remove the front panel of the Instinct by removing

the screw along the bottom edge of the unit. Pull

the bottom of the panel forward and then lift to re-

move the front panel from the unit.

5. Using a voltmeter ensure there is no electrical pow-

er to the boiler by checking for power on the boil-

er’s high voltage terminals L and N.

WARNING

ELECTRICAL SHOCK HAZARD

Ensure power to the boiler has been disconnected pri-

or to servicing the unit.

2. Install the Acoustic Foam (supplied);

1. Cut a 7" length of 3" diameter air inlet piping.

2. Insert the 7" pipe into the air inlet adaptor.

NOTICE

The the INSTINCT boiler has a length of acoustic foam al-

ready installed in the air inlet adaptor. DO NOT remove this

3. Insert the length of acoustic foam (supplied),

into the 7" pipe length.

4. Use either a straight coupling or elbow to con-

tinue the air inlet installation. Refer to the Vent

Supplement for full details on the installation of

air and vent pipes.

Fig. 1: Installing the Acoustic Foam

7" Air Inlet

Pipe

Acoustic

Foam

7" Air

Inlet

Pipe

Boiler

Air Inlet

Acoustic

Foam

INSTINCT NATURAL TO PROPANE CONVERSION INSTRUCTIONS

Fig. 2: Instinct 110 Gas Train

Fig. 3: Instinct 155 Gas Train

Fig. 4: Instinct 199 Gas Train

3. Removal of Natural Gas Venturi

1. Remove the silicone tube from the air inlet elbow,

then remove the air inlet elbow.

2. Rotate the venturi interface approximately 60°

clockwise to release the clamping mechanism and

remove the venturi interface.

3. Remove the gas valve to venturi pipe by loosening

the nuts at both ends of the pipe with an adjust-

able wrench.

NOTICE

There are gaskets at both ends of the gas valve to venturi

pipe. These gaskets must be reinstalled along with the pipe.

Use care not to damage the gaskets.

4. Using a 10 mm socket and ratchet, remove the

three (3) bolts securing the venturi to the fan as-

sembly and remove the natural gas venturi from

the unit, making sure not to damage the blower

O-ring gasket.

4. Install the propane venturi

1. Verify the following when aligning the propane

venturi:

1. The UP arrow on the plastic housing is pointing

upward.

2. The threaded connection for the gas piping is in

the correct orientation for re-tting the gas pipe.

INSTINCT NATURAL TO PROPANE CONVERSION INSTRUCTIONS

WARNING

Failure to retain the O-ring gasket between the ventu-

ri and the blower will cause an improper seal resulting

in a potential risk of a gas leak. A gas leak can result in

substantial property damage, serious injury, or death.

WARNING

Ensure the proper venturi for the model is installed

per Table 1. Failure to comply will aect input rate

and combustion of the boiler which can result in sub-

stantial property damage, serious injury, or death.

NOTICE

Do not use adhesive on any gaskets or O-rings during the re-

assembly process.

1. Using a 10 mm socket and ratchet, reinstall the

three (3) bolts securing the venturi to the fan as-

sembly

2. Reassemble the gas valve to venturi pipe to the

gas valve and venturi taking care to ensure that the

gaskets are seated properly before tightening the

nut.

3. Install the venturi interface on the venturi and ro-

tate counterclockwise until locked into place.

4. Install the air inlet elbow then attach the silicone

tube.

WARNING

Failure to properly install the air inlet elbow and at-

tach the silicone tube can aect combustion of the

boiler which can result in substantial property dam-

age, serious injury, or death.

5. Open the manual gas shut o valve to the unit.

Before placing the boiler back into operation, test

all gas connections for leaks and repair if leaks are

found.

WARNING

Do not check for gas leaks with an open ame. Use a

bubble test. Failure to test for gas leaks can result in

substantial property damage, serious injury, or death.

6. Attach the propane conversion label to the gas

valve and the propane conversion rating label next

to the existing rating label

7. Enter the propane (LP) appliance code from the

propane rating label supplied in the conversion kit:

1. Press and hold the UP and DOWN buttons to-

gether see Fig. 5.

Fig. 5: CTRLMax Navigation Control

2. Enter the installer access code “054” by using

the LEFT and RIGHT buttons to select a digit and

the UP and DOWN buttons to change the digit.

Press the center button to enter the access code.

3. With the CH/DHW Settings icon highlighted,

press the center button.

4. Press the DOWN button to highlight the Boiler

Settings icon then press the center button.

5. Scroll down to highlight Appliance Setting then

press the center button.

6. Enter the propane (LP) appliance code from the

rating label by using the LEFT and RIGHT buttons

to select a character and the UP and DOWN but-

tons to change the character. Press the center

button to enter the appliance code.

INSTINCT NATURAL TO PROPANE CONVERSION INSTRUCTIONS

5. Combustion Test and Adjustments

NOTICE

The installer MUST perform a complete combustion check

to ensure the following combustion levels are met at high

and low input ring rates and the burner is operating at op-

timum conditions.

WARNING

The combustion testing and adjustments must be per-

formed by a qualied installer, service agency or the

gas supplier. All combustion measurements must be

performed with calibrated equipment to ensure prop-

er readings and accuracy.

WARNING

Failure to perform a complete combustion test at both

high and low input rates may result in incomplete

combustion and the production of carbon monoxide,

which can cause severe personal injury, death or sub-

stantial property damage.

1. Touch simultaneously on the up and down soft

keys for 3 seconds to access the functions for the

installer. See Fig. 5.

2. Enter the installer access code “054” by using the

LEFT and RIGHT buttons to select a digit and the UP

and DOWN buttons to change the digit. Press the

CENTER button to enter the access code.

3. Press the RIGHT button to highlight the Manual

Operation icon then press the CENTER button.

Manual Operation

Released

O

CH1

FAN

DHW

CH2

Manual Operation

Released

O

CH1

FAN

DHW

CH2

Manual Operation

Released

O

CH2

FAN

DHW

CH1

Manual Operation

Released

O

DHW

FAN

CH1

CH2

Fig. 6: CTRLMax Manual Operation

4. Press the CENTER button while the FAN icon is

highlighted to manually re the burner and power

the CH circulator. See Fig. 6

NOTICE

An adequate CH load must be present to dissipate the heat

generated during the combustion test. If an adequate CH load

is not available, an indirect water heater can be used to dis-

sipate the heat by creating a DHW call which will enable the

DHW circulator.

5. Press the RIGHT button to adjust the ring rate to

100% (high re). Hold down the RIGHT button to

rapidly increase the ring rate.

6. If the combustion levels during high re are outside

the recommended combustion settings (see Table 1),

adjust the THROTTLE SCREW (see Fig. 7) using a at-

blade screwdriver as follows:

Counter-clockwise adjustment of the THROTTLE

SCREW at High Fire (100% ring rate):

O2decreases and CO2 increases

Clockwise adjustment of the THROTTLE SCREW at

High Fire (100% ring rate):

O2increases and CO2decreases

7. Once the combustion level is set at high re, manu-

ally place the boiler into low re mode by pressing

the LEFT button to adjust ring rate down to 1% (low

re).

8. If the combustion level (O2or CO2) during low re is

not are outside the recommended combustion set-

tings in Table 1 contact Triangle Tube Technical Sup-

port.

9. Press the CENTER button while the fan icon is high-

lighted to shutdown the burner.

10. Press the LEFT or RIGHT button to highlight the home

screen icon to exit the service mode.

11. Replace the front panel and put the boiler back into

operation.

INSTINCT NATURAL TO PROPANE CONVERSION INSTRUCTIONS

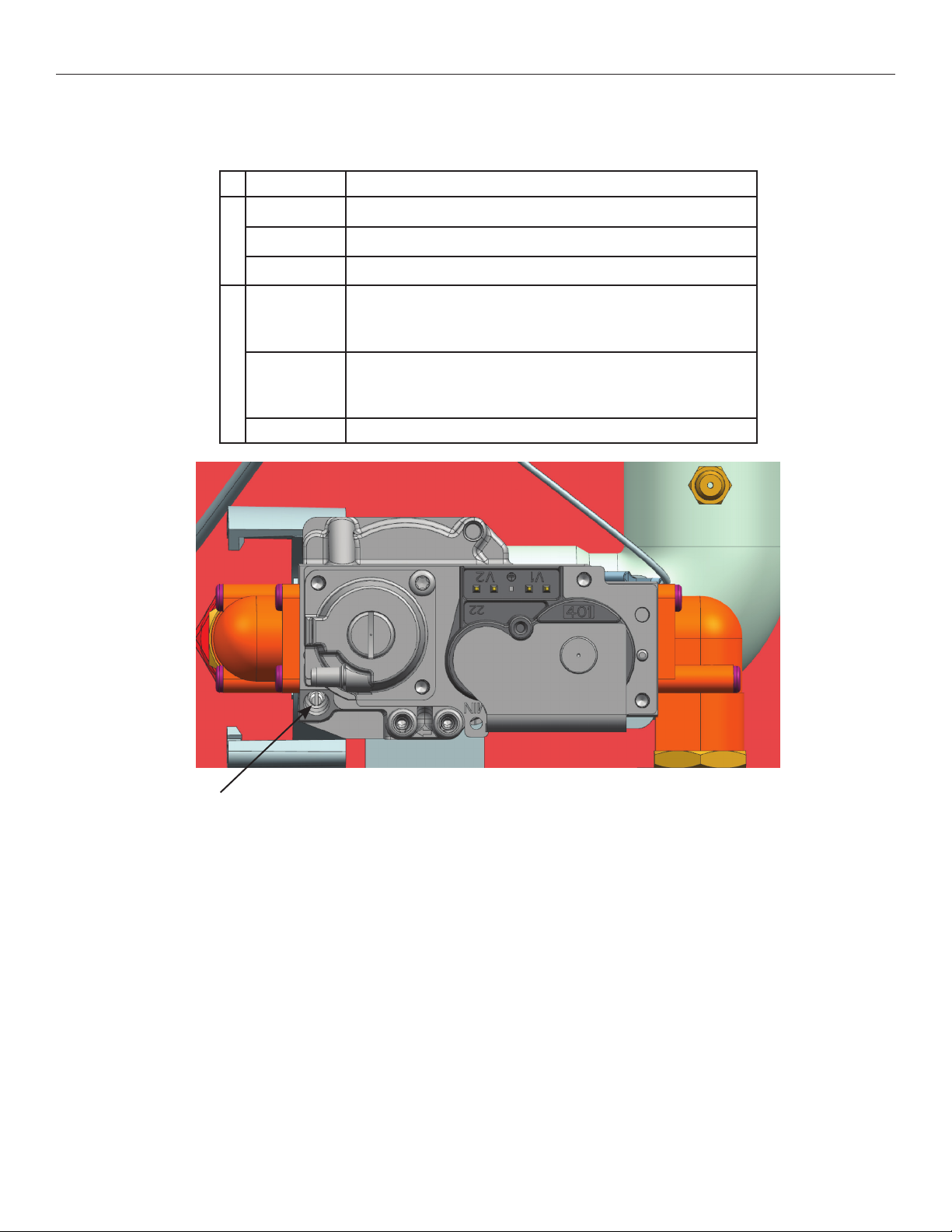

Table 1: Combustion Settings

Propane (All Models)

High Fire

CO2 Range 10.4 - 11.0%

O2 Range 5.1 - 4.2%

CO Max 200 ppm

Low Fire

CO2 Range 10.4 - 11.0%

Ensure CO2values measured are less than or equal to

High Fire CO2measurements

O2 Range 5.1 - 4.2%

Ensure O2values measured are higher than or equal to

High Fire O2measurements

CO Max 10 ppm

Fig. 7: Throttle Screw Location

Throttle Screw

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TriangleTube Chaudière

TriangleTube

TriangleTube Prestige Solo Manuel

TriangleTube

TriangleTube Prestige Solo 60 Mode d’emploi

TriangleTube

TriangleTube prestige Manuel utilisateur

TriangleTube

TriangleTube prestige Solo 110LC Manuel

TriangleTube

TriangleTube Prestige Solo 175 Manuel utilisateur

TriangleTube

TriangleTube Prestige Excellence Mode d’emploi

TriangleTube

TriangleTube Prestige Solo 60 Manuel utilisateur

TriangleTube

TriangleTube instinct SOLO 110 Guide de l'utilisateur

TriangleTube

TriangleTube Prestige Excellence Manuel

TriangleTube

TriangleTube Challenger Manuel

TriangleTube

TriangleTube Prestige PARKIT101 Manuel utilisateur

TriangleTube

TriangleTube CHALLENGER CC 85 Manuel

TriangleTube

TriangleTube PRESTIGE Solo PA 110 Manuel utilisateur

TriangleTube

TriangleTube instinct SOLO 110 Guide de l'utilisateur

TriangleTube

TriangleTube PRESTIGE Solo PA 80 Mode d’emploi

TriangleTube

TriangleTube Prestige Solo 399 Manuel utilisateur

TriangleTube

TriangleTube PRESTIGE Series Mode d’emploi

TriangleTube

TriangleTube Instinct SOLO 155 Mode d’emploi

TriangleTube

TriangleTube Instinct Series Mode d’emploi

TriangleTube

TriangleTube Challenger Mode d’emploi

TriangleTube

TriangleTube prestige Manuel de service

TriangleTube

TriangleTube Instinct SOLO 155 Manuel utilisateur

TriangleTube

TriangleTube PRESTIGE Excellence 110 Mode d’emploi

TriangleTube

TriangleTube Prestige Solo 110 Manuel

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Viessmann

Viessmann VITODENS 200 Mode d’emploi

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur
