The Tri-Tronics Beeper

The Tri-Tronics Beeper lets you know

where your bird dog is hunting and

when he goes on point. The Beeper

has a wide choice of settings to suit

different hunting styles and individual

preferences. You can also keep track

of several dogs at one time by the

settings you select.

If you purchased an Upland G2 or

Sport®65 BPR G2, your Beeper can be

turned on and off from a distance with

your transmitter. Therefore, you can

leave the beeper off most of the time,

and only turn it on when hunting

conditions require it.

If you own any Tri-Tronics G2 Field or

Pro Series model, you can also use

your transmitter to turn the Beeper on

or off from a distance. If you own any

other make or model of remote trainer

or you plan to use the Beeper by itself

with no remote trainer, you cannot

turn your Beeper on or off from a

distance, but your Beeper will have

all other functions, such as choice

of mode, run and point tones, and

volume control, described in this

owner’s guide.

This Owner’s Guide covers the Upland

G2 Beeper, Sport®65 BPR G2 Beeper,

the Beeper used with other Tri-Tronics

G2 Field or Pro Series models, and the

Accessory Beeper. Content that applies

only to certain models is so noted.

Quick Guide

1. Beeper battery.

Your Upland G2 and Sport®65 BPR

G2 come with one 9-volt battery

installed. Your Accessory Beeper does

not come with a battery. Install the

correct sized 9-volt battery in your

Accessory Beeper. See “Installing or

Changing the Beeper Battery.”

2.Beeper modes.

To change the preset modes, move

the DIP switches inside the battery

compartment as shown in “Changing

Beeper Settings.” You have a choice of

volume, range/point or point-only, four

run tones, and two point tones.

3.Collar strap.

The Beeper is designed to be installed

on the Upland G2 or Sport®65 BPR G2

collar strap or on any other Remote

Trainer having a 1-inch collar strap that

fits the Beeper. If you have purchased the

Accessory Beeper, a collar strap has been

included for it. The Beeper will ride best

on the dog's neck if you use a remote

training collar or dummy collar to

counterweight the Beeper. Please see

the illustration showing how to install

the Beeper on a collar strap.

4.Beeper power switch.

The Beeper power must be on for the

Beeper to operate. Press the round power

switch located on the rear surface of the

Beeper. You will hear two tones and the

Beeper light will begin flashing. The

Beeper will begin beeping as soon as its

power is turned on. If you want it to be

silent until you begin hunting, turn it off

with your Upland G2, Sport®65 BPR

G2, or with any other Tri-Tronics G2

Field or Pro Series transmitter. To save

Beeper battery life, turn the power switch

off after use.

5.Beeper fit.

Buckle the Beeper snugly on the dog.

The Beeper should be on top of the dog's

neck and the remote training collar or

dummy collar underneath the dog's neck.

Place the Beeper with its power switch

facing towards the dog’s tail.

6.Training collar turned on.

(Upland G2 and Sport®65 BPR G2.)

If you are using the Upland G2 or Sport®

65 BPR G2 model, activate the collar as

described in your Remote Trainer

Owner's Guide. Deactivate after use to

save battery life. Note that the collar

must be activated and the transmitter

intensity dial set on a number (not on

“N”) for you to be able to turn your

Beeper on and off remotely (see No. 7).

7. Remote turn on/off.

(Upland G2, Sport®65 BPR G2, and

all Tri-Tronics G2 Field and Pro Series

models)

Pressing the beeper control button turns

the Beeper on or off from a distance.

Several tones confirm “on” and different

tones confirm “off.” The location of the

beeper control button varies with model.

See the section “Beeper Control Button”

for the location of this button for your

model.

Note that:

•The collar must be activated.

•The Beeper power must be switched on.

•The transmitter intensity dial must

not be on “N” or “T”

•If you are using a G2 Field or Pro

Series model other than the Upland

G2, your intensity dial must be set

on “A.”

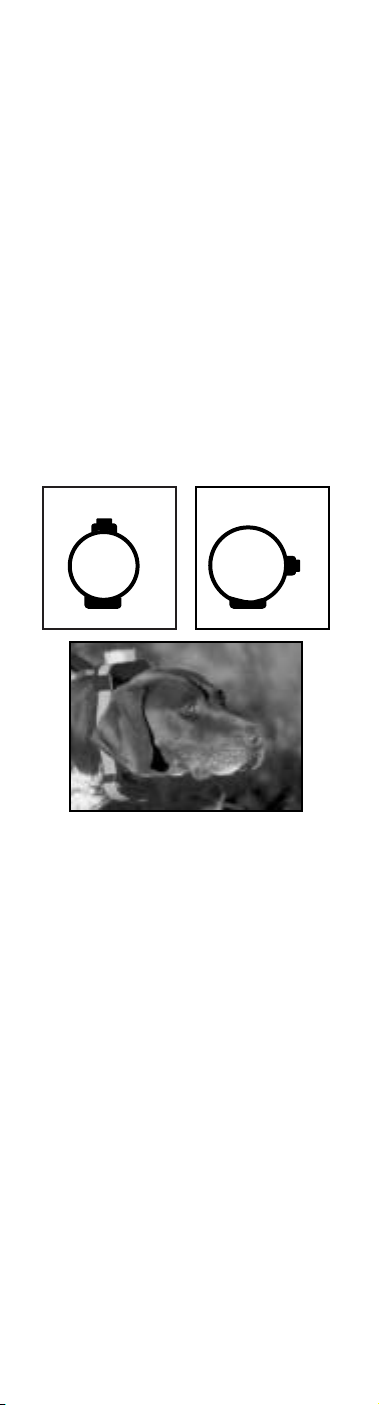

The Beeper and the remote training

collar must be directly across from each

other as shown in the illustration for the

remote on/off feature to work. Slide the

Beeper along the collar strap to achieve

this position.

8.Locate feature.

(Upland G2 and Sport®65 BPR G2)

To locate your dog when the Beeper is

silent, press and hold the Beeper button.

You will hear several tones, letting you

know where your dog is.

Beeper Settings

Volume Control:

Two settings – Low or High

Modes:

Range/Point or Point-only.

In the range/point mode, the Beeper

sounds once every 5 seconds while the

dog is running, and sounds once every

1 second when the dog goes on point.

In point-only mode, the Beeper is silent

until the dog goes on point, then sounds

once every 1 second.

Correct

This: Not This:

Run Tones:

Single Beep, Double Beep,

Triple Beep, or Tracking Tone.

You may select one of four tones as your

“run tone.” When the Beeper is set on

range/point mode, you will hear the run

tone every five seconds while the dog is

hunting. Your hearing and your personal

preference will determine which tone you

prefer as your run tone. You can distin-

guish among several dogs hunting at the

same time by setting each dog's Beeper

on a different run tone. The tracking tone

reflects some of the actual hunting

motion of your bird dog, much like the

jingle of the traditional bell. It enables

you to keep track of how your dog is

hunting better than the beeping of the

other run tones. Note that using the

tracking tone will shorten battery life and

you will need to change the 9-volt battery

in the Beeper more frequently.

Point Tones:

Single Beep or Hawk Scream.

You may select one of the these two

tones as your “point tone.” You will hear

the point tone once every 1

second while the dog is on point.

Your hearing and your hunting

preference will determine which tone you

prefer for your “point tone.”

Changing Beeper Settings

1. Open the battery compartment.

You do not need to remove the Beeper

from the strap to open the battery

compartment. Hold the Beeper upside

down and unscrew the four Phillips head

screws on the bottom of the Beeper. Slide

the battery compartment cover along the

collar strap to expose the battery com-

partment and the Beeper DIP switches.

Volume Modes Run Tones Point Tones

1 2 3 4 5

Dark indicates switch position

2.Set the DIP switches.

Hold the Beeper so that the switches

are on the top edge of the compartment,

as shown in the diagram. You do not

need to turn the Beeper off to change

the settings or to make the new settings

take effect. The switch is indicated by

the dark in the diagram section

To select your settings, set the switches

in the positions shown in the diagram

below. All switches except the volume

switch make a confirming “chirp” when

their positions are changed. When you

are finished setting the switches, screw

the battery cover back into place.

9-volt battery

DIP Switches

When setting switches,

hold the Beeper as shown

1 2 3 4 5

Low High

Range/Point Point-Only

Single Beep Double Beep Triple Beep Track Tone

Single Tone Hawk Scream

Volume Switch:

Modes:

Run Tones:

Point Tones:

Installing or Changing

the Beeper Battery

Open the battery compartment,

as described in “Changing Beeper

Settings.” Install a Panasonic, Duracell

or Eveready 9-volt alkaline battery.

The battery can only be installed in

the correct direction. Note that some

other battery brands will be too long

and will not fit correctly. Never force

a battery into this compartment.

Installing and Adjusting the

Beeper on a Collar Strap

The photos below show how to install

the Beeper on a collar strap. Adjust the

position of your Beeper on the strap

for the size of your dog. It should

ride directly across from the remote

training collar when placed on your

dog, with the Beeper on the top of the

dog's neck and the collar underneath

his neck. If you are using the Beeper by

itself without a remote training collar,

a dummy collar counterweight

is recommended to ensure best

positioning of the Beeper.

Beeper Power Switch

The Beeper must be turned on to

operate. The power switch is on the rear

face of the Beeper (opposite from the

Beeper light). Press this switch to turn

the Beeper on. You will hear two

confirming tones, and the Beeper light

will begin flashing. The Beeper will begin

beeping immediately, and the modes will

be those that you have already set. To

save battery life, turn Beeper power off

after use.

Beeper Control Button

•Upland G2: The rubber-covered

button in the center of the back side

of the transmitter.

•Sport®65 BPR G2: The small orange

button.

•Any G2 Field or Pro Series model

other than the Upland G2: Any

button, including the “tone” button,

provided the intensity dial is set

on “A.”

Controlling the Beeper

with the Transmitter

(Upland G2, Sport®65 BPR G2 and all

other G2 Field or Pro Series models.)

Pressing the Beeper button activates or

deactivates the Beeper from a distance.

The distance is the full range of your

remote trainer (one-half or one-mile

depending on model). Three tones con-

firm that the Beeper is activated, and

three different tones confirm that it is

deactivated.

Note that to turn the Beeper on or off

remotely:

•The training collar must be activated

(see your Remote Trainer Owner's

Guide).

•The transmitter intensity dial must

not be set on “N” or “T.”

•If you are using a G2 Field or Pro

Series G2 model other than the

Upland G2, your intensity dial must

be set on “A.”

•The Beeper power must be on.

Introducing an Inexperienced

Dog to the Beeper

The Beeper is loud. It can startle or alarm

an inexperienced dog when first used.

If your dog isn't used to beeper collars,

begin hunting him with the Beeper set

on low volume instead of high volume.

You can also muffle the sound by placing

duct tape over the horn, or a cotton ball

in the horn. Another technique for

getting a dog used to beeper collars is

to hang a beeper about 20 yards away

from the dog's kennel, and let him listen

to it beeping for several hours before you

put it on him and hunt.

Care and Maintenance

Remove the Beeper from the collar strap

for thorough cleaning. You can wipe the

Beeper with a damp cloth and mild

detergent if desired. Do not use any

solvents as they can cause damage.

Do not submerge the Beeper when

cleaning it.

Dirt and debris can cause the Beeper

sound to change. To clean debris from

the Beeper horn, use only a moistened

cotton swab. Do not use any sharp or

pointed objects or damage to the horn

may result.

Service and Warranty

If you purchased an Accessory Beeper,

your Beeper is covered by a 1-year

warranty from Tri-Tronics.

If you purchased an Upland G2 or Sport®

65 BPR G2, your Beeper is covered by a

2-year warranty from Tri-Tronics.

The warranty does not cover physical

damage or abuse, and is void if the

Beeper has been altered or unauthorized

work has been attempted. If you send

your Beeper in for repair we may replace

it with a reconditioned unit.

If you suspect that your Beeper is

malfunctioning, please check the

Troubleshooting Guide below. If this

does not resolve the problem, please call

our Customer Service Department at

support@tritronics.com or 1-800-456-4343.

Always call our Customer Service

Department before sending your unit in

for repair.

Troubleshooting Guide

Problem #1.

The Beeper does not make any sound

when the power switch is turned on.

The battery in the Beeper has run down.

Replace as needed. Note that leaving the

Beeper turned off when not in use will

extend its battery life. Also note that

using the tracking tone will shorten

battery life.

Loose battery connection. Gently pull the

metal tabs in the battery compartment

to hold the battery more firmly.

Problem #2.

Pressing the beeper control button

on the transmitter does not turn the

Beeper on or off.

The Beeper power switch is off. Turn

the Beeper power switch on.

The remote training collar has not been

turned on. Turn the collar on as

described in the Remote Trainer

Owner's Guide.

The transmitter intensity dial is set on

“N” or “T”. Select a setting other than

“N” or “T”.

The Beeper is not directly across from the

training collar. Slide the Beeper along the

collar strap to achieve the orientation

shown in the illustration in the “Quick

Guide.”

The 9-volt battery in the Beeper is dead.

Replace as needed.

The batteries in the training collar,

receiver or transmitter need charging.

Recharge as recommended in the Remote

Trainer Owner's Guide.

Loose battery connection. Gently pull the

metal tabs in the battery compartment to

hold the battery more firmly.

You are using the wrong transmitter.

Make sure you haven't switched

transmitters with another unit.

You are using a Tri-Tronics G2 model

other than the Upland G2 or Sport®65

BPR G2 and your intensity dial is not

set on “A.” Set the intensity dial on “A”

when beeper operation is desired.

Problem #3.

The Beeper sound quality has become

muffled or distorted.

Dirt or debris has become trapped in the

horn. Remove trapped debris as described

in the “Care and Maintenance” section.

Problem #4.

The Beeper light is on but the Beeper

isn’t working.

The Beeper battery is getting low.

Replace the battery.

Problem #5. The Beeper is changing

modes on its own or is turning itself

on and off without receiving a signal

from the transmitter.

The Beeper battery is getting low.

Replace the battery.

Loose battery connection. Gently pull the

metal tabs in the battery compartment to

hold the battery more firmly.

Visit Our Website

tritronics.com

To Order

tritronics.com

1-800-456-4343

Product Information,

Product Support

& Customer Service

support@tritronics.com • 1-800-456-4343

General Business

Phone: 520-290-6000 • Fax: 520-722-9000

Write To Us At

Tri-Tronics, Inc., P. O. Box 17660

Tucson, Az 85731

The products in this Owner’s Guide

are covered by the following patents:

6750758B2, D445707, and patents pending.

Autres manuels pour Beeper

Autres manuels Tri-Tronics Instrument de mesure

Tri-Tronics

Tri-Tronics DFS21 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
