1. Before You Start
Package Contents
System Requirements
1
?
?
?Multi-Language Quick Installation Guide
?2 x 2dBi Detachable Antenna
?1 x RJ-45 Ethernet Cable
?1 x RJ-11 Telephone Cable
?Power Adapter (12V DC, 1A)
CD-ROM (User’s Guide)
TEW-635BRM
?
?A computer with a wired or wireless network adapter properly installed
?
A working ADSL Internet Connection
Web Browser: Internet Explorer (5.0 or above)
2
Collect Internet Service Provider (ISP) Information
During the installation of your Wireless ADSL Modem Router, the Setup Wizard will
automatically detect your ISP connection type. If the router cannot detect your ISP
connection type, you can manually specify the connection type. Please verify your DSL
Internet broadband connection type with your ISP and ensure you have all the
information for one of the following connection types:
A. Dynamic IP connection
ADSL Modem parameters (VPI and VCI) and multiplexing method type
(LLC or VC) , if it cannot be detected automatically.
ISP may require you to use a particular Hostname or Domain name.
B. Static or Fixed IP connection
Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____
ADSL Modem Parameters (VPI and VCI), if it cannot be detected
automatically.
C. PPPoE or PPPoA Dynamic IP connection
Login User Name: _________
Password: ________________
ADSL Modem Parameters (VPI and VCI), if it cannot be detected
automatically.
D. IPoA Static or Fixed (IP over ATM) connection
Internet IP Address:_____. _____._____._____ (e.g. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____.
ADSL Modem Parameters (VPI and VCI), if it cannot be detected
automatically.
ADSL
Terminator
To PCs
Power
Power
LAN1
LAN2
LAN3
LAN4
ADSL
2. Hardware Installation
3
2. Connect one end of the RJ-45 cable to one of
the TEW-635BRM's LAN ports. Connect the
other end of cable to the computer's Ethernet
port.
4. Connect the AC Power Adapter to the TEW-
635BRM and then to a power outlet.
3. Connect one end of the RJ-11 cable to the
TEW-635BRM's ADSL port. Connect the other
end of the cable to the phone jack.
RESET
1. Connect the detachable antennas to the
TEW-635BRM.
5. Verify that the following panel lights are on:
Power(solid Green), LAN (solid to blinking
Blue), Wireless (Solid Blue), DSL (solid Green)
and Internet (blinking Orange).
Note: If the DSL light is not solid Green (blinking), the device would not detect the DSL
signal. The Internet light may take up to 5minutes to detect, please wait.
4
3. Configure the Modem
Note: It is recommended that you configure the Modem from a wired computer.
1. Open your web browser, type
http://192.168.10.1 in the Address bar, and
then press Enter.
3. Click Setup Wizard.
2. Enter the User Name and
password and then click OK. By default:
User name: admin
Password: admin
Note: User name and Password is case
sensitive.
5

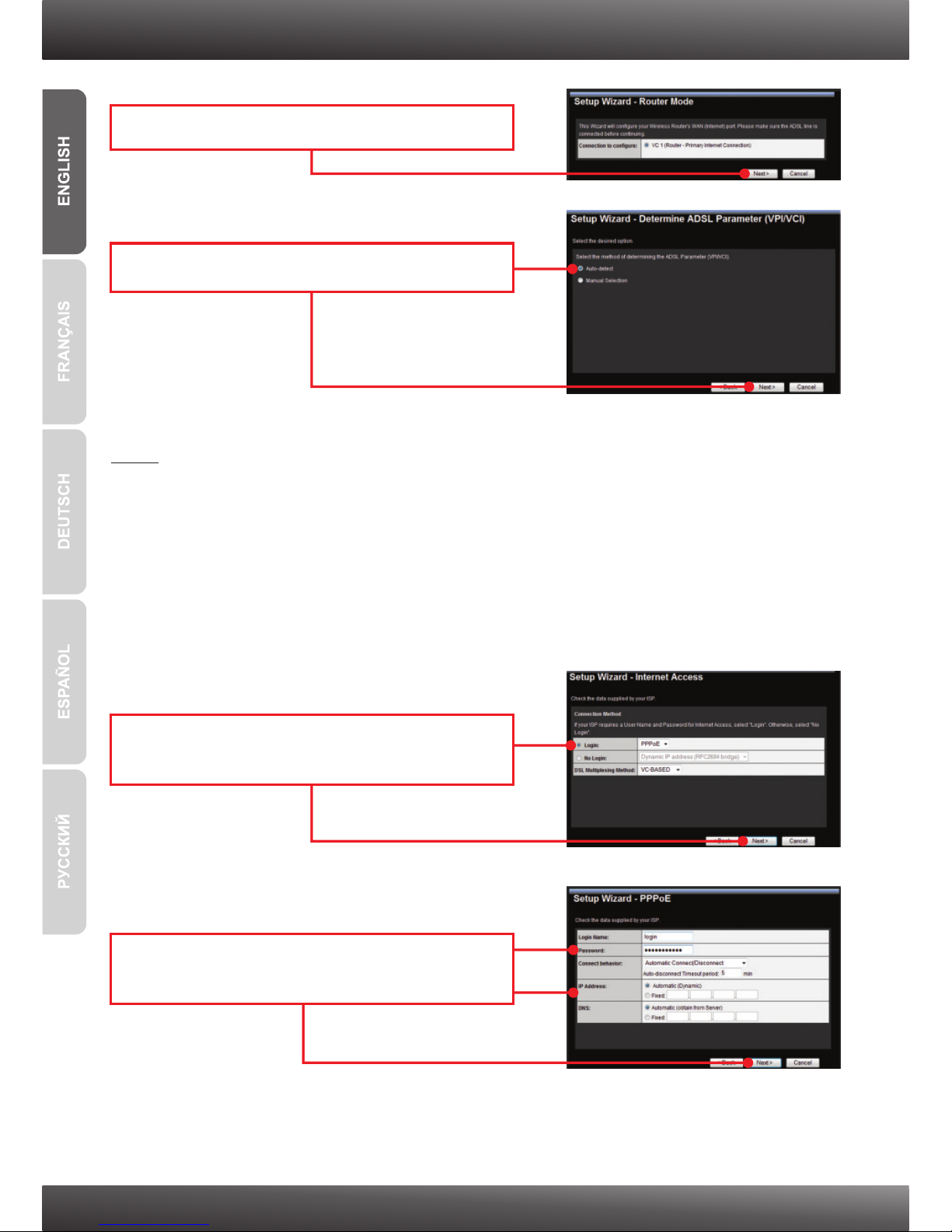

4. Click Next.
5. Select Auto-detect and then click Next.
6. Configure the settings based on information
provided by your ISP. Then click Next.
7. Configure the settings based on information
provided by your ISP. Then click Next.
Note:
1. The example below is for Auto-detect. If the Setup Wizard could not automatically
detect your Internet connection, select Manual Selection and input the information
using the information provided by your ISP.
2. In the example below, the ADSL connection is PPPoE requiring username and
password login information. Please see step 8 for Dynamic IP address (RFC2684
bridge) is selected.
6
Note: For other connection methods, follow the on screen instructions after you select
auto-detect.
9. Please wait while the TEW-635BRM reboots.
10. Check the LEDs and then click OK.
11. Check Test Internet Connection, and then
click Finish.
12. Verify that the test has completed
successfully. Check that the ADSL and
Internet LEDs are lit. Then click Close.
13. Open up your browser and enter in a URL
(e.g. www.trendnet.com) to verify that you
have Internet connection.
8. For Dynamic IP address click Copy from PC to
enter your PC's MAC address or enter the MAC
address of your previous ADSL modem.Then
click Next.
4. Setting up Encryption
7
1. Click Wireless
Note: To protect your network from any unauthorized access it is recommended to
enable wireless encryption.
2. Select the Region, enter the desired SSID and
then click Save.
3. Click Configure SSID1 to set up Wireless
Security.
8
Your Configuration is complete
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
For detailed information regarding the TEW-635BRM’s configuration and advanced settings,
please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website
at http://www.trendnet.com.

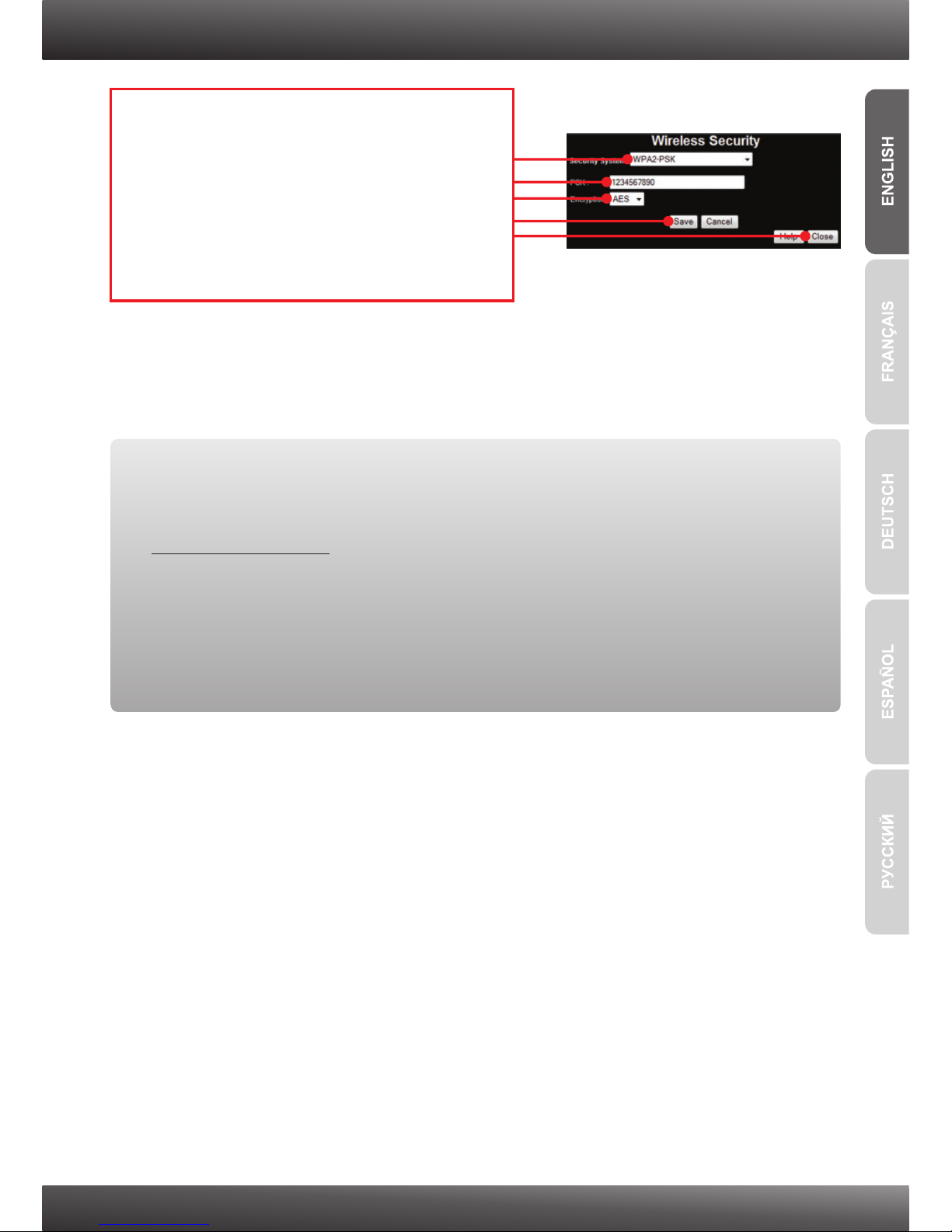

4. This example below is WPA2-PSK. Select a
Security System and enter an encryption key
in the PSK field. Keep the Encryption value
as AES, click Save and then click Close. For
WPA-PSK or WPA2-PSK, the Pre-Shared Key
must be between 8 and 63 ASCII or 64 HEX
characters. Make sure to copy down the
encryption key.
