TRENDnet TEW-511BRP Mode d’emploi
Q: How do I configure the TEW-511BRP for a DSL, PPPoE, connection?
A:Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).

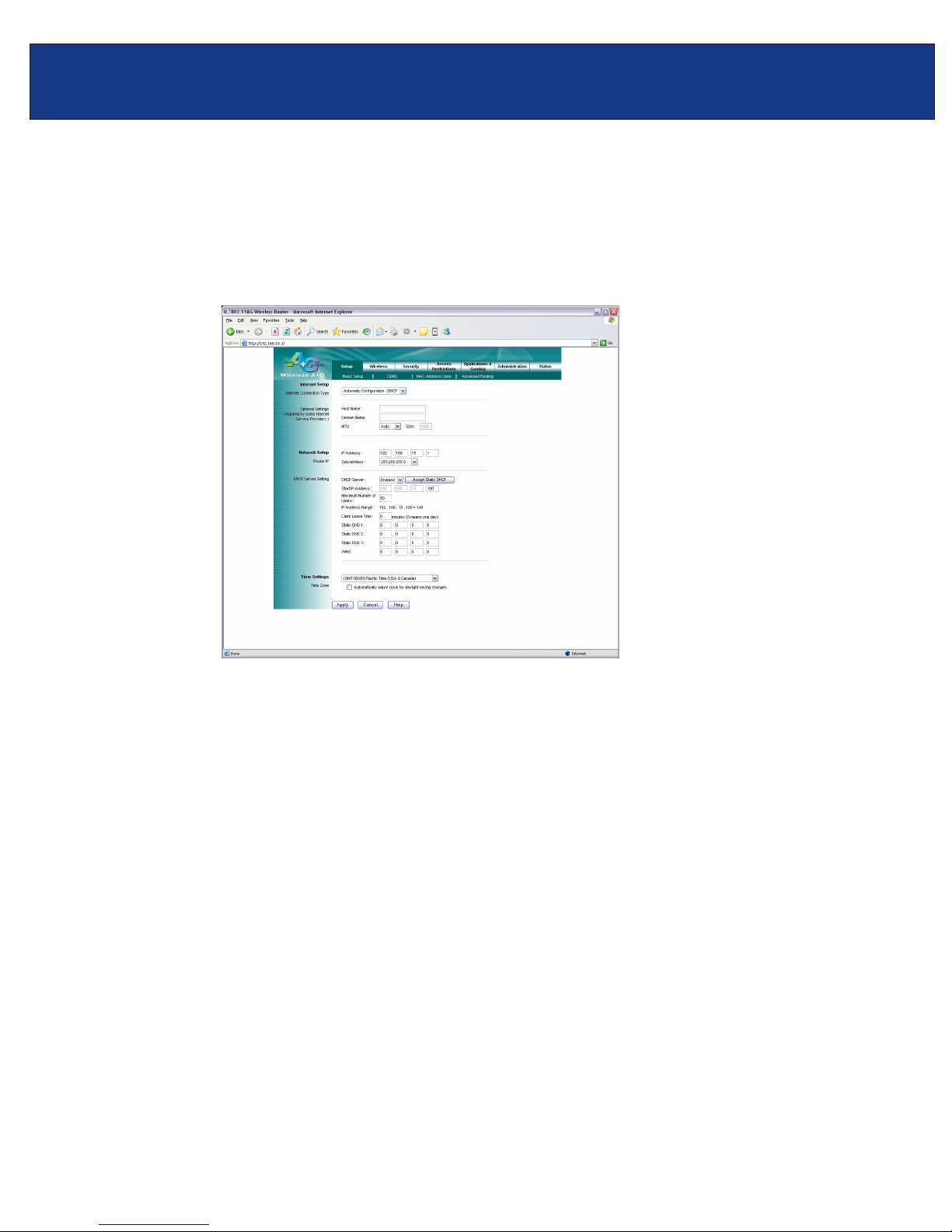

Step 2. Click on “Setup” then “Basic Setup” at the top of the page.
TEW-511BRP F.A.Q.
Step 3. Choose “PPPoE” in the “Internet Connection Type” field.
Step 4. Enter in the information required by your ISP (Internet Service Provider) and click
“Apply”.
TEW-511BRP F.A.Q.
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Step 2. Click on “Setup” then “Basic Setup” at the top of the page.
Q: How do I configure the TEW-511BRP for a Cable connection.
A:
Step 3. Choose “Automatic Configuration – DHCP” in the “Internet Connection Type” field
if you have a dynamic IP address. If you have a static IP address, choose “Static IP”.
Step 4. Click “Apply” if you have a dynamic IP address. If you have a static IP address enter in
the information required by your ISP (Internet Service Provider) and click “Apply”.
TEW-511BRP F.A.Q.
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Step 2. Click on “Administration” then “Management” at the top of the page.
Q: How do I change the username & password on my TEW-511BRP?
A:
Step 3. You can change the password in the “Router Password” field. You need to confirm it
as well.
Step 4. Click “Apply” to save the changes.
Note: You cannot change or set a username for the TEW-511BRP.
Q: What is the default IP address of my TEW-511BRP?
A:
Q: What can I do if I forgot my password or want to reset back to factory defaults.
A:
The default IP address for the TEW-511BRP is 192.168.1.1.
Step 1.
Step 2.
Locate the reset button on the back of the TEW-511BRP.
Press and hold in the reset button for approximately 15 seconds.
This will reset the unit back to its default configuration.
TEW-511BRP F.A.Q.
Q: What is the default username and password for the TEW-511BRP?
A:There is no default username for the TEW-511BRP. Leave the username field blank. The default
password for the TEW-511BRP is (admin).

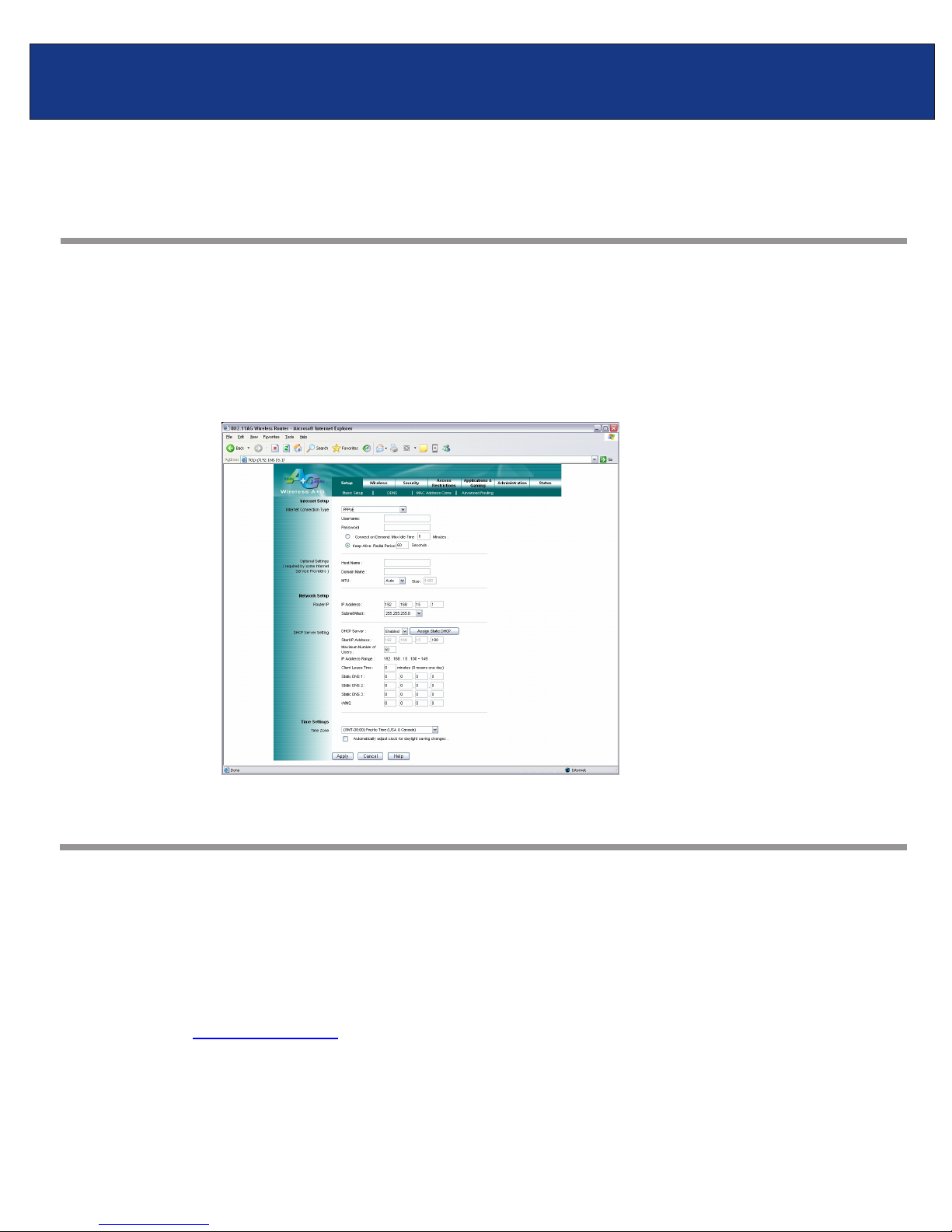

Q: How do I change the IP address of my T ?EW-511BRP
A:Step 1.
Step 2.
Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Click on “Setup” then “Basic Setup” at the top of the page.
Step 3. You can change the password under the Network Setup section.
Q: How do I configure the TEW-511BRP?
A:First configure your Wireless Ethernet Adapter to connect to the “wlan-a” or “wlan-g” SSID.
Note: If you are using a hard-wired computer connected directly to a LAN port, you will use the
Local Area Connection that is bound to your Ethernet Adapter.
Step 1. Log into the router by entering its IP address into a browser. The default IP address
is . At the login, enter your username (admin) and password (admin).http://192.168.1.1
TEW-511BRP F.A.Q.

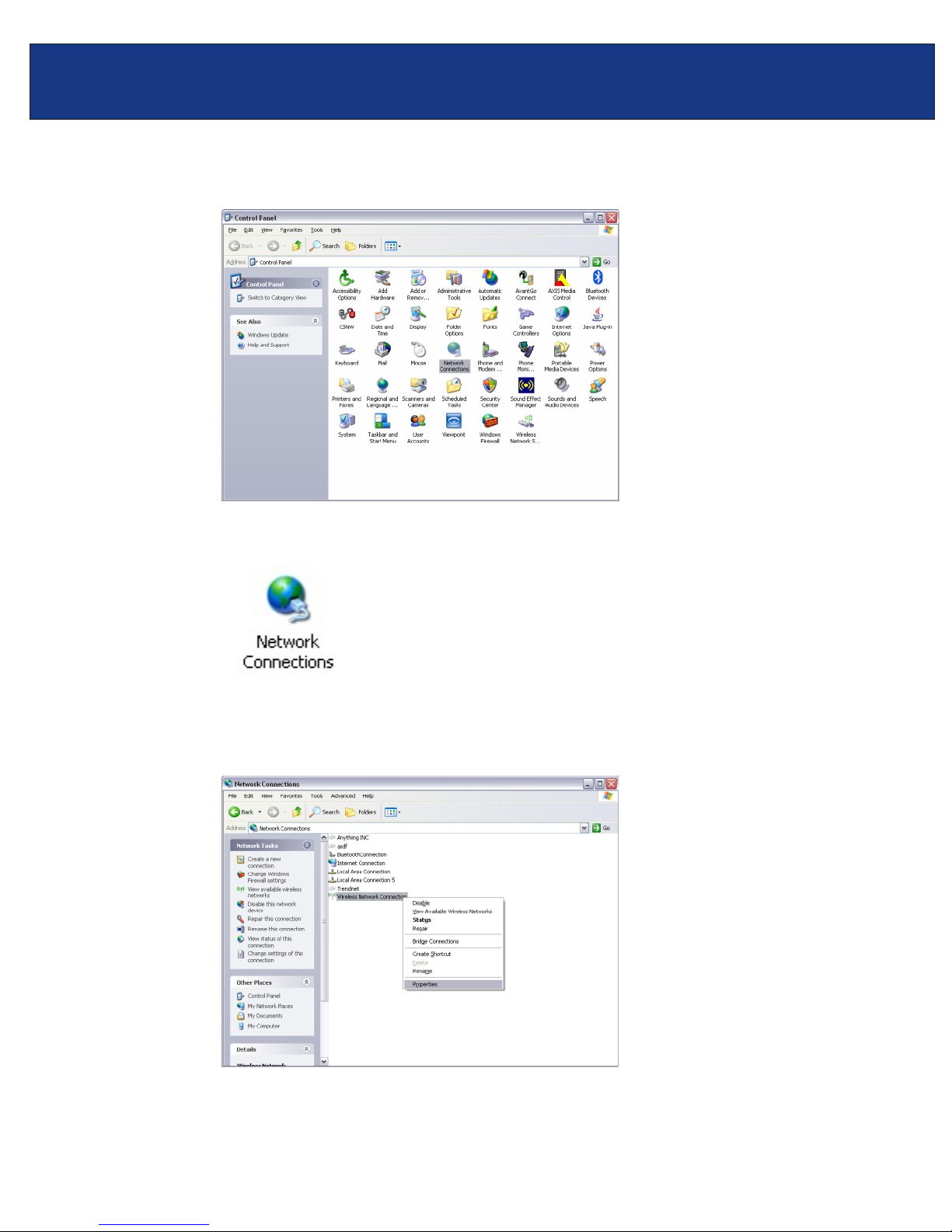

Step 2. Click “Start” then click on the “Control Panel”. For Windows 2000 click on “Start”,
highlight settings then click on the “Control Panel”.
Step 3. Double-Click on the Network Connection icon.

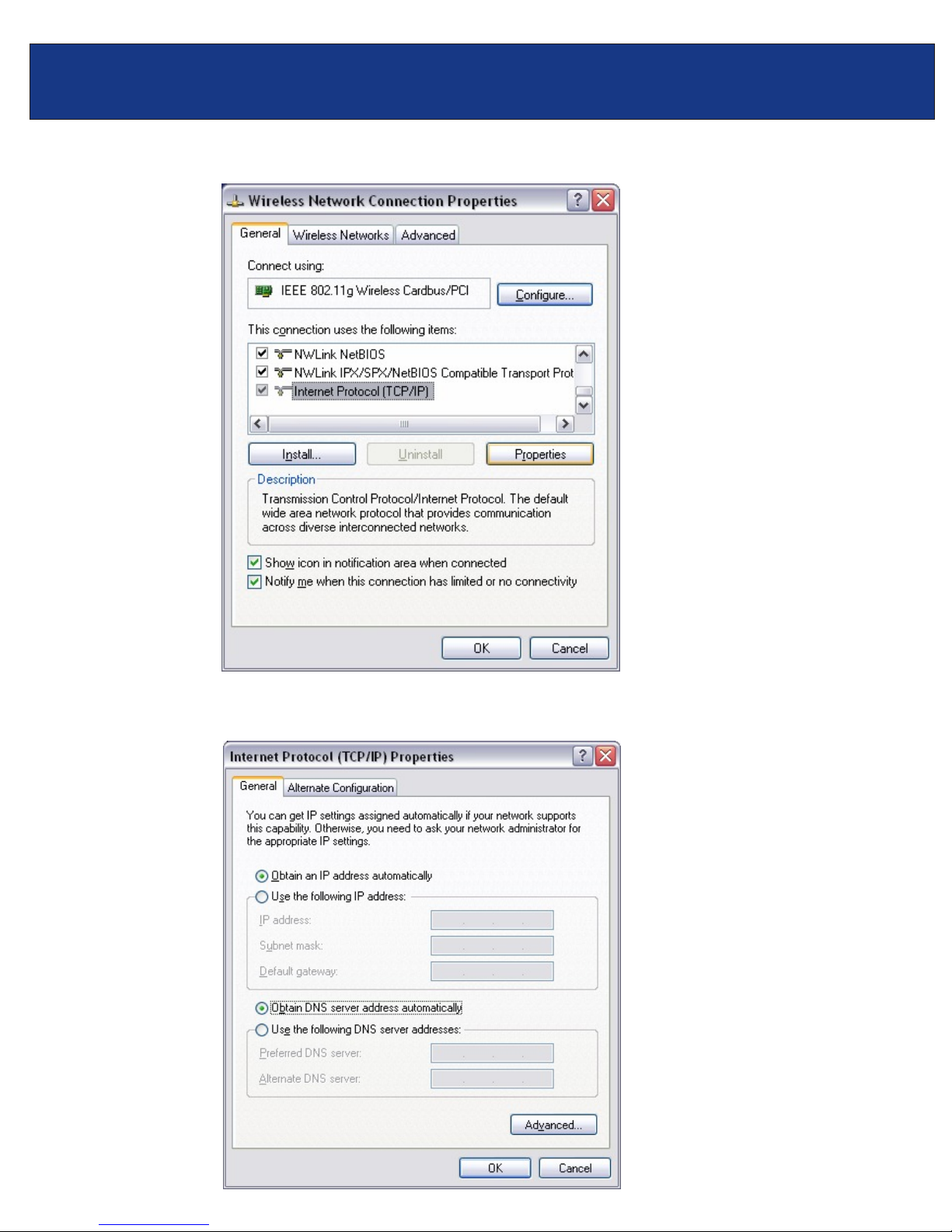

Step 4. Right-Click on the “Wireless Network Connection” icon then click on “Properties”.
For Windows 2000 it will be listed as “Local Area Connection”. Make sure you are
selecting the “Local Area Connection” that is bound to your Wireless Ethernet Adapter.
Step 4. Highlight the “Internet Protocol (TCP/IP)” then click on “Properties”.
Step 5. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”.
TEW-511BRP F.A.Q.
TEW-511BRP F.A.Q.
Step 6.
Step 7.
Click “OK”.
Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Q: What are the default SSIDs of my TEW-511BRP?
A:

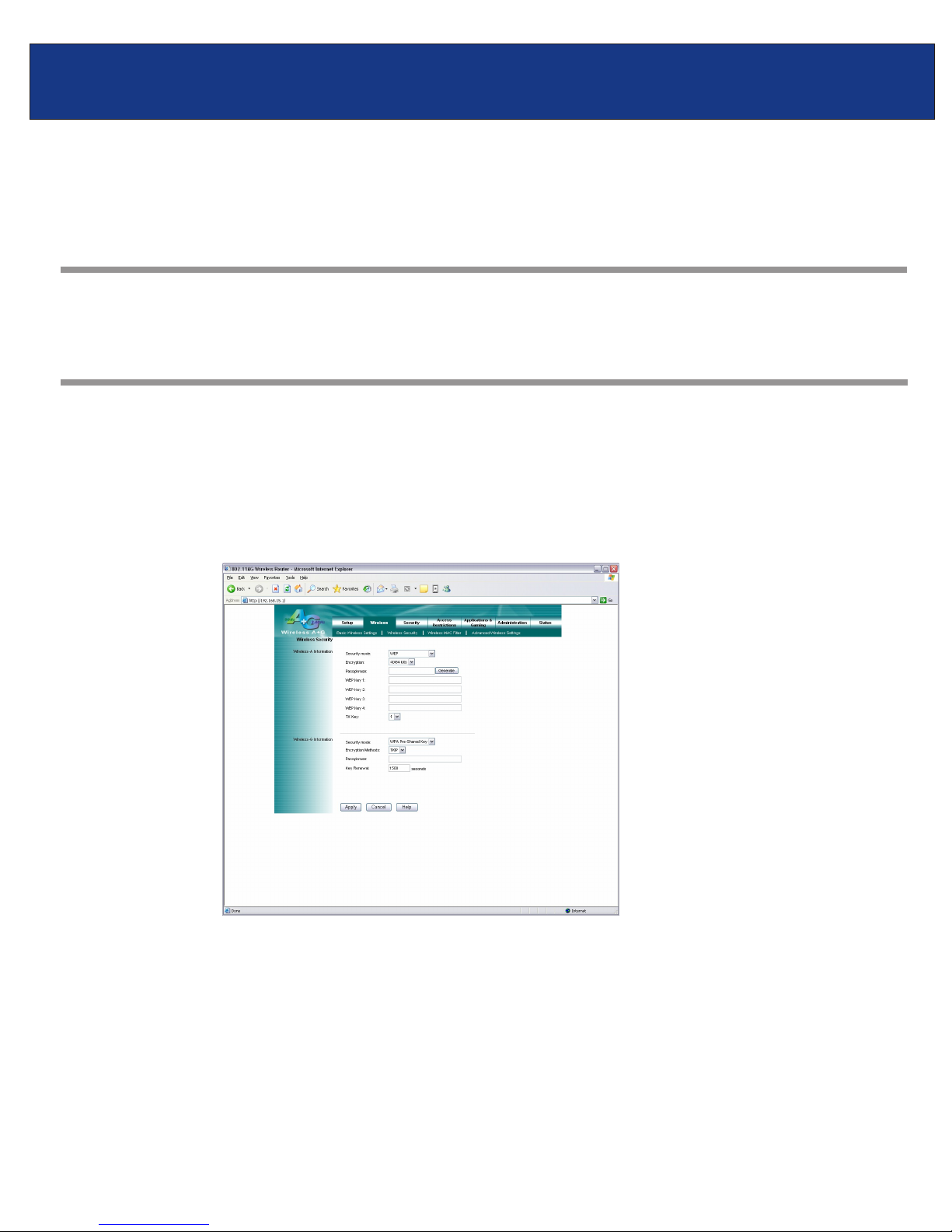

Q: How do I enable wireless encryption on my TEW-511BRP?
A:
The default SSIDs of the TEW-511BRP are “wlan-a” and “wlan-g”, without the quotes and they are
case sensitive.
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Step 2. Click on “Wireless” then “Wireless Security” at the top of the page.
Step 3. Enter in the desired encryption values and click Apply.
TEW-511BRP F.A.Q.
Q: Where can I find the MAC address of my router?
A:Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).

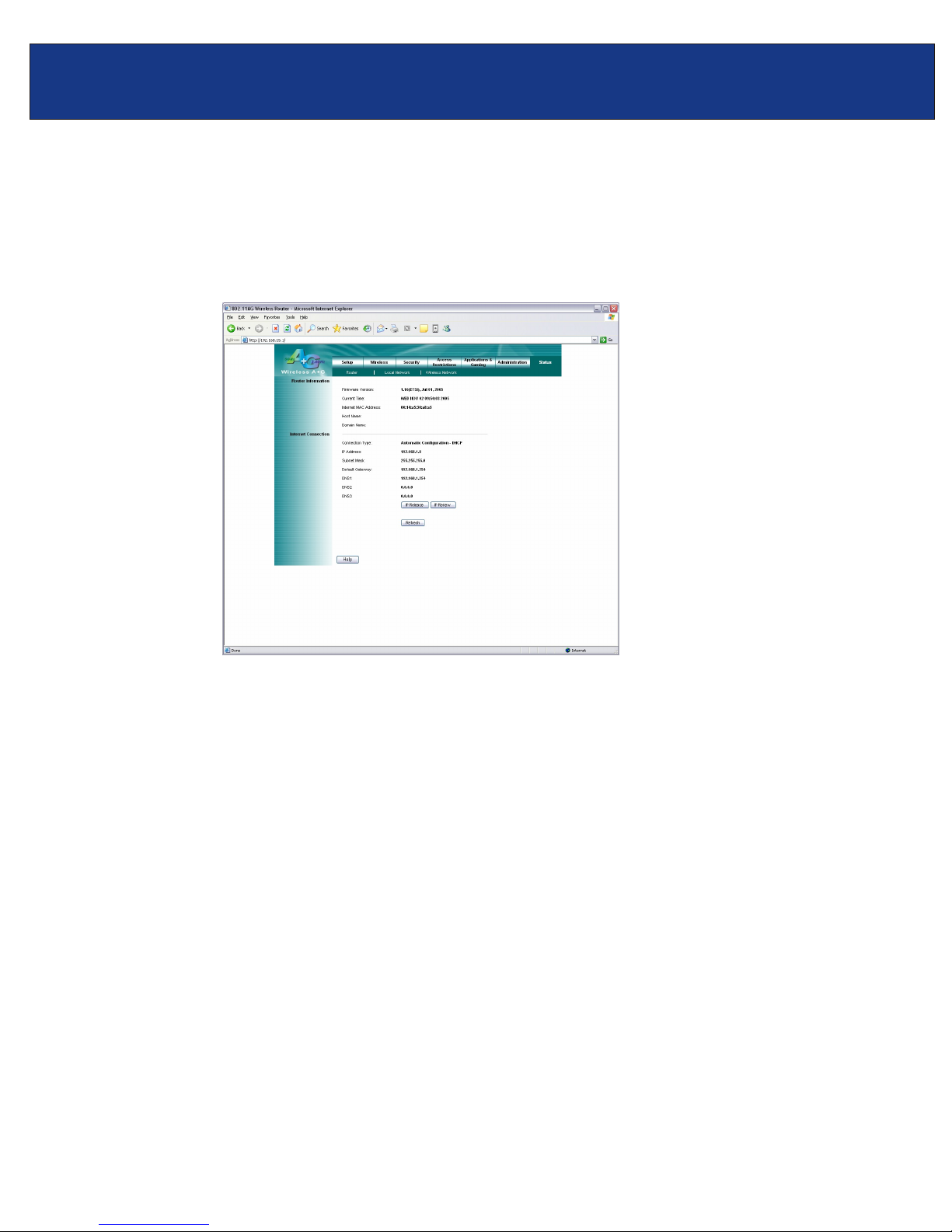

Step 2. Click “Status” then “Router” at the top of the page.
The MAC address is listed under the “Router Information” section next to “Internet MAC
Address”.
TEW-511BRP F.A.Q.
Q: How do I forward ports in my TEW-511BRP?
A:Well Known Ports
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Step 2. Click “Applications & Gaming” then “Port Range Forwarding” at the top of the page.
Step 3.
Step 4.
Step 5.
If it is a “well known” port highlight the Service under the “Application Name” section.
Choose the protocol and IP address of the computer you want to forward the port to and
check “Enabled”.
Click “Apply”.
TEW-511BRP F.A.Q.
Custom Ports
“Applications & Gaming” then “Port Range Forwarding” at the top of the page.
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
Step 2. Click
Step 3.
Step 4.
Enter a name into the “Application Name” field. Choose the protocol and IP address
of the computer you want to forward the port to and check “Enabled”.
Click “Apply”.
Q: How do I upgrade the firmware on my TEW-511BRP?
A:Click here to download the firmware. Save it to your desktop and extract it.
Firmware upgrades over wireless connections may damage the product. Please perform firmware
upgrades with "wired" network connections only.
Step 1. Open your web browser and type the IP address of the TEW-511BRP in the address bar.
The default IP address is 192.168.1.1. At the login, leave the username field blank and
enter the password (admin).
DO NOT upgrade firmware on any TRENDnet product using a wireless connection.
