TRENDnet TEW-432BRP - Wireless Router Manuel utilisateur

Quick Installation Guide

TEW-432BRP

H/W: D1

Table of Contents

Version 03.19.2009

English ......................................................................................................

Troubleshooting ..........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Configure the Wireless Router ...........................................................

Installation Requirements

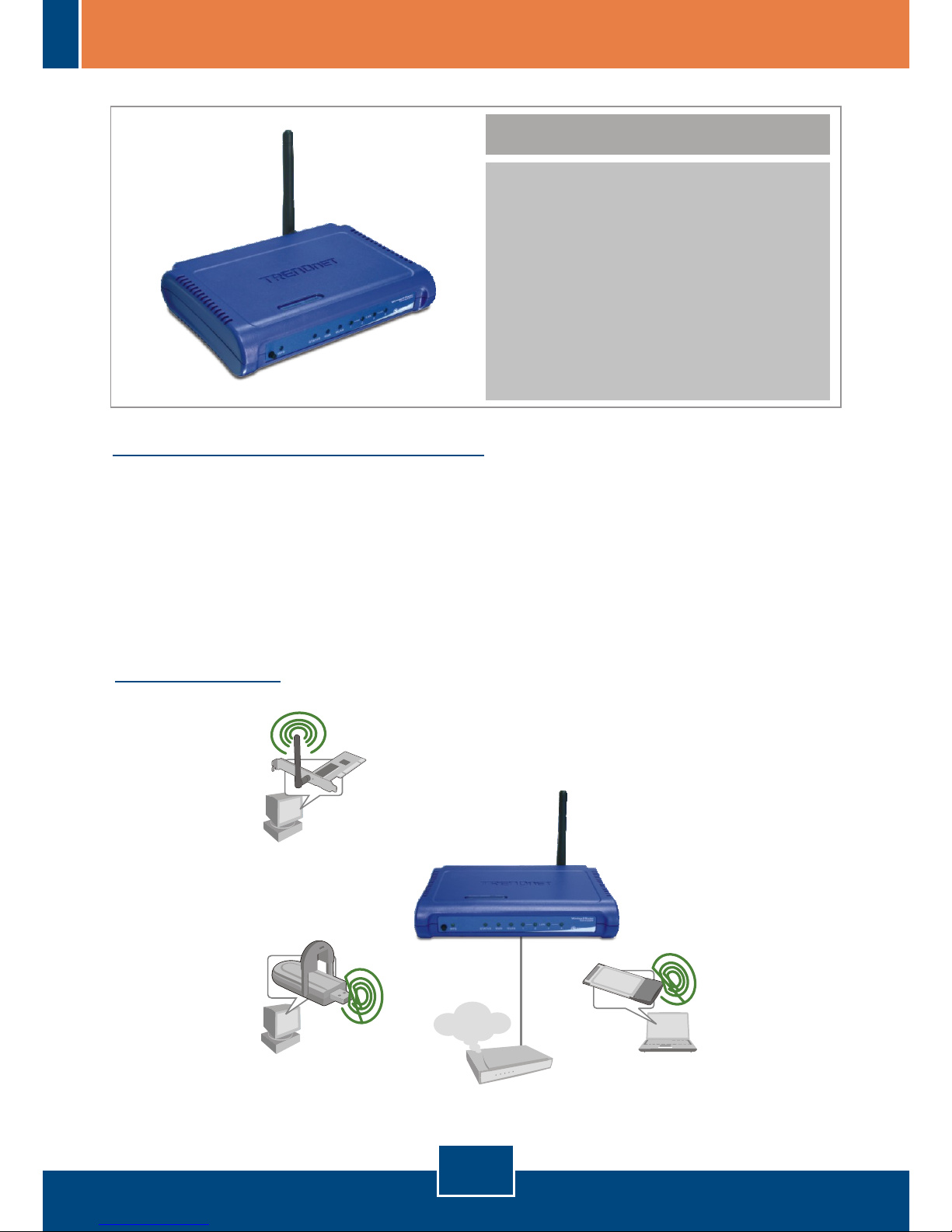

Application

Package Contents

1. Before You Start

English

TEW-432BRP

User's Guide CD-ROM

Multi-Language Quick Installation

Guide

1 x RJ-45 Ethernet Cable

1 x 2dbi Antenna

AC Power Adapter (7.5V, 1A)

A computer with a wired or wireless network adapter properly installed

Web Browser: Internet Explorer (5.0 or higher)

Broadband Internet

Installed Cable or DSL Modem

54Mbps Wireless G

Broadband Router

(TEW-432BRP)

Cable/DSL Modem

Notebook with

Wireless PC Card

(TEW-421PC)

Workstation with

Wireless PCI Adapter

(TEW-423PI)

Workstation with

Wireless USB 2.0 Adapter

(TEW-424UB)

Internet

English

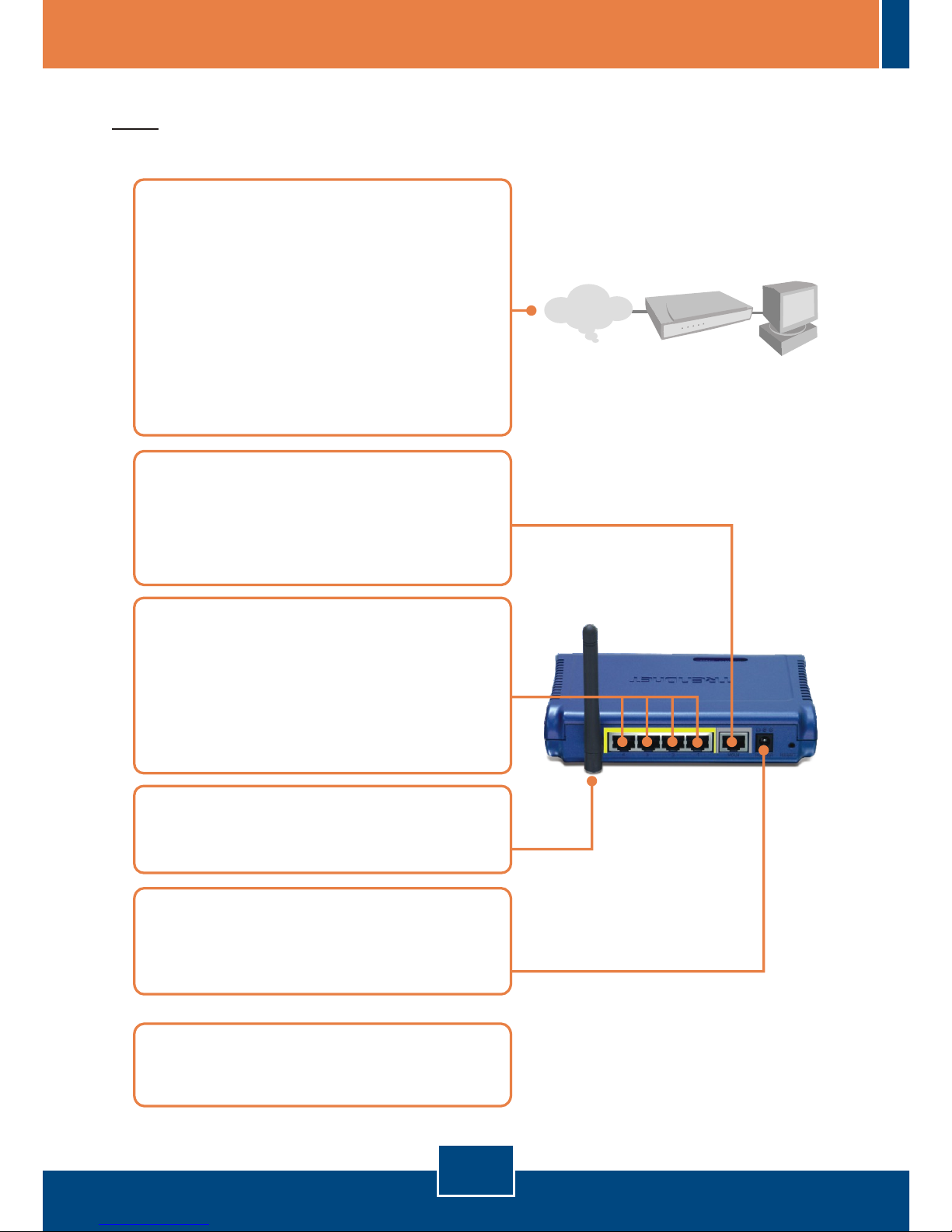

2. Hardware Installation

4. Connect the 2dBi detachable

antenna to the TEW-432BRP.

5. Connect the AC Power Adapter to

the wireless router and then to a

power outlet.

2. Connect one end of a RJ-45 cable

to the TEW-432BRP’s WAN port.

Connect the other end of the cable

to your modem.

Note: Gather all information related to your Internet Connection before you

start. If necessary, contact your Internet Service Provider (ISP).

1. Verify that you have an Internet

connection when connecting your

computer directly to the Cable or

DSL modem. Open your browser

(e.g. Internet Explorer) and type in

a URL (e.g.

http://www.trendnet.com) in the

address bar.

3. Connect one end of a RJ-45 cable

to one of the TEW-432BRP’s LAN

ports. Connect the other end of

the cable to the computer's

Ethernet port.

Cable/DSL Modem

Internet

6. Verify that the following panel lights

are on: LAN, WAN and WLAN.

English

3. Configure the Wireless Router

Note: It is recommended that you configure the Wireless Router from a wired

computer.

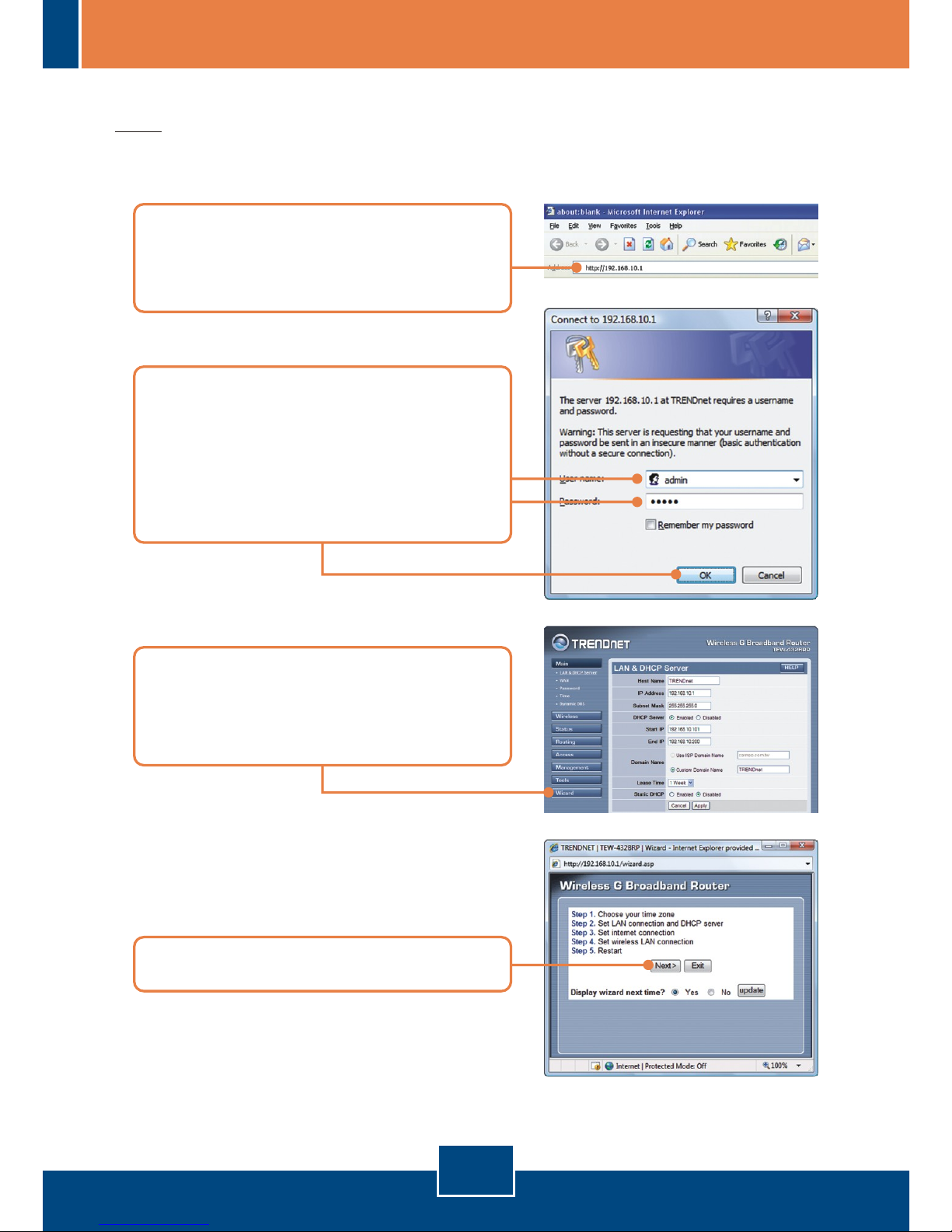

1. Open your web browser, type

http://192.168.10.1 in the

Address bar, and then press Enter.

3. The Wizard will automatically

appear. Click Wizard if the Wizard

does not automatically appear.

4. Click Next.

2. Enter the User Name and

Password, and then click Log In.

By default:

User Name: admin

Password: admin.

English

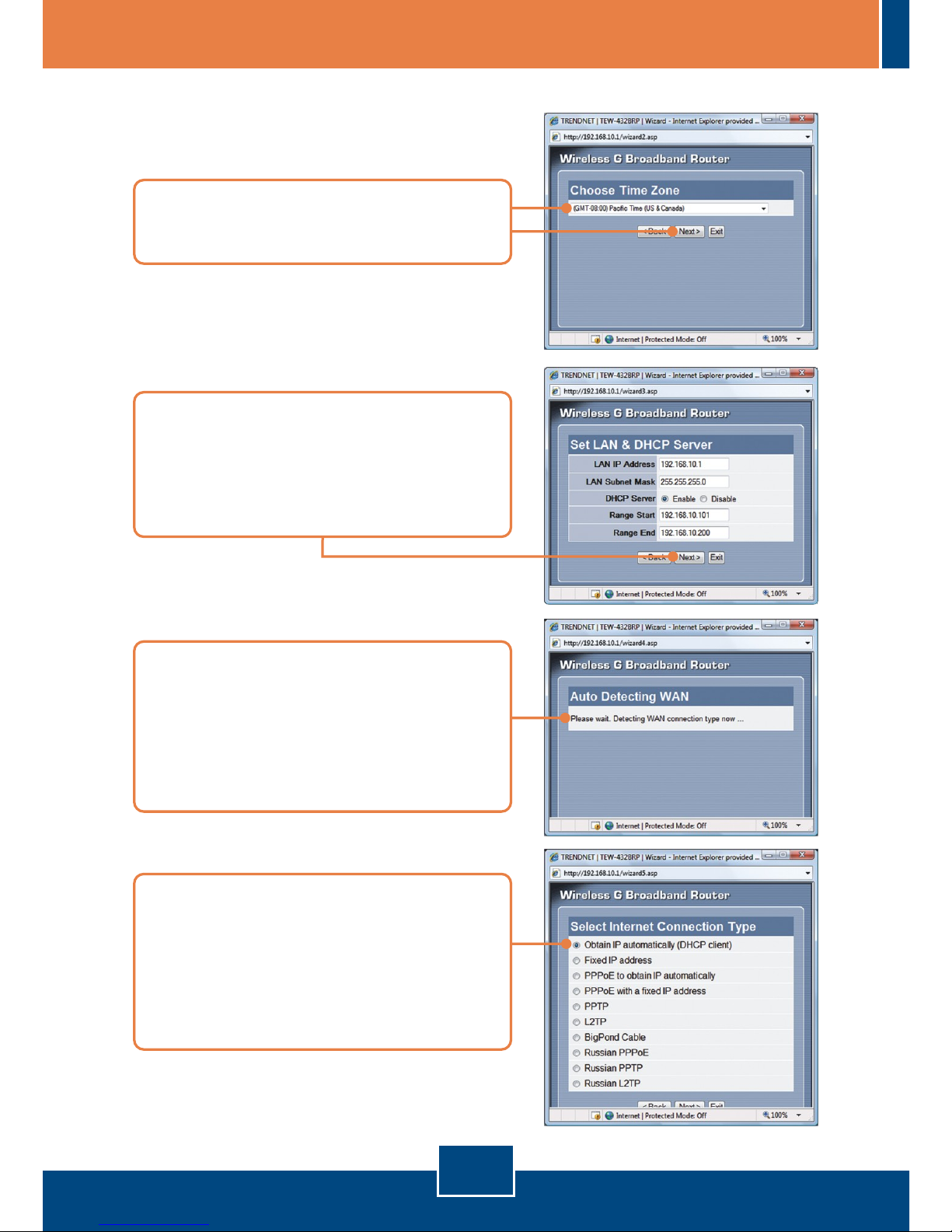

5. Select your Time Zone and then

click Next.

6. Click Next. Note: Do not change

default settings unless it is

conflicting with your existing

hardware.

7. The TEW-432BRP will attempt to

auto detect your Internet

connection. Follow the wizard

instructions and continue on to

step 9.

8. This screen will appear if the TEW-

432BRP is unable to auto detect

your Internet connection.

Configure the settings based on

information provided by your ISP.

English

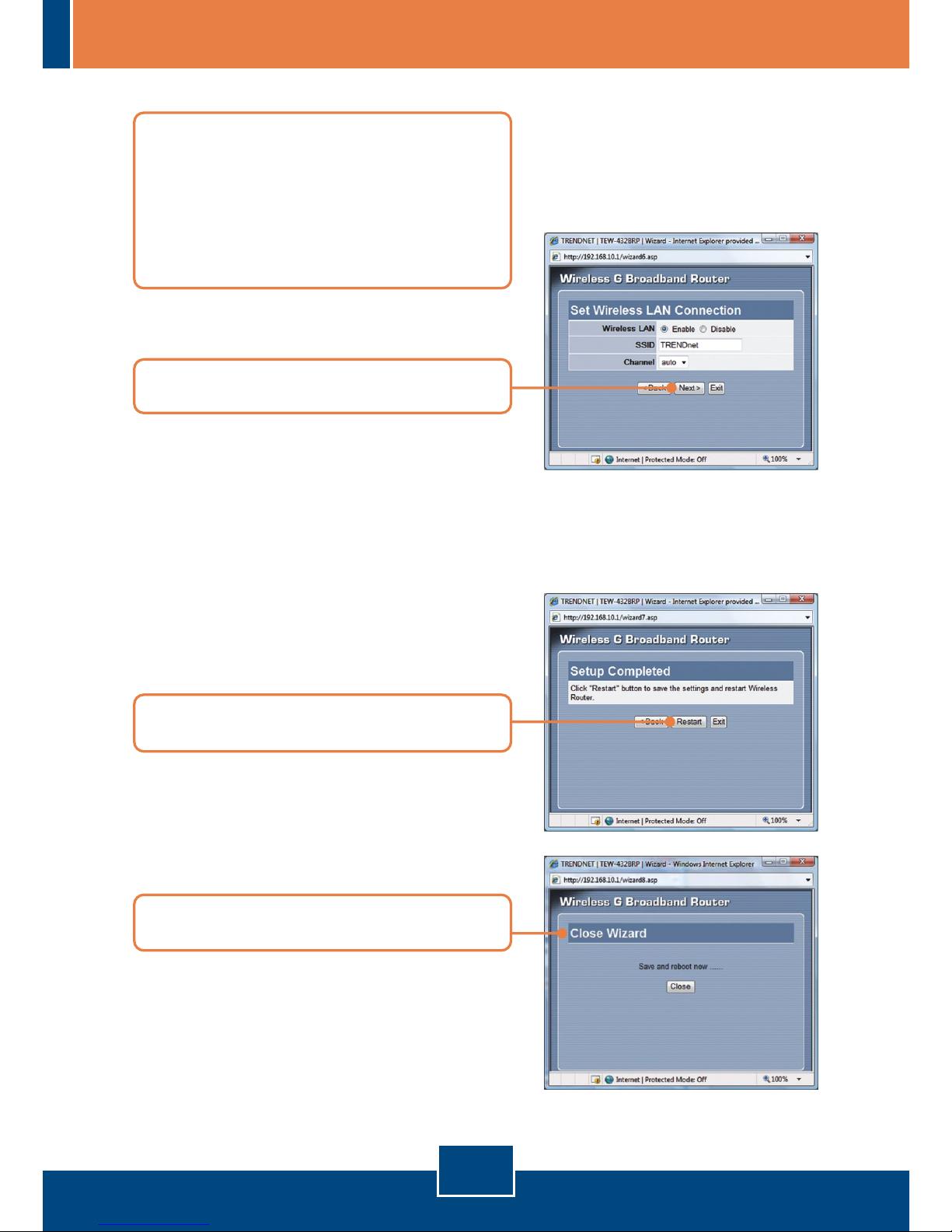

10. Click Next.

Note: It is recommended that you enable encryption on the wireless router.

Please refer to the User Guide on the User's Guide CD-ROM for information on

setting up encryption on the wireless router.

11. Click Restart.

9. Follow the wizard instructions to

complete the configuration.

Note: Each Internet Connection

type may have different options.

12. Click Close.

English

Your configuration is now complete.

For detailed information regarding the TEW-432BRP's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

13. Wait 30 seconds while the router

reboots.

14. Verify that the following panel

lights are on:

LAN, WAN and WLAN.

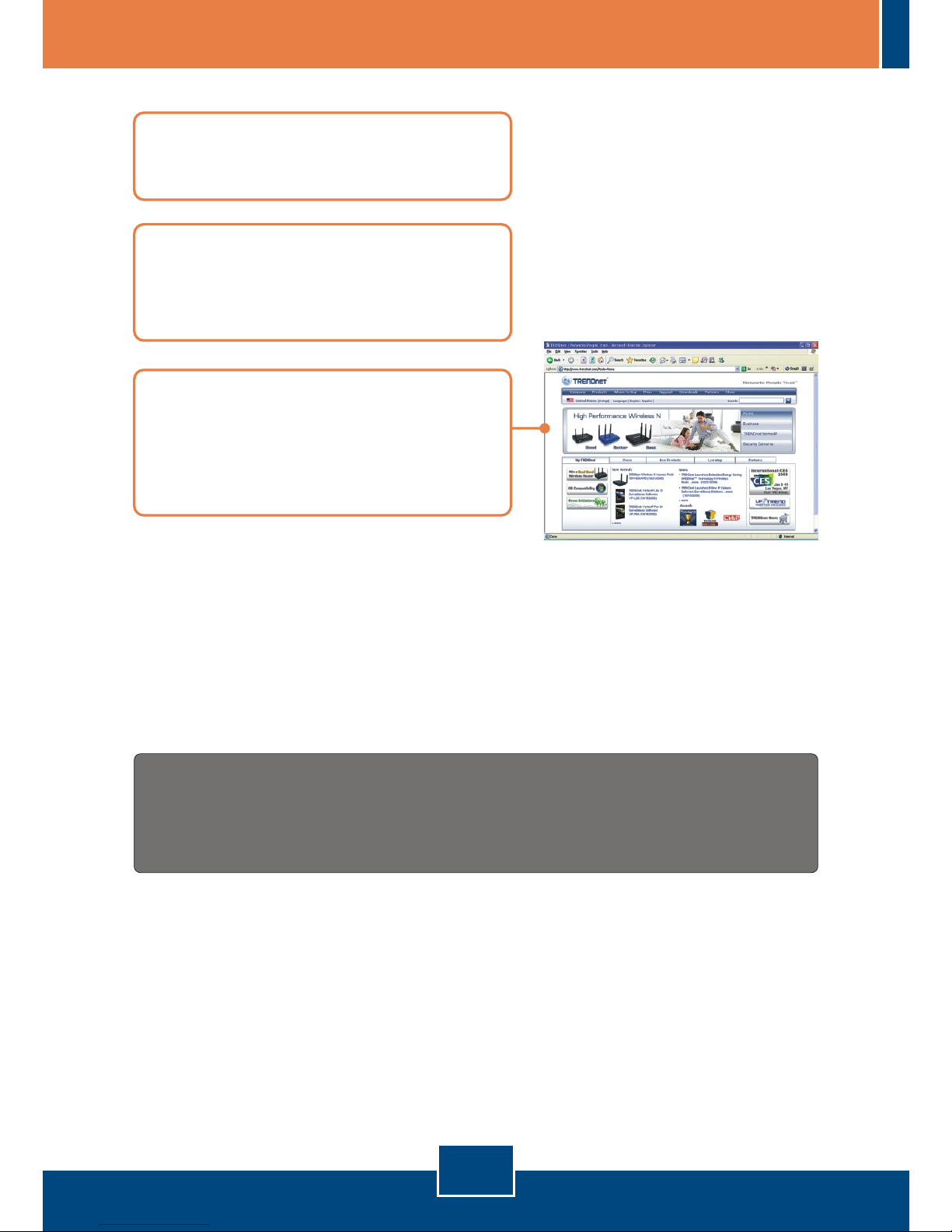

15. Open up your browser and enter

in a URL (e.g. www.trendnet.com)

to verify that you have Internet

connection.

Troubleshooting

Q1:

A1:

I typed http://192.168.10.1 in my Internet Browser's Address Bar, but an error

message says “The page cannot be displayed.” How can I get into the

TEW-432BRP’s web configuration page?

First, check your hardware settings again by following the instructions in

Section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure

your TCP/IP settings are set to Obtain an IP address automatically (see the

steps below).

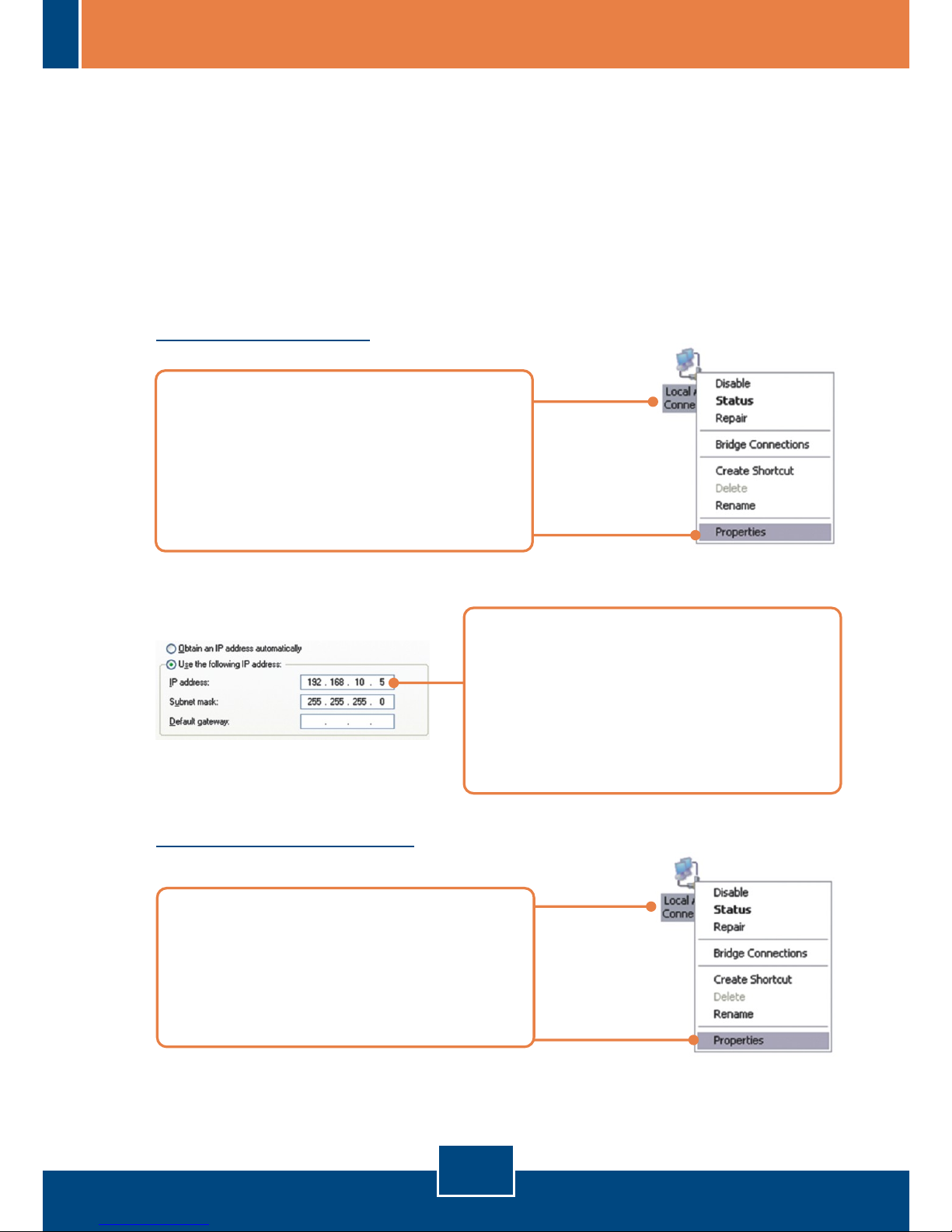

1. Go into the Control Panel, click

Network and Internet, click Network

and Sharing Center, click Manage

Network Connections and then right-

click the Local Area Connection icon

and then click Properties.

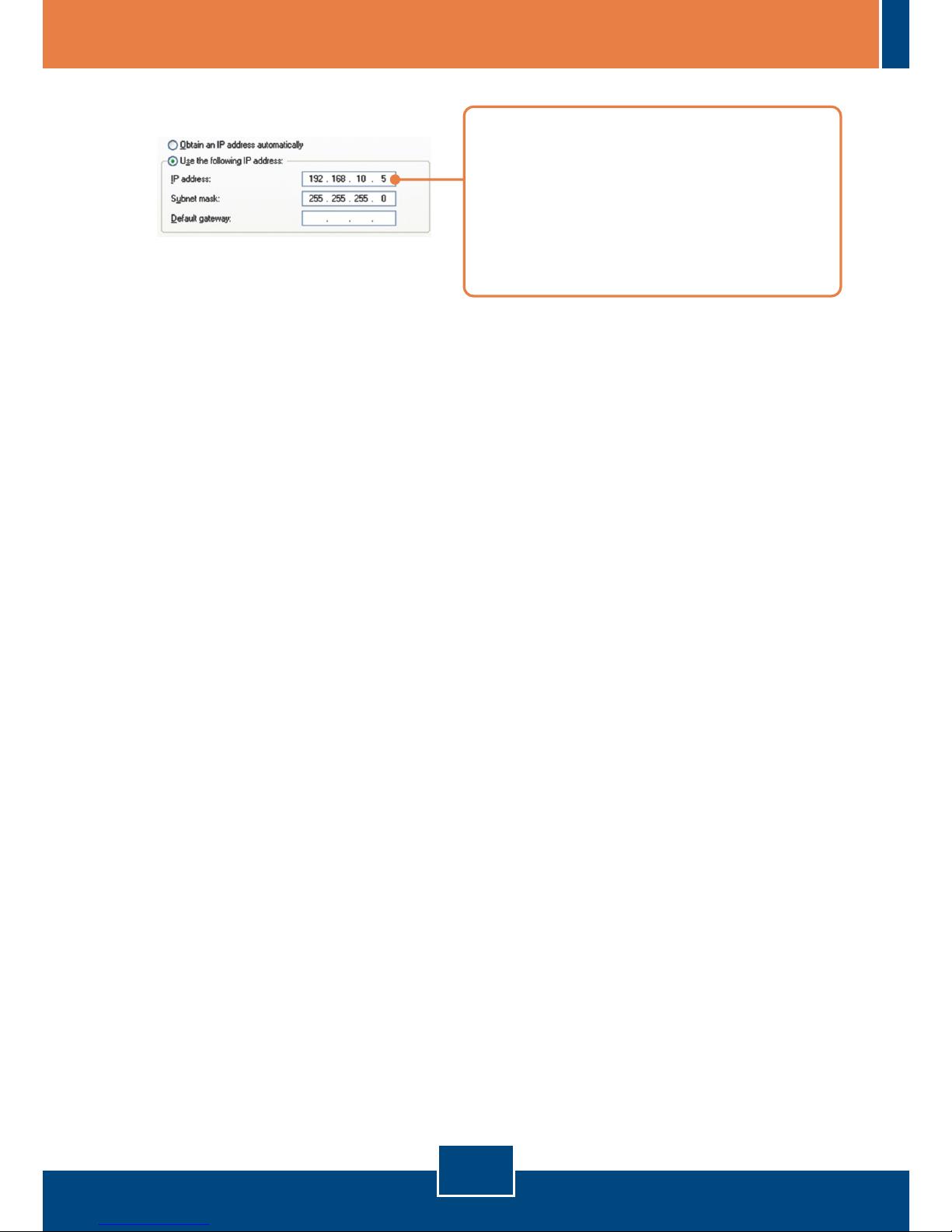

2. Click Internet Protocol Version 4

(TCP/IPv4) and then click Properties.

Then click on Use the following IP

address, and make sure you assign

your network adapter an IP address in

the subnet of 192.168.10.x.

Windows Vista

1. Go into the Control Panel, double-click

the Network Connections icon and

then right-click the Local Area

Connection icon and then click

Properties.

Windows XP/2000

Fourth, press on the factory reset button for 15 seconds.

I am not sure what type of Internet Account Type I have for my Cable/DSL

connection. How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct

information.

The Wizard does not appear. What should I do?

First, click Wizard on the left hand side. Second, near the top of the browser,

“Pop-up blocked” message may appear. Right click on the message and select

Always Allow Pop-ups from This Site. Third, disable your browser's pop up blocker

I went through the Wizard, but I can not get onto the Internet. What should I

do?

First, verify that you can get onto the Internet with a direct connection into your

modem. Second, contact your ISP and verify all the information that you have in

regards to your Internet connection settings is correct. Third, power cycle your

modem and router. Unplug the power to the modem and router. Wait 30

seconds, and then reconnect the power to the modem. Wait for the modem to fully

boot up, and then reconnect the power to the router.

I can not make a wireless connection to the Router. What should I do?

First, make sure that the antennas are connected to the TEW-432BRP.

Second, double check that the WLAN light on the Router is lit. Third, power cycle

the TEW-432BRP. Unplug the power to the TEW-432BRP. Wait 15 seconds, then

plug the power back in to the TEW-432BRP. Fourth, contact the manufacturer of

your wireless network adapter and make sure the wireless network adapter is

configured with the proper SSID. The preset SSID is TRENDnet.

If you still encounter problems or have any questions regarding the TEW-432BRP,

please contact TRENDnet's Technical Support Department..

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Use the following IP address, and

make sure you assign your network

adapter an IP address in the subnet of

192.168.10.x.
