TRENDnet TV-IP321PI Manuel utilisateur

TV-IP321PI

TV-IP321PI (V1) /07.10.2014

ŸOutdoor 1.3 MP HD PoE Dome IR Network Camera

ŸQuick Installation Guide (1)

Package Contents

1. Before You Start

ŸTV-IP321PI

ŸCD-ROM (Utility and User's Guide)

ŸMulti-Language Quick Installation Guide

ŸMounting kit

Minimum Requirements

ŸPower over Ethernet (PoE) switch (e.g. TPE-S44) (Optional) or PoE

Injector (e.g. TPE-105I optional)

ŸA computer with an Ethernet port and web browser

ŸCD-ROM Drive

ŸWired network

ŸNetwork cable

Note:

ŸThe TV-IP321PI works with Power over Ethernet (PoE) devices that follow

the IEEE 802.3af standard.

ŸThe TV-IP321PI has a 5.5 mm barrel connector for an optional 12 V DC 1A

power adapter (model 12VDC1A sold separately).

Supported Operating

Systems

1-8 Cameras

CPU CPU

9-32 Cameras

Memory Memory

Windows 8.1 (32/64-bit) /

Windows 8 (32/64-bit) /

Windows 7 (32/64-bit) /

Windows Server 2008 /

Windows Vista (32/64-bit) /

Windows Server 2003 /

Windows XP (32/64-bit)

2GHz 2GHz2GB RAM

or above

4GB RAM

or above

Free Management Software: TRENDnetVIEW Pro Requirements

Supported Operating Systems

Android (version 2.3 or above)

iOS (version 6.1 or above)

Free Mobile App: TRENDnetVIEW Pro Requirements

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until after you complete the

installation steps below. Temporarily place the IP camera next to your

computer.

2. Connect network cable from your computer to a LAN port on your network.

3. Insert the Utility CD-ROM into your CD-ROM drive.

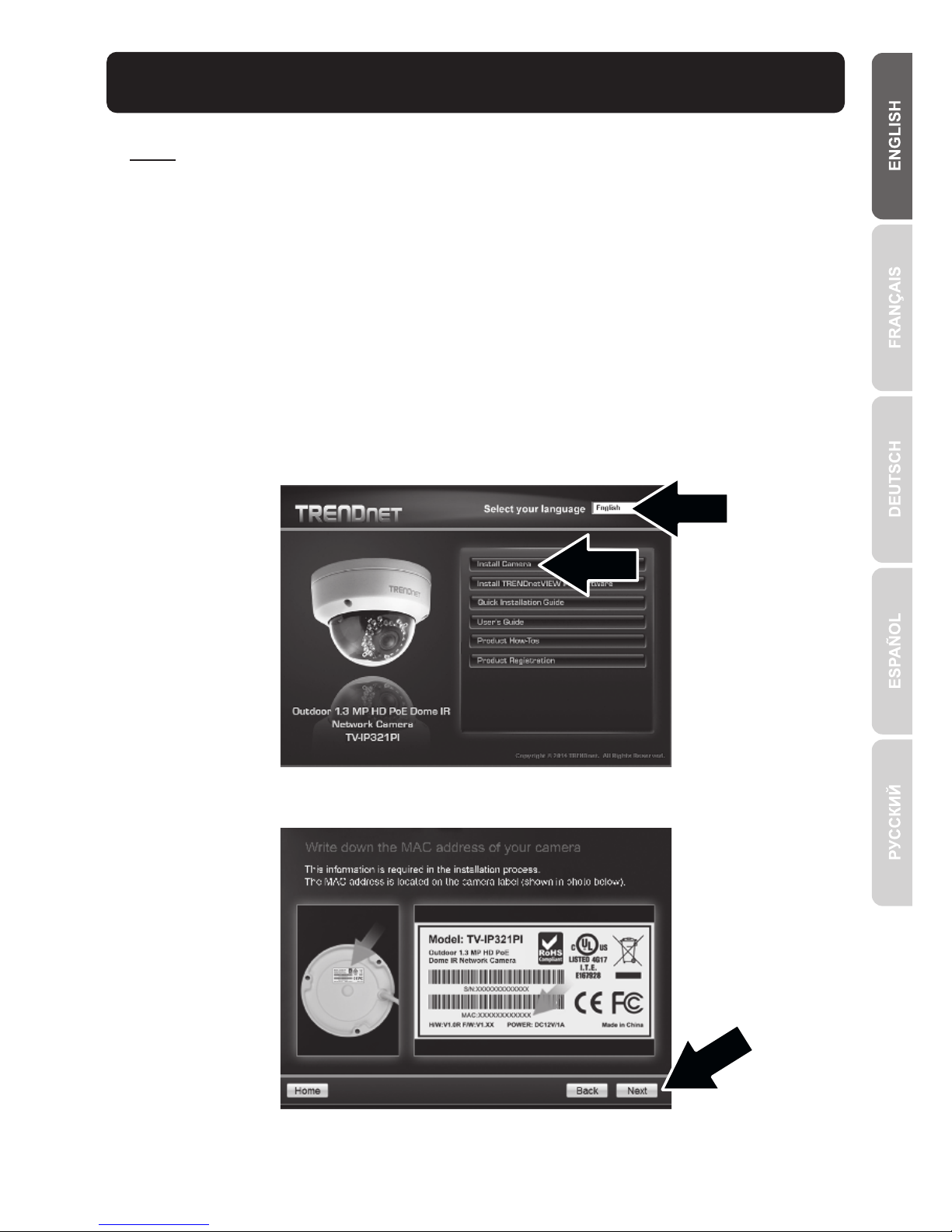

4. Select language from the drop down menu.

5. Click Install Camera.

6. Write down the MAC address of your camera. Then click Next.

Note: To download the latest version of the Setup Wizard utility, please go to

http://www.trendnet.com/support and select the TV-IP321PI within the

Products Download dropdown list.

8. Select your camera. Click Next and follow the instructions.

9. Select Change Password. Enter a new password, confirm the new

password and then click Next.

7. Connect a network cable to the camera's network port to your PoE Switch.

Allow 60 seconds for the camera to boot up. Then click Next.

10. Initial Setup is complete! Your camera is now connected to your network.

Click the hyperlink to confirm access to the management page. This will

open up a web browser. To resume installation, minimize the web browser

and then click Next.

11. Congratulations! Your camera is now ready to be installed in its final

location. Scan the QR code to download a free mobile app to view the

camera from your mobile device. Click Finish to exit the installation wizard.

12. To manage multiple cameras and for more advanced features, please

install the TRENDnetVIEW Pro software. Install the software by clicking

Install TRENDnetVIEW Pro Software in the Autorun window and refer to

the TRENDnetVIEW Pro User's Guide on the CD for more information.

Note

ŸSee User's Guide for advanced management functions.

ŸWhen viewing live video, you may be required to install plug-ins.

ŸIt is recommended that you setup a dynamic DNS service in order to view

your cameras remotely. See your router and IP camera user's guide for

instructions.

13. Install the camera in your desired location. To connect the IP camera to your

network with PoE, please use either of the following methods:

Using the TV-IP321PI with a PoE switch (TPE-S44)

ŸConnect the provided network cable from the Power over Ethernet switch

(e.g. TPE-S44) to the network port on the IP Camera.

ŸConnect the switch to your network.

TPE-S44

TV-IP321PI

PoE

Internet

Router

Non PoE

Using the TV-IP321PI with an Injector (TPE-105I)

TV-IP321PI

TPE-105I

DATA

P+DATA

OUT

PoE

ŸConnect the power adapter to the TPE-105I and then to a power outlet.

ŸConnect a network cable from the TV-IP321PI to the TPE-105I's P+DATA

OUT (PoE) port.

ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the

TPE-105I's DATA IN (Non-PoE) port.

Non-PoE

Router

Internet

Note:

For tips on capturing appropriate camera viewing angle, please refer to the

User's Guide.

Mounting the camera

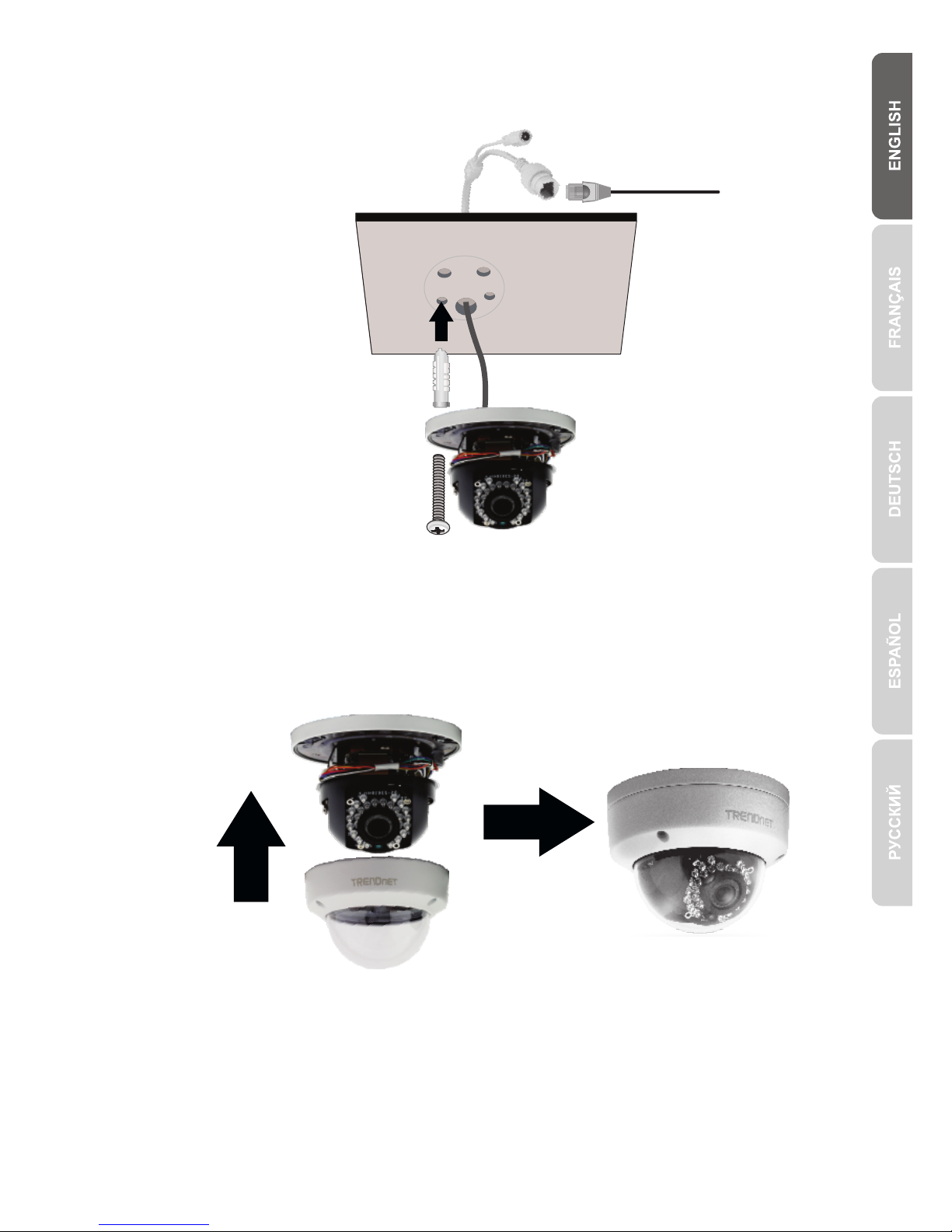

1. Loosen the adjustable nut and remove the cover.

2. Manually position the camera as desired.

Ceiling Mounting

Hole Hole

Hole

3. Place the provided template label on the mounting surface.

5. You can run your cable from back of the camera, or route it through the side

of the base. Skip to step 7 if you are doing so.

4. Drill holes for the provided screw anchors at each marked position on the

template. Make sure the drill bit matches the size of the provided screw

anchors.

6. Drill a hole in the wall for the cables and then pass the camera's cables

through the hole.

7. Connect the network cable to the camera. Ensure the camera is not powered.

8. Insert the provided screw anchors into the holes.

9. Align the mounting bracket with the screw anchors, and then use the

provided screws to secure the camera to the ceiling.

10. Power up the camera by connected the other end of the cable to a PoE

switch or injector on your network.

11. Secure the housing to the camera.

12. Sealing the edge of camera base with exterior grade caulking.

Company Information:

Company Name:

TRENDnet, Inc.

Company Address:

20675 Manhattan Place

Torrance, CA 90501

USA

Product Information:

Product Description:

Outdoor 1.3 MP HD PoE Dome IR Network Camera

Model Number:

TV-IP321PI

Brand Name:

TRENDnet

Technical Standards:

EN 55022: 2010 Class A

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2008

EN 50130-4: 2011

EN 60950-1: 2006+ A11: 2009 + A1: 2010 + A12: 2011

Declaration:

I hereby declare that the products and devices mentioned above are consistent with the

standards and provisions of the guidelines.

This product is herewith confirmed to comply with the Directive of 2004/108/EC and

2006/95/EC.

Sonny Su

Name

Date

Director of Technology

Title

Signature

June 30, 2014
