TRENDnet TPE-224WS - Web Smart PoE Switch Manuel utilisateur
TPE-224WS
Quick Installation Guide
Table of Contents
Español .....................................................................................................
Troubleshooting ........................................................................................
1
1
3
2
6
1. Antes de iniciar ..................................................................................
2. ...........................................
3. .........................................
Instalación del Hardware ........................
Herramienta de gestión Web ....................
Table of Contents
Version 03.13.2006
Español
1

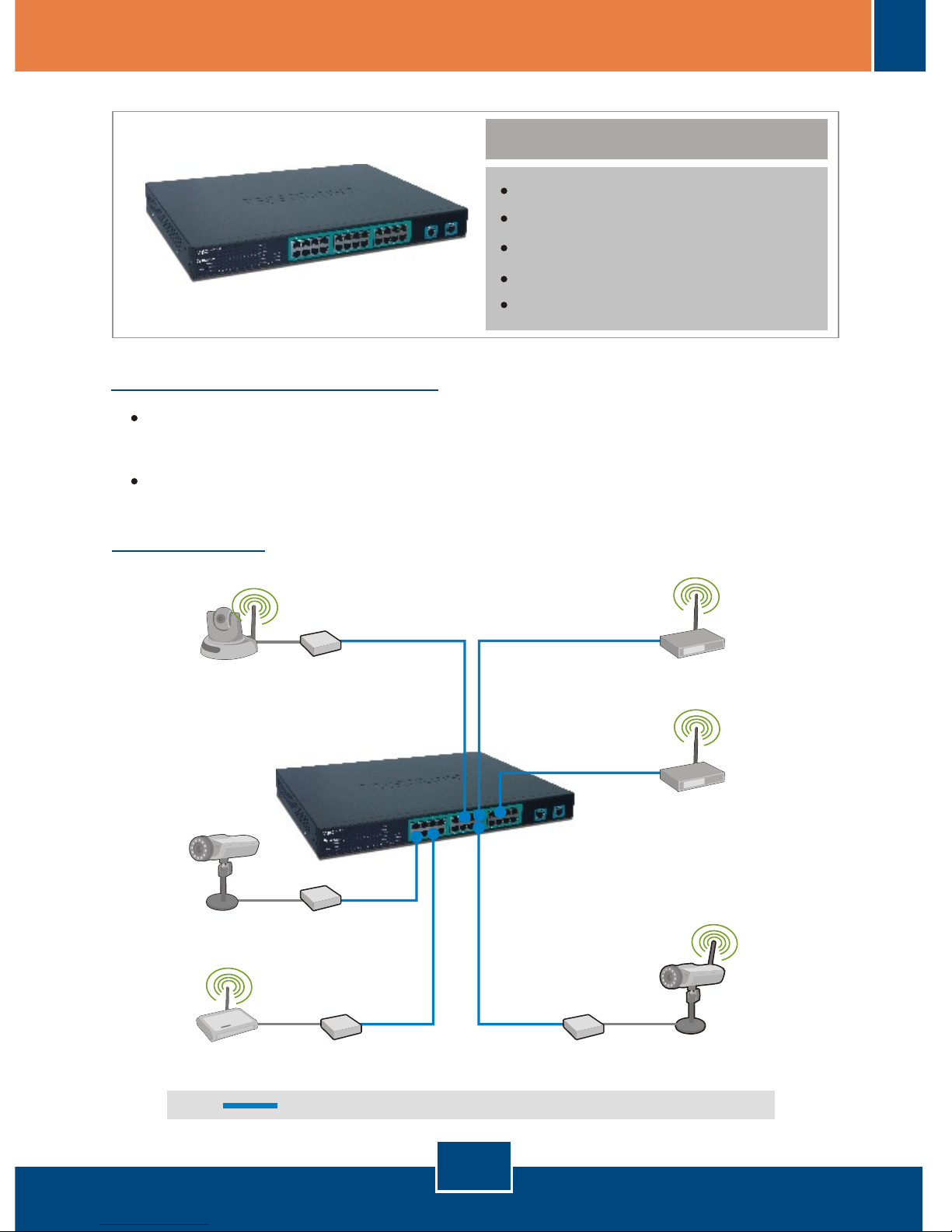

1. Antes de iniciar
Requisitos del sistema
Aplicación
TPE-224WS
CD-ROM de la herramienta
2 abrazaderas para cable con tornillos
Cable de alimentación AC
Guía de instalación rápida
Navegador Web: Internet Explorer (5.0 ó superior) o Netscape
Navigator (6.0 ó superior)
Contenidos del paquete
PC con adaptador de red instalado
Power + Ethernet Data
26-Port 10/100/1000Mbps
Gigabit Web Smart
PoE Switch
(TPE-224WS)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
108Mbps 802.11g
Hot-Spot Access Point
(TEW-453APB)
Advanced Wireless Day/Night
Internet Camera Server)
(TV-IP300W)
Advanced Wireless Pan & Tilt
Internet Camera Server
(TV-IP400W)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
108Mbps 802.11g
Wireless Access Point
(TEW-450APB)
Advanced Day/Night
Internet Camera Server
(TV-IP300)
108Mbps 802.11g
Hot-Spot Access Point
(TEW-453APB)
Power over Ethernet
(PoE) Splitter
(TPE-102S)
2
2. Instalación del Hardware
Español
2. Conecte un cable de red CAT-5 del
PC a un puerto Ethernet disponible
del TPE-224WS.
1. Conecte el Power Cord (Cable de
alimentación) en la parte trasera
del TPE-224WS y después a la
toma corriente.
Español
3
Nota: Si desea descubrir con facilidad todos los Enrutadores de Gestión Web
en la red, asigne la dirección IP, cambie la contraseña, y actualice el nuevo
firmware, después instale la Web Management Utility (Herramienta de gestión
Web). Siga los pasos que aparecen a continuación.
3. Haga clic en Start (Inicio), después
en Programs (Programas), luego
en web_management_utility
(Herramienta de gestión Web) y
después haga clic en
web_management_utility
(Herramienta de gestión Web).
Para usuarios de Windows
1. Introduzca el CD-ROM del
controlador y de la herramienta
en la unidad de CD-ROM de su
PC y luego haga clic en Install
Utility (Instalar herramienta).
2. Siga las instrucciones del
Installation Wizard (Asistente de
instalación). Haga click OK.
3. Herramienta de gestión Web
Español
4
4. Haga clic en Discovery
(Descubrir) y después haga doble
clic en el Switch (Enrutador) que
aparece en la “Discovery List”.
5. Haga clic en el Switch
(conmutador) que aparece en la
Monitor List y después haga clic
en Configuration setting.
6. Establezca la configuración de la
IP Address (Dirección IP), Subnet
mask (Máscara de subred),
Gateway y Password
(Contraseña). Haga clic en Set
(Establecer).
Español
5
7. OK.Haga clic en
8. Haga clic en Web access (Acceso
Web).
9. Escriba su Password
(Contraseña) y después haga clic
en Login (Iniciar).
Para obtener información más detallada sobre la configuración así como de las
configuraciones avanzadas del TPE-224WS , por favor consulte la sección de
resolución de problemas, el CD-ROM de la Guía del Usuario, o el sitio Web de
Trendnet en http://www.trendnet.com.
Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
Q5:
A5:
After connecting the TPE-224WS to a power outlet, the LEDs do not turn on.
Check the connection of the power cord to the TPE-224WS and the power outlet. Also
check that the power outlet is receiving power.
After installing the Web-Management Utility, I clicked Discovery and the Utility is unable to
discover the TPE-224WS. What should I do?
Make sure that the TPE-224WS is powered on and that all connections are secure. Also
check that your computer's IP Address is on the same network segment as the TPE-224WS.
The default IP Address of the TPE-224WS is and the default password is
"admin".
When I access the TPE-224WS using a web browser, I get a screen that tells me “only one
user can login”. What should I do?
Another computer is configuring the TPE-224WS. Please wait until the user logs off. If the
other user has already logged off and you still get the same screen, then disconnect the power
cord from the TPE-224WS, wait for 5 seconds, reconnect the power cord to the TPE-224WS,
allow 5 seconds for the switch to power on, and then attempt to access the web configuration
page to login.
When I connect a computer to the switch's port, the LINK/ACT LED turns on, but the
100Mbps LED remains off.
When the 100Mbps LED remains off, the computer's connection speed is 10Mbps.
I connected a Power-over-Ethernet (PoE) device into the switch's PoE port, but the PoE
Status LED remains off.
Check the connections between the PoE port and the PoE device. Make sure that the
CAT-5 cable is properly inserted into the PoE port and PoE device.
If you still encounter problems or have any questions regarding the TPE-224WS, please refer to the
User's Guide included on the Utility CD-ROM or contact Trendnet's Technical Support Department.
http://192.168.0.1
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause
undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
6
Troubleshooting
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
7
Limited Warranty
- 5-Year Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
TPE-224WS
If a product does not operate as warranted above during the applicable warranty period,
TRENDnet shall, at its option and expense, repair the defective product or deliver to
customer an equivalent product to replace the defective item. All products that are
replaced will become the property of TRENDnet. Replacement products may be new or
reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product through any unauthorized service center. This warranty is voided if
(i) the product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-
authorized by TRENDnet with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
8
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S
MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Note: AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1-Year Warranty
