TRENDnet TV-NVR104 Manuel utilisateur
Ÿ4-Channel 1080p HD PoE NVR
TV-NVR104
ŸQuick Installation Guide (1)
TV-NVR104 (V1)/06.16.2015
1. Before You Start
1
Minimum Requirements
ŸDisplay with VGA or HDMI connection
ŸSATA I/II HDD or SSD up to 4TB
ŸNetwork camera
ŸPhillips screwdriver
ŸComputer with CD-ROM drive and wired network port (for manual configuration)
Compatible Hardware
Compatible Camera List
Note: Visit http://www.trendnet.com/info/TV-NVR104 for the most current camera compatibility list.
Package Contents
ŸTV-NVR104 (Hard drive sold separately)
Ÿ1 x 6 ft. Network cable
ŸOptical mouse
ŸCD-ROM (User's Guide)
ŸQuick Installation Guide
ŸPower adapter (48V DC, 1A)
TV-IP310PI
TV-IP311PI
TV-IP320PI
TV-IP321PI
TV-IP342PI
TV-IP343PI
TV-IP430PI
TV-IP450P
TV-IP662PI
Outdoor 3MP Full HD PoE Day/Night Network Camera
Outdoor 3MP Full HD PoE Dome Day/Night Network Camera
Outdoor 1.3 MP HD PoE IR Network Camera
Outdoor 1.3 MP HD PoE Dome IR Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Dome Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Network Camera
Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
Megapixel HD PoE Day/Night PTZ Network Camera
TV-IP320PI2K Outdoor 1.3 MP HD PoE IR Network Camera Twin Pack
TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera
TV-IP322WI Outdoor 1.3 MP HD WiFi IR Network Camera
TV-IP312PI Outdoor 3MP Full HD 1080p PoE IR Network Camera
Outdoor 2MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera
For the best performance and interoperability, the following camera models are suggested:
2
Compatible Hard Drive
The TV-NVR104 is compatible with 3.5” SATA I or SATA II hard drives. To ensure uninterrupted 24/7 recording, it is recommended that you
select a drive rated for video or surveillance applications.
1.1 Camera Configuration
Plug and Play IP Cameras
For Plug and Play IP Cameras, no configuration is required. Go to Section 2, Hard Drive Installation.
TV-IP310PI
TV-IP311PI
TV-IP320PI
TV-IP321PI
TV-IP430PI
TV-IP450P
Outdoor 3MP Full HD PoE Day/Night Network Camera
Outdoor 3MP Full HD PoE Dome Day/Night Network Camera
Outdoor 1.3 MP HD PoE IR Network Camera
Outdoor 1.3 MP HD PoE Dome IR Network Camera
Outdoor 1.3 MP HD PoE+ Speed Dome Network Camera
TV-IP320PI2K Outdoor 1.3 MP HD PoE IR Network Camera Twin Pack
TV-IP450PI Outdoor 1.3 MP HD PoE IR Speed Dome Network Camera
TV-IP322WI Outdoor 1.3 MP HD WiFi IR Network Camera
Model Description
TV-IP312PI Outdoor 3MP Full HD 1080p PoE IR Network Camera
Outdoor 2 MP Full HD 1080p PoE+ IR Mini Speed Dome Network Camera
To remote viewing the live video
on your mobile device, please
go to the app store to search
and install the TRENDnet
IPView. Alternatively, scan the
QR code to download and install
the free TRENDnet IPView app.
Mobile App
Apple Android
3
1.2 Camera Requiring Manual Configuration
TV-IP342PI
TV-IP343PI
TV-IP662PI
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Dome Network Camera
Outdoor 2MP Full HD Vari-Focal PoE Day/Night Network Camera
Megapixel HD PoE Day/Night PTZ Network Camera
Model Description
For manual configuration, follow the steps below. We recommend that you configure your camera using the CD-ROM that was included
with your camera. If you are unable to do so, skip to the Manual Camera Configuration without CD-ROM (Installation Wizard) section
below.
1. For manual installation, set your computer's IP address to a static address. Use the IP address 192.168.10.10/255.255.255.0 and leave
the default gateway and DNS settings blank.
2. Connect a network cable from your computer to a LAN port on your TV-NVR104.
3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet.
4. Connect your camera to the TV-NVR104 and wait 30 seconds for the camera to power on.
5. Insert the CD-ROM that was included with your camera into your computer.
6. Select your language from the dropdown menu.
7. Select Install Camera.
8. Write down the MAC ID of the camera from the white label on the camera, then click Next.
4
9. Select your camera from the list, then click Next.
10. Select Fixed IP and click Next.
12. Click Next.
11. Enter the IP Address for the Camera. The IP default range for the NVR unit is: 192.168.10.XX
We recommended that you assign IP values that match the default range of the TV-NVR104 (192.168.10.1 – 192.168.10.254). Except
the default IP of TV-NVR104 (192.168.10.60)
Example: Camera 1: 192.168.10.50
Camera 2: 192.168.10.51
Camera 3: 192.168.10.52
5
13. Enter the Admin password. The default password is admin. If this is your first time logging in, you will need to change the password of
the camera. The new password must be between 8 and 32 characters (alphanumeric: a-z, A-Z, 0-9, !, @, #, $). Confirm the new
password and click Next.
Manual Camera Configuration without CD-ROM (Installation Wizard)
Example: Camera 1: 192.168.10.50
Camera 2: 192.168.10.51
Camera 3: 192.168.10.52
14. Camera configuration is now complete. Click Next.
15. Your camera is now ready for manual installation with the TV-NVR104. Click Finish to close the program.
1. Set your computer's IP address to a static address. Use the IP address 192.168.10.10/255.255.255.0 and leave the default gateway and
DNS settings blank.
2. Connect a network cable from your computer to a LAN port on your TV-NVR104.
3. Connect the power adaptor to the TV-NVR104 and plug the adaptor into an electrical outlet.
4. Connect your first camera (one at a time only) to the TV-NVR104 and wait 30 seconds for the camera to boot up.
5. Open a web browser, and type 192.168.10.30 into the address bar. This is the default IP address of the camera.
6. Log in to your camera. If your camera is new, or if the camera has been reset, the default login credentials are:
Username: admin
Password: admin
7. Change the IP address of the camera so that the default address (192.168.10.30) is not used.
8. Disconnect the camera, and repeat steps 1 through 3 for each camera that will be used. It is recommended that the IP addresses
assigned to each camera follow in sequential order, although this is not required.
6
2. Hardware Drive Installation (Sold Separately)
Note:
ŸStatic electricity can damage the TV-NVR104. Before handling the unit, discharge any static electricity by touching a metal object, or use
an anti-static wrist strap.
ŸThe TV-NVR104 supports 3.5” SATA I and II drives up to 4TB.
1. Remove the four retaining screws from the bottom panel of the TV-NVR104.
2. The top cover is slotted vertically. From the back of the unit, gently slide the cover up to separate it from the lower panel.
3. Attach the SATA cable to the hard drive (sold separately) and control board. SATA connectors are keyed to prevent improper installation.
7
5. Reattach the top cover to the unit. Make sure the lower panel lines up with the slots on the cover.
4. Mount the hard drive to the TV-NVR104's drive bay using the mounting screws included with your hard drive.
8
3. System Installation
Optional
network
connection*
(Sold separately)
(Sold separately)
(Included
mouse)
USB Flash drive
(sold separately)
(Not included)
(Sold separately)
(Not included)
(Sold separately)
(Not included)
(Not included)
Note: The following installation steps support a stand-alone setup WITHOUT a wired connection to a network. To set up the NVR using a
wired network connection (for remote access to NVR), proceed to the User's Guide for the appropriate setup steps (do not continue with
this section).
(Sold separately)
(Not included)
9

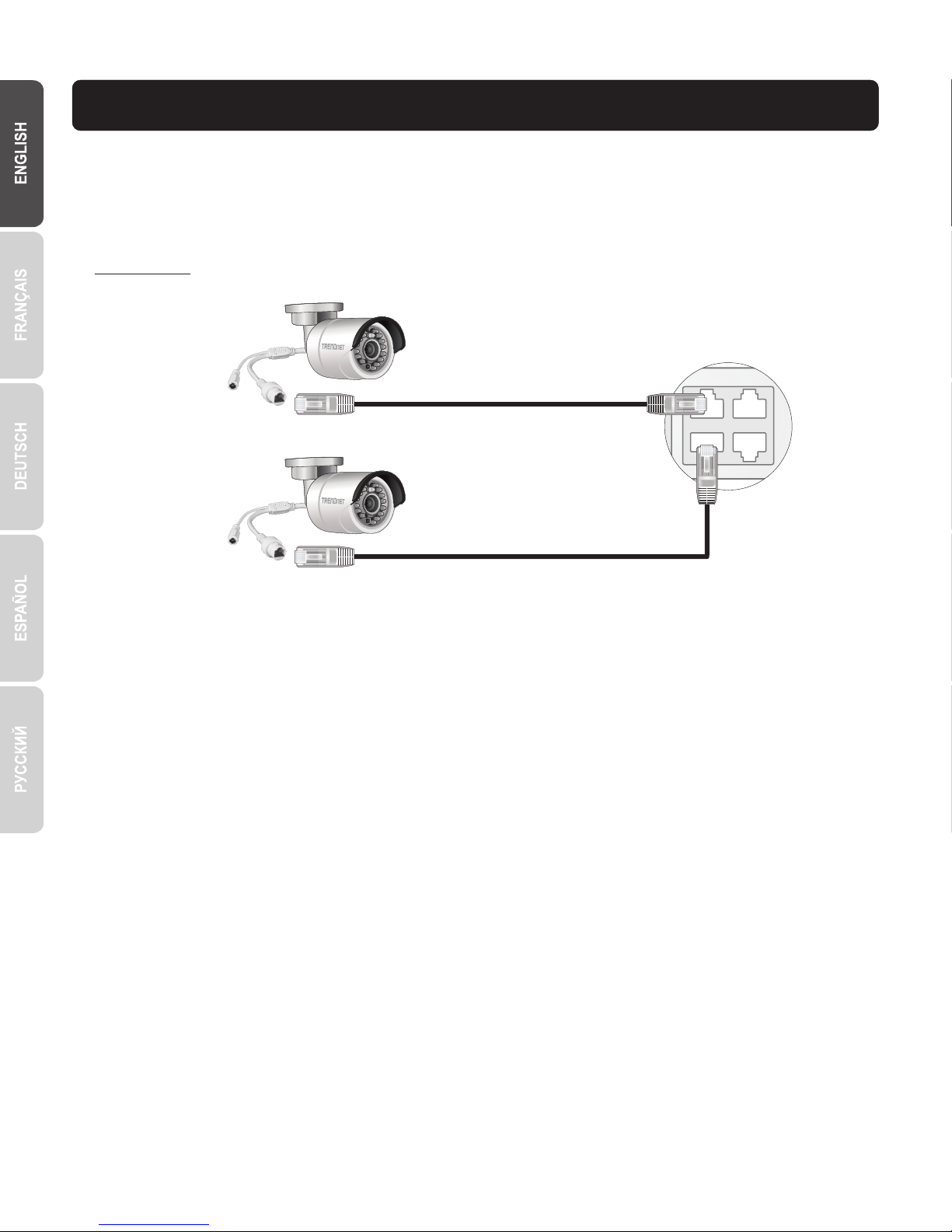

3.1 Camera Installation (Sold Separately)
1. Connect the IP camera to a PoE network port on the TV-NVR104. The use of non-PoE cameras is supported by the TV-NVR104 but the
camera will require an external power supply.
2. If you are using camera model TV-IP450P or TV-IP450PI, a PoE injector is required (one included with the camera). Camera model
TV-IP430PI also requires a PoE+ injector (sold separately). For all other models, no additional steps are required, please continue with
the camera configuration.
PoE network port
PoE cameras
(Sold separately)
