TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Product Overview

TPL-331EP TPL-331EP2K

Package Contents

TPL-331EP package includes:

TPL-331EP

Quick Installation Guide

Network cable (1.2m / 4 ft.)

TPL-331EP2K package includes:

2 x TPL-331EP

Quick Installation Guide

2 x network cables (1.2m / 4 ft.)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

Powerline 200 AV PoE+ Adapter (TPL-331EP)

TRENDnet’s Powerline 200 AV PoE+ Adapter, model TPL-331EP, creates a high-speed

Powerline 200 network using your home’s existing electrical system. It features a PoE+

output port to connect PoE devices such as IP cameras, wireless access points and VoIP

handsets over a Powerline network. Two adapters are needed to start a network. No CD

installation required—encrypted TRENDnet adapters auto-connect out of the box. Plug

in the first adapter and network it to your existing router. Plug in other adapters on the

same electrical system and they auto-connect to the first adapter for instant internet

access.

Powerline 200 AV PoE+ Adapter Kit (TPL-331EP2K)

TRENDnet’s Powerline 200 AV PoE+ Adapter Kit, model TPL-331EP2K, comes with two

PoE+ Powerline adapters that add PoE+ capabilities to your existing Powerline network.

Each adapter features a single PoE+ output port to connect PoE+ devices such as IP

cameras, wireless access points and VoIP handsets over a Powerline network. Two

adapters are needed to start a network. Encrypted TRENDnet adapters auto-connect

out of the box.

Sync Button

Press the Sync button to change existing Powerline encryption keys

Powerline 200

Powerline 200 technology delivers fast and stable networking to seamlessly connect

devices.

PoE+ Port

Features a PoE+ output port for connecting PoE devices such as IP cameras, wireless

access points and VoIP handsets over a Powerline network.

Cross Compatibility

Cross compatible with Powerline 1200, 600, 500, and 200 adapters

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Expandable

Use up to 8 adapters on a single Powerline network

Easy Installation

TRENDnet adapters auto-connect out of the box

128-bit AES Encryption

Powerline communication is protected with 128-bit AES encryption

Note:

* Maximum of 8 adapters (nodes) recommended for streaming video across your

network.

** 200Mbps is the maximum theoretical Powerline data rate when connected to

another Powerline 200 device. Data throughput may vary by circuit wire conditions.

*** Powerline communication works on a single electrical system. (Usually controlled by

a single distribution panel). Power strip, GFCI outlets, and AFCI circuit breakers may

degrade Powerline network signals.

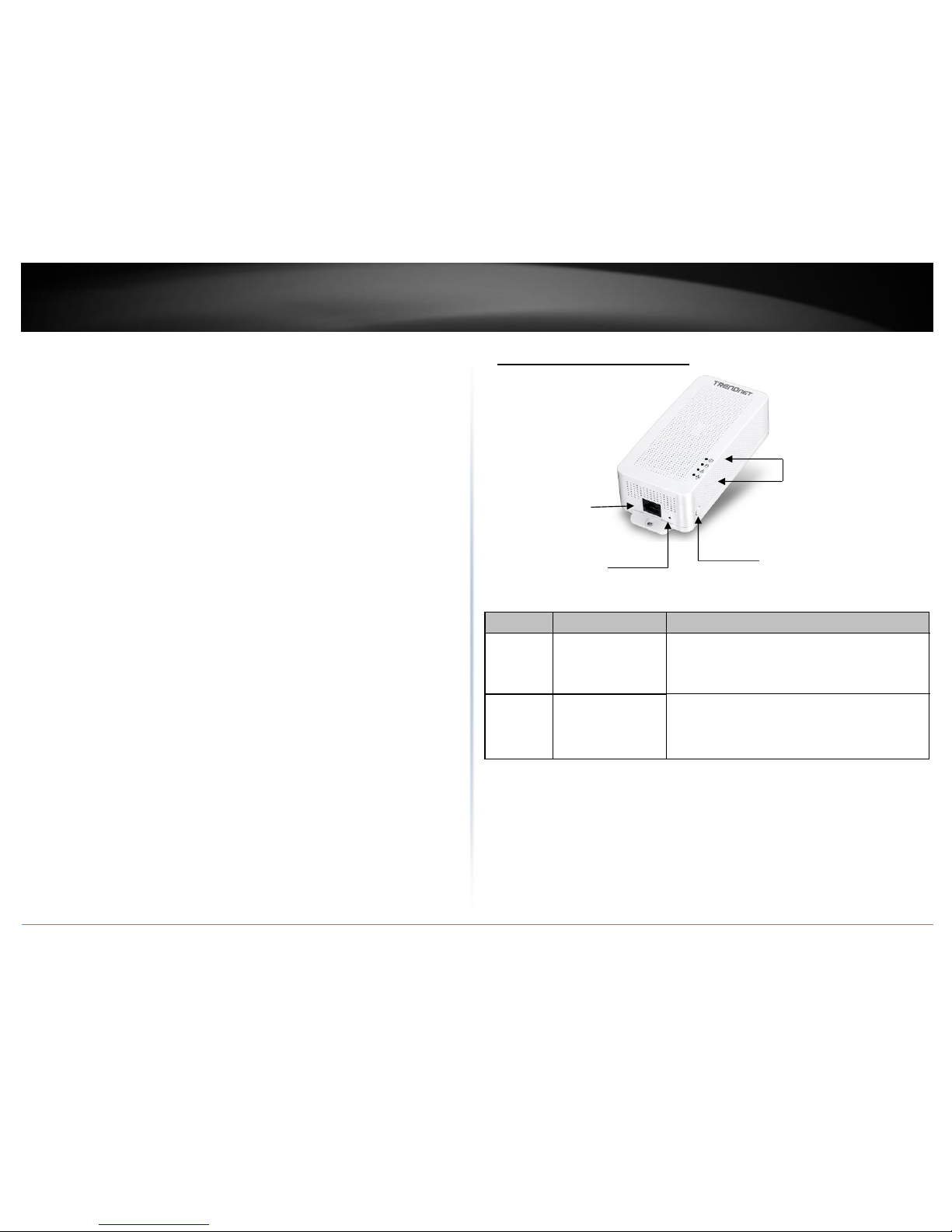

Product Hardware Features

Power Save Mode: The Powerline adapter will automatically going into standby mode

to reduce power usage when there is no network traffic for more than 10~20 minutes.

All LEDs are going off. It can be wake up automatically when the network traffic is

coming again. It will take a couple of seconds to wake up and resume back to full speed

of service.

Button

Action

Function

Sync

Press for 3 seconds

Begins synchronization session. The POWER LED will

begin to blink for 2 minutes. Press the Sync button on

additional adapters within the time frame to

synchronize to the powerline network.

Reset

Press for 10 seconds

Resets device to factory defaults settings (All LEDs will

turn off and on again).

Note: Will reset to the factory default private network

name “HomePlug AV”.

PoE+ Network Port

LED Indicators

Reset Button

Sync Button

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Powerline Connections: Powerline LED color indicates the strength and quality of the

Powerline connection through the electrical system. The following factors may affect

the Powerline network’s connection quality:

Ground Wire - Adapters should use all 3 wire sockets to boost up the Powerline

communication speed to gigabit.

Noise –Generated by appliances which use your electrical system (e.g.

Microwaves, ovens, hair dryer, irons, dishwashers, etc.). The quality of your

household electrical wiring may also cause additional noise on your electrical

system.

Distance –Long lengths of electrical wiring through your electrical system

between connected Powerline adapters.

Expanding a Powerline Network

What is a network?

A network is a group of computers or devices that can communicate with each other. A

home network of more than one computer or device also typically includes Internet

access, which requires a router.

A typical home network may include multiple computers, a media player/server, a

printer, a modem, and a router. A large home network may also have a switch,

additional routers, access points, and many Internet-capable media devices such as TVs,

game consoles, and Internet cameras.

Modem –Connects a computer or router to the Internet or ISP (Internet Service

Provider).

Router –Connects multiple devices to the Internet.

Switch –Connect several wired network devices to your home network. Your

router has a built-in network switch (the LAN port 1-4). If you have more wired

network devices than available Ethernet ports on your router, you will need an

additional switch to add more wired connections.

How to expand a home network

Wireless Access Points add or extend wireless connectivity to an existing network.

Integrated Powerline technology allows you to further extend your network using your

existing electrical system in your home using multiple powerline adapters.

Where to find more help

In addition to this User’s Guide, you can find help below:

http://www.trendnet.com/support (documents, downloads, and FAQs are

available from this Web page)

LED

Color

Sequence

Definition

Power

Green

Solid

Device is powered on

N/A

Off

Device is powered off or in sleep mode

Powerline

Green

Solid

Powerline connected

Green

Blinking

Data transmitting over powerline

N/A

Off

Powerline is not connected

Ethernet

Green

Solid

Ethernet port connected

Green

Blinking

Data transmitting over Ethernet port

N/A

Off

Ethernet is not connected

PoE

Green

Solid

PoE/PoE+ device connected

N/A

Off

No PoE/PoE+ device connected

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Basic Installation

Note: It is recommended to plug the adapters into nearby outlets before installing the devices to the desired locations.

Note: If you are connecting the adapters to a third-party powerline device other than TRENDnet and encounter issues, please refer to the manufacturer’s documentation for the

appropriate sync button procedure.

Note: The sync button procedure steps below demonstrate using TRENDnet powerline model TPL-331EP, but the same procedure applies to TRENDnet powerline models TPL-406E / TPL-

407E / TPL-420E / TPL-421E / TPL-422E / TPL-423E/ TPL-331EP.

Connecting the adapters using Powerline

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Installing your Powerline Adapters

Powerline Security

All out-of-the-box TRENDnet HomePlugAV Powerline adapters can be connected to each

other without further configuration. To add additional network security to your

network, you can change your Powerline network name away from the factory default.

With a customized private network name, no one can connect to your Powerline

network with an out-of-the-box HomePlugAV adapter.

TRENDnet HomePlugAV certified Powerline adapters have the same default network

name “HomePlugAV”. TRENDnet recommends that you change the Powerline network

name away from the factory default to increase network security. Once configured, the

Powerline network name will be saved on device. You can freely unplug the adapter and

moved to the other location within its operating range. If a mistake is made in the

settings, the adapter can be reset to the factory default settings by pressing the Reset

button for 1 second.

If you want to use the default network name for easy connection, skip the

synchronization steps and go directly to Connect a Powerline adapter to your router on

page 6.

Scramble your Network Name Away from the Factory Default

1. Use the physical Sync button on your Powerline adapter to generate a random private

network name.

Before you Install

1. Before you proceed with the installation, verify the following:

You already have a router already installed.

You already have Internet access through your existing network.

An Ethernet port (also called LAN port) is available on your router.

Verify that you have at least two Powerline adapters. You will need at least

two Powerline adapters to create a Powerline network.



2. Plan the location of where you will install your Powerline adapters.

Avoid plugging the adapters into power strips, extension cords, or surge

protectors as this may prevent the adapter from functioning correctly or

degrade performance.

Avoid plugging the adapters into wall power outlets that are controlled by a

light switch to prevent the Powerline adapter from being turned off

accidentally.

Avoid plugging the adapters into wall power outlets that are located near

appliances that consume a lot of power (e.g. refrigerators, washers, dryers) as

this may degrade performance.

Make sure there are available wall power outlets in the room where the router

is installed and the room where you want to extend network connectivity.

For AV2 Powerline adapters, make sure your electric network has 3 wires

properly installed.

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Connect a Powerline adapter to your router

1. Plug the Powerline adapter into an available wall power outlet near your router.

Note: This will allow devices connected to your Powerline network to access the Internet

and other devices connected to your network.

2. Connect the included Ethernet cable (also called network cable) from the Ethernet

port (also called network port) of your Powerline adapter to an available Ethernet port

(also called LAN port) on your router.

3. Once the Powerline adapter is installed and connected to your router, verify that the

Power LED is on or blinking and the Ethernet LED is on or blinking.

Add adapters to your network

Once you have installed and connected the first Powerline adapter to your router, you

can easily extend your network to other rooms by adding additional Powerline adapters.

TPL-331EP is best suited as an added adapter because it’s Ethernet port can be used to

power PoE+ devices.

To extend your network using an additional Powerline adapter:

1. First, make sure the first Powerline adapter is installed and connected to your router.

Note: This will allow devices connected to your Powerline network to access the Internet

and other devices connected to your network.

2. Plug the additional Powerline adapter into an available wall power outlet in another

room near a computer or network device (e.g. game consoles, network-enabled TVs,

network attached storage, network media server/players, etc.) that you would like to

connect to your network.

3. Connect the included Ethernet cable from the Ethernet port on your Powerline

adapter to the to the Ethernet port of your computers or network devices.

4. After the additional Powerline adapter is connected and installed to your computer or

network device, wait for the POWERLINE LED to turn on. After the POWERLINE LED

turns on, verify that the Power LED is on, the POWERLINE LED is on or blinking, and the

Ethernet LED is on or blinking.

Note: To verify that your Powerline adapters are connected successfully to your network,

you can check if the computer(s) or network device(s) can access the Internet through

your Powerline network.

To install additional Powerline adapters in other rooms, repeat the steps above for

each adapter.

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Connect a PoE+ Device

TPL-331EP is best suited as an added adapter because its Ethernet port can be used to

power PoE+ devices. After connecting a powerline adapter to your router and syncing

with TPL-331EP, simply use TPL-331EP’s Ethernet port to provide up to 30W of power to

PoE+ devices.

Securing your Powerline Network

Powerline networks consist of two or more Powerline devices connected together using

the same encryption key. TRENDnet Powerline adapters automatically connect to each

other over a secure encrypted signal and share the same encryption key (Default

encryption key: HomePlugAV).

In order for your Powerline devices to connect to the same Powerline network, the

same encryption key must be assigned to all Powerline devices in that network.

Powerline devices that are not assigned the same encryption key will not be able to

connect to the Powerline network.

For additional security, TRENDnet recommends changing adapter default encryption key

to prevent a neighbor with a Powerline adapter and the same default encryption key

from gaining access to your network.

Note: After the default encryption key has been changed and the Powerline adapters

have been connected using a new encryption key, the Powerline adapters will retain

their security settings when they are unplugged and moved to a new location. No

additional reconfiguration of the Powerline adapters is needed after the default

encryption has been changed.

To change the default encryption key:

Use the physical Sync/Link button on your Powerline adapter to generate a

random encryption key.

****Recommended method****

Scramble your Network Name and Encryption

TRENDnet adapters auto-connect out of the box over a pre-encrypted Powerline signal.

The following optional steps are recommended to secure your powerline network.

1. Make sure your TPL-331EPis powered on and not in sleep mode.

2. The physical Sync button on the Powerline adapter provides an easy way to change

the network name. Push and hold the Sync button for 15 seconds. All LEDs will turned

off and then turned on again. This will generate a new random network name for your

Powerline adapter.

3. Push the Sync button on each adapter within the powerline network for 3 seconds to

re-sync to the new network name and encryption. The POWERLINE LEDs will turn solid

when devices have successfully reconnected.

TRENDnet User’s Guide

TPL-331EP / TPL-331EP2K

Technical Specifications

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

Device Interface

1 x 10/100Mbps PoE+ port

Sync button

Reset button

LED indicators

Frequency Band

2 –28MHz

Modulation/Protocol

OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO

CSMA/CA, TDMA, CSMA

Data PHY Rate

Up to 200Mbps

Networking Distance

Powerline: Up to 300m (980ft.) linear distance over electrical power

lines***

Encryption

128-Bit AES (Advanced Encryption Standard)

Powerline Nodes

Up to 8 (max.)

Overlapping Powerline Networks

Up to 4 (per electrical system)

Special Features

Auto-connects to other TRENDnet Powerline adapters

IPv6 support

IGMP / MLDv2 Streams

Power

Input: 100 - 240V AC, 50-60Hz

Consumption: Active mode: 2.3W (max.); Standby mode: 1.7W (max.)

PoE Budget: 30 Watts (max.)

Operating Temperature

0 –55C (32 –131F)

Operating Humidity

Max. 93 % non-condensing

Certifications

FCC

Dimensions

156 x 67 x 43 mm (6.14 x 2.6 x 1.7 in.)

Weight

205g (7.2 oz.)

Warranty:

3 year limited

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels TRENDnet Adaptateur

TRENDnet

TRENDnet TPL-303E Manuel utilisateur

TRENDnet

TRENDnet TU2-ET100 Manuel utilisateur

TRENDnet

TRENDnet TBW-107UB Manuel utilisateur

TRENDnet

TRENDnet TPL-401E Manuel utilisateur

TRENDnet

TRENDnet TVP-SP5G Manuel utilisateur

TRENDnet

TRENDnet TEW-621PC - 300Mbps Wireless N PC Card... Manuel utilisateur

TRENDnet

TRENDnet TPL-407E Manuel utilisateur

TRENDnet

TRENDnet TU2-DVIV Manuel utilisateur

TRENDnet

TRENDnet N600 Instructions d'utilisation et de sécurité

TRENDnet

TRENDnet TPL-306E Manuel utilisateur

TRENDnet

TRENDnet TPL-303E Manuel utilisateur

TRENDnet

TRENDnet TVP-SP5G Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

TRENDnet

TRENDnet TU2-ET100 Manuel utilisateur

TRENDnet

TRENDnet TEW-229UB Manuel utilisateur

TRENDnet

TRENDnet TU-ET100C - Manuel utilisateur

TRENDnet

TRENDnet TEG-PCISX Manuel utilisateur

TRENDnet

TRENDnet TPL-308E Manuel utilisateur

TRENDnet

TRENDnet HotFlash TEW-429UF Manuel utilisateur

TRENDnet

TRENDnet TU2-IDSA Manuel utilisateur

TRENDnet

TRENDnet TEW-800MB Manuel utilisateur

TRENDnet

TRENDnet TPL-408E Manuel utilisateur

TRENDnet

TRENDnet TBW 106 Manuel utilisateur

TRENDnet

TRENDnet TEW-424UBK Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
