TRENDnet TEW-809UB Manuel utilisateur

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ...........................................................................2

Package Contents .......................................................................................................... 2

Features......................................................................................................................... 2

Product Hardware Features........................................................................................... 3

System Requirements.................................................................................................... 3

Application Diagram ...................................................................................................... 4

Installing your Wireless Adapter......................................................5

Windows® OS Installation.............................................................................................. 5

Mac® OS Installation...................................................................................................... 2

Connect to your wireless network using WPS ..................................7

Windows® OS................................................................................................................. 7

WPS connection using the built in utility (Virtual Push Button)................................ 7

WPS connection using the hardware push button ................................................... 8

Mac® OS....................................................................................................................... 10

WPS connection using the built in utility (Virtual Push Button) ............................. 10

WPS connection using the hardware push button ................................................. 11

Technical Specifications ................................................................ 14

Troubleshooting ........................................................................... 16

Appendix ...................................................................................... 17

TRENDnet User’s Guide

TEW-809UB

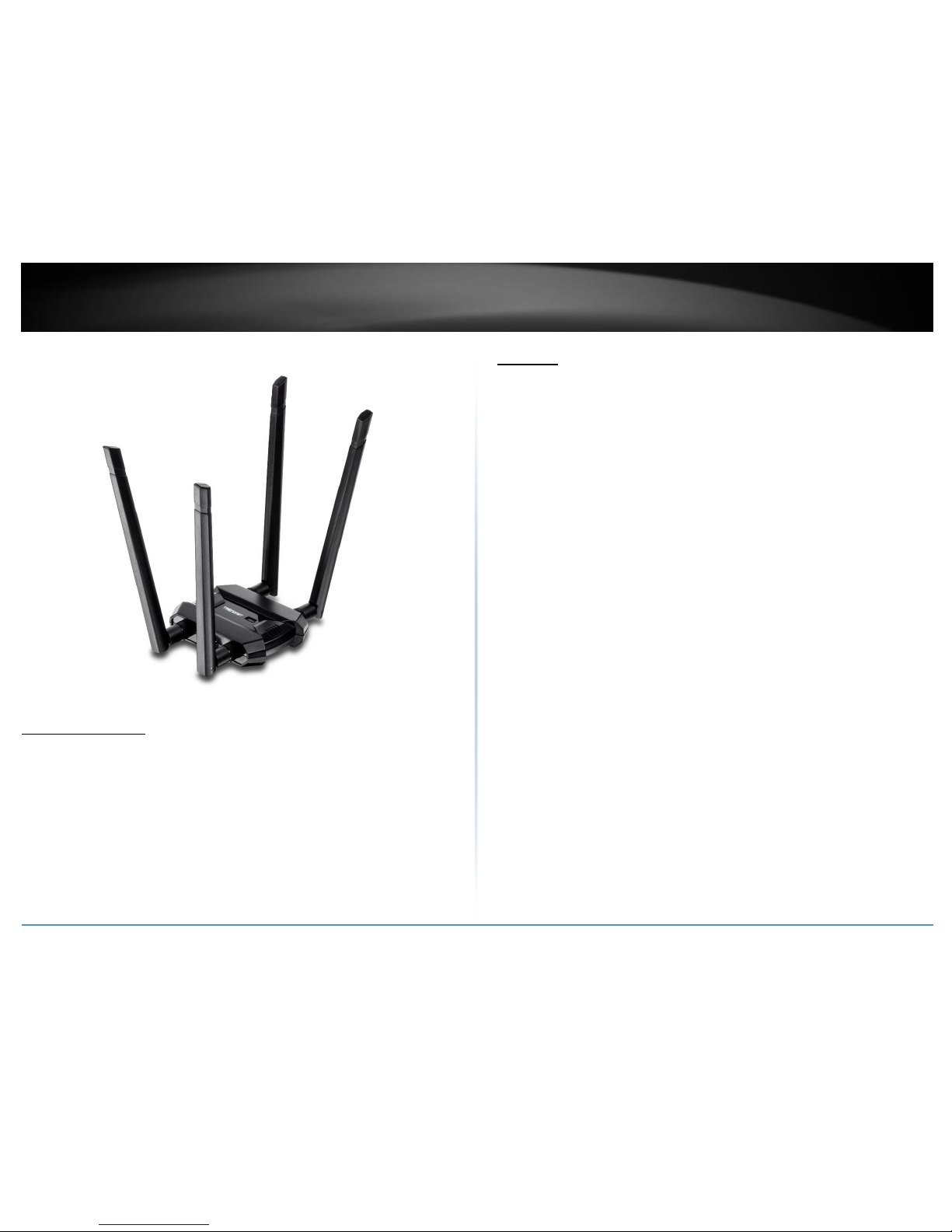

Product Overview

TEW-809UB

Package Contents

In addition to your wireless adapter, the package includes:

Quick Installation Guide

CD-ROM (Drivers & User’s Guide)

4 x High Gain Detachable Dual Band Antennas

USB 3.0 Micro-B to USB Type-A cable (0.91 m / 3 ft)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet’s AC1900 High Power Dual Band Wireless USB Adapter, model TEW-809UB,

upgrades a computer to Wireless AC1900. Quickly connect to a high performance

Wireless AC network at 1300 Mbps or to a Wireless N network at 600 Mbps. A high

power radio with detachable high gain antennas increase wireless coverage.

Easy Setup

Get up and running in minutes with the intuitive guided setup

AC1900 Dual Band

Connect to an extreme performance 1300 Mbps Wireless AC or 600 Mbps

Wireless N network*

Wireless Coverage

Extended wireless coverage with high power radio and detachable high gain

antennas

LED Indicator

LED indicator conveys device status

Operating Systems

Compatible with Windows® and Mac® operating systems

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual

data throughput and coverage will vary depending on interference, network traffic, building

materials and other conditions. For maximum performance of up to 1.3 Gbps use with a 1.3 Gbps

802.11ac wireless adapter. For maximum performance of up to 600 Mbps, use with a 600 Mbps

802.11n wireless adapter.

TRENDnet User’s Guide

TEW-809UB

Product Hardware Features

USB 3.0 Micro-B port –Use the included USB 3.0 Micro-B to Type A cable to

connect the wireless adapter to your computer.

Activity LED Indicator –The LED will blink rapidly to indicate WPS has been

activated. The LED will blink every 5 sec. when disconnected. When connected, the

LED will blink rapidly during wireless data transmission.

Detachable High Gain Antennas –Connect the detachable high gain antenna

directly to the antenna connectors on the adapter. The antennas are adjustable for

optimal connectivity.

WPS Push Button –After the adapter drivers have been install in the computer, you

can use the WPS push button to establish wireless connection to your wireless

router or access point via WPS protocol. Push and hold the WPS button for 3 sec.

and release to activate WPS.

System Requirements

Windows® 10, 8.1, 8, 7, Vista, or XP

Mac OS® 10.6-10.11

Available USB 3.0 port on your computer.

Note: Maximum wireless speeds will be reduced if using a USB 2.0 port.

CD-ROM Drive (Driver Installation with included CD)

Note: If you do not have the included CD-ROM, you can download the utility

and drivers from http://www.trendnet.com/support/.

Activity LED

Indicator

USB 3.0 Micro-B Port

Detachable /

Adjustable High

Gain Antennas

WPS Push Button

TRENDnet User’s Guide

TEW-809UB

Application Diagram

The AC1900 High Power Wireless Dual Band PCIe Adapter can provide wireless AC or

wireless N connectivity to a wireless AC/N network (router/access point) through the

use of an available USB 3.0 port on your computer. The detachable high gain antenna

allows for flexible adjustment to achieve the best possible wireless coverage and

connectivity

TRENDnet User’s Guide

TEW-809UB

Installing your Wireless Adapter

This section describes how to install the software driver for the wireless adapter.

Windows® OS Installation

Supported operating systems: Windows® 10, 8.1, 8, 7, Vista, XP

For any updates, please check the TRENDnet website www.trendnet.com.

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

Note: If you do not have the included CD-ROM, you can download the utility and drivers

from http://www.trendnet.com/support/.

2. At the CD Autorun Prompt window, click Run Autorun.exe.

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

At the CD-ROM main menu, click Install Drivers.

TRENDnet User’s Guide

TEW-809UB

3. At the installation window, click Next.

4. You will be prompted to accept the end user license agreement. Select I accept the

terms of the license agreement and click Next.

TRENDnet User’s Guide

TEW-809UB

5. Wait for the driver installation to complete. This may take a few minutes.

Note: If you do not receive a security prompt, continue to the next step. If prompted,

click Install this driver software anyway.

6. After the process is completed, click Finish.

8. Using the included USB 3.0 cable, connect the USB 3.0 micro-B side to the adapter

and the USB 3.0 type A side to the computer’s USB 3.0 port.

TRENDnet User’s Guide

TEW-809UB

9. Attached to the adapter and position the antennas at opposite angles and slightly

away from each other on each as shown for optimal coverage.

10. Click on the wireless icon in the taskbar located in the bottom right corner.

TRENDnet User’s Guide

TEW-809UB

11. Click on the wireless network you would like to connect and click Connect.

12. Enter the WiFi Key (password) and click Next.

13. The status will display “Connected” to indicate a successful connection.

Note: If the connected message does not display, double check your WiFi key (password)

and re-enter it.
