Features
=
200Mbps building-wide networking over an existing connected electrical system
=
3 x 10/100Mbps Auto-MDIX Ethernet Ports
=
One-touch Sync button networks adapters quickly
=
Connect one 200Mbps** Powerline AV Adapter to the Internet and then plug in up to 15* additional Powerline AV adapters for instant building connectivity
=
Share data intensive files, play games, download music and more at faster data transfer rates
=
Advanced 128-bit AES encryption to ensure total network security
=
Power Save mode reduces electrical consumption by 70%
=
Neighbor network support for up to 4 overlapping networks
=
Tri-color LED Indicator
=
Network signal transmits up to 300 meters (984ft.)
=
Auto QoS support through traffic classification and multiple priority queuing
=
Windows-based Powerline configuration utility: compatible with Windows 7 (32/64-bit), Vista (32/64-bit), and XP (32/64-bit) operating systems
=
3-year limited warranty
* Maximum of 16 adapters (nodes) recommended for streaming video across your network. Additional adapters may decrease performance.
** 200Mbps is the maximum theoretical Powerline data rate. Actual throughput will vary depending on environment.
*** Networked Powerline devices need to be plugged into power outlets that are on the same electrical system.
****It is not recommended to use this product on electrical systems that use AFCI circuit breakers or plugged into GFI protected outlets as this may
cause performance degradation or loss in connectivity.
PoEpowerline
The 3-Port 200Mbps Powerline AV Adapter uses any electrical outlet to create a
secure high speed building-wide network. Connect computers, printers, gaming
consoles, televisions, and DVRs to the three Ethernet ports on the bottom of the
adapter.
Connect one adapter to your network and plug another adapter in to any outlet
on your electrical system for instant high speed network access. Synchronize
adapters quickly using the convenient one-touch connect button. Use up to 16*
adapters to network devices in different rooms without running new cabling.
LED displays convey device and port status for easy troubleshooting. Advanced
AES encryption secures your network. This adapter is ideal for use in buildings
that interfere with wireless networking signals.
TPL-305E (V1.0R)
3-Port 200Mbps Powerline AV Adapter
TPL-305E
rev:01.07.2011
SPECIFICATIONS
Interface
Standards
Frequency Band
Modulation
Protocol
Speed
• IEEE 802.3, IEEE 802.3x, IEEE 802.3u, HomePlug® AV
• 3 x 10/100Mbps Auto-MDIX RJ-45 ports, Power prong
• 2 ~ 28 MHZ
• OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
• TDMA, and CSMA/CA
• Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)
Security
Buttons
Dimension (L x W X H)
• Up to 64 (max.) • Recommended: Up to 16* per powerline network
Utility OS Compatibility
Nodes
• Up to 4 (per electrical system)
Overlapping Powerline
Networks
• 128-bit AES (Advanced Encryption Standard)
• Sync, Reset
• A: 103 x 74 x 57 mm (4.1 x 2.9 x 2.2 in.)
Coverage
• Powerline: Up to 200Mbps** • Ethernet: Up to 200Mbps (Full Duplex mode)
• Up to 300m (984ft.)
• Power (PWR), Ethernet Link/Act (1-3)
• Powerline (PL) with Connection Quality Indication: • Good (Red)• Best (Green) • Better (Amber)
LED
• EU: 103 x 74 x 72 mm (4.1 x 2.9 x 2.8 in.)
• A: 100~230V AC, 50~60Hz
Weight
Power Source
Consumption
Temperature
Humidity
Certifications
• EU: 220~240V/ 5A AC, 50Hz
• Active mode: 3.2 Watts (max.) • Standby mode: 0.9 Watts (max.)
• Operating: 0° ~ 40° C (32° ~ 104° F) • Storage: -20° ~ 70° C (-4° ~ 158° F)
• Max. 90% (non-condensing)
• CE, FCC
• A: 165 g (5.8 oz) • EU: 170 g (6.0 oz)
TPL-305E (V1.0R)
3-Port 200Mbps Powerline AV Adapter
Hardware
• Multi-Language Quick Installation Guide
RELATED PRODUCTS
PACKAGE CONTENTSNETWORKING SOLUTIONS
• TPL-305E
• Cat. 5 Ethernet cable (1.5 m / 5 ft.)
• CD-ROM (Utility and User’s Guide)
TPL-401E
TPL-304E
500Mbps Powerline AV Adapter
200Mbps Powerline AV Adapter with Bonus Outlet
TPL-310AP 200Mbps Powerline AV Wireless N Access Point
CONTACT INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
Web:
Email: [email protected]
1-888-326-6061
www.trendnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
Autres manuels pour TPL-305E
2
Table des matières
Autres manuels TRENDnet Adaptateur
TRENDnet
TRENDnet TE100-PCBUSR - DATA SHEETS Manuel utilisateur
TRENDnet
TRENDnet TPL-202E - Powerline Fast EN Bridge Manuel utilisateur
TRENDnet
TRENDnet HotFlash TEW-429UF Manuel utilisateur
TRENDnet
TRENDnet TBW-106UB Manuel utilisateur
TRENDnet

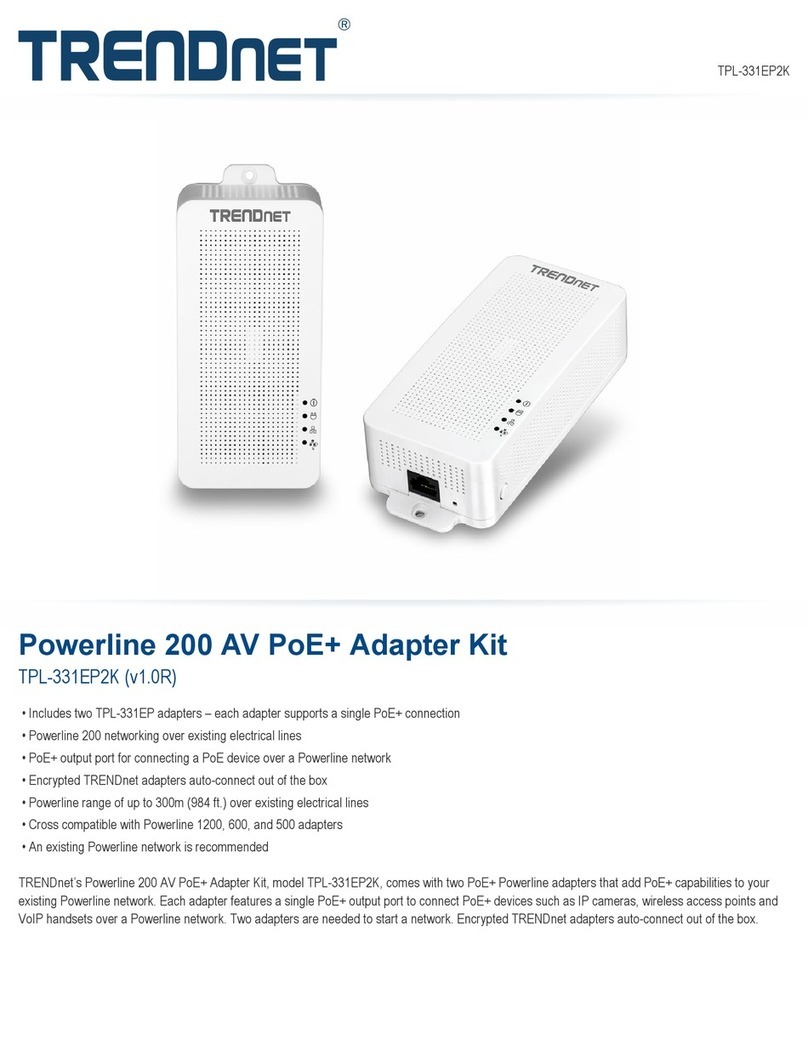

TRENDnet TPL-331EP2K Manuel utilisateur
TRENDnet
TRENDnet TE100-ECFX Manuel utilisateur
TRENDnet
TRENDnet TEW-806UBH Manuel utilisateur
TRENDnet

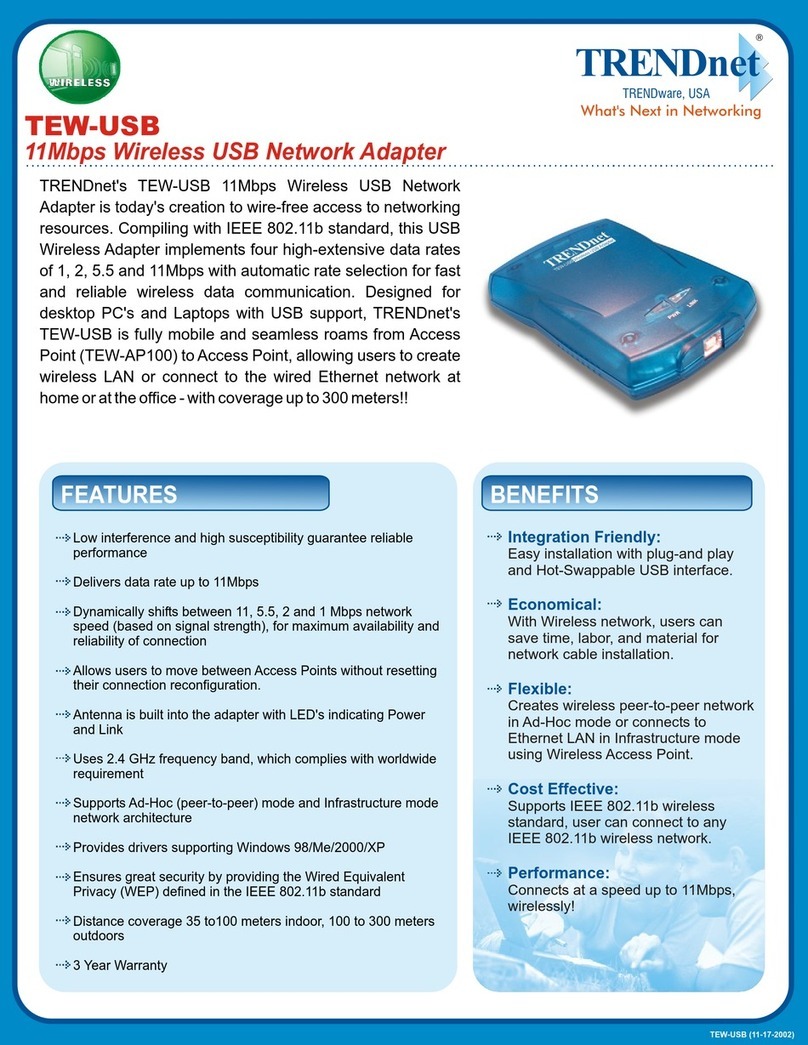

TRENDnet TEW-USB Manuel utilisateur
