The EdgeFire is a highly integrated industrial

multiport secure router with firewall / NAT /

VPN / IPS and managed Layer 2 switch

functions. It is designed for

Ethernet-based security applications

providing critical remote control or

monitoring networks, and it provides

an electronic security perimeter

for the protection of critical cyber

assets including

pump-and-treat systems in

water stations, DCS

systems in oil and gas

applications, and

PLC/SCADA

systems in factory

automation.

EdgeFire

Quick Setup Guide

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

v+ v- NA

the Package

Opening and Inspecting

Verify that the EdgeFire package

contains the following items:

EdgeFire Appliance

Terminal Blocks x 2 Console Cable (RJ-45)

DIN rail kit

(Install on the device)

Rubber feet x 4 Documents

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire SECUREDBY

v+ v- NA

Examining the EdgeFire1

EdgeFire Front Panel EdgeFire Back Panel

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

v+ v- NA

-2 -

Requirement Details

Connect to the LAN port for web console management and WAN

port for external network.

Default access information:

https://192.168.127.254

•IP address must be configured for WAN or LAN usage.

Ethernet Cables

Default IP Address of

Web Console

The computer must have one of the following browsers installed:

- Microsoft Edge (version 15 or above)

- Firefox (version 53 or above)

- Safari (version 10.1 or above)

- Google Chrome (version 63 or above)

Laptop with Ethernet

Port (RJ-45 Type)

User name: admin

Password: txone

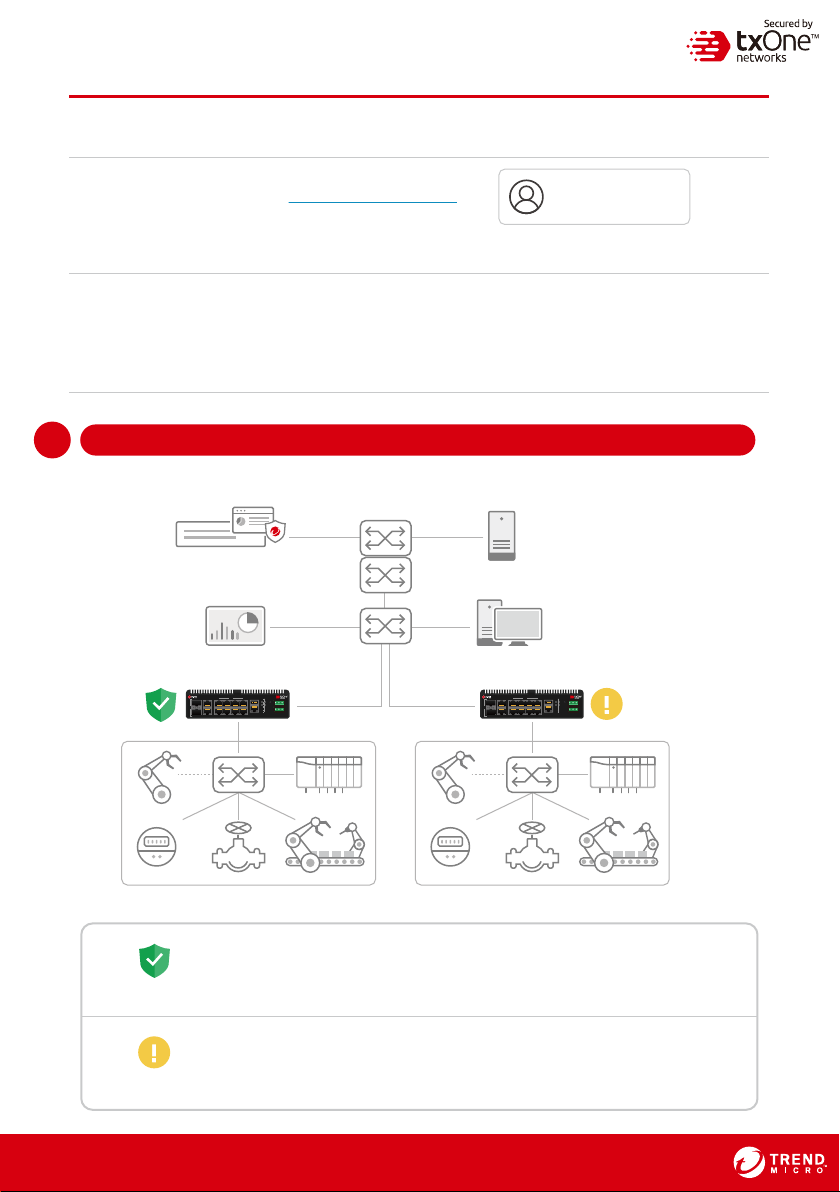

Deployment Scenario and Security Operation Mode1

EdgeFire is placed inline (in the direct communication between source and

destination device), where it actively analyzes traffic flow, records event logs and

takes automated actions to prevent malicious events.

Prevention Mode

EdgeFire is placed inline (in the direct communication between source and

destination device), where it actively analyzes traffic flow and only records event

logs without taking action when malicious events are detected.

Monitor Mode

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STATE IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire S

ECUREDBY

v+ v- NA

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STATE IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire S

ECUREDBY

v+ v- NA

EdgeFire EdgeFire

Production Zone1

OT Defense

Console

SCADA

Engineering

Workstation

PLC

Production Zone2

PLC

HMI

OT Network

-3 -

LED Indicators1

The function of each LED is described in the table below

Green

Power 1 is OFF

Off

Power 1 is ON

PWR1

Green

Power 2 is OFF

Off

Power 2 is ON

PWR2

Green

System failure

Off

The system is running

STATE

Red

System is running without fault

Off

System failure

FAULT

Green

OT Defense Console sync is disabled

Off

OT Defense Console sync is enabled and ODC is connected

MGMT

Green

High Availability disabled

Off

High Availability enabled

Green

IPS or IDS disabled

Off

IPS or IDS enabled

IPS/IDS

Green

No VPN tunnel connected

Off

VPN tunnel established

VPN

Reset type Description

Press and hold the reset button for 2 to 10 seconds. The STATE LED

will begin to blink every second, which means the system is rebooting.

Press and hold the reset button for more than 10 seconds. The STATE

LED will begin to blink every half-second, which means the system is

resetting itself to default settings.

Reboot System

Restore Factory

Default Settings

Reset to Factory Default Settings1

The reset button for the EdgeFire is located on the front panel.

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

v+ v- NA

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR1 PWR1

STATE IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

-4 -

Installing the EdgeFire - DIN Rail Mounting1

The aluminum DIN rail attachment plate should already be fixed to the back panel of the

EdgeFire when you take it out of the box. If you need to reattach the DIN rail attachment plate

to the EdgeFire, make sure the stiff metal spring is oriented towards the back, as shown in the

following pictures.

1x Mount Hold

1x DIN-Rail Kit

DIN-Rail Kit

Step1.

Push Down

Step2.

Push Forward

-5 -

Wiring the Redundant Power Inputs1

The Trend Micro EdgeFire has two sets of power inputs – power input 1 and power input 2.

The top and side views of the terminal block connector are shown below.

Step1.

Use a small flathead screwdriver to open the locks on the

terminal block.

Step2.

Insert a positive / negative DC wire into the V+/V- terminals

respectively.

Step3.

Check whether the wires are firmly seated in the terminal

block, then tighten the screws to secure the wires.

Wiring the Redundant Power Inputs1

Connecting the Power1

Connect the 12 to 48 VDC power line to the terminal block, which is connected to the EdgeFire

device. If the power is supplied properly, the “PWR1” or “PWR2” LED will glow steadily. The

power input location and pin definition are shown on the front panel.

Grounding the Unit1

Grounding and wire routing limits the effects of noise due to electromagnetic interference (EMI).

Run the ground connection from the terminal block connector to the grounding surface prior to

connecting the power. Please note that this product is intended to be mounted on a

well-grounded mounting surface such as a metal panel. The minimum cross-sectional area of

the conductor must be equal to the input wiring cable’s width/circumference.

V+ V- NA

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

v+ v- NA

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR1 PWR1

STATE IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

ECURED BY

v+ v- NA

-6 -

Wiring the Redundant Power Inputs1

7Software Conﬁguration1

Before connecting the PC/Laptop to the EdgeFire, the PC's IP address should be set to

192.168.127.100. After that, connect the PC to the LAN port of the EdgeFire using an Ethernet

cable. Open a web browser on your PC and type “https://192.168.127.254” into the address

bar. A pop-up window will open to request user name and password. Please type the default

username, “admin”, and password, “txone”. Now, the main screen will pop up so you can

configure EdgeFire.

-7 -

Setting the Management IP Address1

1. Go to [ Network ] > [ Network Interface ]

Connecting to the Network1

Task Action

Configure Management IP Address of the EdgeFireIP Address

Configure Netmask of the EdgeFireSubnet Mask

Configure Network VLAN-ID of the deviceNetwork VLAN-ID

2. Click on a LAN interface, the [Edit Network Interface] screen will appear.

3. In the [Network interface] plane, configure the management IP address for the

EdgeFire

1. Connect the EdgeFire WAN1 port to a wide area network.

(ex: the internet or external network)

2. Connect the EdgeFire LAN1 port to a local area network.

(ex: a segment of your network)

-8 -

No Light The EdgeFire cannot communicate with the network.

RJ45

Checking the LED to Conﬁrm Status1

The LED on the front panel shows the deployment status.

Only Left LED 10Mbps LINK/ACT (off = no link, on = 10 Mbps, blinking = activity)

Only Right LED 100Mbps LINK/ACT (off = no link, on = 100 Mbps, blinking = activity)

Both Left / Right LED GE LINK/ACT (Both LED ON = 1 Gbps link, blinking = activity)

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR2 PWR1

STAT E IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

v+ v- NA

1 1

2 2

LAN

WAN

USB

CONSOLE

PWR1 PWR1

STATE IPS/IDS

FAULT VPN

MGMT HA

RST

PWR1

PWR2

IEF-1012-TM

EdgeFire

SECURED BY

RJ45

Appendix: Connecting to the Console Port

The EdgeFire console port is an RJ-45 port located on the front panel of the case. It is

designed for connection to serial console terminals, for viewing messages during the boot

sequence, or for debugging system boot issues. To connect the console cable, remove the

protective cover on the port.

Serial Console Port, Cable, & Pinouts

Initial configuration for the EdgeFire using the command line interface (CLI) on a serial terminal

client will use the following default settings:

• Baud Rate: 115200 bps

• Character size: 8 bits

• Parity: None

• Stop Bits: 1

• Flow Control: None

-9 -

of Trend Micro Incorporated. All other company and/or product names may be trademarks or registered trademarks of their

owners. Information contained in this document is subject to change without notice.

Contact Information1

Website

https://www.trendmicro.com

List of worldwide offices and phone numbers

https://www.trendmicro.com/us/about-us/contact/index.html

Technical support page

https://success.trendmicro.com/

EULA

https://www.trendmicro.com/en_us/about/legal.html

EdgeFire Datasheet/Application Note Landing Page

ATTENTION

There is a risk of explosion if

the battery is replaced with an

incorrect type of battery.

The means of power cord of adapter should be connected to a

socket-outlet with earthing connection.

The power for this product is intended to be supplied by a Listed

Power Supply, with output marked LPS or PS2, and rated to deliver

12 to 48 VDC at a Minimum of 2.3 A.
