i.Beat rock

User Manual

ibrock-V1.1-EN-050801

All manuals and user guides at all-guides.com

all-guides.com

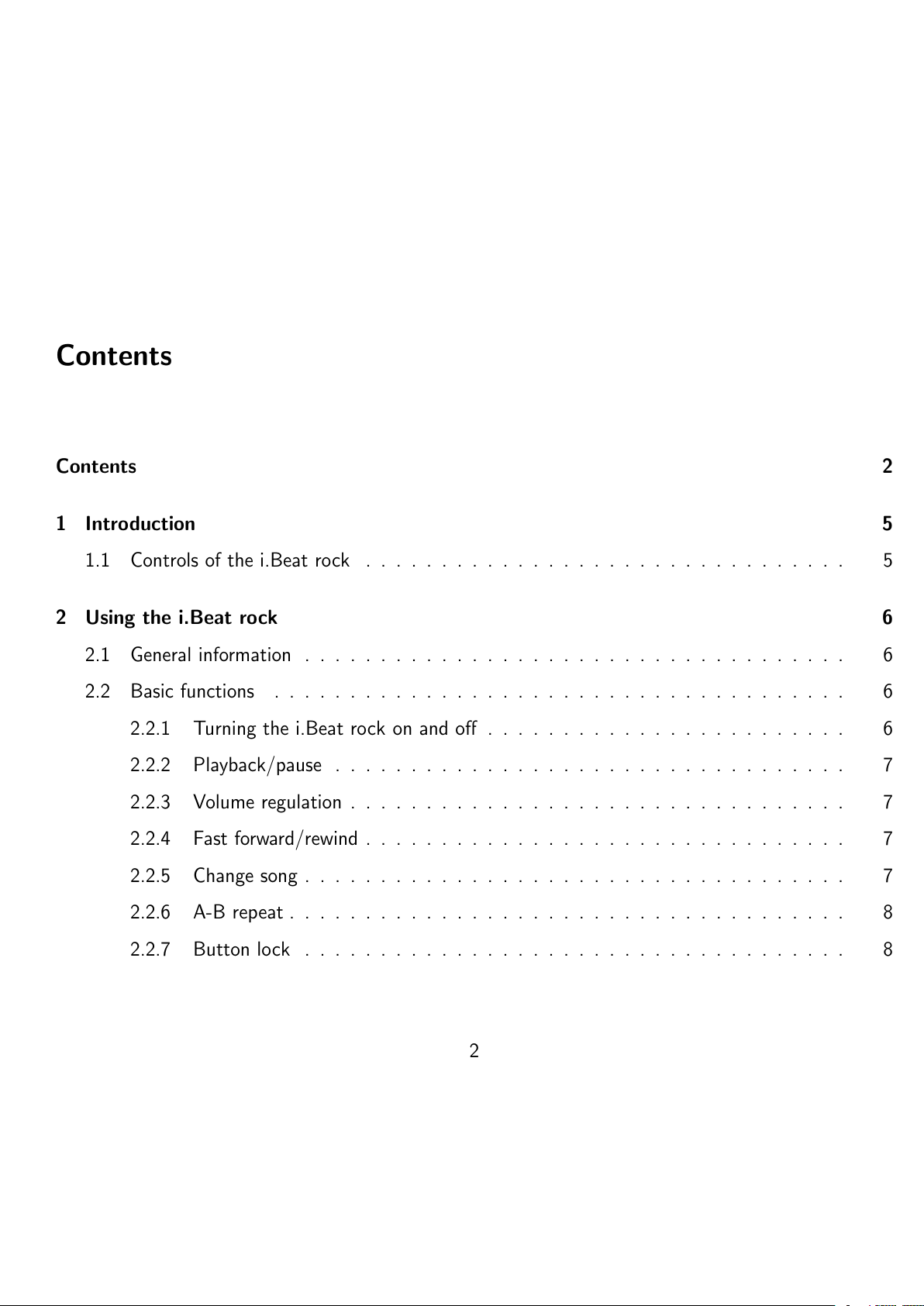

Contents

Contents 2

1 Introduction 5

1.1 Controlsofthei.Beatrock ................................ 5

2 Using the i.Beat rock 6

2.1 Generalinformation .................................... 6

2.2 Basicfunctions ...................................... 6

2.2.1 Turning the i.Beat rock on and oﬀ . . . . . . . . . . . . . . . . . . . . . . . . 6

2.2.2 Playback/pause .................................. 7

2.2.3 Volumeregulation................................. 7

2.2.4 Fastforward/rewind................................ 7

2.2.5 Changesong.................................... 7

2.2.6 A-Brepeat..................................... 8

2.2.7 Buttonlock .................................... 8

All manuals and user guides at all-guides.com

CONTENTS

2.3 Mainmenu......................................... 8

2.3.1 Music ....................................... 8

2.3.2 Voicerecording .................................. 9

2.3.3 Directory...................................... 9

2.3.3.1 Navigation ............................... 9

2.3.3.2 Delete.................................. 10

2.3.4 Settings ...................................... 10

2.3.4.1 Illumination............................... 10

2.3.4.2 Contrast................................. 11

2.3.4.3 Shutdown ............................... 11

2.3.4.4 Automaticoﬀ.............................. 11

2.3.4.5 Memory................................. 11

2.3.4.6 Language ................................ 12

2.4 Additionalfunctions.................................... 12

2.4.1 Equalizer...................................... 12

2.4.2 Previewsong ................................... 12

2.4.3 Playmode..................................... 13

2.4.4 Deletesong .................................... 13

TrekStor 3i.Beat rock

All manuals and user guides at all-guides.com

CONTENTS

3 Connecting to a PC 14

3.1 Minimum system requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.2 Installationinstructions .................................. 14

3.3 LoggingoﬀofthePC................................... 15

3.4 Exchangingdata...................................... 15

3.5 CreatingMP3ﬁles..................................... 16

4 Additional information on the i.Beat rock 18

4.1 Updatingthei.Beatrock ................................. 18

A Instructions and Warranty 20

A.1 Supportandcontact.................................... 20

A.2 Liability .......................................... 20

A.3 Safetyinformation..................................... 21

A.4 Instructionsforuse .................................... 21

A.5 Trademarks ........................................ 22

A.6 Batterydisposal...................................... 22

A.7 Copyright ......................................... 22

A.8 Warranty terms and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

TrekStor 4i.Beat rock

All manuals and user guides at all-guides.com

1 Introduction

Thank you for buying the i.Beat rock . We are conﬁdent that this product will be the source of

much enjoyment. The i.Beat rock is a high-quality MP3 player with many functions for uninterrupted

musical enjoyment on-the-go and at home. Before you ﬁrst use the device, read the instructions in this

manual.

1.1 Controls of the i.Beat rock

A Button G LCD

B Volume button H switch (button lock)

C Volume button I Headphone jack

D Record button J Microphone

E Button (Playback/Pause) K Battery compartment

F USB port

All manuals and user guides at all-guides.com

2 Using the i.Beat rock

2.1 General information

To make it easy to use, the i.Beat rock only has a few buttons. To enable numerous functions, diﬀerent

functions can be activated depending on how long you hold down the buttons.

2.2 Basic functions

2.2.1 Turning the i.Beat rock on and oﬀ

To turn the i.Beat rock on, press the button for two seconds. To turn the i.Beat rock oﬀ, hold

down the button again for two seconds. The i.Beat rock then automatically turns oﬀ.

Note: Make sure that the switch is in the correct position, i.e., that the button lock

is turned oﬀ. When the button lock is activated, the button lock symbol or a corresponding

message appears.

All manuals and user guides at all-guides.com

all-guides.com

2 Using the i.Beat rock

2.2.2 Playback/pause

After turning it on, the i.Beat rock is in MP3/WMA play mode. To play a title, press the button. If

the button is pressed during playback, playback is interrupted (pause). Press the button again

to continue playing the selection.

2.2.3 Volume regulation

You can easily adjust the volume using the buttons and . Press to increase the volume. Press

to lower the volume.

Brieﬂy press the buttons to change the volume in short intervals. If you hold down the buttons, the

volume changes gradually.

2.2.4 Fast forward/rewind

Hold down the button in one direction to navigate within a song. Press the button to the

right to fast-forward. Press the button to the left to rewind.

Note: The longer you hold the button in one direction, the faster the device will

go forward or rewind.

2.2.5 Change song

Brieﬂy press the button to the left or right to change the current song. Press the button

to the right to select the next song. If you press the button to the left within 10 seconds after a

song starts, you switch to the prior title. If you do this after 10 seconds of playback, the i.Beat rock

returns to the beginning of the current song.

TrekStor 7i.Beat rock

All manuals and user guides at all-guides.com

2 Using the i.Beat rock

2.2.6 A-B repeat

The i.Beat rock allows you to play a section of a title in a loop. During playback, press the button

to set the starting point for the loop. Press the button again at the desired end point of the loop.

The symbol ’A-B’ appears in the display, and the loops starts playing. To stop the loop, press the

button again.

2.2.7 Button lock

Slide the switch to the left to activate the button lock. The symbol ’Button lock’ appears on

the bottom left next to the battery symbol in the display.

2.3 Main menu

The i.Beat rock has diﬀerent modes: ’Music’ ,’Voice recording’ ,’Directory’ , and ’Set-

tings’ . To go to a mode, hold the button for approximately one second. Push the button

to the right or left to select the desired mode, and conﬁrm by pressing the button again.

Note: If the button is not pressed after approximately 10 seconds, the i.Beat rock

automatically interrupts the conﬁguration and returns to play mode.

2.3.1 Music

In the main menu, select the menu item ’Music’ , and conﬁrm your selection by pressing the button.

This mode is also called the MP3/WMA play mode. After turning on the i.Beat rock, it automatically

goes to this mode.

TrekStor 8i.Beat rock

All manuals and user guides at all-guides.com

2 Using the i.Beat rock

2.3.2 Voice recording

In the main menu, select the menu item ’Voice recording’ , and conﬁrm your selection by pressing

the button.

You can record your voice using the integrated microphone. Hold the button for approximately

2 seconds to start recording. The display shows the message ’Rec’ , the length of current and potential

voice recording. Stop recording by again pressing the button for approximately 2 seconds.

The recorded ﬁle is saved in the VOICE directory. Use the buttons to navigate through your saved

recordings, and play them by pressing the button.

2.3.3 Directory

In the main menu, select the menu item ’Directory’ , and conﬁrm your selection by pressing the

button. This mode is also termed the folder navigation mode.

2.3.3.1 Navigation

Press the button to the right or left to select the next or prior ﬁle, and conﬁrm your selection

by pressing the button. To go to a subdirectory (folder), again press the button. Continue

navigation as usual. To return to the main directory, brieﬂy press the button.

Note: To make navigation easier, arrows are shown on the left side in the display. When

you reach the ﬁrst or last ﬁle of a directory, a line appears above or below the arrows.

TrekStor 9i.Beat rock

All manuals and user guides at all-guides.com

2 Using the i.Beat rock

2.3.3.2 Delete

Press the button to the right or left to select the desired ﬁle (or folder), and delete it by pressing

the button. A security prompt appears and asks if you really want to delete the ﬁle. Make your

decision by pushing the button to the right or left, and conﬁrm by pressing the button. (A

way of deleting music ﬁles without the security prompt is described in the section 2.4.4.)

Note: You can only delete a directory (folder) when it does not contain any ﬁles. Please

note that the i.Beat rock can only display (and delete) music ﬁles (MP3/WMA/WAV) in

the LC display.

2.3.4 Settings

In the main menu, select the menu item ’Settings’ , and conﬁrm your selection by pressing the

button. To go to the respective settings, press the button to the right or left, and con-

ﬁrm your selection with the button. This procedure also applies to most submenus (such as

’Illumination’ ,’Contrast’ , . . . ).

2.3.4.1 Illumination

Under ’Settings’ , select the menu item ’Illumination’ , and conﬁrm your selection by pressing

the button. You can now set how long the background illumination of the i.Beat rock should be

active.

TrekStor 10 i.Beat rock
