Transcend DrivePro 20 Manuel utilisateur

User

’

s Manual

2024/1 (v2.1)

Motorcycle Dashcam DrivePro 20

Table of Contents
1. Package Contents
2. Getting Started
2-1 Overview
2-2 Inserting a microSD Memory Card
2-3 Mounting the DrivePro
2-4 Charging
2-5 Operation
2-6 LED Indicator
3. Recording Videos
3-1 Normal Recording
3-2 Emergency Recording
4. Using the DrivePro App
4-1 Downloading and Installing the DrivePro App
4-2 Connecting to DrivePro App
4-3 Playing Videos on a Smart Device
4-4 App Settings
4-5 Firmware Upgrade
5. Using the DrivePro Toolbox Software
5-1 Toolbox Interface & Operation
5-2 Transferring Files To a Computer
6. Troubleshooting
7. Safety Cautions
8. Speci
ﬁ
cations
9. EU Compliance Statement
10. Recycling and Environmental Protection
11. Federal Communications Commission (FCC) Statement
12. Warranty Policy
13. GNU General Public License (GPL) Disclosure
14. End-User License Agreement (EULA)
15. Eurasian Conformity Mark (EAC)

1. Package Contents

The DrivePro 20 dashcam package includes the following items:

DrivePro 20 32GB microSD memory

card Camera holder

Quick Start Guide Adhesive mounting base micro-USB to USB Type-A

cable

2. Getting Started

2-1 Overview

①

Power Button

④

Lens

⑦

micro USB Port

②

LED Indicator

⑤

microSD Card Slot

⑧

Protective Case

③

Microphone

⑥

Reset Button

⑨

Lanyard Hole

2-2 Inserting a microSD Memory Card

A microSD memory card is required before recording.

1. Rotate protective case anti-clockwise until loose.

2. Insert a microSD memory card into the appropriate card slot.

3. To remove the memory card, simply press it once to release it from the card slot.

We recommend Transcend

’

s High Endurance microSD cards or MLC-based memory cards to

ensure the best recording performance.

High Endurance microSDHC card

High Endurance microSDXC 350V card

For more details on the approximate recording time according to card capacity, go to FAQ on our

ﬃ

cial website.

"NOTE"

Always format new memory cards in the DrivePro before using them for the

ﬁ

rst time.

Formatting will erase all data on the memory card.

Ensure that the allocation unit size of the microSD card is 32KB or larger; otherwise, the

DrivePro may not work properly.



"WARNING"

Do not remove the memory card during a shutdown to avoid damages to the memory card and

potential data loss.

DrivePro 20 only supports the FAT32

ﬁ

le system, not exFAT or NTFS.



2-3 Mounting the DrivePro

"NOTE"

Installation surface should

ﬁ

rst be cleaned and dried so 3M adhesive pad can be

ﬁ

rmly

attached. Avoid uneven surfaces.

Allow at least 24 hours for the mount to properly adhere to the surface.

To separate mount and holder, press the holder and push it forward.

The arrow symbol on the camera holder should point towards the lens.



2-4 Charging

1. Rotate protective case anti-clockwise until loose.

2. Connect micro USB end of the USB power cable to the device and the Type-A end to a charging

device with 5V power output.

3. LED light will turn solid orange while charging, and turn o

ﬀ

automatically when fully charged.

"NOTE"

The ideal temperature for charging is 10°C ~ 40°C and the output power supply of DC 5V/2A.



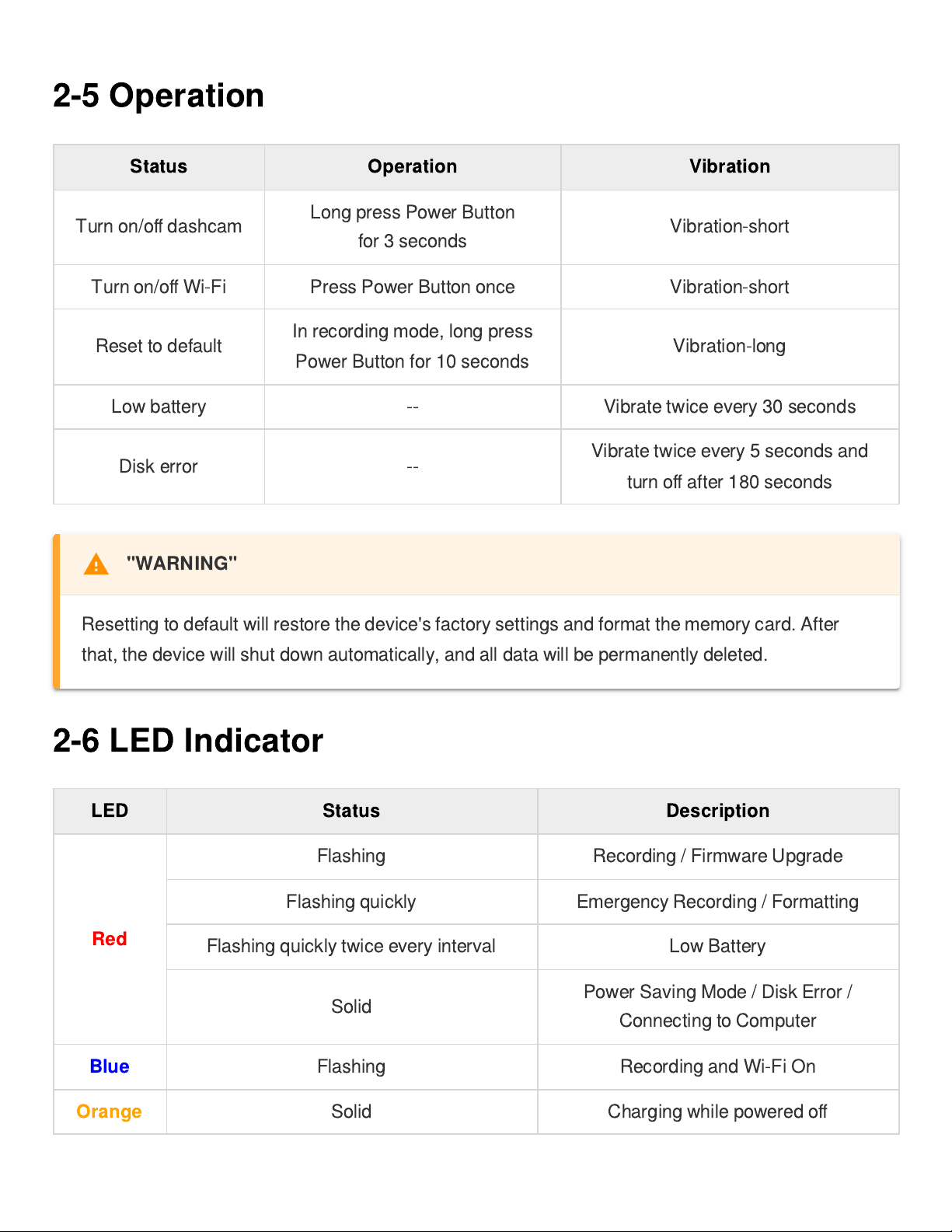

2-5 Operation

Status Operation Vibration

Turn on/o

ﬀ

dashcam Long press Power Button

for 3 seconds Vibration-short

Turn on/o

ﬀ

Wi-Fi Press Power Button once Vibration-short

Reset to default In recording mode, long press

Power Button for 10 seconds Vibration-long

Low battery -- Vibrate twice every 30 seconds

Disk error -- Vibrate twice every 5 seconds and

turn o

ﬀ

after 180 seconds

2-6 LED Indicator

LED Status Description

Red

Flashing Recording / Firmware Upgrade

Flashing quickly Emergency Recording / Formatting

Flashing quickly twice every interval Low Battery

Solid Power Saving Mode / Disk Error /

Connecting to Computer

Blue

Flashing Recording and Wi-Fi On

Orange

Solid Charging while powered o

ﬀ

"WARNING"

Resetting to default will restore the device's factory settings and format the memory card. After

that, the device will shut down automatically, and all data will be permanently deleted.



3. Recording Videos

3-1 Normal Recording

By default, the DrivePro creates a single video

ﬁ

le for every minute of recording. You can modify the

video length in the Settings of the DrivePro App. When fully charged, the DrivePro 20 can record for

approximately 4 hours. Actual recording time may vary depending on recording conditions.

3-2 Emergency Recording

30% of the storage space will be saved for emergency video

ﬁ

les. Video

ﬁ

les recorded in Emergency

Recording mode are protected from being overwritten.

Automatic Emergency Recording:

During video recording, the DrivePro automatically activates Emergency Recording mode when detecting

a collision or hit.

G-Sensor sensitivity can be adjusted or disabled in the

Settings

menu.

"NOTE"

DrivePro 20 has loop recording function. The earliest videos will be overwritten by new footage.



"NOTE"

If the G-Sensor sensitivity is set to

“

High,

”

even minor shocks activate Emergency Recording

mode.

If the G-Sensor sensitivity is set to

“

Low,

”

only signi

ﬁ

cant shocks activate Emergency

Recording mode.

In Power Saving Mode, recording is disabled.



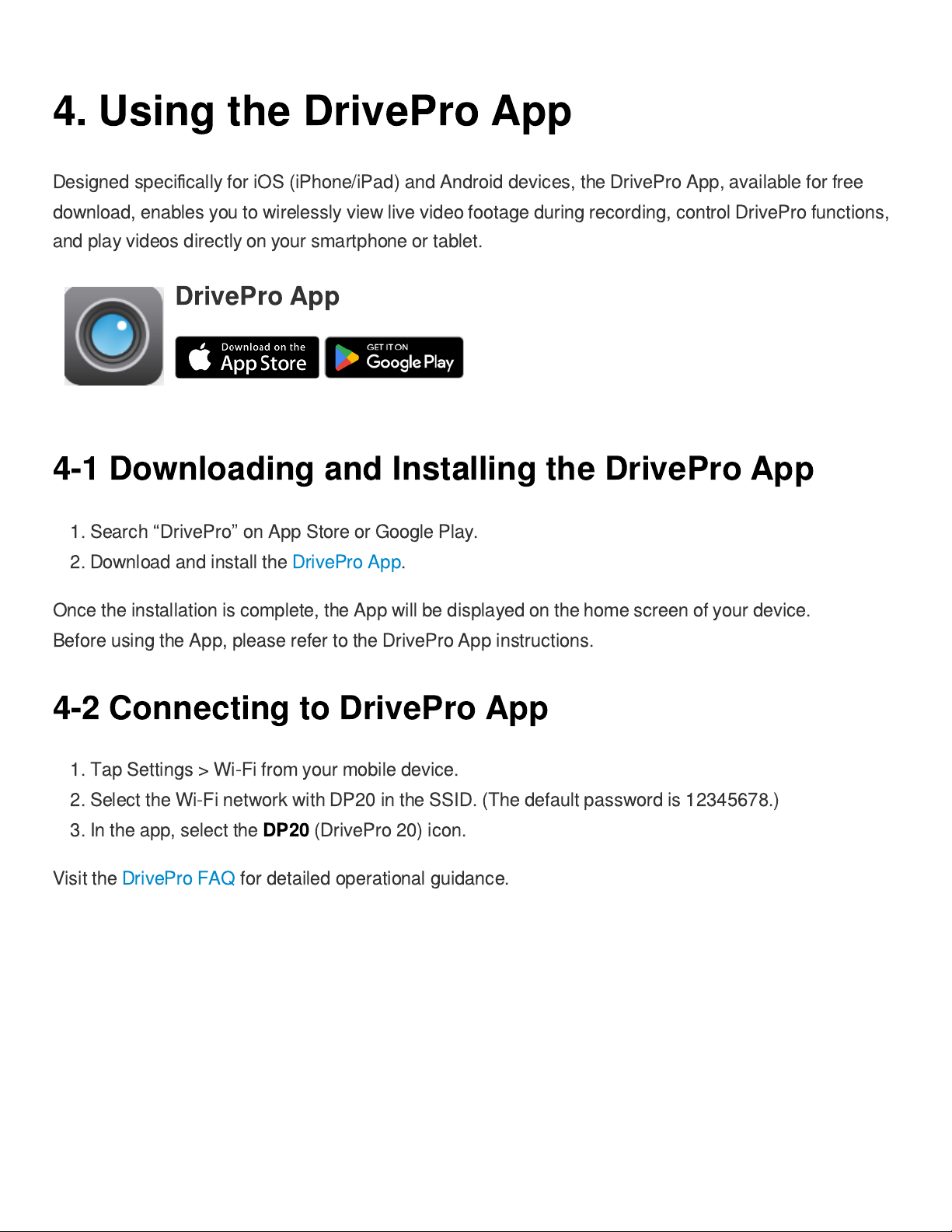

4. Using the DrivePro App

Designed speci

ﬁ

cally for iOS (iPhone/iPad) and Android devices, the DrivePro App, available for free

download, enables you to wirelessly view live video footage during recording, control DrivePro functions,

and play videos directly on your smartphone or tablet.

DrivePro App

4-1 Downloading and Installing the DrivePro App

1. Search

“

DrivePro

”

on App Store or Google Play.

2. Download and install the DrivePro App.

Once the installation is complete, the App will be displayed on the home screen of your device.

Before using the App, please refer to the DrivePro App instructions.

4-2 Connecting to DrivePro App

1. Tap Settings > Wi-Fi from your mobile device.

2. Select the Wi-Fi network with DP20 in the SSID. (The default password is 12345678.)

3. In the app, select the

DP20

(DrivePro 20) icon.

Visit the DrivePro FAQ for detailed operational guidance.
