Trane KIT 16724 Instructions de montage
18-HH28D1-3
Pressure Transducer
EMI Protection Kit
KIT 16724
Installer’s Guide
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
WARNING:
HAZARDOUS VOLTAGE - DISCONNECT POWER and DISCHARGE
CAPACITORS BEFORE SERVICING
▲WARNING
!
This information is intended for use by individuals pos-
sessing adequate backgrounds of electrical and me-
chanical experience. Any attempt to repair a central air
conditioning product may result in personal injury and/or
property damage. The manufacture or seller cannot be
responsible for the interpretation of this information, nor
can it assume any liability in connection with its use.
▲WARNING
!
LIVE ELECTRICAL COMPONENTS!
During installation, testing, servicing, and troubleshoot-
ing of this product, it may be necessary to work with
live electrical components. Failure to follow all electrical
safety precautions when exposed to live electrical com-
ponents could result in death or serious injury.
Scope:
This additional EMI (Electromagnetic Interference) pro-
tection kit is developed to reduce the potential effects
of EMI on the pressure transducers.
Overview:
This Kit is to be used on the specific outdoor condens-
ing units (shown at left) that have an EEV flow control
device. This Kit provides an additional EMI grounding
path, to help reduce the potential interference dam-
age that can be caused to the outdoor units’ pressure
transducer. Install this kit when replacing a pressure
transducer on the product listed in the heading of these
installation instructions.
Application:
This Kit is to be used on the following outdoor
condensing units that have an EEV flow control device:
• 4TWR6024–060A1
• 4TWX6024–60E1/G1
• 4A6H6024–60E1/G1
• 4A6H7024–060A1000AA
• 4TWR7024–060A1000AA
• 4TWX8024–060A1000AA
18-HH28D1-3
The manufacturer has a policy of continuous product and product data improvement and it reserves the right to change design and specifications without notice. Representative-only illustrations included in this document.
© 2014 Trane U.S. Inc. 02/14
6200 Troup Highway
Tyler, TX 75707
www.trane.com
www.americanstandardair.com
Procedure:
1. Remove valve cover, control box
cover, and access panel.
2. Using the blue wire supplied with the
kit and the existing wire nut, fasten
the stripped end of the blue wire
to the unit’s low voltage common
connection (B) at the low voltage
common thermostat wire connection.
See Figure 1.
3. Route the ring terminal end of the
blue wire along the same path as the
other low voltage wires entering into
the unit control box.
4. Using the screw supplied with the kit,
fasten the ring terminal end of the
blue wire to the control box utilizing
one of the screw starting dimples in
the control box. See Figure 2.
5. The ring terminal connection should
be a minimum of 1/4” from any other
electrical connection or terminal in
the box.
6. Install all covers and panel.

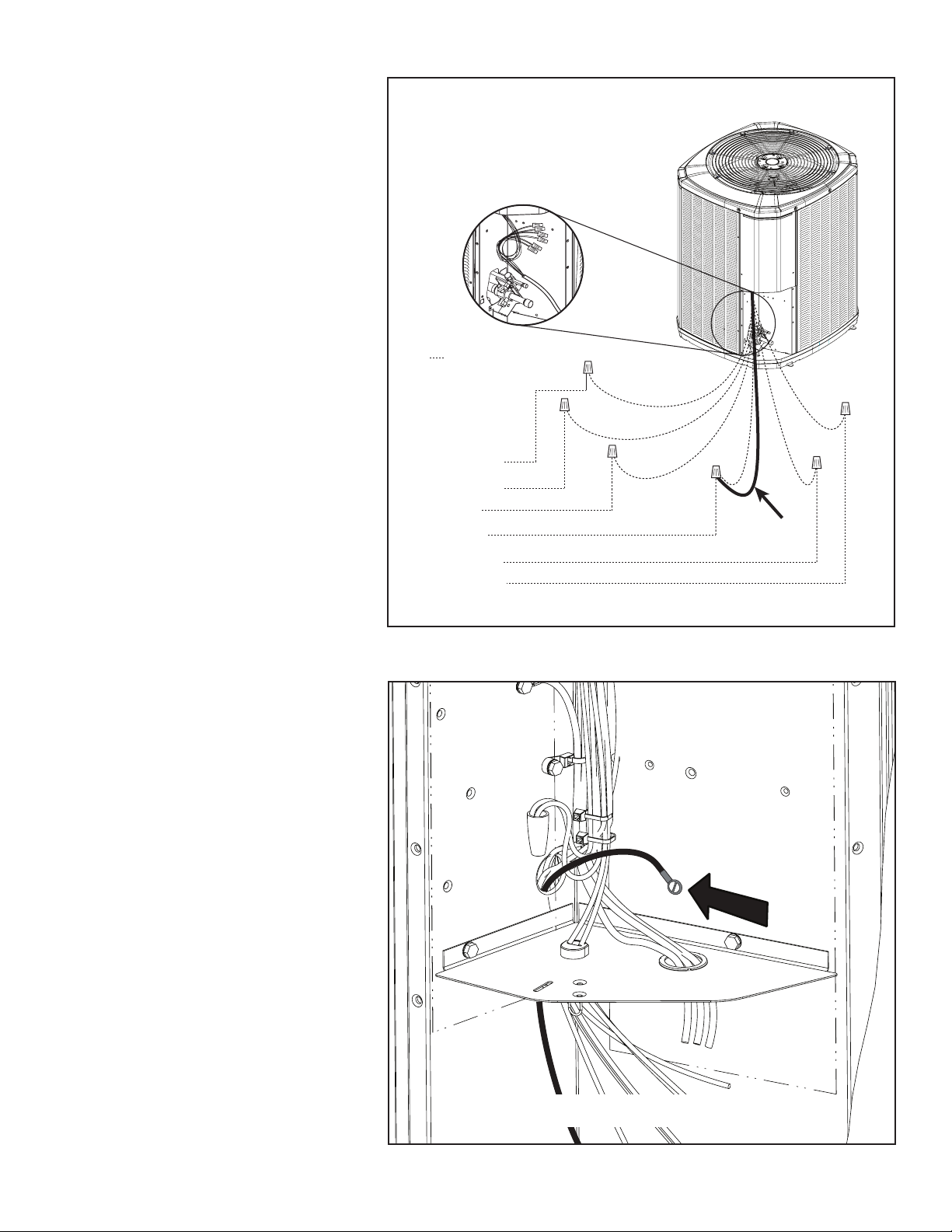

Figure 2
Figure 1
Heat Pump
Neatly bundle all low voltage
wires behind the service valve
cover as shown.
Yellow/Red
Field wiring
Yellow
Blue
Black
(X2)
Red
Orange
B - Blue
Y1 - Yellow
Y2 - Brown
R - Red
O - Orange
W1 - White
Blue Wire
Supplied
with Kit
2 18-HH28D1-3
Attached
Ring
Terminal
See Figure 1 for Field Connections
