Trane TCONT600AF11MA Manuel utilisateur
69-1836-02
TCONT600AF11MA/TCONT602AF22MA
Programmable Comfort Control
OWNER’S GUIDE
Pub. No. 22-5208-02
M28596
Read and save these instructions.

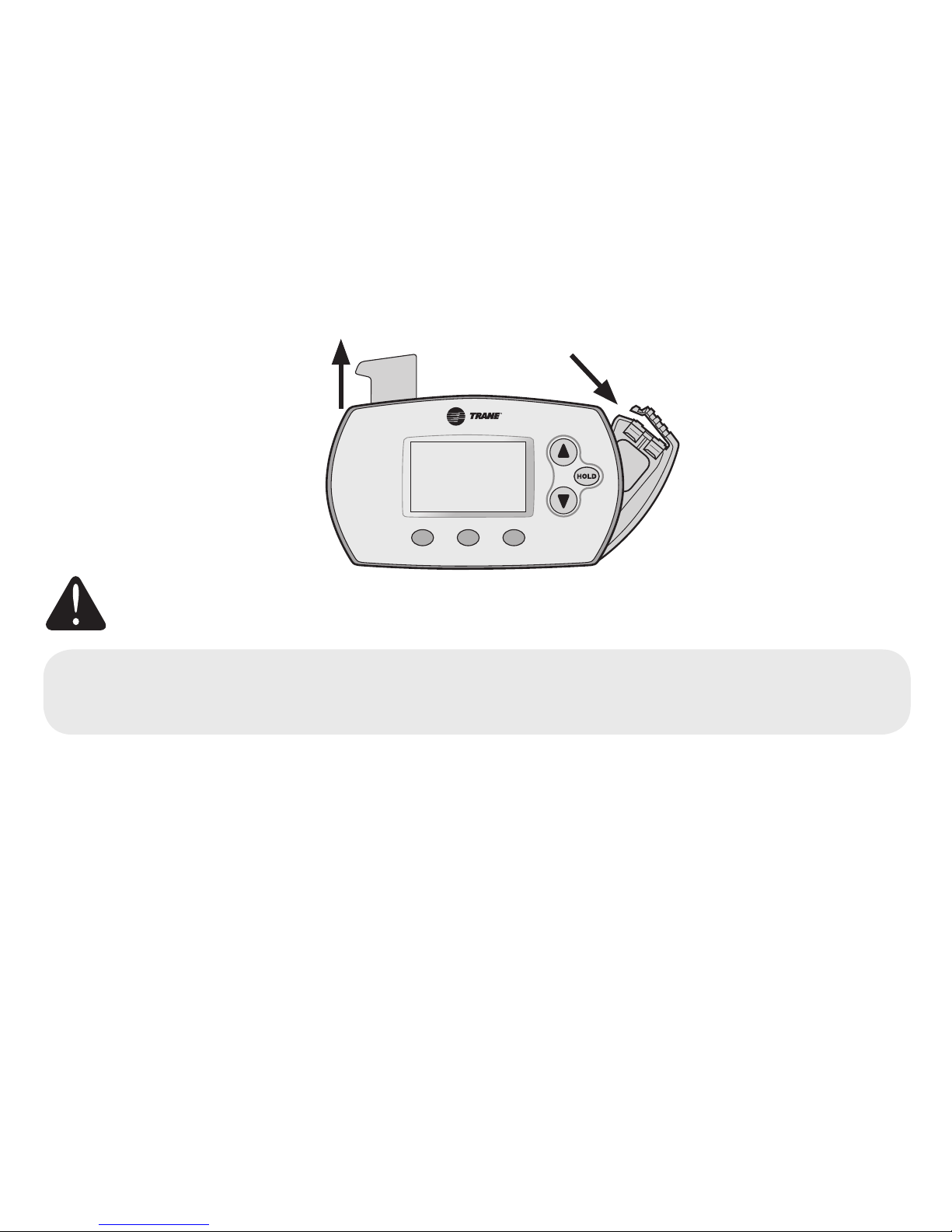

Quick Reference Card
Grasp and pull to see basic
operating instructions at a
glance.
Need Help?
For assistance with this product please visit www.trane.com
or call the Customer Assistance Helpline toll-free at 1-800-500-2041
M28597
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do
not operate cooling system when outdoor temperature is below 50°F (10°C).
Battery Holder
Press down and pull to
remove batteries.
Batteries should be
replaced once a year
(see page 17).
This thermostat contains a Lithium battery which may contain Perchlorate material.
Due to State Law in CA, the following statement is required:
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate
1 69-1836—02
Table of Contents
About your new Comfort Control
Control features ......................................... 2
Programming at a glance .......................... 3
Quick reference to controls....................... 4
Quick reference to display ........................ 5
Programming & Operation
Set time and day........................................6
Select fan setting (auto/on) ....................... 7
Select system setting (heat/cool).............. 8
Using program schedules ......................... 9
Program schedule overrides ................... 12
Auto-changeover (heat/cool)................... 14
Compressor protection............................ 15
Adaptive Intelligent RecoveryTM ............... 16
Appendices
Battery replacement ................................ 17
In case of difficulty................................... 18
Customer assistance ............................... 20
Accessories/replacement parts .............. 20
Limited Warranty...................................... 21
This Comfort Control is ready to go!
Your new Comfort Control is pre-
programmed and ready to go.
See page 3 to check settings.
CAUTION: EQUIPMENT DAMAGE
HAZARD. To prevent possible
compressor damage, do not operate
cooling system when outdoor
temperature is below 50°F (10°C).
69-1836—02 2
Congratulations on the purchase of your new Comfort Control. It has been designed
to give you many years of reliable service and easy-to-use, push-button
climate control.
Features
• Separatelyprogrammableweekday/weekendschedules.
• One-touchtempcontroloverridesprogramscheduleatanytime.
• EnergyStar®compliant to greatly reduce your heating/cooling expenses.
• Large,clear,backlitdisplayiseasytoread—eveninthedark.
• Displaysbothroomtemperatureandtemperaturesetting.
• Removablebatteryholderforfast,easyreplacement.
• Built-incompressorprotection.
About your new Comfort Control
3 69-1836—02
Your new Comfort Control is pre-programmed and ready to go. All you have to do is
set the time and day. Then check the settings below and change if needed:
1. Set time and day (required for proper operation).........................See page 6
2. Select fan setting (Auto/On): Preset to Auto.................To change, see page 7
3. Select system setting (Heat/Cool): Preset to Heat ......To change, see page 8
4. Program schedules: Preset to energy-saving levels
while you’re at work or asleep (assumes you wake at
6 am, leave at 8 am, return at 6 pm and go to bed
at 10 pm) ......................................................................To change, see pages 9-11
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and
manually adjust the temperature (see pages 12-13).
This Comfort Control is ready to go!
69-1836—02 4

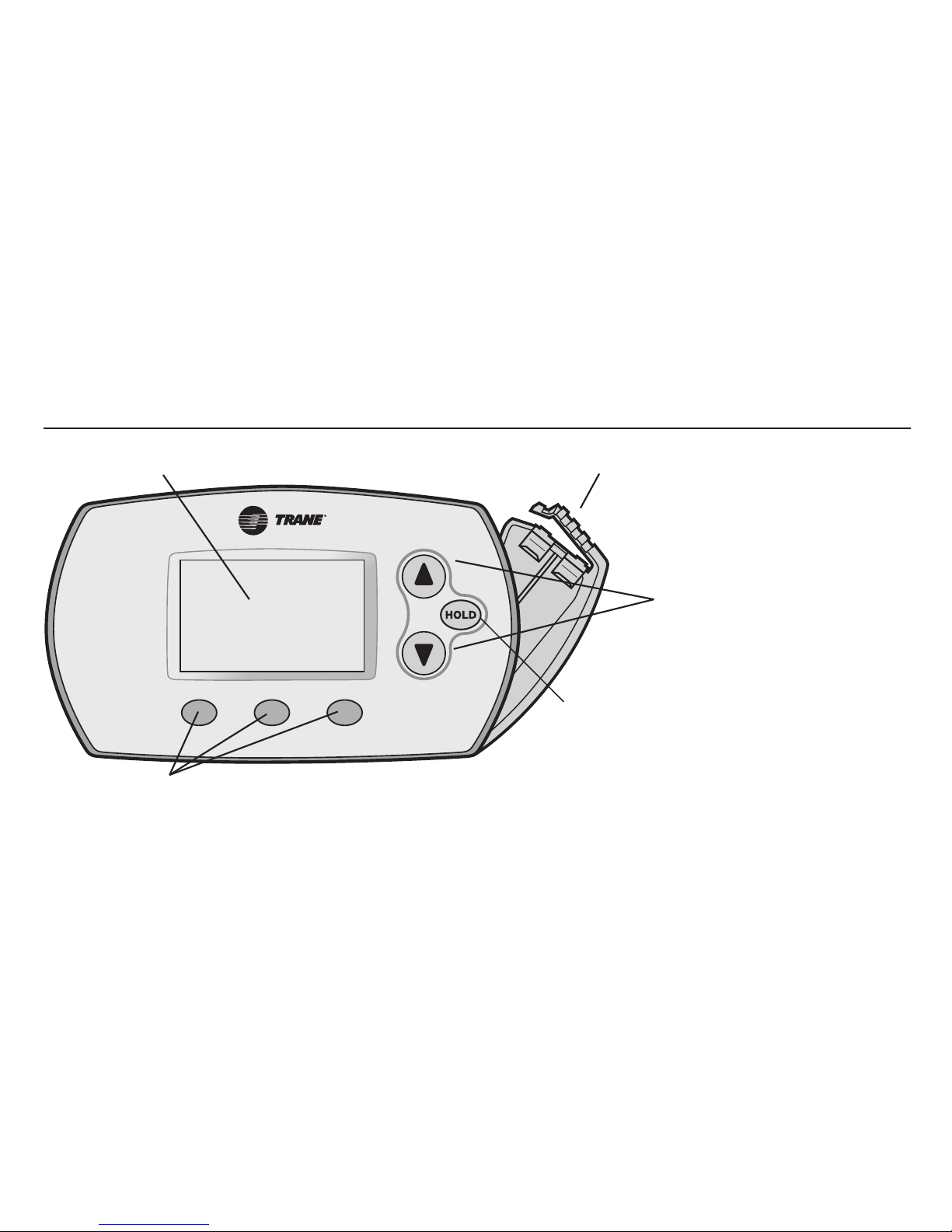

M28598
Digital display (see page 5). Battery holder (see page 17).
Temperature Buttons
Press to adjust temperature
settings (see page 11-13).
Hold Button
Press to override
programmed temperature
control (see page 13).
Function Buttons
Press to select the function displayed just above each
button. (Functions change depending on the task.)
Quick reference to controls
5 69-1836—02

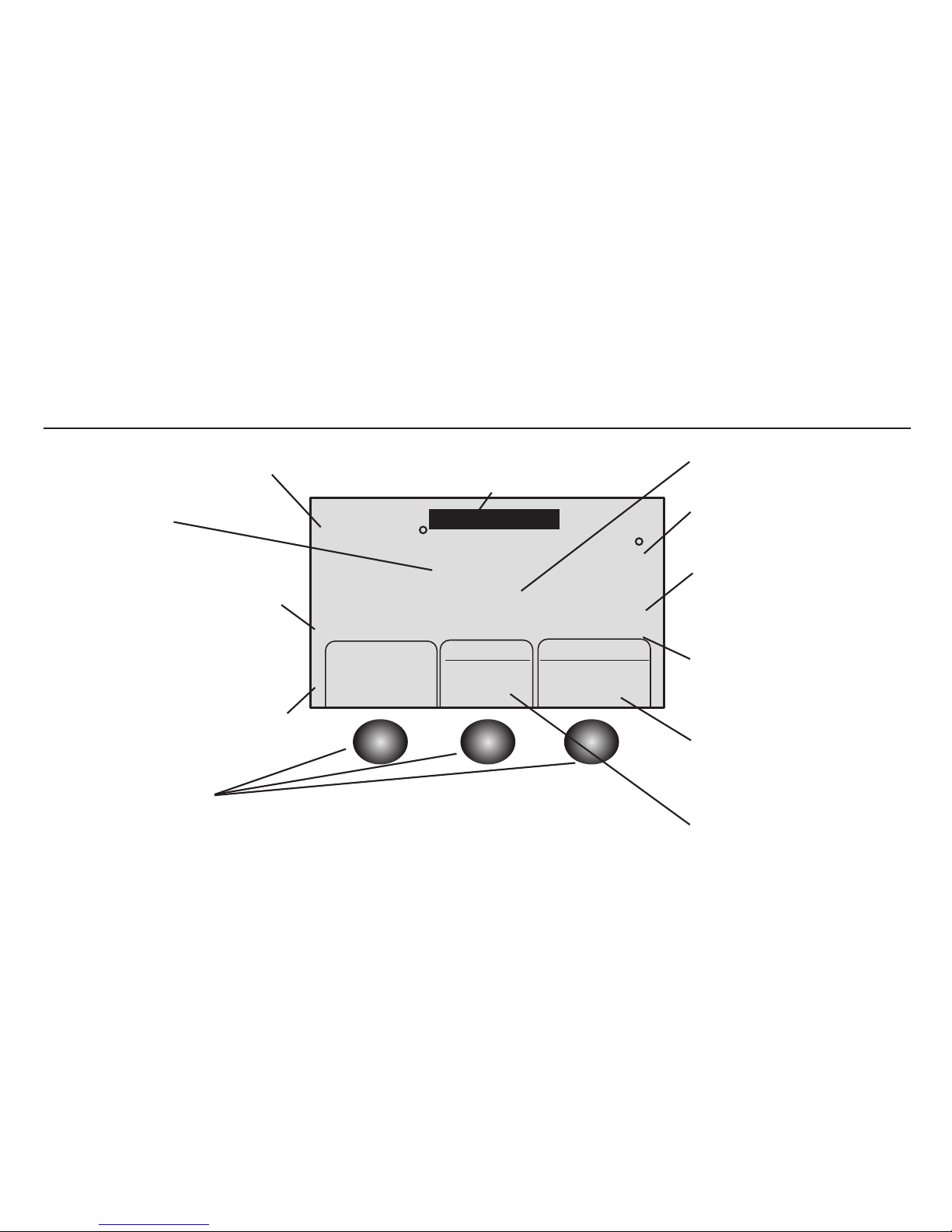

Current inside temperature
SetClock/Day/
Schedule
Auto
Wake Wed
Fan
In Recovery
System
Auxiliary
Heat On
Heat
Heat
Setting
Inside
AM
72
72
6:30
Replace Battery
M28601
In Recovery
(see page 16)
Current program period
Wake/Leave/Return/Sleep
(see pages 9-11)
Set Clock/Day/Schedule
(see pages 6 & 11)
Function buttons
Press the button beneath each function to view or change
settings (functions change depending on the task)
Low battery warning
(see page 17)
Current time/day
(see page 6)
Temperature setting
(see pages 11-13)
Auxiliary heat
(Only for heat pumps
with auxiliary heat)
System status
Heat On/Cool On (If
flashing, see page 15)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 8)
Fan setting
Auto/On (see page 7)
Quick reference to display screen
69-1836—02 6
M28603
Done
Set DaySet Schedule
Wed
SetClock/Day/
Schedule
Auto
FanSystem
Heat
PM
4:30
M28602

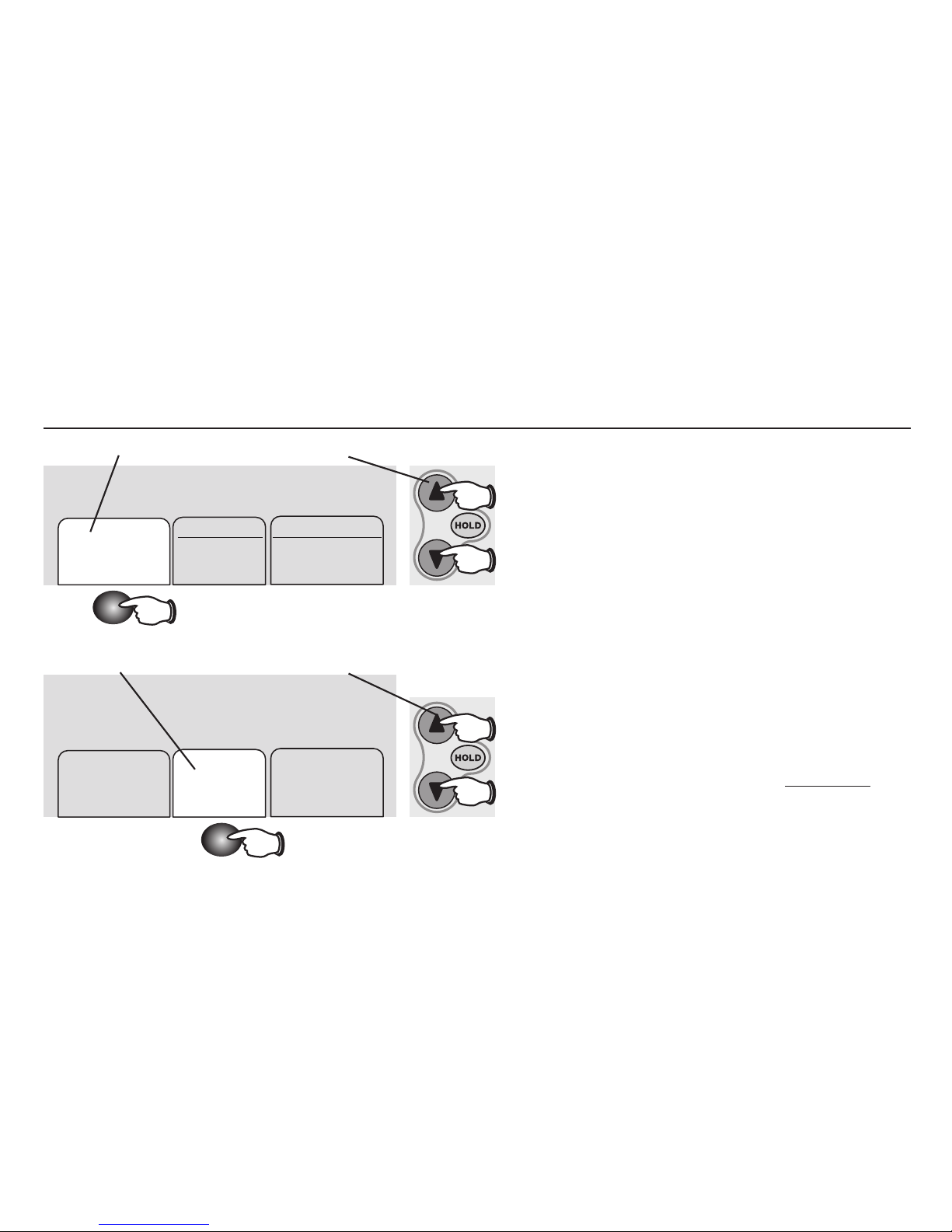

1. Press the SET CLOCK/DAY/SCHEDULE
button, then press s or t to set
the clock time.
2. Press the SET DAY button, then
press s or t to select the day
of the week.
3. Press DONE to save & exit.
Note: If the SET CLOCK/DAY/SCHEDULE
option is not displayed, press DONE or RUN
SCHEDULE.
Note: If the display flashes Set Clock,
the thermostat will follow your settings
for the weekday “Wake” time period until
you reset the time and day.
Press SET CLOCK/DAY/SCHEDULE, then adjust time
Press SET DAY, then select current day
Set the time and day
7 69-1836—02

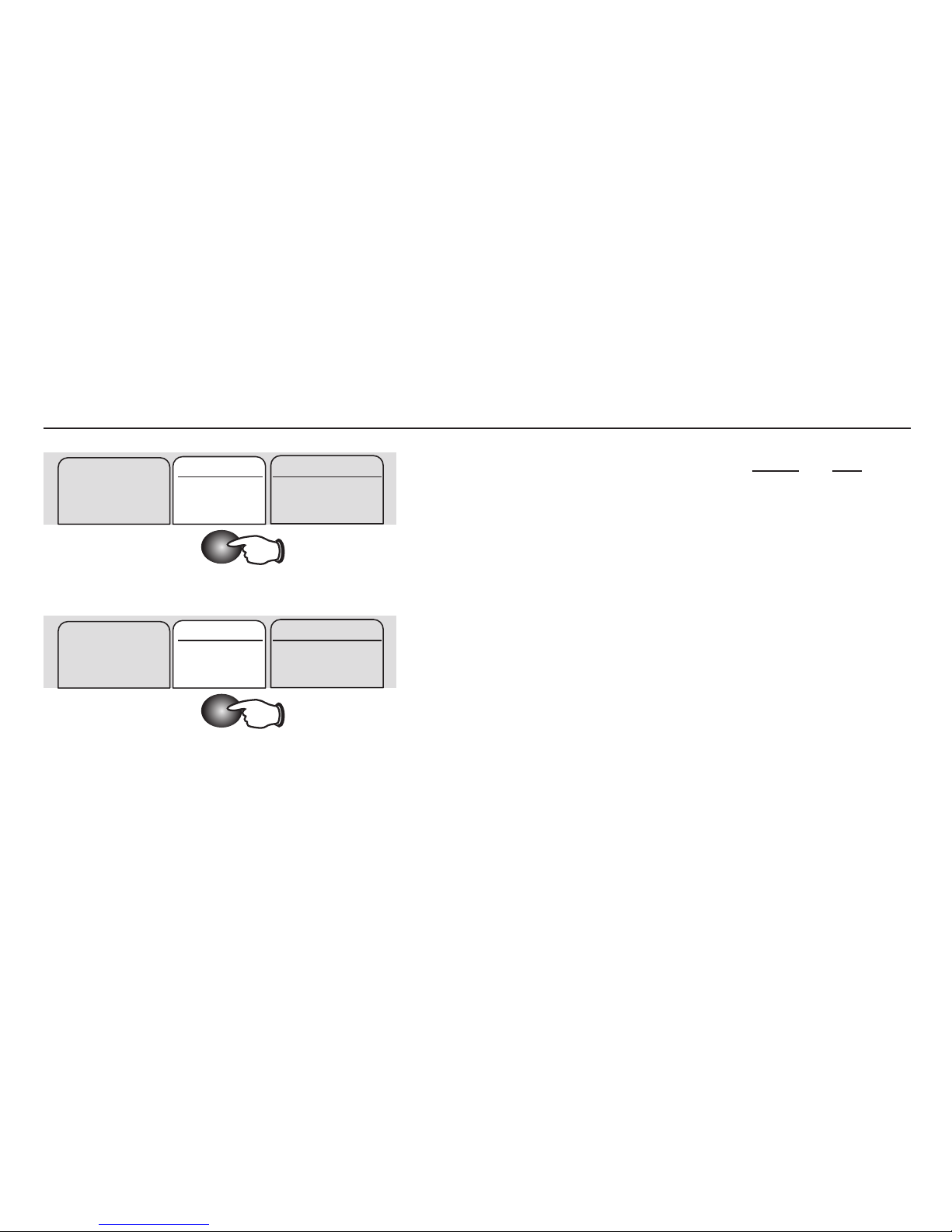

Press the FAN button to select Auto or On.
In “Auto” mode (the most commonly used
setting), the fan runs only when the heating
or cooling system is on. If set to “On,” the
fan runs continuously. Use this setting for
improved air circulation, or for more efficient
air cleaning.
Select the fan setting
M28604
SetClock/Day/
Schedule
Auto
FanSystem
Heat
M28605
SetClock/Day/
Schedule
On
FanSystem
Heat
69-1836—02 8
Note: The Auto and Em Heat
system settings may not appear,
depending on how your Comfort
Control was installed.

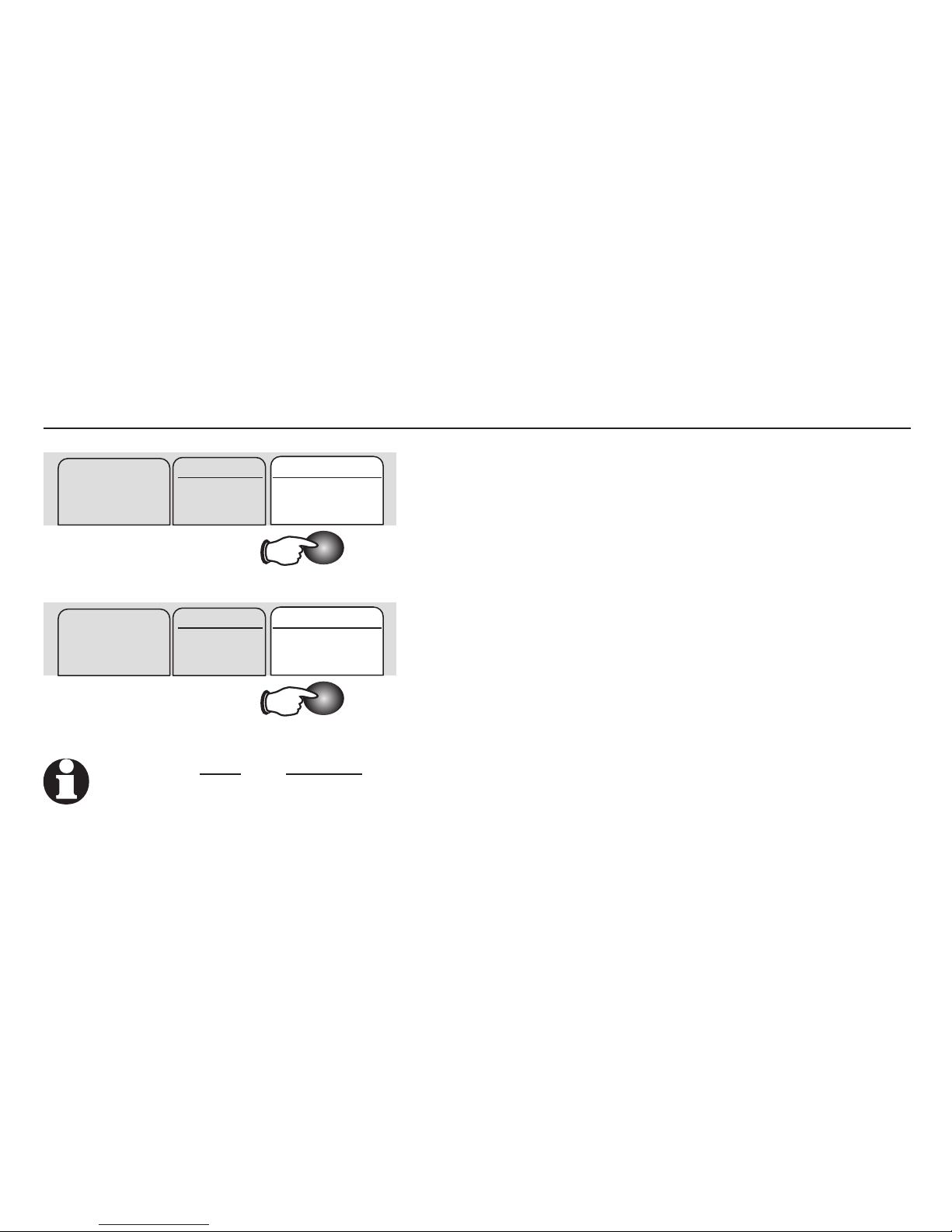

Press the SYSTEM button to select:
• Heat: Controls only the heating system.
• Cool: Controls only the cooling system.
• Off: Heating and cooling systems are off.
• Auto: Automatically selects heating
or cooling depending on the indoor
temperature.
• Em Heat (only for heat pumps with
auxiliary heat): Controls Emergency Heat.
Compressor is locked out.
Select the system setting
M28606
SetClock/Day/
Schedule
Auto
FanSystem
Heat
M28607
SetClock/Day/
Schedule
Auto
FanSystem
Cool
