Trane BAYHANG Instructions de montage
Horizontal Hanging Kit:
BAYHANG
INSTALLER'S
GUIDE
IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service informationpack
upon completion of work.
ALL phases of this installation must comply with
NATIONAL, STATE AND LOCAL CODES
18-CH81D1-1A-EN
Fits Models:
S-Series
Furnaces
Section 1. Safety Information
s
s
WARNING
SAFETY HAZARD! This information is intended for
use by individuals possessing adequate backgrounds of
electrical and mechanical experience. Any attempt to
repair a central air conditioning product may result in
personal injury and/or property damage. The manufac-
turer or seller cannot be responsible for the interpretation
of this information, nor can it assume any liability in con-
nection with its use.
Section 2. General Information
Open and inspect contents for
damage or missing items.
s
s
WARNING
SAFETY HAZARD! Sharp Edge Hazard. Be careful
of sharp edges on equipment or any cuts made on sheet
metal while installing or servicing. Personal injury may
result.
Important: Do not screw, cut, or otherwise puncture the
unit cabinet in any location other than those illustrated
in this Installer's Guide or in an approved accessory's
Installer's Guide.
Important: If applicable, make certain that the unit has
been installed in a level position to ensure proper drain-
ing.
Important: Under no condition should metal strapping
be attached to the unit to be used as support mecha-
nisms for carrying or suspension purposes.
Each kit will contain:
Item Qty Description
1 4 1" SS Screw
2 4 Nut, Lifting Eye, SS
3 4 Lock Washer, SS
4 8 Flat Washer, SS
5 1 Installer's Guide
①
②
④
③
Page 2
INSTALLER'S GUIDE
Section 3. Install the Hanging Bracket
Kit.
STEP 1 - Use the illustration to locate and
mark the four positions for the lifting eyes on
the outer side of the cabinet.
STEP 2 - Use a 5/16 inch bit to drill through
the cabinet at the four marked locations. Use
a low speed and low pressure to make each
penetration.
2.0”
TYP.
2.0” TYP.
5/16” DIA.
Page 3
INSTALLER'S GUIDE

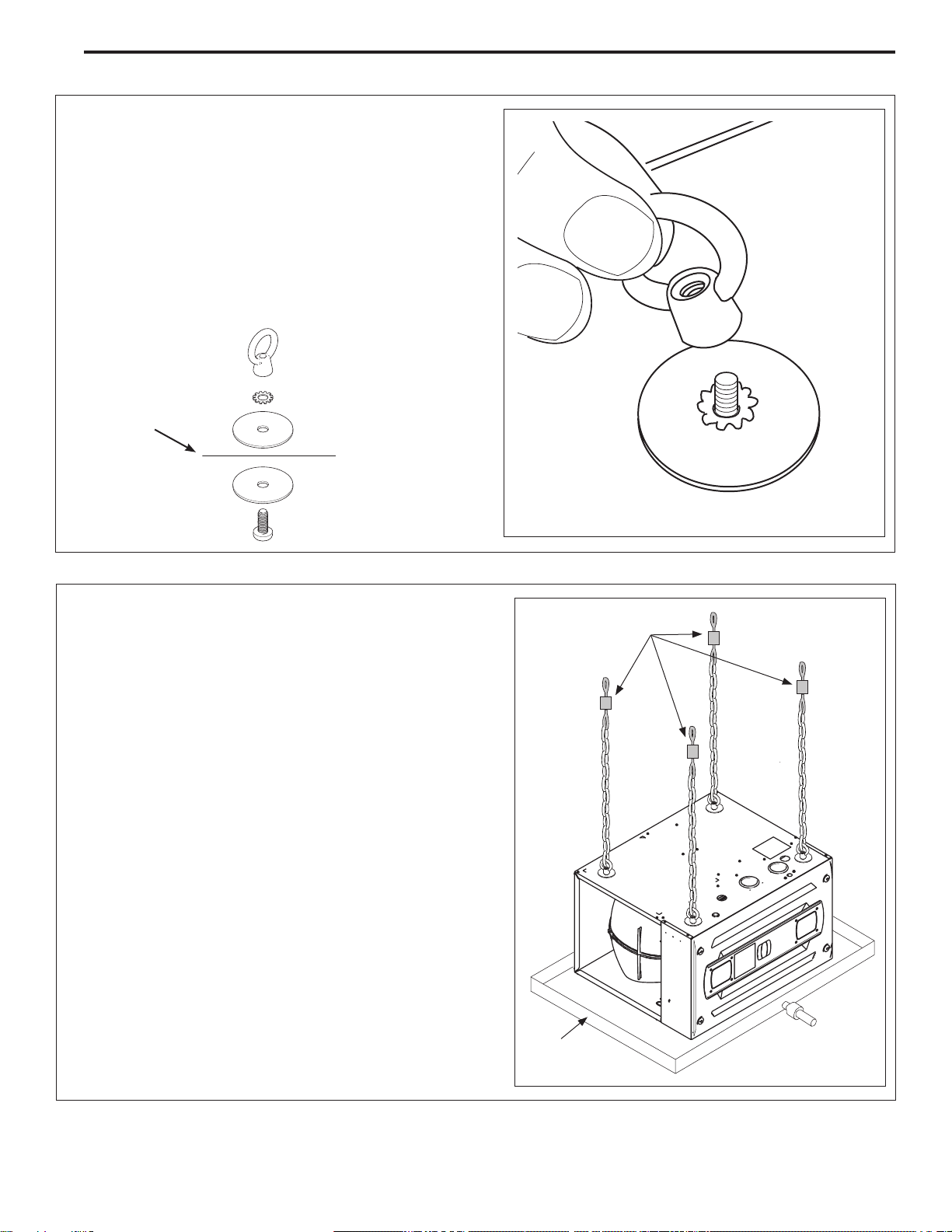

STEP 3 - Insert one of the 1" screws through a flat
washer and then through the cabinet wall at one of
the hole locations.
STEP 4 - Place the flat washer and star washer on
the screw section protruding outside of the cabinet.
Thread the hanging clip into the screw and secure.
STEP 5 - Repeat for the other three lifting eye nuts.
Important: The unit must be isolated carefully to
prevent sound transmission. Field supplied vibra-
tion isolators are recommended.
STEP 7 - Install an auxiliary drain pan under the
horizontal condensing furnace to prevent possible
damage to ceilings.
1. Isolate the auxiliary drain pan from the unit and
from the structure.
2. Connect the auxiliary drain pan to a separate
drain line and terminate according to local
codes.
Field Supplied
Isolators
Auxiliary Drain
Pan
Cabinet
About Trane and American Standard Heating and Air Conditioning
Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.
For more information, please visit www.trane.com or www.americanstandardair.com
The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are
committed to using environmentally conscious print practices.
© 2020
18-CH81D1-1A-EN 06 Jul 2020
Supersedes 18-CH81D1-1 (December 2015)
