LOW AMBIENT CONTROLLER INSTALLATION MANUAL

SAFETY PRECAUTION

Read the safety precautions carefully before installing the unit.

Stated below are important safety issues that must be obeyed.

Confirm there is no abnormal phenomena during test operation after complete, then leave the manual with the end user.

Meaning of marks:

WARNING

CAUTION

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor to moderate injury.

WARNING

CAUTION

Please have a professional install this unit.

Installation by other persons may lead to improper installation, electric shock or fire.

Strictly follow this manual.

Improper installation may lead to electric shock or fire.

Reinstallation must be performed by professionals.

Improper installation may lead to electric shock or fire.

Do not disassemble the heat pump unless you are a professional servicing or repairing the unit.

Make sure all power to unit is turned off.

Disassembly by a non-professional may cause abnormal operation or heating, which may result in fire.

Before installing, modifying, or servicing system, main electrical disconnect switch must be in the OFF position and install a lockout

tag.There may be more than 1 disconnect switch. Always use a suitable warning label.

Follow all safety codes.

Thank you very much for purchasing our product.

Before using your unit, please read this manual carefully and keep it for future reference.

16123000A17426 V.B

Sheet metal parts may have sharp edges or burrs. Use care and wear appropriate protective clothing and gloves when handling

parts.

Wear safety glasses, protective clothing, and work gloves. Use wet cloth for brazing operations and have fire extinguisher available. Read

these instructions thoroughly and follow all warnings or cautions included in literature and attached to the unit. Consult local building codes

and current editions of the National Electrical Code ( NEC ) NFPA70. In Canada, refer to current editions of the Canadian electrical

codeCSA22.1.

JAYLOAM001

88-MACC008-1A-EN

Beware of potential cut hazards.

These instructions cover installation of ICM Part No.325-HN on all split system heat pumps. The device is designed to control outdoor

fan motor speed under low outdoor temperature conditions. It is specifically designed to control condenser fan motor speed in reponse

to the saturated condensing temperature during operation in cooling mode only.This kit is not applied on the units with ECM fan motor.

Parts necessary for mounting control and sensor assembly are included in the kit. Either assembly can be replaced independently of the

other.

STEP 1-Be certain power to unit is disconnected.

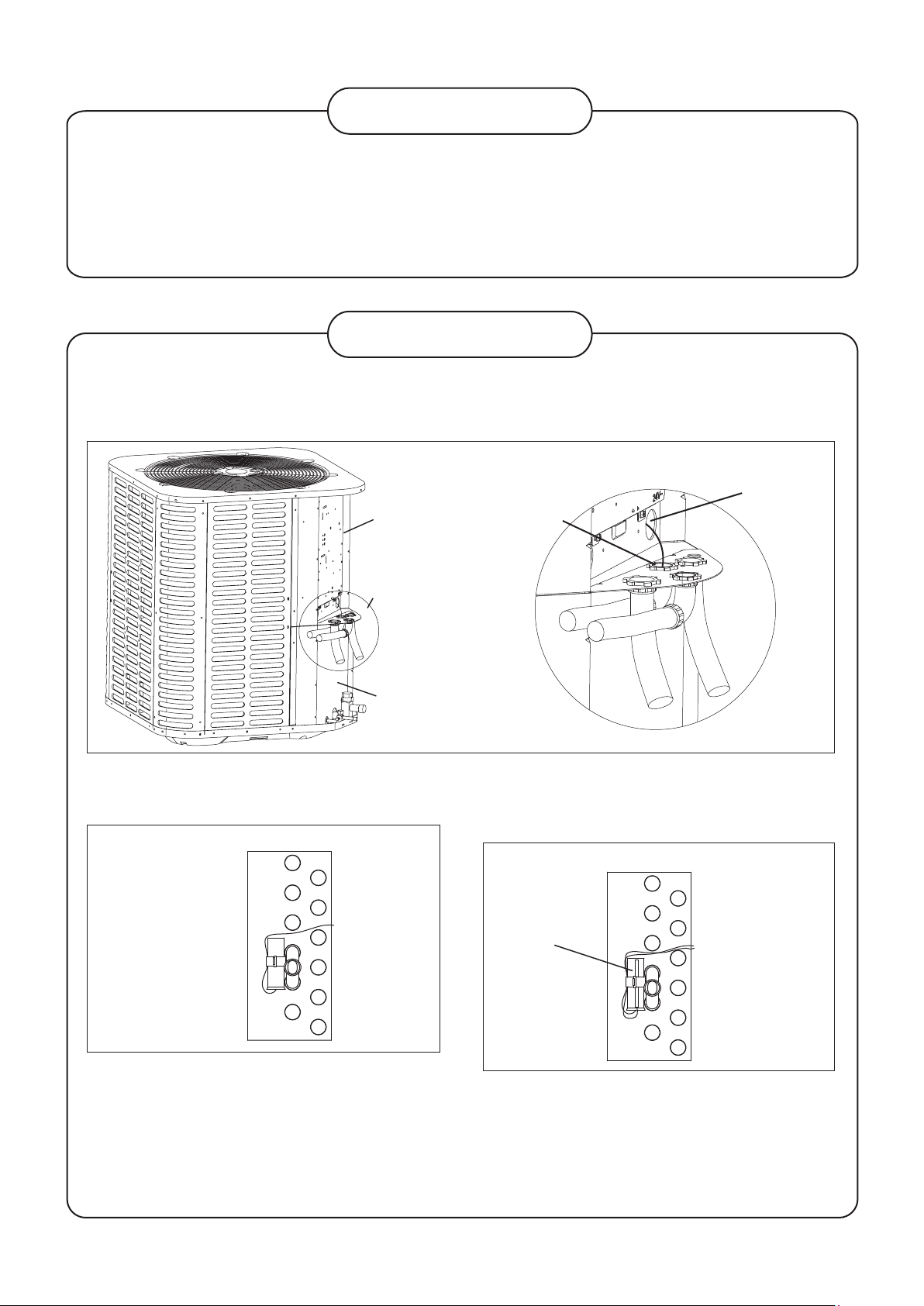

STEP 2- Route sensor wire through the knockout on side plate then the right hole on E-part box and over to outside row of coil (left

side), be careful not to harm tubing (Figure 1).

STEP 5- Bind unused wire and secure it near or next to control.

STEP 6- Protect sensor wire from physical damage or wind movement where necessary.

Note: Wiring in field installed, an insulated sleeve that meets local laws and regulations must be added to protect the wires.

Figure 3

Figure 2

Sensor

Figure 1

STEP 4-Secure sensor on the condenser coil found in STEP 2

with the belt supplied.

Note: The sensor is delicate. Handle with care.

STEP 3-Find the coil return bend as shown in Figure 2 on which

sensor will be mounted.

Top of coil

E-part box

See detail A

Side plate

Detail A

The right hole

The knockout

Introduction

Mounting sensor

STEP 7- Put control assembly in electrical box and fasten it

with two screws provided with the kit.

STEP 8- See wiring diagram for wiring connections (Figure 5).

Figure 4

Figure 5

Figure 6

Figure 7

Note:The high voltage power supply must agree with the equip

ment nameplate.

Power wiring must comply with National, State and Local Codes.

Follow instructions on unit wiring diagram located on the inside of

the access panel.

Field Installed

Insulation Sheath

CC: Compressor Contactor

DFC: Defrost Control

OFM: Outdoor Fan Motor

Field Installed need to use wire to connections.

Reversing valve is energized in the Heating mode.

For the Heat Pump Select Jumper setting, please refer to ICM325HN Application Guide.

Connect the ground wire:Low Ambient Control Box to Outdoor Unit Control Box.

Outdoor Fan Motor Outdoor Fan Motor

- Remove the fan black wire from the Deferost Control Board.

- Connect the white wire of ICM325-HN to CN8.

- Cut the black terminal of the Outdoor Fan Motor.

Defrost

Control Board

Mounting control assembly

Heat Pump

Select Jumper

Default Position

ICM325-HN

White

Insulation sheath

Black Insulation sheath

Outdoor Unit

Control Box

Low Ambient

Control Box

STEP 12- Mount electric control box assembly to unit and fasten it with

original screws.

Figure 12

STEP 9- Fasten the wires with the strap and screws provided.

STEP 11- Cover and fasten the lid with two screws provided.

STEP 10- Connect the ground wire:Low Ambient Control Box

to Outdoor Unit Control Box.

Figure 11

Figure 9Figure 8

Outdoor Fan Motor

- Connect the Outdoor Fan Motor black wire with the grey wire

of the ICM325-HN Module with the terminal.

Manufacturerreserves the right to change, at any time, specifications and designs without notice and without obligations.

Mounting control assembly

Mounting electrical box

Figure 10

Outdoor Unit

Control Box

Low Ambient Control Box
