Trane BAYLVKIT100A Instructions de montage

Low Voltage Conduit

Entry Kit:

BAYLVKIT100A

INSTALLER'S

GUIDE

IMPORTANT—This Document is customer property and is to remain with this unit. Please return to service information

pack upon completion of work.

ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES

18-GJ27D1-1A-EN

Section 1. Safety Information

ssWARNING

SAFETY HAZARD! This information is intended for use

by individuals possessing adequate backgrounds of electrical

and mechanical experience. Any attempt to repair a central air

conditioning product may result in personal injury and/or prop-

erty damage. The manufacturer or seller cannot be responsible

for the interpretation of this information, nor can it assume any

liability in connection with its use.

SAFETY HAZARD! Sharp Edge Hazard. Be careful of

sharp edges on equipment or any cuts made on sheet metal

while installing or servicing. Personal injury may result.

CAUTION

Section 2. General Information

The BAYLVKIT100A provides a metal enclosure

that can be mounted on the side of the air handler

for electrical conduit attachment.

Fits Models:

HyperionTM and

ForeFrontTM

Air Handlers

LIVE ELECTRICAL COMPONENTS! During in-

stallation, testing, servicing, and troubleshooting of this prod-

uct, it may be necessary to work with live electrical compo-

nents. Failure to follow all electrical safety precautions when

exposed to live electrical components could result in death or

serious injury.

WARNING

Each kit will contain:

1 - Enclosure Assembly

4 - Screws

1 - Installer's Guide

INSTALLER'S GUIDE

Section 3. Installation

Step 1 - Place the conduit entry kit enclosure as-

sembly on the side of the air handler to determine

mounting position and knock out option. Make

sure the enclosure assembly cover flange is

seated properly into the door notch.

Note - The enclosure assembly flanges must rest

on the air handler and the assembly must be slid

towards the front of the air handler so it is resting

against the inside of the door notch.

Step 2 - Mark the four mounting hole locations of

the conduit mounting bracket onto the air handler

case.

Note - Knock out locations are on the top, bottom,

and back. There are no knock outs on the side or

the front of the enclosure assembly.

Step 3 - With the entry kit removed from the air

handler, remove the desired knock out.

Page 3

INSTALLER'S GUIDE

Step 4 - Attach the conduit to the low voltage conduit

entry kit enclosure with a conduit nut.

Step 5 - Remove the coil compartment front

panel.

Step 6 - Match the conduit bracket up to

the marks made in step 2.

Step 7 - Use the four provided screws to secure the

conduit entry kit to the side of the air handler.

Important: Use low torque setting to avoid stripping

the holes on the air handler cabinet.

INSTALLER'S GUIDE

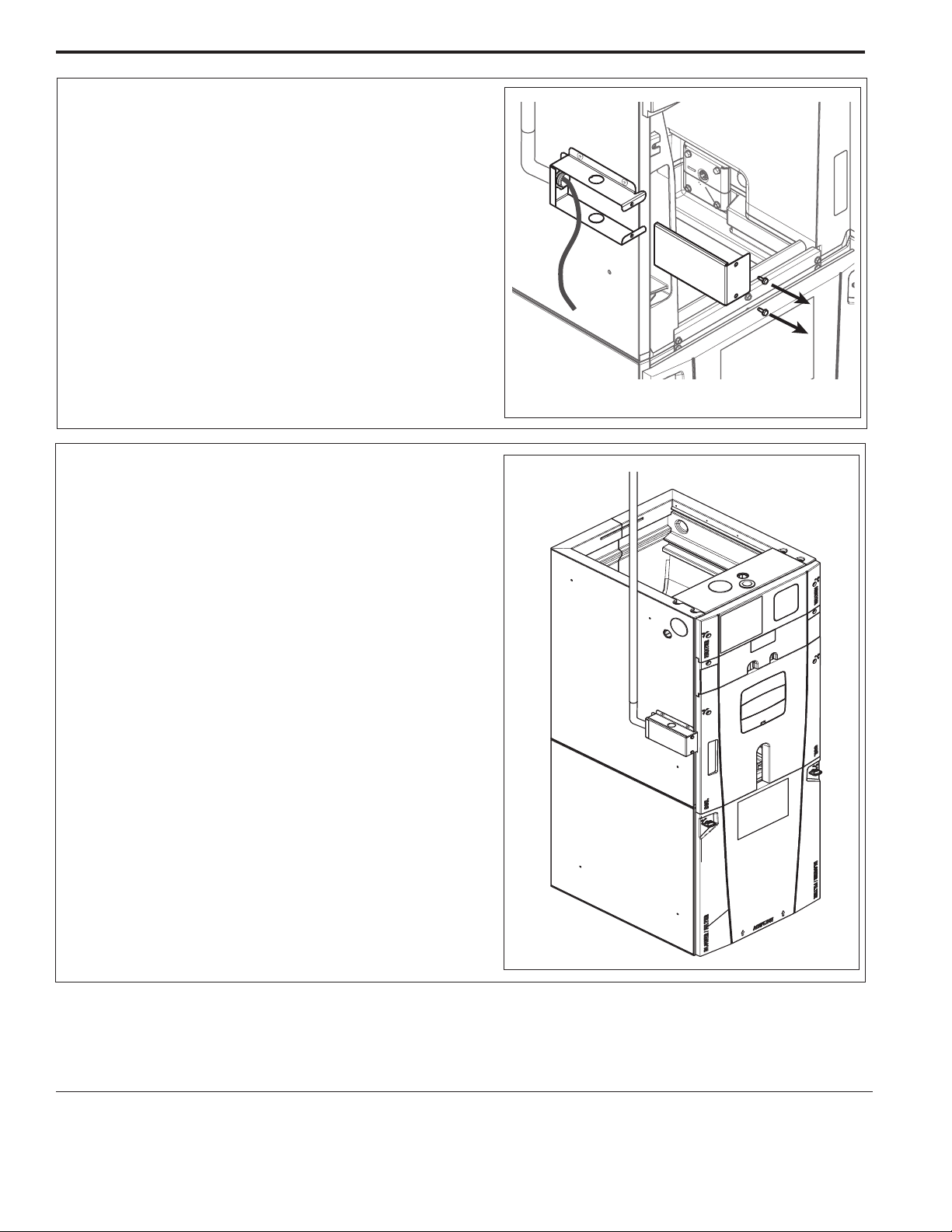

Step 9 - Connect the wires to the low voltage terminal

strip per the air handler Installer's Guide.

Step 10 - Replace the cover on the low voltage conduit

kit enclosure.

Step 11 - Replace the coil compartment front panel.

Step 8 - Remove the two screws on the enclosure

cover and slide cover out. Set pieces aside.

Step 9 - Route the thermostat control wiring through

the conduit. Leave approximately 12" extra to be

able to slide the control bracket assembly out.

12"

About Trane and American Standard Heating and Air Conditioning

Trane and American Standard create comfortable, energy efficient indoor environments for residential applications.

For more information, please visit www.trane.com or www.americanstandardair.com

The manufacturer has a policy of continuous data improvement and it reserves the right to change design and specifications without notice. We are

committed to using environmentally conscious print practices.

18-GJ27D1-1A-EN 03 Aug 2020

Supersedes 18-GJ27D1-1 (October 2010)
