TrailFX TFX5526 Manuel utilisateur

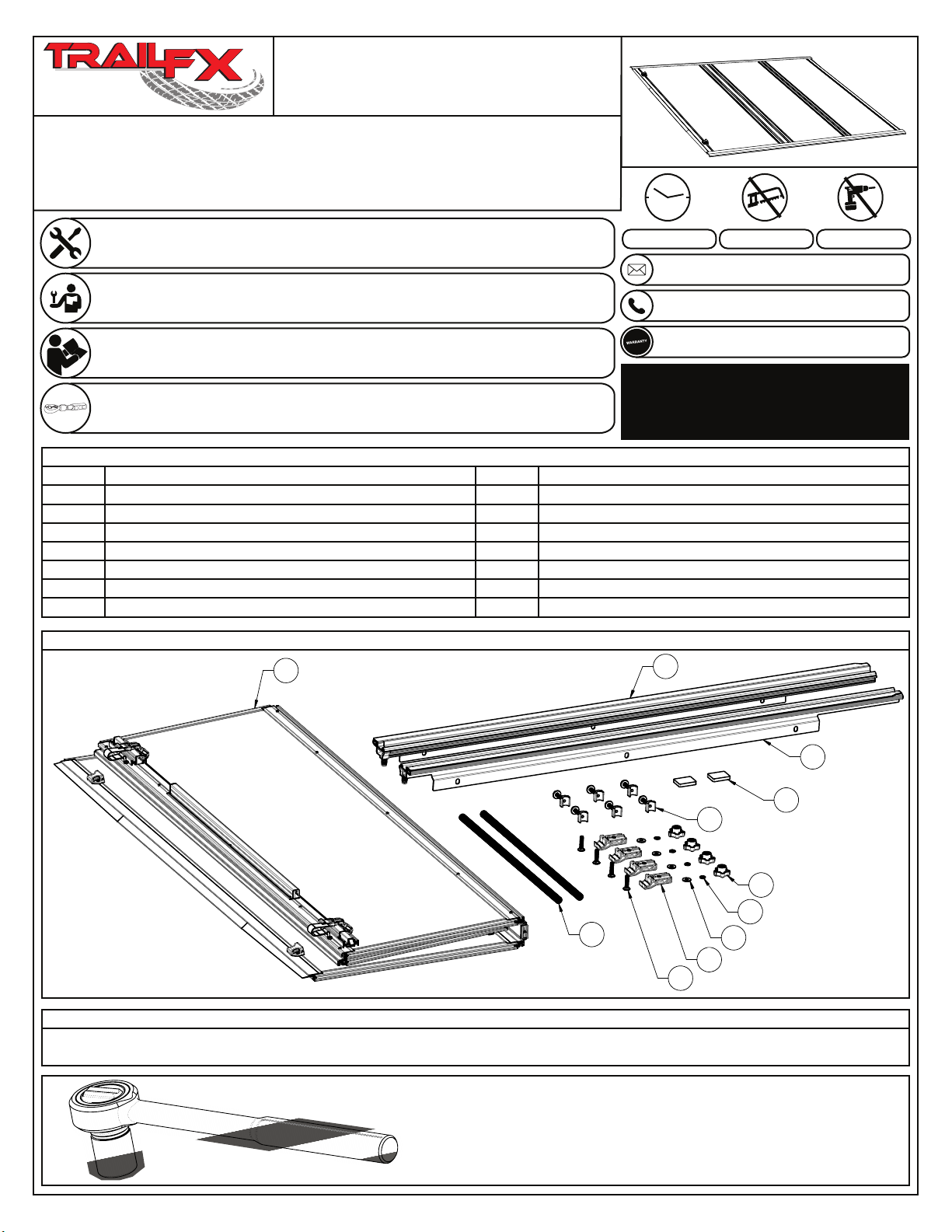

PARTS LIST OF COMPONENTS

Tri-Fold Tonneau Cover

Fits:

Ratchet & 1/2” Socket

THE TRAILFX TRI-FOLD TONNEAU COMES FULLY ASSEMBLED.

30-60 min Cutting Not Required Drilling Not Required

REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.

[email protected]

1 866 638 4870

LIMITED LIFETIME WARRANTY

READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.

DO NOT OVER TORQUE. A TORQUE WRENCH IS NOT NECESSARY.

IF PREFERRED, TORQUE IS APX 75 INCH LBS.

www.TrailFX.com

Tools Required

Qty Part Description Qty Part Description

Components

Rev 041015Page 1 of 7

TFX5526 - Toyota Tacoma 5’ 2016-2017

TFX5527 - Toyota Tacoma 6’ 2016-2017

KS-Z2

Hard Folding Cover

Driver (Left) Mounting Rail

Passenger (Right) Mounting Rail

Drain Tubes (x2)

Clamps (x6)

Star Knobs (x4)

Lock Washers (x4)

Flat Washers (x4)

Front Mounting Retainer (x4)

Front Mounting Bolts (x4)

Bulkhead Seal



5(9,6,216

5(9

'(6&5,37,21

'$7(

1(:3$57

&$'*(1(5$7(''5$:,1*

'21270$18$//<83'$7(

6&$/(

6,=(

&$'),/(

3$5712

6+((7

5(9

'$7(

$33529$/6

'5$:1

&+(&.('

81/(6627+(5:,6(63(&,),('

',0(16,216$5(,1,1&+(6

72/(5$1&(6$5(

'(&,0$/6$1*/(6

;

;;

;;;

0$7(5,$/

),1,6+

















7+(,1)250$7,21&217$,1(',17+,6'5$:,1*

,67+(62/(3523(57<2)81'(5&29(5$1<

5(352'8&7,21,13$5725:+2/(:,7+2877+(

:5,77(13(50,66,212)81'(5&29(5,6

352+,%,7('



















-*4

8VHU/LEUDU\6RFNHW:UHQFKDQG6RFNHWV

,GHDOIRUYDOLGDWLQJWKHDELOLW\WRWLJKWHQIL[LQJV

  























www.TrailFX.com

Page 2 of 7

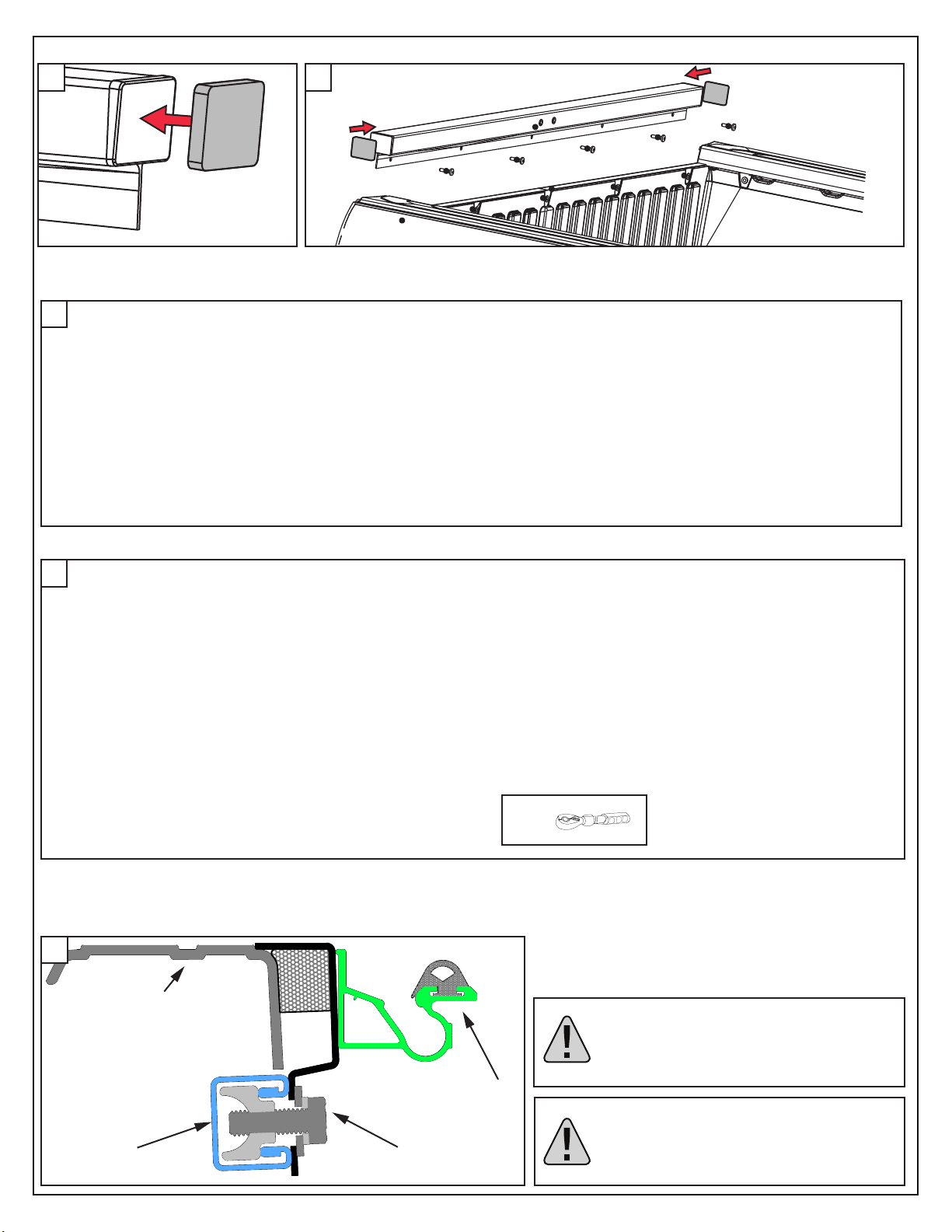

INSTALLATION PROCEDURE

1 & 2. Using a T30 torx driver, remove the 5 fasteners securing the header rail to the bulkhead at the front of

the bed. Adhere the gasket to the header rail end caps and reinstall the header rail.

3. Slide the clamp assembly (3 per side) into the Utility rail, position one front, one center and one rear.

4 & 5. Using three (3) bolts per side attach both left and right side rails to the truck bed, Figure 2. The end of

the mounting rail with the drain tube tting will go towards the cab of the truck. Tighten the bolts using a 1/2”

wrench or socket.

Warning! Do not overtighten the clamp assem-

bly. A torque wrench is not necessary. If preferred,

torque is apx 120 inch lbs.

Warning! Clamps must be checked periodically

for tightness. Failure to do so could result in

damage to you or your property.

1/2”

Clamp Assembly

Truck Bed Rail

Cover Mounting

Rail

Utility Rail

www.TrailFX.com

Page 3 of 7

5. Set the tonneau onto the mounting rails, the buckles should be to the front.

6 & 7. Assemble the four retainer clamps, slide each of them into the track on the underside of the tonneau,

slide into position, but do not tighten at this time.

6 7

Bulkhead

Front Flap

Cover

Warning - Be sure Front ap is over the bulkhead

www.TrailFX.com

Page 4 of 7

10 11

8. Carefully unfold the cover. Position the cover so it is centered side to side and front to back on the truck bed.

9. Test the rear latching assembly for smooth operation as this is the best indicator of the cover being posi-

tioned correctly. Be sure the latches on both sides are engaging with the cover mounting rail.

Note: If your truck is equipped with a tailgate protector, you may need to slightly raise the rear of the side mounting

rails for the latches to engage properly.

10 & 11. Once the cover is located correctly, fold the cover to the open position. Pull the release cables on the

rear panel to release it from the side rail. Take care to fold it gently so the position of the cover is not

disturbed.

www.TrailFX.com

12 13

12 & 13. Once in the open position double check the clamp engagement to the side rail and tighten. Test the

cover again for proper operation, adjust as needed, then tighten the star knobs.

14. Attach the drain tubes to the ttings at the front of the bed rail and position the tubes to divert water out

of the truck bed. This can be done by placing the tube behind a bed liner, through an existing hole in the bed,

or by drilling a 5/8” hole in the bulkhead.

Note: If you choose to place the tube behind your bedliner, be sure your drain holes in the bed are not clogged.

Note: If you choose to drill holes, be sure to clean up the metal shavings.

Page 5 of 7

www.TrailFX.com

OPERATION INSTRUCTIONS

345

1 & 2. To open the cover: Lower the tailgate and pull the cable. While pulling on the cable lift the panel up

and towards the cab.

3, 4 & 5. Release the strap from the stowed position by squeezing the tabs. Attach the buckle at the bulk-

head, pull the strap to take up the slack and secure the cover. Repeat this for the opposite side.

www.TrailFX.com

Page 7 of 7

• Clean with soap and water only.

• Cover must be secured when vehicle is in motion. See instructions for recommended driving positions.

An unsecured cover can result in damage not covered by this warranty.

PRODUCT CARE

Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and

workmanship at the time of purchase by the original retail consumer. KAO disclaims any other warranties,

express or implied, including the warranty of tness for a particular purpose or an intended use. If the

product is found to be defective, KAO may replace or repair the product at our option, when the product

is returned prepaid, with proof of purchase. Alteration to, improper installation, or misuse of this product

voids the warranty. KAO’s liability is limited to repair or replacement of products found to be defective,

and specically excludes liability for any incidental or consequential loss or damage. The repaired or

replaced tonneau will be in warranty for the remainder of the original warranty period.

WARRANTY COVERAGE

1. How dicult is it to install the tonneau cover?

Installing of tonneau cover is easy, please follow the steps in installation manual carefully.

2. How do I clean my tonneau cover?

Wash the tonneau same as your truck. We recommend using soap and water.

3. Will the tonneau cover scratch my paint?

No. Please follow the installation instruction manual carefully to avoid scratching paint.

4. Will the tonneau cover obstruct the opening and closing of my tailgate?

No. The tailgate must be closed before latching the tonneau.

5. Missing or Excess Hardware?

Re-check hardware count as per the part list.

6. Why is my tonneau cover not installing properly?

Ensure year, make, model, cab length and bed size of your vehicle is listed in the application and installa-

tion steps are followed correctly.

FAQ
