TP-Link Pharos CPE210 Manuel utilisateur

Installation Guide

Outdoor CPE

CPE210 / CPE220 / CPE510 / CPE520

CONTENTS

Hardware Connection

Overview

Software Conguration

Antenna Alignment

Specications

Frequently Asked Questions (FAQ)

Site Consideration

Ethernet Cable Selection

Connection and Installation

Lightning & ESD Protection

Conguration for Typical Application

• Point-to-Point

Overview

• Package Contents

• LED Explanation

Pharos CPE Passive PoE

Adapter

Pole Mounting

Straps

Installation Guide

Power Cord

AP/AP Router mode:

All the four LEDS are steady light

Client/Bridge/Repeater/AP Client Router mode:

More lighted LEDs indicate better wireless signal strength

On: A device is connected to this port, but there is no activity

Flashing: A device is connected to this port, and is active

On: The CPE is powered on.

POWERLAN0LAN1

TP-LINK's Pharos series outdoor CPEs are dedicated to outdoor wireless

network solutions. This guide is applicable to products including

CPE210, CPE220, CPE510 and CPE520.

• Panel Layout

Grouding

Terminal

Pharos CPE:

Passive PoE Adapter:

Shielded Ethernet Port

LAN0 (Passive PoE in)

RESET

LANPOERemote

Reset

Shielded Ethernet Port

LAN1

Power LED

The Power LED indicates the

electricity current situation:

green (0~0.8A), red (0.8A~1A).

Hardware Connection

• Mounting Height

1. Site Consideration

Ensure a clear line of sight between the wireless devices for an

optimum performance. An elevated location is recommended as

obstacles like trees, buildings and large steel structures will weaken the

wireless signal.

See Q2 in FAQ for details about how to calculate the minimum

mounting height of the devices.

line of sight

Side View

• Orientation

Install the CPE devices with their fronts facing the signal receivers. You

can orient the devices with the assistance of Google Map, GPS and

some landmarks according to the horizontal beamwidth listed below.

Horizontal Angle line of sight

shenzhen

line of sight

Horizontal

Beamwidth

Models CPE210 CPE220 CPE510 CPE520

Horizontal Beamwidth 65° 45° 45° 50°

2. Ethernet Cable Preparation

1. Select the adequate type of Ethernet cable.

The shielded CAT5e cable with ground wire (refer to the gure below)

is prior to the general shielded CAT5e cable during the whole cabling.

The former can more eectively protect your devices against ESD

attacks under brutal outdoor environment.

Shielded CAT5e Cable with Ground Wire

Twisted Pair

Ground Wire

Shielded RJ45 Connector

Secondary Cable Shield

Cable Shield

Sheath

2. Review the routes of connecting the POE Adapter to the CPE and

evaluate the Ethernet cable length for all the connections, then

prepare adequate Ethernet cable.

3. Connection and Installation

At the selected site,

approximately align the

CPE to the direction that

you have oriented.

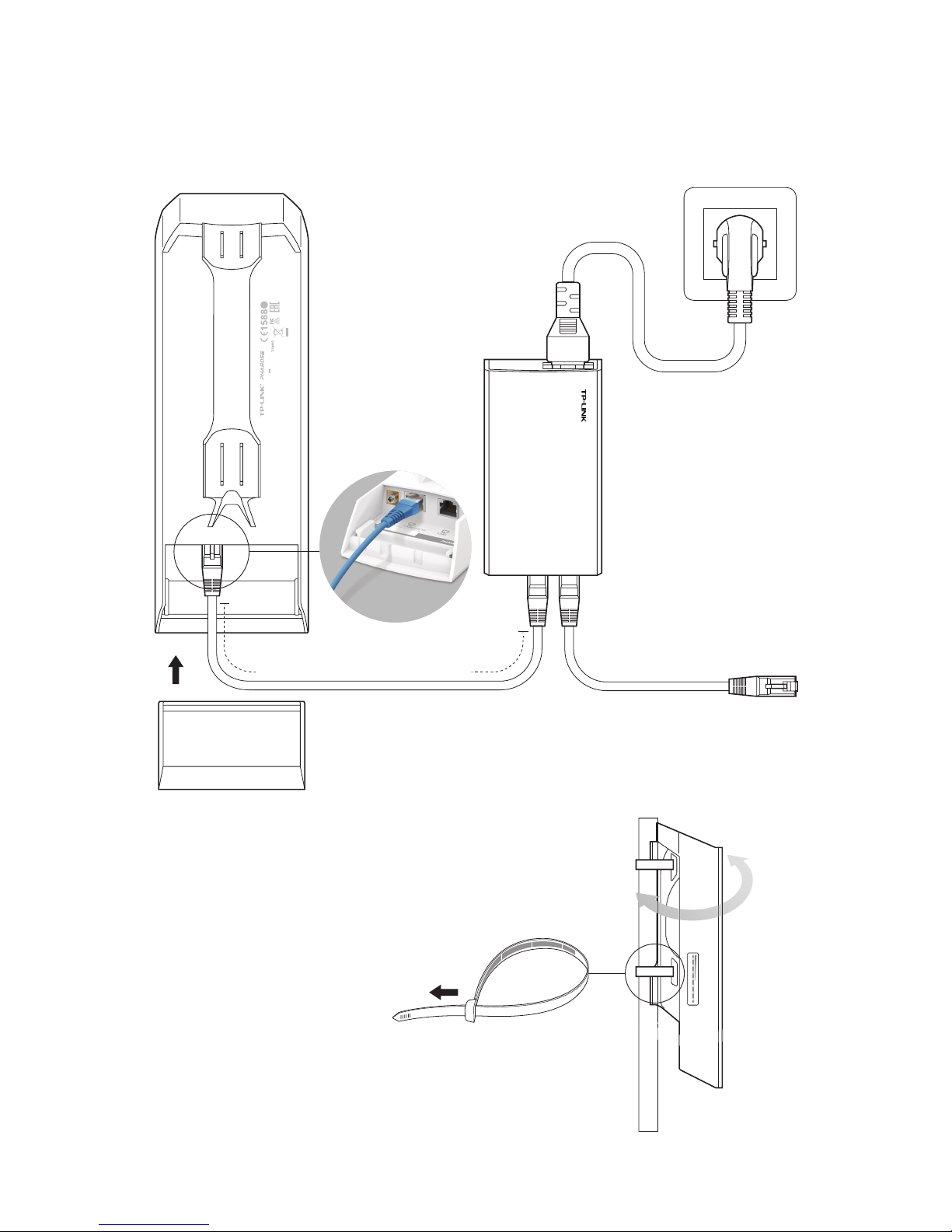

Please connect and install the device as shown in the gure below.

Connect the PoE

Adapter to a power

outlet with the power

cord.

Connect the LAN port

of the PoE Adapter to a

computer, router or switch.

Connect the LAN0 (POE IN)

port of the CPE to the PoE port

of the PoE Adapter.

Power over Ethernet up to 60m

Slide to replace the cover

of the CPE when all

connections are nished.

This device complieswith part 15 o f the FCC Rules.O perationis

subjectto the followingtwo conditions:(1) Thisdevice may not cause

harmfulinterference,and(2) thisdevice mustacceptany interference

received, including interference that may cause undesired operation. FCC ID:TE7CPE510

MADE IN CHINA

IC:8853A-CPE510

Default Settings:

IP: 192.168.0.254 Username: admin Password: admin

Model: CPE510 Power: 24V 1A

5GHz 300Mbps 13dBi Outdoor CPE

5734

Fasten the CPE with the

provided Pole Mounting

Straps to a pole or

mounting bracket.

4. Lightning & ESD Protection

Proper grounding is extremely important for outdoor devices. Pharos

CPEs provide two methods to protect the devices from damage of

lightning and ESD attacks as shown in the gure below.

Shielded CAT5e Cable with

Ground Wire & PoE Adapter

with Earth Ground

Grounding Terminal and Cable

CPE

Shielded CAT5e Cable

with Ground Wire

PoE Adapter

with Earth

Ground

Grounding

Terminal

Grounding

Cable

Earth Ground

Two Methods:

In most cases, adopting either of the two methods can be adequate, but

adopting both of them can oer more eective protection.

1. Login to PharOS

1. Before accessing the PharOS Web Interface, you need to assign

a static IP address 192.168.0.x (2≤x≤253) to your computer. We use

192.168.0.10 as an example in the gure below.

This chapter introduces the login to the Pharos Web Interface and the

software congurations to implement Point-to-Point application.

Software Conguration
