TP-LINK Wireless Router

(Archer C7) User’s Guide

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

1 Get to know TP-LINK (Archer C7) Wireless Router............................................................2

A. Tech Specs - Connections and Expansion .................................................................2

B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000).2

2 Connecting to TP-LINK Router ...........................................................................................3

3 Switching your broadband Internet service to HKBN..........................................................8

4 Factory default reset of TP-LINK Router...........................................................................11

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Get to know TP-LINK

(Archer C7) Wireless Router

1 Get to know TP-LINK (Archer C7) Wireless Router

A. Tech Specs - Connections and Expansion

B. Minimum System Requirements (bb500/ FibreHome500/ bb1000/ FibreHome1000)

To ensure that you have a fast and stable network, please refer to the following as a

recommended minimum system requirement:

Central Processing Unit (CPU)

Intel Core2 Duo P8700/2.5 (3 GHz or above)

System Memory

4GB or above

Hard disk

64GB SATA II SSD (Min. I/O speed of 200MB/s)

Network Adaptor

100/1000M Network Adaptor

Ethernet

Internet

WPS

System

Wireless (2.4GHz)

Wireless (5GHz)

Power

Power On/Off

Gigabit WAN Port

(Internet)

USB Port and LED

Wi-Fi On/Off

Power Supply

WPS/Reset button

4 Gigabit LAN Port

(Ethernet)

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Connecting to TP-LINK Router

2 Connecting to TP-LINK Router

Make sure you have a LAN cable connected from the HKBN wall plate/ONT to the Internet

port of your TP-LINK Router (Archer C7). Using a second LAN cable, connect it from the

router Ethernet port to the computer LAN port. Once finished, switch on the power supply for

the router and turn on the computer.

Open your Internet browser, and input [http://192.168.0.1] using the address-bar and press

[Enter].

Enter [admin] as the default username and password, click [OK]

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Connecting to TP-LINK Router

2 Connecting to TP-LINK Router

Click [Next] to run Quick Setup.

TP-LINK Router (Archer C7) supports both 2.4GHz and 5GHz wireless connections, it is

recommended that you choose [Concurrently with 2.4GHz and 5GHz(802.11a/b/g/n/ac)] then

click [Next] to continue.

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Connecting to TP-LINK Router

2 Connecting to TP-LINK Router

Create a [Wireless Network Name] (SSID) for 2.4GHz network, choose [Hong Kong] under

[Region]. Under [Wireless Security] choose [Enable Security (WPA-PSK/ WPA2-PSK)] and

create a [PSK Password], click [Next] to finish.

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Connecting to TP-LINK Router

2 Connecting to TP-LINK Router

Create a [Wireless Network Name] (SSID) for 5GHz network, choose [Hong Kong] under

[Region]. Under [Wireless Security] choose [Enable Security (WPA-PSK/ WPA2-PSK)] and

create a [PSK Password], click [Next] to finish.

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Connecting to TP-LINK Router

2 Connecting to TP-LINK Router

Click [Reboot] to complete Quick Setup.

A pop-up window will appear, click [OK] to confirm reboot.

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Switching your broadband

Internet service to HKBN

3Switching your broadband Internet service to HKBN

HKBN_SETUP_ROUTER_TPLINK_ENG_230315

Switching your broadband

Internet service to HKBN

3 Switching your broadband Internet service to HKBN

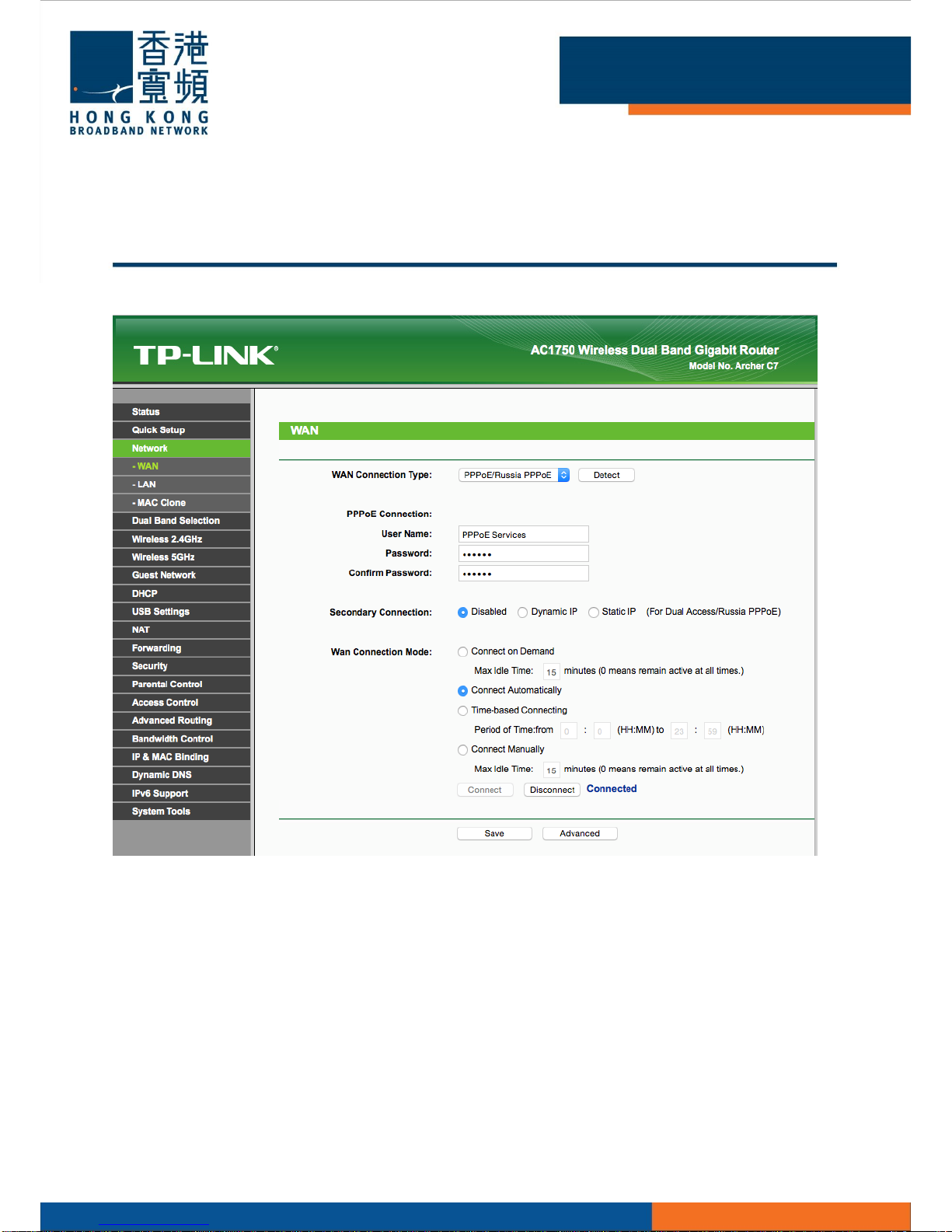

Choose [Dynamic IP] under [WAN Connection Type] then click [Save].
