TP-Link HS200 Manuel utilisateur

User’s Manual

HS200

1910012304 REV 2.0.1

Smart Wi-Fi Light Switch

Specications are subject to change without notice. TP-Link is a registered trademark

of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specications may be reproduced in any form or by any means or used

to make any derivative such as translation, transformation, or adaptation without

permission from TP-Link Technologies Co., Ltd.

www.tp-link.com

Contents

4 Introduction

5 Product Requirements

5 Smart Wi-Fi Light Switch Installation

7 Using Kasa with Smart Switches

7 Kasa Account

7 Kasa Settings

8 Customizing Smart Switches

9 Scheduling

9 Creating Scenes

11 Away Mode

12 Runtime Summary

13 Maintaining the Smart Switches

13 Firmware Update

14 Resetting

15 Troubleshooting

15 Frequently Asked Questions

16 Usage Tips

16 Support

4www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Introduction

TP-Link Smart Wi-Fi Light Switch, also referred to as “Smart Switch”, is a

standard, single-pole, wall light switch that can be controlled via your iOS or

Android devices. Along with the TP-Link Kasa mobile app, you can follow an

intuitive wiring instructions provided to replace your standard in-wall switch,

connect the Smart Switch to your home network, then control your lights and

create custom lighting automations from anywhere, at anytime with an Internet

connection.

The Smart Switch is compatible with incandescent, LED, Halogen, and compact

fluorescent light bulbs. The switch also includes a white backlight LED indicator

to easily locate the switch at night.

RESET

RESTART

Blinking Amber and Green: App-Cong mode

initiated.

Green: Lit up for about 30 seconds when

successfully connected to the Wi-Fi network,

then turns off.

Blinking Amber: Resetting.

Red: No Wi-Fi connection.

White: Lit up when the light is switched OFF to

show the Smart Switch location in the dark.

Press to reboot the Smart Switch.

Press and hold for about 5 seconds until the

Wi-Fi status LED blinks amber and green

alternately to initiate App-Cong mode.

Press and hold for about 10 seconds until the

Wi-Fi status LED blinks amber rapidly to factory

reset the Smart Switch.

5www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Product Requirements

• In-wall installation with hardwired connections.

• Neutral wire required.

• Single-pole light switch. The electrical box should be more than 2 inches

deep.

• A smartphone or tablet running iOS 9 or higher; Android 4.1x or higher.

• A Wi-Fi connection (supports 802.11b/g/n standard).

Smart Wi-Fi Light Switch Installation

Important Safety Information

Before installing, servicing, or removing the Smart Switch, read and follow all

safety precautions, including the following:

• WARNING: RISK OF ELECTRIC SHOCK OR FIRE. Turn OFF power supply at

the circuit breaker or fuse. Use a noncontact voltage tester to ensure the

power is off.

• CAUTION: RISK OF ELECTRIC SHOCK. More than one disconnect switch

may be required to de-energize the equipment before servicing.

• Install only in a suitable UL Listed outlet box.

• The Smart Switch must be installed and used in accordance with the

National Electric Code (NEC) or your local electrical code. If you are

unfamiliar with these codes and requirements, or are uncomfortable

performing the installation, consult a qualied electrician.

• The Smart Switch is an indoor single-pole switch that requires a neutral

connection.

• Do not install the Smart Switch with wet hands or when standing on wet or

damp surfaces.

Load Information

100~120V ac, 15A max, Res

100~120V ac, 5A, Tungsten

100~120V ac, 5A, Electronic Fluorescent Ballast

6www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Download Kasa for Mobile from the App Store or Google Play.

scan QR

code

Connect your mobile device to a 2.4GHz Wi-Fi network.

Note: The Smart Switch only supports 2.4GHz networks.

Remove the faceplate from the Smart Switch. Launch Kasa and follow the

wiring steps provided to instal and connect the Smart Switch to your home

network.

Add Device

Sketch9:41 AM 100%

Smart Plu

Ran

e Extender

350

mart Bul

Smart Switch

Sketch9:41 AM 100%

Let’s get started

START

Kasa will guide you through the wiring

process. If you are not comfortable

with basic wiring work, please call

an electrician.

Sketch 9:41 AM 100%

DONE

Great!

Your Smart Switch is all set up. It is

now saved in your Device List.

ATTENTION: A neutral wire is required to install the Smart Switch.

7www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Using Kasa with Smart Switches

Kasa Account

While you don’t have to have a Kasa account to use TP-Link Smart Home

devices, signing up for an account provides added functionality such as:

• Synchronization of settings and congurations to all your mobile devices.

• Ability to control and congure the devices from outside your home.

• Use of third-party services and products such as Amazon Echo.

Devices can only be associated with one Kasa account. To remove the

association, turn off Remote Control in the Kasa’s settings, or factory reset the

device.

After creating your Kasa account, you will need to verify the email associated

with your account by clicking a link in an email that Kasa sends you. Until you

verify the email, much of the above functionality will not work.

Kasa Settings

Kasa Settings allows you to set your global preferences such as:

• Remote Control to control your Smart Home devices outside of your home.

You need to sign in to your Kasa account rst to turn on this function.

• Location and Time to set the location and time of where the Smart Home

devices are located so that the Away Mode and Schedules can run on time.

You can set your home’s location using your smart device’s GPS function, or

manually enter the latitude and longitude coordinates.

• Firmware Update to update your Smart Home devices when there is an

update available. Refer to Firmware Update for instructions.

8www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Customizing Smart Switches

You can personalize your Smart Switches with a descriptive name, icon, and

other information from the switch’s details screen.

Time Zone

Device Time

DEVICE TIME

Device Settings

9:41 PM 100%

Device Name Front Porch Switch

San Francisco

Location

Sept 15, 2015 12:00 PM

Model

Firmware Version

DEVICE INFO

MAC Address

Hardware Version

1.0.0

00:01:02:03:04:05

HS220

Device Icon

Delete Device

Remote Control

DEVICE CONTROLS

Disabled

1. On the Devices screen, tap on the row of the Smart Switch to go to its

controls.

2. Tap the (Settings) icon at the top-right corner.

3. On the Device Settings screen, tap the icon for each setting you want to

personalize.

• Device Name – Create a unique name for your Smart Switch.

• Device Icon – Choose one of the available icons or use your own custom

icon.

9www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

Scheduling

You can set up your lights to illuminate around your home at specic times on

specic days of the week.

Schedules

9:41 PM 100%

No events yet!

Add Events by tapping the button on the

top right. Your saved event will be listed here.

SAVECANCEL

Create Event

9:41 PM 100%

Turn my Smart Plug

Repeating every

7 0 1

8 0 2

5 5 9

4 5 8

6 0 0 pm

SM T W T F S

1. On the Devices screen, tap on the row of the Smart Switch that you want to

create a schedule for.

2. Tap (Schedule) to open the Schedule screen.

3. Tap to create an event.

4. Within the Create Event screen, set your preferred state for the light bulb (ON

or OFF), time, and day(s).

5. Tap Save.

You can create as many events as you like and edit them at any time from the

Schedule screen.

Creating Scenes

Take full advantage of your TP-Link Smart Home devices in your home with

“Scenes”. A scene is a preset group of Smart Devices (such as Smart Plugs and

Smart Switches) that can be customized and controlled simultaneously at the

touch of a button from your smartphone or tablet to easily set your mood or t

10www.tp-link.com

User’s Manual Smart Wi-Fi Light Switch

any special occasion. For example, set a customized “Movie Time” to turn on the

home theater system plugged into a Smart Plug and dim down the lights in your

Entertainment Room to 10% at the same time.

Please keep in mind that SCENES can only be set and controlled once you’re

signed in to your Kasa account.

Devices

Scenes

Scenes let you set the mood of your

home in one tap.

Good Morning

Get ready for the day by

turning on your devices

Movie Night

Dim the lights for

showtime

Good Night

Turn everything off

before bedtime

Custom

Create your own scene

9:41 PM 100%

Scenes

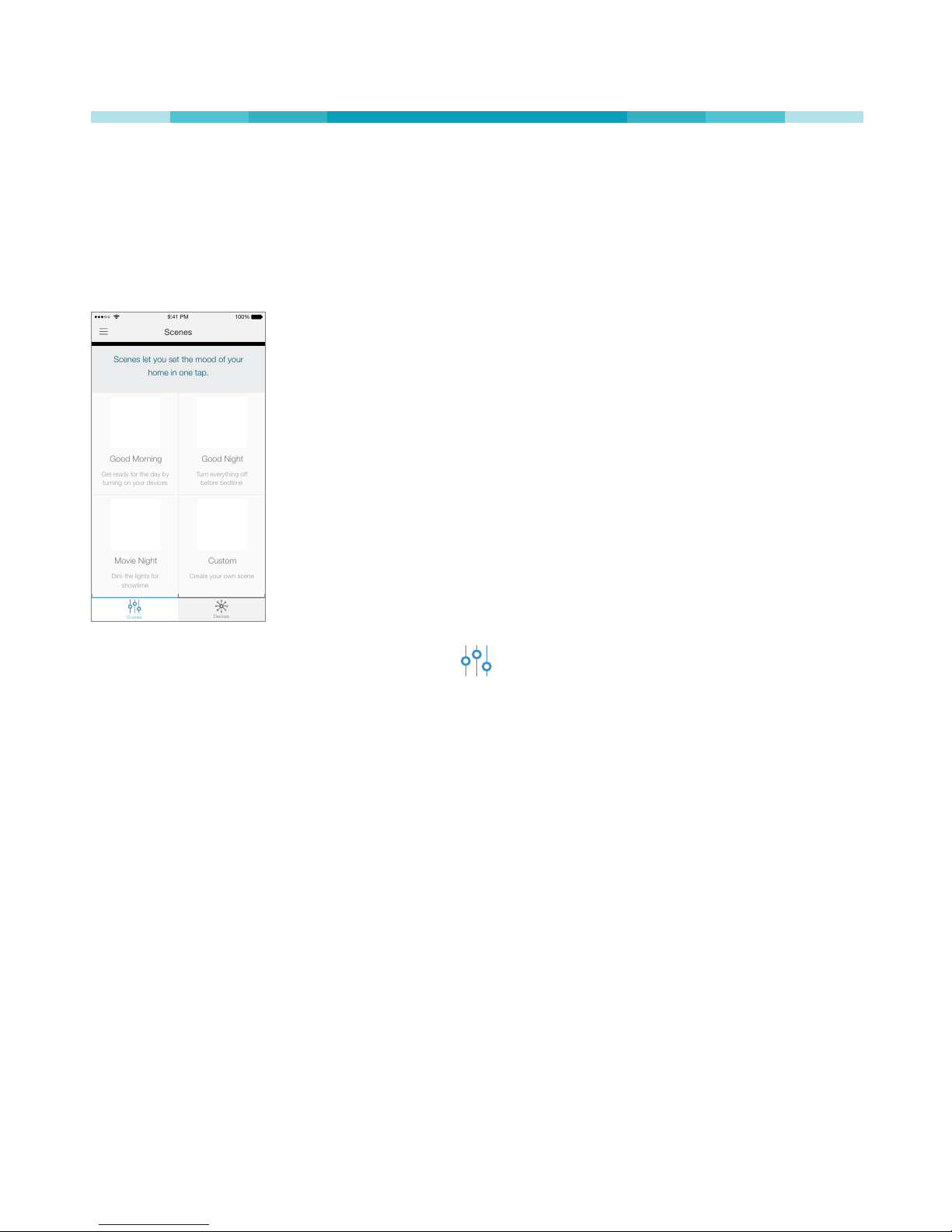

1. On the main Home screen, tap the (Scenes) tab to switch to the Scenes

view.

2. Choose one of the preset scenes to start, or choose Custom to set up your

own scene that is personalized to suit your liking. To set a scene, you will

need to select one or more devices to be controlled, and then dene their

actions and/or states.
