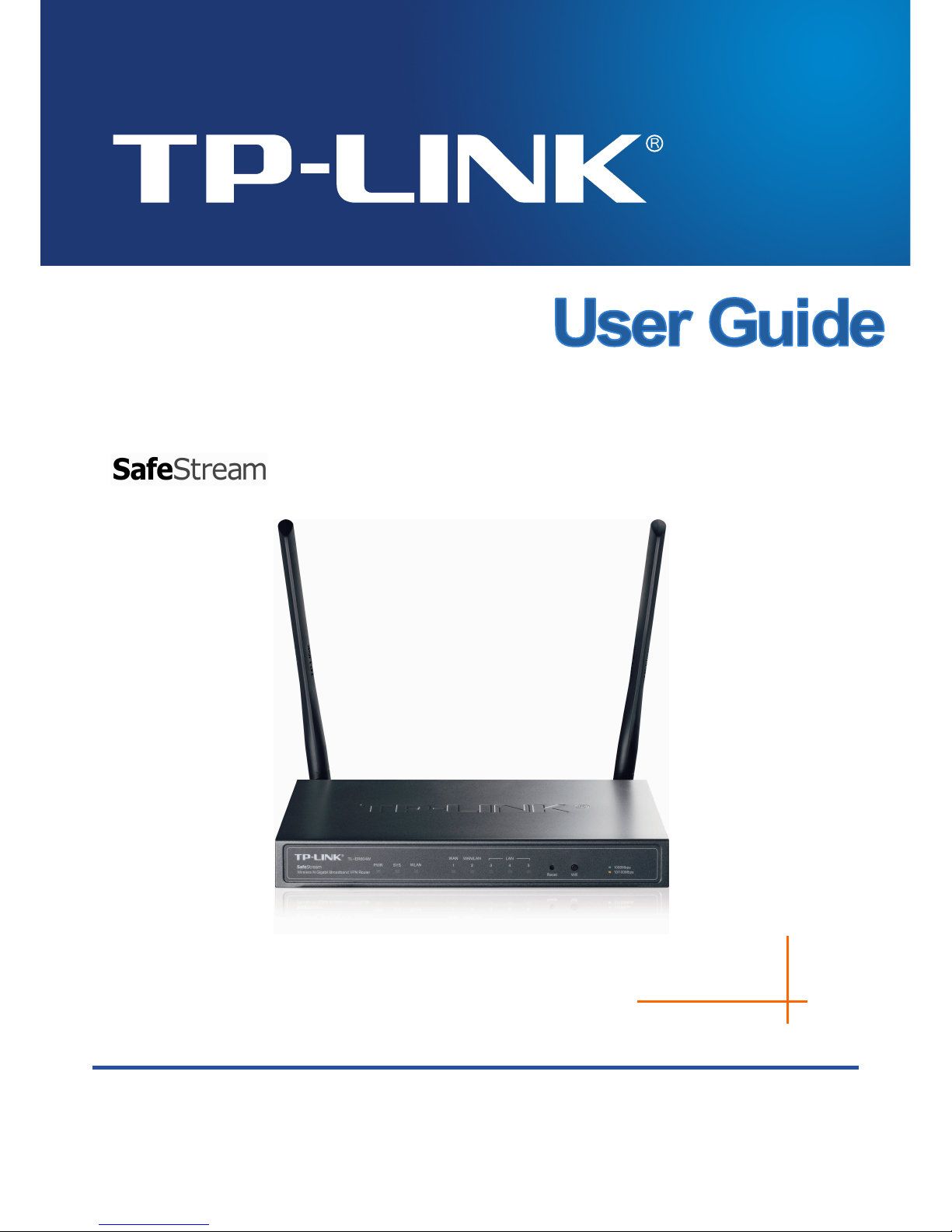

TP-Link TL-ER604W Manuel utilisateur

TL-ER604W

Wireless N Gigabit Broadband VPN Router

Rev1.0.1

1910010844

-I-

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

CE Mark Warning

This is a class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

-II-

CONTENTS

Package Contents..................................................................................................................1

Chapter 1 About this Guide ...................................................................................................2

1.1 Intended Readers ..................................................................................................................2

1.2 Conventions ...........................................................................................................................2

1.3 Overview of this Guide...........................................................................................................2

Chapter 2 Introduction ..........................................................................................................3

2.1 Overview of the Router ..........................................................................................................3

2.2 Features.................................................................................................................................4

2.3 Appearance............................................................................................................................6

2.3.1 Front Panel ................................................................................................................6

2.3.2 Rear Panel.................................................................................................................7

Chapter 3 Configuration ........................................................................................................8

3.1 Network..................................................................................................................................8

3.1.1 Status.........................................................................................................................8

3.1.2 System Mode.............................................................................................................8

3.1.3 WAN ........................................................................................................................10

3.1.4 LAN..........................................................................................................................27

3.1.5 MAC Address...........................................................................................................30

3.1.6 Switch ......................................................................................................................31

3.2 Wireless ...............................................................................................................................37

3.2.1 Wireless Setting.......................................................................................................37

3.2.2 MAC Filtering ...........................................................................................................50

3.2.3 Host Status ..............................................................................................................51

3.3 User Group ..........................................................................................................................52

3.3.1 Group.......................................................................................................................52

3.3.2 User .........................................................................................................................53

3.3.3 View.........................................................................................................................54

-III-

3.4 Advanced .............................................................................................................................55

3.4.1 NAT..........................................................................................................................55

3.4.2 Traffic Control ..........................................................................................................63

3.4.3 Session Limit ...........................................................................................................66

3.4.4 Load Balance...........................................................................................................68

3.4.5 Routing ....................................................................................................................72

3.5 Firewall.................................................................................................................................77

3.5.1 Anti ARP Spoofing ...................................................................................................77

3.5.2 Attack Defense ........................................................................................................80

3.5.3 MAC Filtering ...........................................................................................................82

3.5.4 Access Control.........................................................................................................82

3.5.5 App Control..............................................................................................................88

3.6 VPN......................................................................................................................................89

3.6.1 IKE...........................................................................................................................90

3.6.2 IPsec........................................................................................................................94

3.6.3 L2TP/PPTP............................................................................................................100

3.7 Services .............................................................................................................................104

3.7.1 PPPoE Server........................................................................................................104

3.7.2 E-Bulletin ...............................................................................................................109

3.7.3 Dynamic DNS ........................................................................................................ 111

3.7.4 UPnP .....................................................................................................................116

3.8 Maintenance ......................................................................................................................117

3.8.1 Admin Setup ..........................................................................................................117

3.8.2 Management..........................................................................................................120

3.8.3 License ..................................................................................................................122

3.8.4 Statistics.................................................................................................................123

3.8.5 Diagnostics ............................................................................................................125

3.8.6 Time.......................................................................................................................127

-IV-

3.8.7 Logs.......................................................................................................................128

Chapter 4 Application........................................................................................................130

4.1 Network Requirements.......................................................................................................130

4.2 Network Topology...............................................................................................................131

4.3 Configurations....................................................................................................................131

4.3.1 Internet Setting ......................................................................................................131

4.3.2 VPN Setting ...........................................................................................................133

4.3.3 Network Management............................................................................................139

4.3.4 Network Security....................................................................................................143

Appendix A Hardware Specifications ...........................................................................148

Appendix B FAQ .........................................................................................................149

Appendix C Glossary ..................................................................................................151

-1-

Package Contents

The following items should be found in your package:

One TL-ER604W Router

One Power Adapter

One RJ45 Ethernet Cable

Quick Installation Guide

Resource CD

Note:

Make sure that the package contains the above items. If any of the listed items is damaged or missing,

please contact with your distributor.

-2-

Chapter 1 About this Guide

This User Guide contains information for setup and management of TL-ER604W Router. Please read

this guide carefully before operation.

1.1 Intended Readers

This Guide is intended for Network Engineer and Network Administrator.

1.2 Conventions

In this Guide the following conventions are used:

The Router or TL-ER604W mentioned in this Guide stands for TL-ER604W SafeStream Wireless

N Gigabit Broadband VPN Router without any explanation.

Menu Name→Submenu Name→Tab page indicates the menu structure. Advanced→NAT

→Basic NAT means the Basic NAT page under the NAT menu option that is located under the

Advanced menu.

Bold font indicates a toolbar icon, menu or menu item.

<Font> indicate a button.

Symbols in this Guide:

Symbol Description

Note: Ignoring this type of note might result in a malfunction or damage to the device.

Tips: This format indicates important information that helps you make better use of your device.

1.3 Overview of this Guide

Chapter 1 About This Guide Introduces the guide structure and conventions.

Chapter 2 Introduction Introduces the features and appearance of this router.

Chapter 3 Configuration Introduces how to configure the Router via Web management

page.

Chapter 4 Application Introduces the practical application of the Router on the

enterprise network.

Appendix A Hardware Specifications Lists the hardware specifications of this router.

Appendix B FAQ Provides the possible solutions to the problems that may

occur during the installation and operation of the router.

Appendix C Glossary Lists the glossary used in this guide.

-3-

Chapter 2 Introduction

Thanks for choosing the SafeStream Wireless N Gigabit Broadband VPN Router TL-ER604W.

2.1 Overview of the Router

The SafeStream Wireless N Gigabit Broadband VPN Router TL-ER604W from TP-LINK supports

Wireless N speed and Gigabit wired speeds on all ports. It integrates multiple VPN protocols,

high-security and high-performance VPN capabilities, making it an ideal choice for branch offices in

need of cost-effective secure remote connections to headquarters or remote offices. Furthermore,

together with many useful features including hardware-based WiFi On/Off button, Guest Networking,

App Control, and PPPoE Server functions, TL-ER604W is an ideal network solution for home or small

office consumers.

Powerful Data Processing Capability

+ Built-in MIPS 32 network processor and 64MB DDRII high-speed RAM allows the stability and

reliability for operation.

Wireless Feature

+ Wireless N speed provides an incredible high speed experience.

+ Supporting Guest Networking feature, which provides a secure network for guests outside of the

existing, potentially sensitive LAN.

+ Hardware Wi-Fi On/Off button provides an easy way to turn wireless radio on or off

Virtual Private Network (VPN)

+ Providing comprehensive IPsec VPN with DES/3DES/AES encryptions, MD5/SHA1

identifications and automatically/manually IKE Pre-Share Key exchanges.

+ Supporting PPTP/L2TP VPN Server mode to allow the staff on business or remote branch office

to access the headquarter network.

Online Behavior Management

+ Complete Functions of Access Rules can allow managers to select the network service levels to

block or allow applications of FTP downloading, Email, Web browsing and so on.

+ Deploying One-Click restricting of IM/P2P applications to save time & energy while reserving

exceptional groups for certain users.

+ Supporting URL Filtering to prevent potential hazards from visiting the malicious Web sites.

Powerful Firewall

+ Supporting One-Click IP-MAC Binding to avoid ARP spoofing and guarantee a network without

stagnation.

+ Featured Attack Defense to protect the network from a variety of flood attack and packet

anomaly attack.

-4-

+ Possessing MAC Filtering function to block the access of illegal hosts.

Flexible Traffic Control

+ Featured Bandwidth Control with flexible bandwidth management to automatically control the

bandwidth of the host in bi-direction to avoid bandwidth over occupation, as well as optimize

bandwidth usage.

+ Supporting Session Limit to avoid the complaint of a few people to force whole sessions.

Dual-WAN Ports

+ Providing two 10/100/1000M WAN ports for users to connect two Internet lines for bandwidth

expansion.

+ Supporting multiple Load Balance modes, including Bandwidth Based Balance Routing,

Application Optimized Routing, and Policy Routing to optimize bandwidth usage.

+ Featured Link Backup to switch all the new sessions from dropped line automatically to another

for keeping an always on-line network.

Easy-to-use

+ Providing easy-to-use GUI with clear configuration steps and detailed help information for the

users to configure the Router simply.

+ Helping administrators to monitor the whole network status and take actions to malfunctions

according to the recorded log information.

+ Supporting remote management to manage the Router from remote places.

2.2 Features

Hardware

1 fixed gigabit WAN port, 1 interchangeable gigabit WAN/LAN port, 3 fixed gigabit LAN ports

Fanless Design for Quiet Operation

Hardware Wi-Fi On/Off button provides an easy way to turn wireless radio on or off

Supports Professional 4kV common mode lightning protection

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11 b/g/n standards

Supports AH, ESP, IKE, PPP protocols

Supports TCP/IP, DHCP, ICMP, NAT, NAPT protocols

Supports PPPoE, SNTP, HTTP, DDNS, UPnP, NTP protocols

Basic Functions

Supports Static IP, Dynamic IP, PPPoE/Russian PPPoE, L2TP/Russian L2TP, PPTP/Russian

PPTP, Dual Access, BigPond Internet connections

-5-

Supports Virtual Server, Port Triggering, ALG, Static Route and RIP v1/v2

Built-in Switch supporting Port Mirror, Port VLAN, Rate Control and so on

Supports to change the MAC address of LAN and WAN port

Supports Logs, Statistics, Time setting

Supports Remote and Web management

Supports Diagnostic (Ping/Tracert) and Online Detection

Wireless

Supports Wireless N speed and 2 detachable 5dBi antennas

Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

Supports

WDS, Multi-SSID, Guest Network

VPN

Supports IPsec VPN and provides up to 30 IPsec VPN tunnels

Supports IPSec VPN in LAN-to-LAN or Client-to-LAN

Provides DES, 3DES, AES128, AES152, AES256 encryption, MD5, SHA1 authentication

Supports IKE Pre-Share Key and DH1/DH2/DH5 Key Exchanges

Supports PPTP/L2TP Server/Client

Traffic Control

Supports Bandwidth Control

Supports Session Limit

Security

Built-in firewall supporting URL/MAC Filtering

Supports Access Control

Supports Attack Defense

Supports IP-MAC Binding

Supports GARP (Gratuitous ARP)

Deploys One-Click restricting of IM/P2P applications

Autres manuels pour TL-ER604W

Table des matières

Autres manuels TP-Link Routeur réseau

TP-Link

TP-Link Omada ER706W Manuel utilisateur

TP-Link

TP-Link TL-MR6400 Manuel utilisateur

TP-Link

TP-Link TL-WR941HP Manuel utilisateur

TP-Link

TP-Link TD-W8950ND Manuel utilisateur

TP-Link

TP-Link Archer AXE200 Omni V1 Manuel utilisateur

TP-Link

TP-Link TD-W8101G Manuel utilisateur

TP-Link

TP-Link TL-R4000+ Manuel utilisateur

TP-Link

TP-Link Archer AX95 Manuel utilisateur

TP-Link

TP-Link Archer C9 Manuel utilisateur

TP-Link

TP-Link TD-8817B Manuel utilisateur

TP-Link

TP-Link TD-8800 Manuel utilisateur

TP-Link

TP-Link ARCHER C3150 Manuel utilisateur

TP-Link

TP-Link TL-ER604W Manuel utilisateur

TP-Link

TP-Link Archer C7 Manuel utilisateur

TP-Link

TP-Link TD-8811 Manuel utilisateur

TP-Link

TP-Link TL-WR1043ND - Ultimate Wireless N Gigabit... Manuel utilisateur

TP-Link

TP-Link SafeStream TL-R605 Manuel utilisateur

TP-Link

TP-Link Archer C50 Manuel utilisateur

TP-Link

TP-Link WR841HPV5 Manuel utilisateur

TP-Link

TP-Link TL-MR150 Manuel utilisateur

TP-Link

TP-Link SafeStream TL-R480T+ Manuel utilisateur

TP-Link

TP-Link TL-R460 Manuel utilisateur

TP-Link

TP-Link TL-PA7020P Manuel utilisateur

TP-Link

TP-Link ARCHER C3150 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
