Installation Guide

Gigabit Load Balance Broadband Router

TL-ER5120

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such

as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause undesired operation.2)

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.



This is a class A product. In a domestic environment, this product may cause radio interference, in which case the

user may be required to take adequate measures.

Related Document



The User Guide of this product is provided in the resource CD.

To obtain the latest product information, please visit the Official Website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods and

the points that should be attended to during installation.

This Installation Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the External Components of the

router.

Chapter 2 Installation. This chapter illustrates how to install the router.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent lightning

damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connection of

the router.

Chapter 5 Configuration. This chapter illustrates how to login and set up the router.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.

III



This Installation Guide is for:

Network Engineer

Network Administrator



This guide uses the specific formats to highlight special messages. The following table

lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may

result in device damage.

Remind to take notice. The note contains the helpful information

for a better use of the router.

Audience



Contents

Chapter 1 Introduction ———————————— 01

1.1 Product Overview.........................................01

1.2 Appearance .................................................01

Chapter 2 Installation ————————————— 03

2.1 Package Contents.........................................03

2.2 Safety Precautions........................................03

2.3 Installation Tools..........................................05

2.4 Product Installation ......................................05

Chapter 3 Lightning Protection ———————— 07

3.1 Cabling Reasonably ......................................07

3.2 Connect to Ground .......................................09

3.3 Equipotential Bonding...................................10

3.4 Use Lightning Arrester ..................................11

Chapter 4 Connection ————————————— 12

4.1 WAN Port.....................................................12

4.2 LAN Port......................................................12

4.3 Console Port ................................................12

4.4 Verify Installation .......................................13

4.5 Power On ....................................................13

4.6 Initialization.................................................14

Chapter 5 Conguration———————————— 15

5.1 Preparations ................................................15

5.2 Login...........................................................15

5.3 WAN/LAN Ports Conguration........................17

Appendix A Troubleshooting—————————— 18

Appendix B Hardware Specications —————— 19

Appendix C Technical Support ————————— 20

Gigabit Load Balance Broadband Router





The Gigabit Load Balance Broadband Router TL-ER5120 providing three adjustable

gigabit ports, which enable the users to configure the amount of WAN ports based

on need and connect multiple Internet lines for bandwidth expansion. The router

possesses excellent data processing capability and multiple powerful functions including

Load Balance, Access Control, Bandwidth Control, Session Limit, IM/P2P Blocking,

PPPoE Server and so on, which consumedly meet the needs of small and medium

enterprise, hotels and communities with volumes of users demanding a efficient and

easy-to-manage network with high security.



Front Panel

■

The front panel of TL-ER5120 is shown as the following figure.

Front PanelFigure 1-1

LEDs

LED Status Indication

PWR On The router is powered on

Off The router is powered off or power supply is abnormal

SYS Flashing The router works properly

On/Off The router works improperly

Link/Act

On There is a device linked to the corresponding port

Off There is no device linked to the corresponding port

Flashing The corresponding port is transmitting or receiving data

Speed

On (Green) The port is running at 1000Mbps

On (Yellow) The port is running at 100Mbps

Off There is no device linked to the corresponding port or the

port is running at 10Mbps

WAN On The port is working in WAN mode

Off The port is working in LAN mode

DMZ On The port is working in DMZ mode

Off The port is working in LAN mode

Introduction

Gigabit Load Balance Broadband Router

Interface Description

WAN The WAN port is designed to connect the router to a DSL/Cable modem or

Ethernet by the RJ45 cable

LAN The LAN port is designed to connect the router to the local PCs or

switches by the RJ45 cable

DMZ The DMZ port is designed to connect the router to the servers

Console The Console port is designed to connect with the serial port of a computer

or terminal to monitor and configure the router

Reset

Use the button to restore the router to the factory defaults. With the router powered

on, use a pin to press and hold the Reset button (about 4~5 seconds). After the

SYS LED goes out, release the Reset button. If the SYS LED is flashing with a high

frequency about two or three seconds, it means the router is restored successfully.

Rear Panel

■

The rear panel of TL-ER5120 is shown as the following figure.

100-240V~ 50/60Hz 0.6A

Rear PanelFigure 1-2

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Grounding Terminal

The router already comes with lightning protection mechanism. You can also ground

the router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Caution: Please use the provided power cord.

Introduction

Gigabit Load Balance Broadband Router





Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Router One Power Cord and One

Console Cable

This Installation Guide

Two mounting brackets and

the ttings



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions

■

Keep the power off during the installation.

■

Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good

■

skin contact and is well grounded.

Use only the power cord provided with the router.

■

Make sure the operating voltage of the power supply is the same one labeled on the

■

router.

Ensure the vent hole is well ventilated and unblocked.

■

Do not open or remove the cover of the router.

■

Before cleaning the device, cut off the power supply. Do not clean it by the waterish

■

cloth, and never use any other liquid cleaning method.

Site Requirements

■

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Temperature/Humidity

ȭ

ȭ

Installation

Gigabit Load Balance Broadband Router

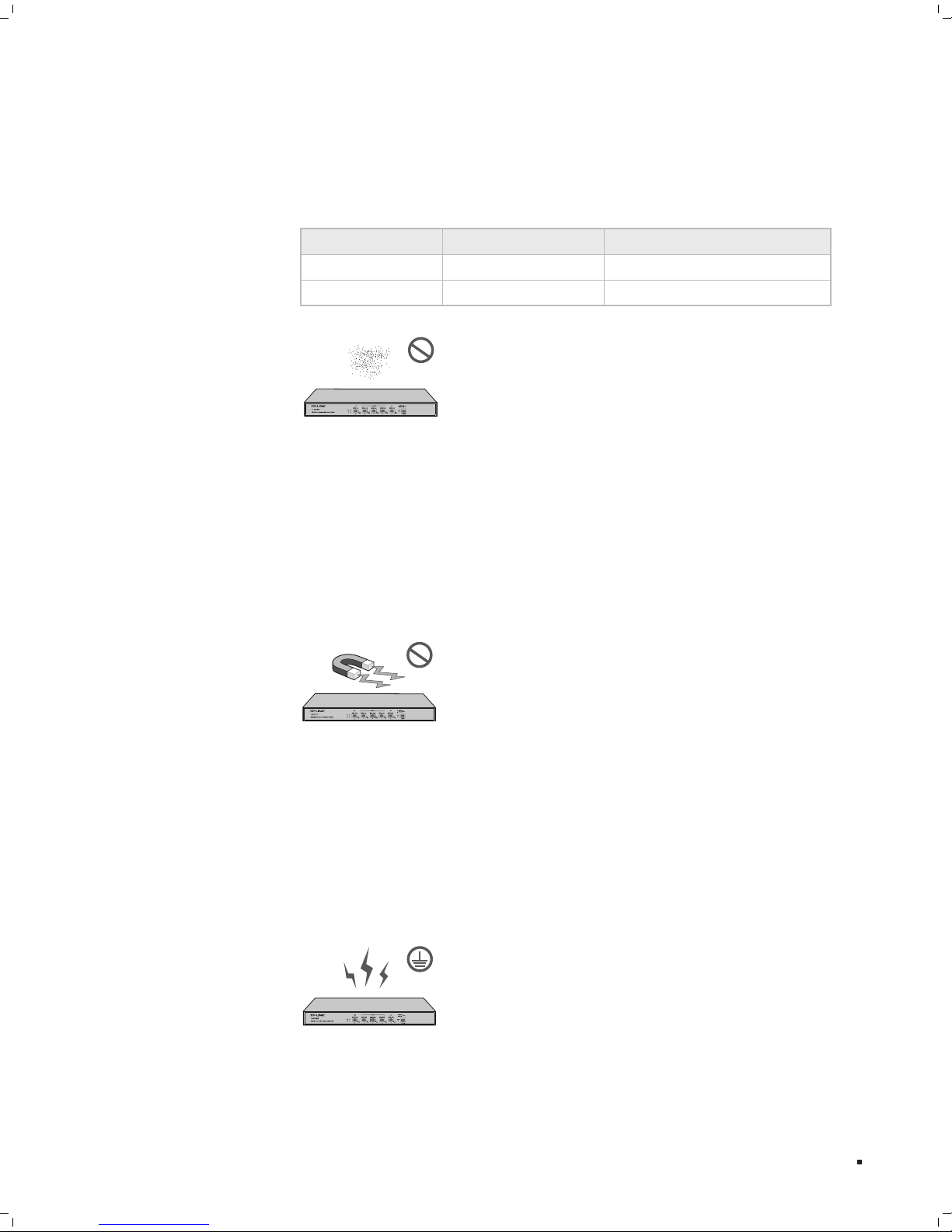

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the router can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the router, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.

■

Keep the device well grounded and ensure static electricity has been transferred.

■

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.

■

Keep the device far from high-frequency, strong-current devices, such as radio

■

transmitting station.

Use electromagnetic shielding when necessary.

■

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and

the air in the electric discharge path can be instantly heated up to 20,000℃. As this

instant current is strong enough to damage electronic devices, more effective lightning

Installation

Gigabit Load Balance Broadband Router

protection measures should be taken.

Ensure the rack and device are well earthed.

■

Make sure the power socket has a good contact with the ground.

■

Keep a reasonable cabling system and avoid induced lightning.

■

Use the signal SPD (Surge Protective Device) when wiring outdoor.

■

Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

S

When installing the device on a rack or a flat workbench, please note the following

items:

The rack or workbench is flat and stable, and sturdy enough to support the weight of

■

5.5kg at least.

The rack or workbench has a good ventilation system. The equipment room is well

■

ventilated.

The rack is well grounded. Keep the power socket less than 1.5 meters away from the

■

device.



Phillips screwdriver

■

ESD-preventive wrist wrap

■

C a b l e s

■

Note: These tools are not provided with our product. If needed, please self purchase

them.



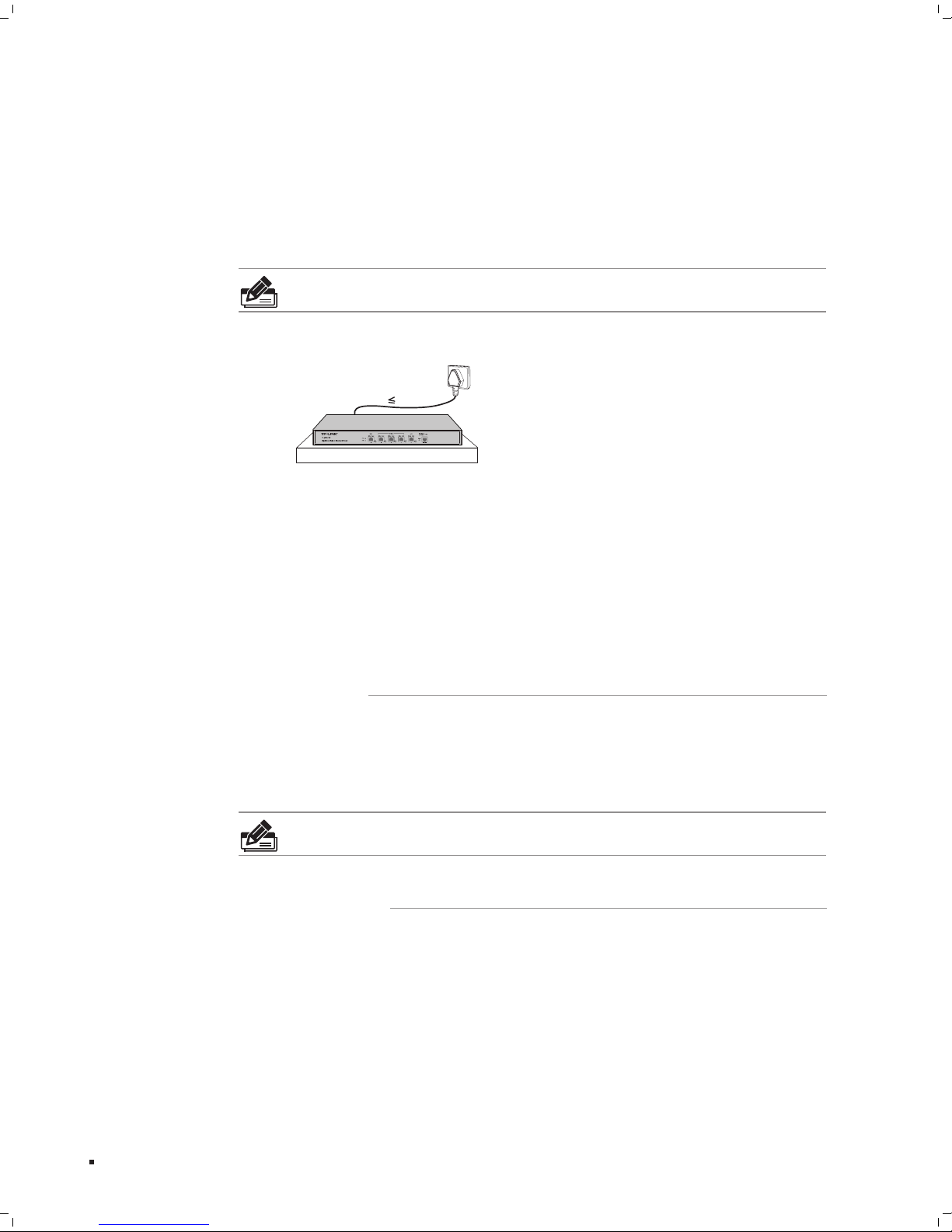

Desktop Installation

■

To install the device on the desktop, please follow the steps:

Set the device on a flat surface strong enough to support the entire weight of the1.

device with all fittings.

Remove the adhesive backing papers from the rubber feet.2.

Turnover the device and attach the supplied rubber feet to the recessed areas on3.

the bottom at each corner of the device.

Installation

Table des matières

Autres manuels TP-Link Routeur réseau

TP-Link

TP-Link TD-8816 Manuel utilisateur

TP-Link

TP-Link Archer A9 Manuel utilisateur

TP-Link

TP-Link AC600 Manuel utilisateur

TP-Link

TP-Link TD-8816 Manuel utilisateur

TP-Link

TP-Link Archer A64 Manuel utilisateur

TP-Link

TP-Link Archer AX53 Manuel utilisateur

TP-Link

TP-Link Archer C6 Manuel utilisateur

TP-Link

TP-Link Archer C54 Manuel utilisateur

TP-Link

TP-Link TL-SG2424 Manuel utilisateur

TP-Link

TP-Link Archer AX3000 Manuel utilisateur

TP-Link

TP-Link ARCHER MR200 Manuel utilisateur

TP-Link

TP-Link TL-WR802N Manuel utilisateur

TP-Link

TP-Link ARCHER C60 Manuel utilisateur

TP-Link

TP-Link TL-WR703N Manuel utilisateur

TP-Link

TP-Link Deco W6000 Manuel utilisateur

TP-Link

TP-Link W8968 Manuel utilisateur

TP-Link

TP-Link TL-WR1043N Manuel utilisateur

TP-Link

TP-Link Archer BE805 Manuel utilisateur

TP-Link

TP-Link Archer VR2600 Manuel utilisateur

TP-Link

TP-Link SafeStream TL-R480T+ Manuel utilisateur

TP-Link

TP-Link RE200 Manuel utilisateur

TP-Link

TP-Link Omada ER7206 V2 Manuel utilisateur

TP-Link

TP-Link TD-W8951ND Manuel utilisateur

TP-Link

TP-Link TL-WPA8730 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité

LevelOne

LevelOne FBR-1416 Manuel utilisateur
