TP-Link Archer VR600v Manuel utilisateur

YOUR NEW MODEM SUPPORTS:

ADSL / ADSL2 / ADSL2+

VDSL2

UFB

3 x 10/100/1000 LAN ports

1 x 10/100/1000 WAN/LAN port

802.11 b/g/n/ac Wi-Fi

Up to 300Mbps on 2.4 GHz

+ 1300Mbps on 5 GHz

2 x VOIP phone ports

1 x USB port

SUPPORT & WARRANTY

3 Years Manufacturer’s Warranty

Website: http://www.tp-link.com/support

Email: [email protected]

24/7 Helpline: 0800 875 465

GETTING STARTED

This quick start setup guide is to help you get up and running on your new Unlimited

Internet connection.

Before you start please check you have the following items:

INSTALLING YOUR NEW

TP-LINK VR600v WIRELESS ROUTER

Step 1: Open your box and pull out the modem. Make sure you have your username

and password, we sent to you via email handy as you will need this when you reach

step 9.

Step 2: Connect the power adapter to an unused socket on your wall, with the other

end going into the port on your modem labeled ‘Power’.

Step 3: Make sure the DSL cable is plugged into ADSL splitter-Filter to the

telephone jackpoint and the modem is powered on.

Step 4: Make sure to press the power button, located to the side, and ensure your

Power LED begins to glow.

NOTE:If your modem was sent out by us, it will be preconfigured and you can

just plug it in and it’s ready to go.

LOGGING INTO YOUR ROUTER

Step 5: You need to now connect to your router. This can be done either via an

Ethernet cable or via Wi-Fi.

Ethernet: Take the Ethernet cable and plug one end into the port labelled LAN1 at

the rear of your modem with the other end going into your laptop or desktop

computer’s Ethernet port. Wait for a minute while your computer connects to your

modem.

Wi-Fi: Once your router is turned on it automatically broadcast a Wi-Fi signal.

Connect to the Wi-Fi Network name (SSID) as printed on the bottom of the modem

as well as your TP-Link Wi-Fi card It should be similar to : “TP-Link_xxxx”. The

default Wi-Fi password is also printed at the bottom of the modem and on the wifi

card as well.

Step 6: Once the connection is made, open a web browser (Chrome, Firefox etc.) &

enter http://192.168.1.1 into the address bar as shown below. Once done press

enter, you will immediately be prompted to setup a new password for the first time.

Please enter your desired password and save it somewhere secure. You will require

this password every time you want to log in to your router.

CONFIGURING YOUR ROUTER

Once you have logged into your modem following the “Logging into your Router”

instructions, you can now begin to configure your router.

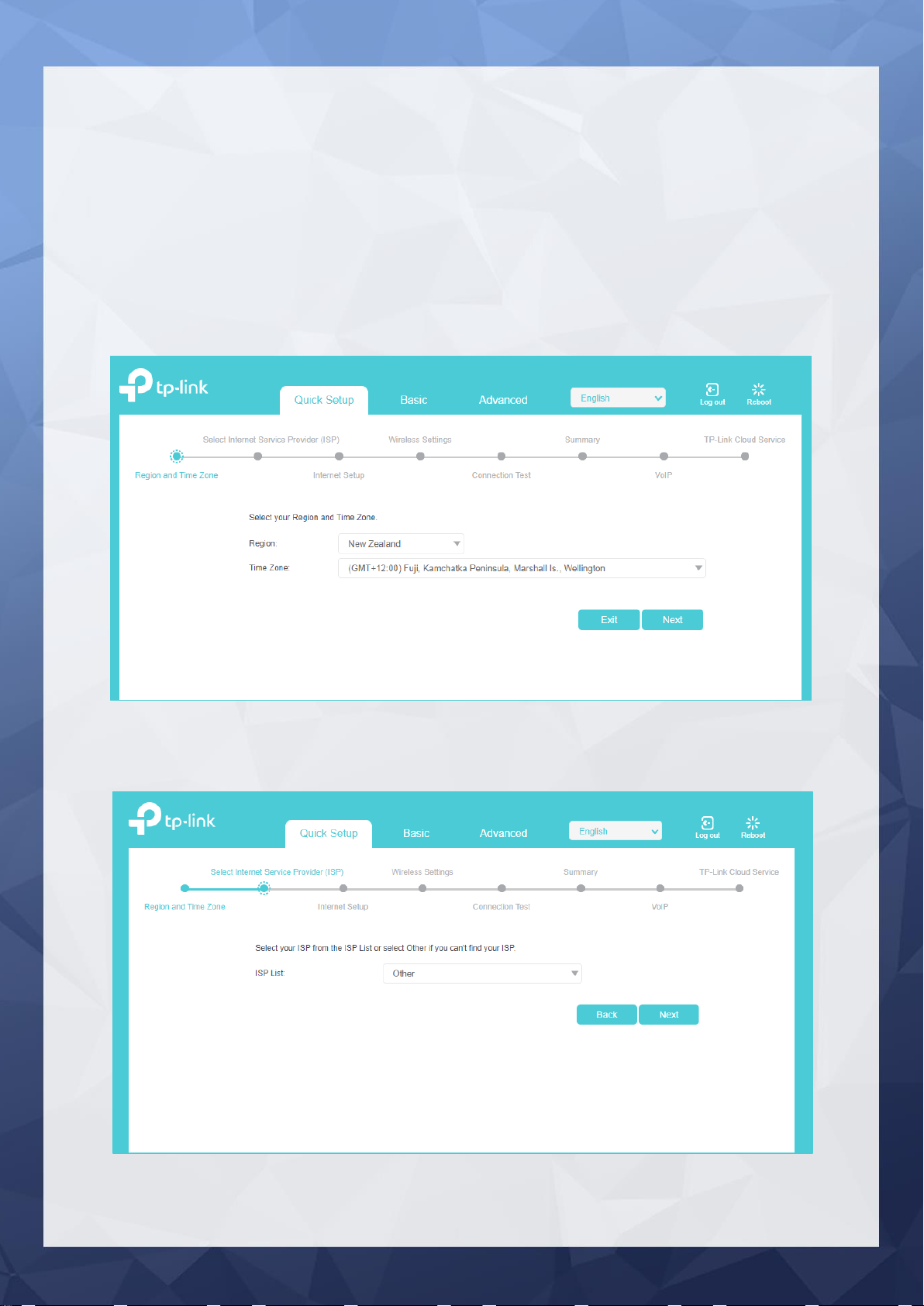

Step 7: Follow the quick setup guide and select time zone and the click “Next”

Step 8: Now from the ISP List select “Others” and the click “Next”

Step 9: You will now arrive at the Internet Setup page.

Ensure Settings are as below:

L2 Interface Type: VDSL

VLAN: Enabled

VLAN ID: 10

Internet Connection Type: PPPoE

Username: (enter your PPP Username here)

Password: (enter your PPP Password here)

Step 10: Once you have entered the correct details on the Internet Setup page, click

“Next”.

Step 11:You will now reach the Wireless Settings page where you will be able to

configure your Wi-Fi Network. The default values will be the same as those printed

on the back of your router and on the Wi-Fi card provided.

Here you can enable or disable, one or both of, the wireless bands as well as

change your wireless Network Name (SSID) and Password for each band to your

desired name(s) and password(s). Please write down the new SSID and Password

for future use.

Step 12: Once you are happy with the name and password for your Wi-Fi,click

“Next”.

NOTE: IF YOU USE A WIRELESS DEVICE TO CHANGE THE WIRELESS SETTINGS, YOU MAY BE

DISCONNECTED AFTER THE NEW SETTINGS ARE EFFECTIVE. PLEASE WRITE DOWN THE NEW SSID

AND PASSWORD FOR FUTURE USE.

Step 13:Congratulations! You are successfully connected to the internet and Wi-Fi

is now secured. You can now connect to your Wi-Fi devices using the details you

have just configured.

Contact Information

Phone : 09 973 0546

Monday - Saturday: 10am - 6pm

Email: support@unlimitedinternet.co.nz

facebook.com/unlimitedinternet

www.unlimitedinternet.co.nz
