NAVIGATION SYSTEM

QUICK REFERENCE GUIDE

CUSTOMER EXPERIENCE CENTER

1-80 0 -331- 4 331

00505-NAV11-RAV4

Printed in U.S.A. 8/10

10-TCS-04053

RAV4

2011

TABLE OF CONTENTS

LIMITATIONS OF THIS QUICK REFERENCE GUIDE 1

BASIC OPERATION 2

DESTINATION INPUT 3

By Address 3

DESTINATION INPUT - POINTS OF INTEREST (POI) 5

Points of Interest by Name 5

Points of Interest by Category 6

DESTINATION INPUT - TELEPHONE NUMBER 7

Business or Registered Addresses 7

SET HOME 8

ADDITIONAL NAVIGATION FEATURES 10

Search Area 10

Route Preferences 10

3 Routes 10

Screen Preferences 10

Beep Setting 11

Volume Setting 11

Keyboard Setting 11

Screen Transition 11

Freeway Exit Info Mode 11

Estimated Distance and Time 12

Operation of Vehicle Emergency Screen 12

XM NAVTRAFFIC®13

This Quick Reference Guide is designed to provide information

on the basic operation and key features of the navigation system.

The Quick Reference Guide is not intended as a substitute for the

Navigation Owner’s Manual. We strongly encourage you to review the

Navigation Owner’s Manual so you will have a better understanding of

the navigation system capabilities and limitations.

LIMITATIONS OF THIS QUICK REFERENCE GUIDE

Press the

panel button

followed by .

step 1Select preferences.

step 2

XM NAVTRAFFIC®PREFERENCES

Show XM

NavTrafﬁc

Information:

Auto Avoid Trafﬁc:

Trafﬁc Voice

Guidance:

Show Free

Flowing Trafﬁc:

Touch to overlay trafﬁc event and ﬂow indicators

on the map. Trafﬁc ﬂow is displayed by colored lines right

along the side of the freeways:

Free ﬂow trafﬁc

Moderate trafﬁc

Heavy congestion

Touch to have the system automatically select

another route when moderate or heavy trafﬁc is detected

during route guidance.

Touch to receive voice notiﬁcation of trafﬁc events

within 20 miles along the current route.

Touch to show free ﬂow trafﬁc information.

Free ﬂow trafﬁc is displayed with green colored lines

alongside freeways or highways.

BASIC OPERATION

NORTH-UP OR COMPASS MODE

Icon

Touch to change the map display

between North-up or Head-up

perspectives.

ZOOM IN/ZOOM OUT Icons

Touch to magnify or reduce the

map scale.

INFO Button

Access Maintenance, Calendar,

Language and Screen Settings.

DISPLAY/TILT Button

Adjust the contrast, brightness or

turn off the screen. Change the angle

of the screen for best viewing.

AUDIO Button

Set the radio station presets, adjust

the balance and tone controls.

MENU Button

Access Voice Guidance Volume,

Select User, My Places, Setup and

Suspend Guidance.

DESTINATION Button

Input the destination by one of

several methods and initiate route

guidance.

MAP/VOICE Button

Repeat the last voice guidance

prompt, cancel the map scrolling

feature, or show the current position.

CURRENT VEHICLE POSITION

Mark

Indicates the current position of the

vehicle and its directional heading.

{



AM•SAT

DISC•AUX

INFO

AUDIO

DEST

TUNE SEEK

TRACK

PWR•VOL

WMA

TOYOTA

SAT

•

•S

•

TOY

PWR

•

VOL

MAP

VOICE

DISP

TILT

300ft

GPS

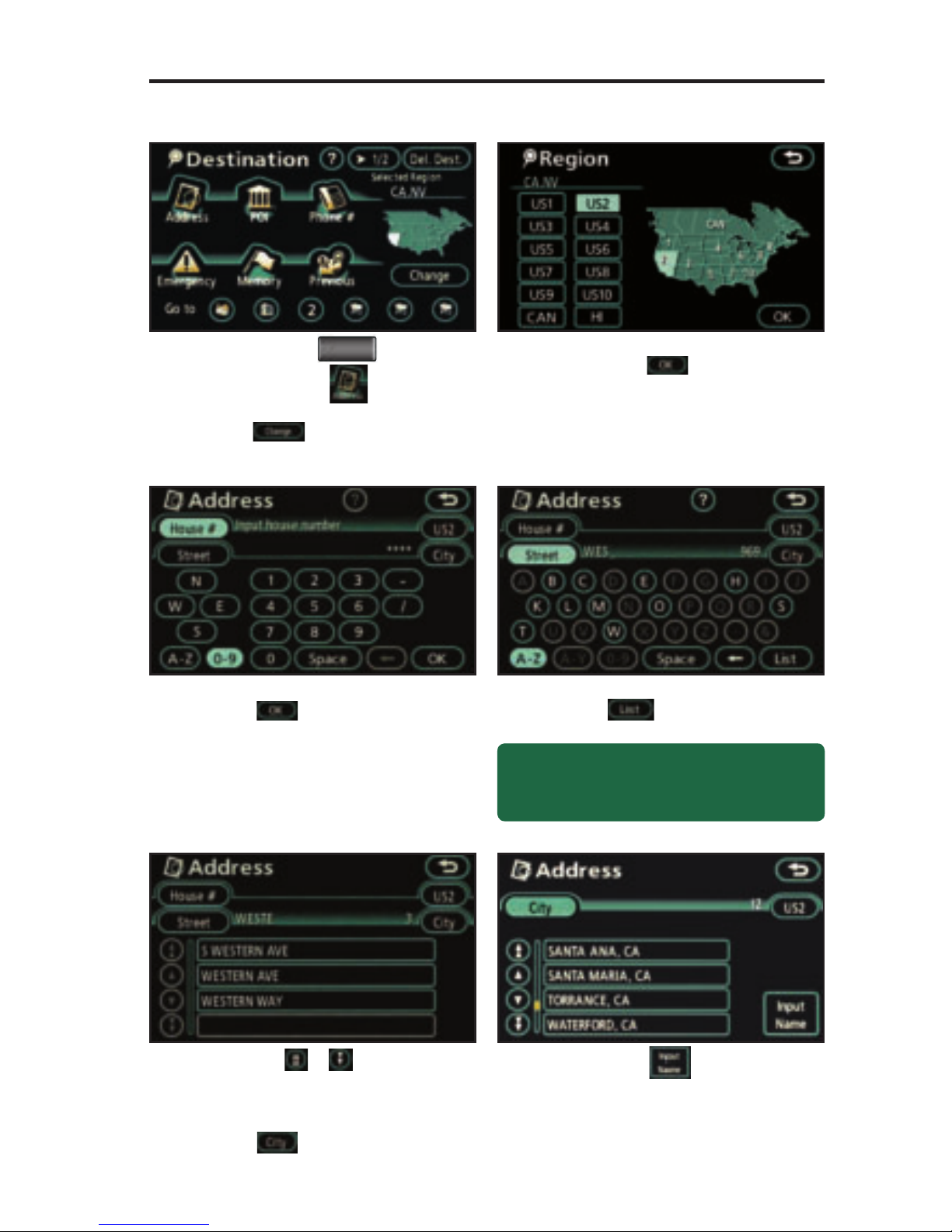

DESTINATION INPUT

BY ADDRESS

Press the

DEST

panel button

followed by and move to

step 3. To change Region, touch

and move to step 2.

Input the house number and touch

Input the street name. Touch

to show all matching

streets.

Use or to scroll up or

down. Touch the desired street

and go to step 8. If the street you

are looking for is not listed, touch

and go to step 6.

Touch to type in the city

name or select from a previously

selected city. If the city is not

available try the next largest city

in the vicinity.

Select the desired Region and

touch .

step 1step 2

step 3step 4

step 5step 6

Quick Tip - Enter the street name without

preﬁxes such as North or the letter N. The

system will display all of the options available.

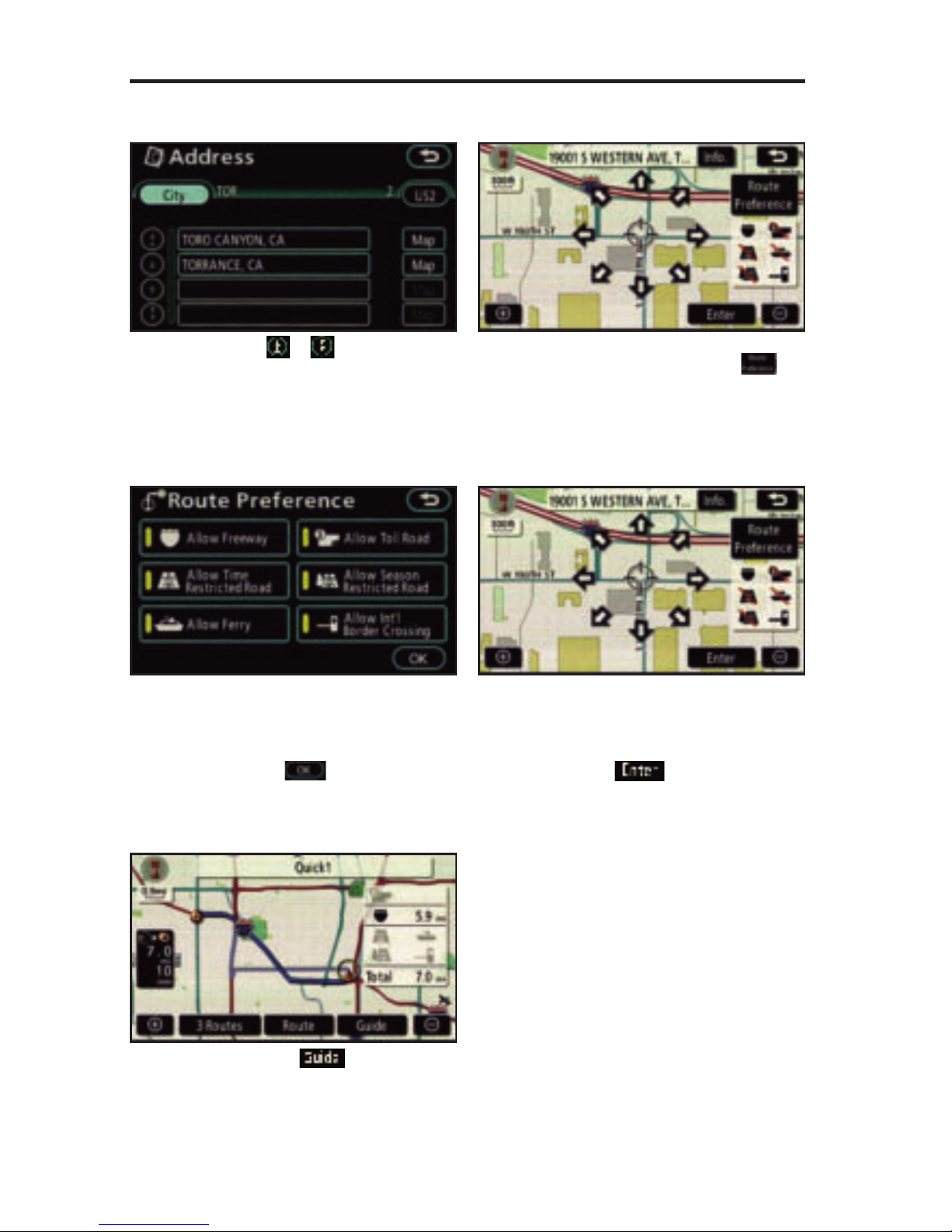

DESTINATION INPUT

BY ADDRESS

If necessary, use the arrow

keys to adjust the position

on the map to put you closer

to your destination. Touch

to conﬁrm the

position.

Select the desired Route

Preference by touching .

Select the desired Route

Preference(s) for the trip. When

the yellow bar appears, the route

preference has been selected.

Touch to conﬁrm your

selection.

Use or to scroll up or

down. Touch the desired city.

Select the desired street.

Touch to start route

guidance.

step 7step 8

step 9step 10

step 11

DESTINATION INPUT - POINTS OF INTEREST (POI)

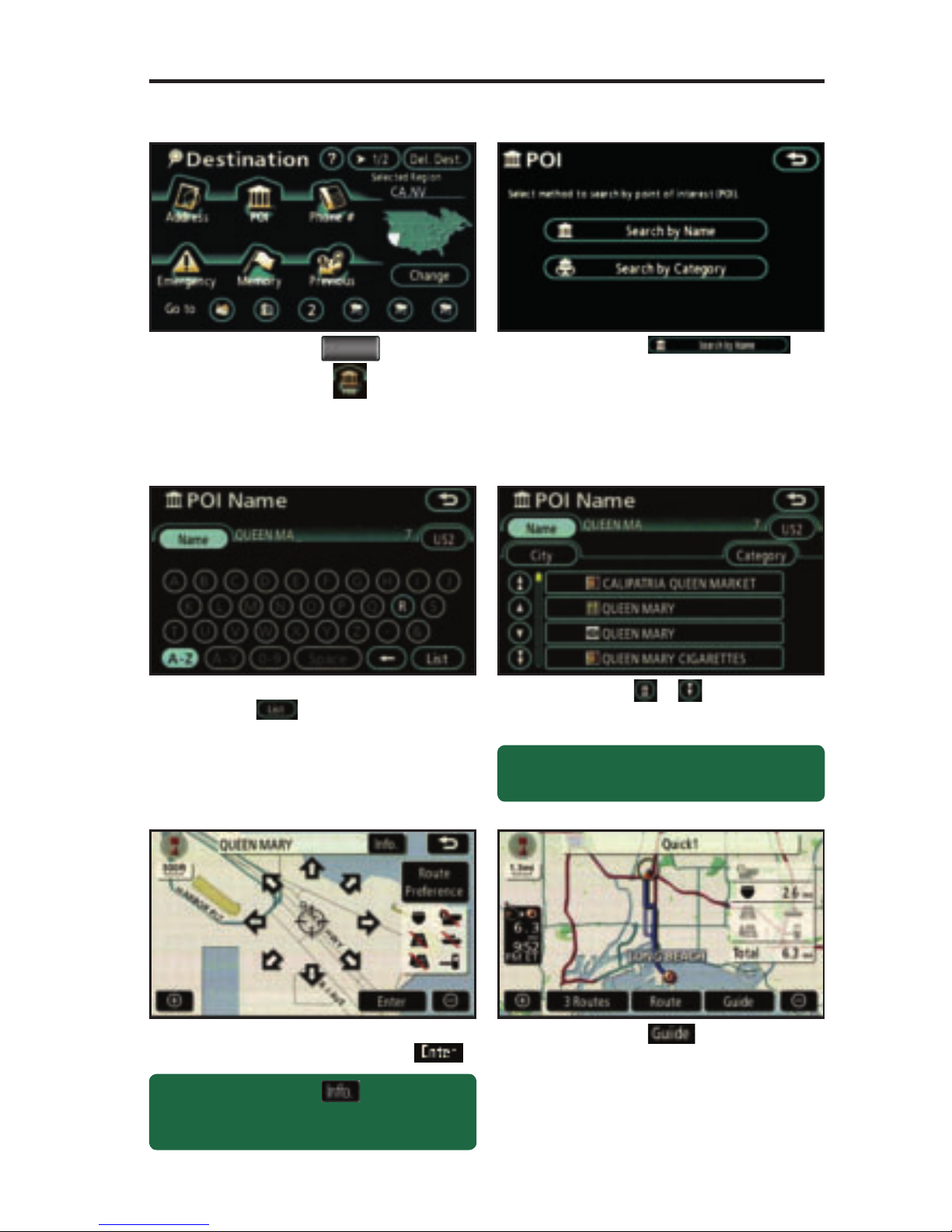

POINTS OF INTEREST BY NAME

Quick Tip - Touching the button next to

the POI name will display the address and

telephone number.

Press the

DEST

panel button

followed by .

Touch .

Input the POI name and touch

Use or to scroll up

or down. Touch the desired

destination.

See page 10 to select the desired

Route Preference. Touch .

step1step 2

step 3step 4

step 5Touch to start route

guidance.

step 6

Quick Tip - If the POI isn’t listed in the database

verify the spelling and Region for accuracy.

DESTINATION INPUT - POINTS OF INTEREST (POI)

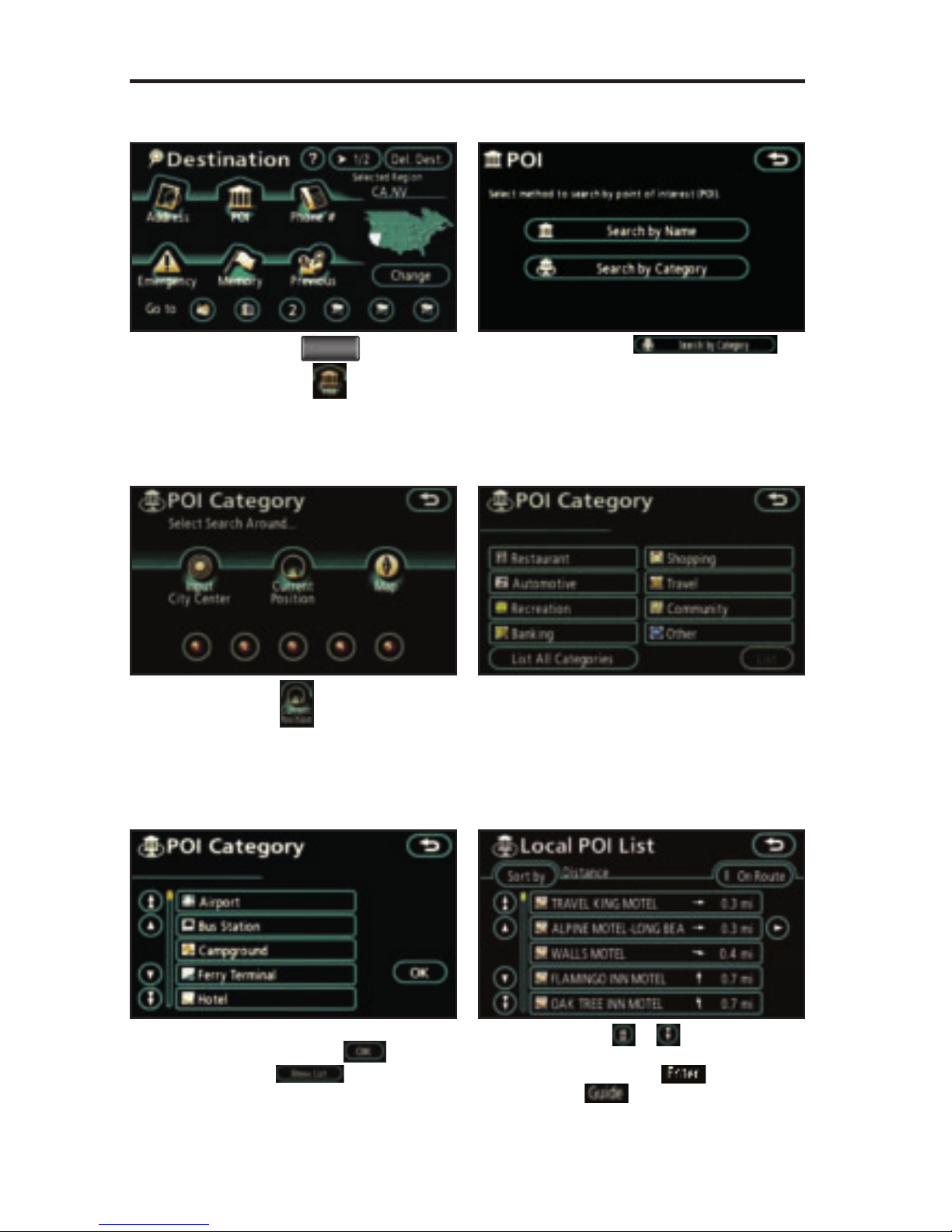

POINTS OF INTEREST BY CATEGORY

Press the

DEST

panel button

followed by .

Touch .

Touch . Touch the desired category icon.

Touch the desired sub-category

icon followed by and then

touch .

step 1step 2

step 3step 4

step 5Use or to scroll up or

down. Touch the point of interest

followed by and then

step 6

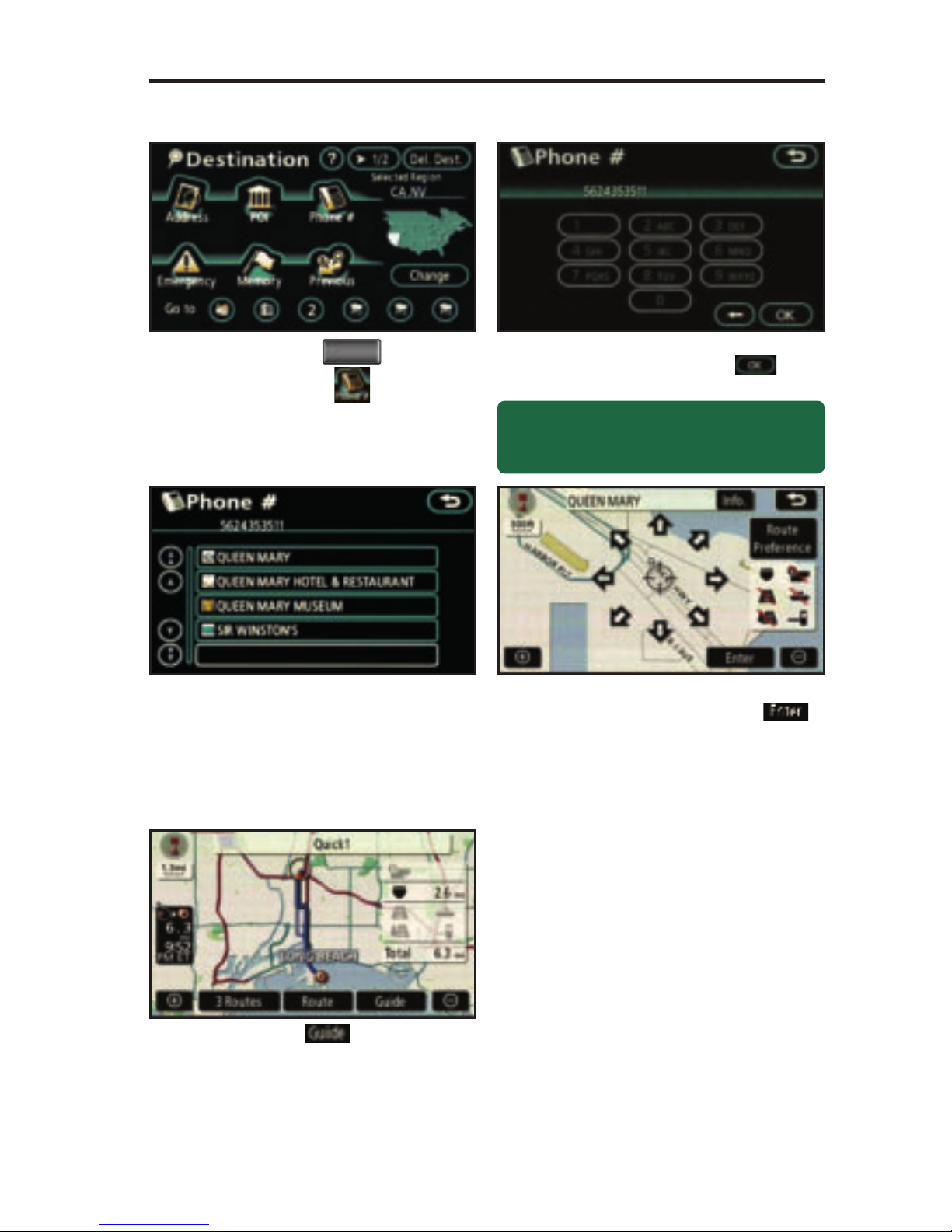

DESTINATION INPUT - TELEPHONE NUMBER

BUSINESS OR REGISTERED ADDRESSES

Press the

DEST

panel button

followed by .

Input the area code and telephone

number followed by . It is

not necessary to dial “1.”

Select the business or registered

address from the screen.

See page 10 to select the desired

Route Preference. Touch .

Touch to start route

guidance.

step 1step 2

step 3step 4

step 5

Quick Tip - Personal telephone numbers cannot

be used for Destination input unless previously

added in the Address Book.

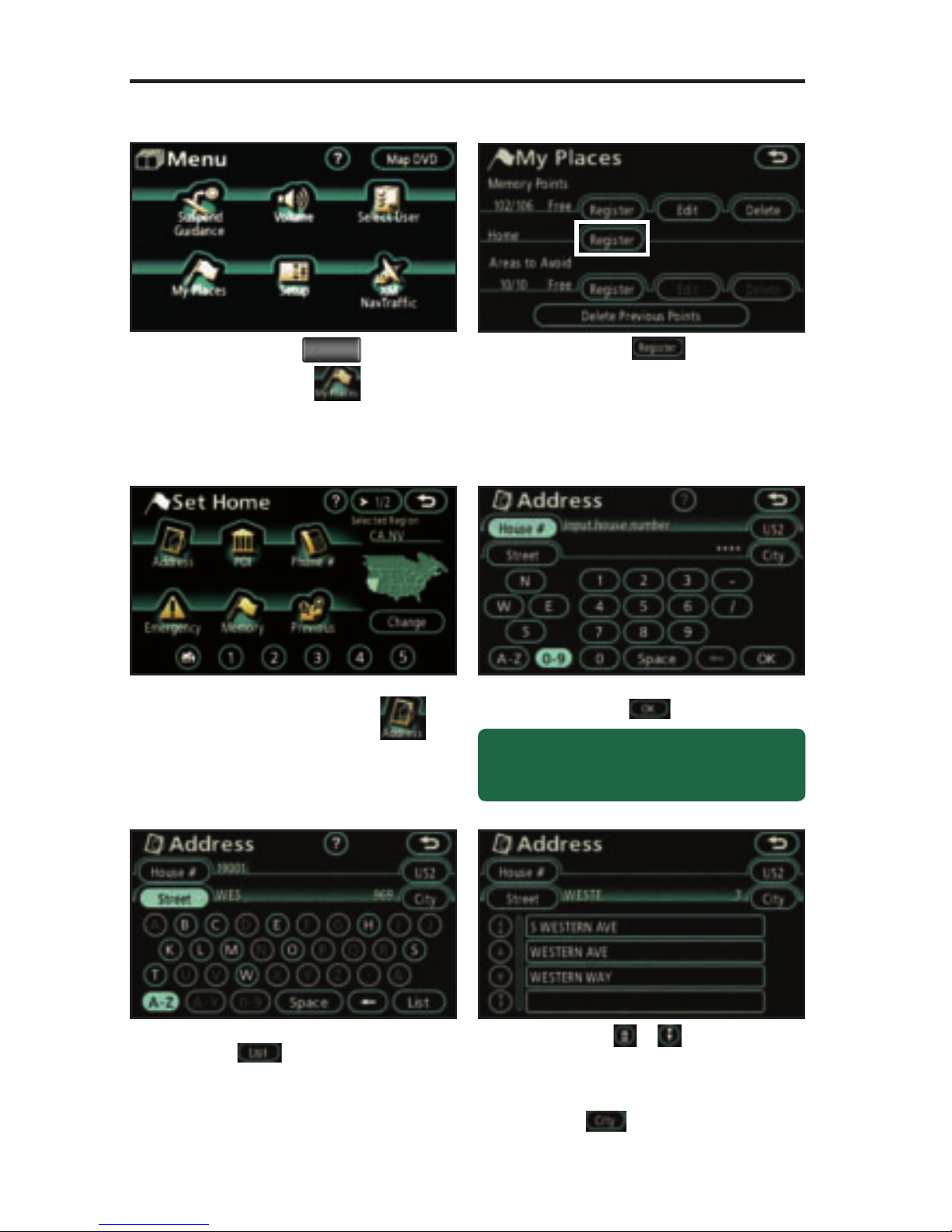

SET HOME

Press the

panel button

followed by .

Touch to input your

home address.

Make sure that you are in the

desired Region. Touch .

Input the house number and

touch .

Input the street name. Touch

to show all matching

streets.

step 1step 2

step 3step 4

step 5

Tip - For security reasons, use a point close

to your home instead of your actual home

address.

Use or to scroll up or

down. Touch the desired street

and go to step 9. If the street you

are looking for is not listed, touch

and go to step 7.

step 6

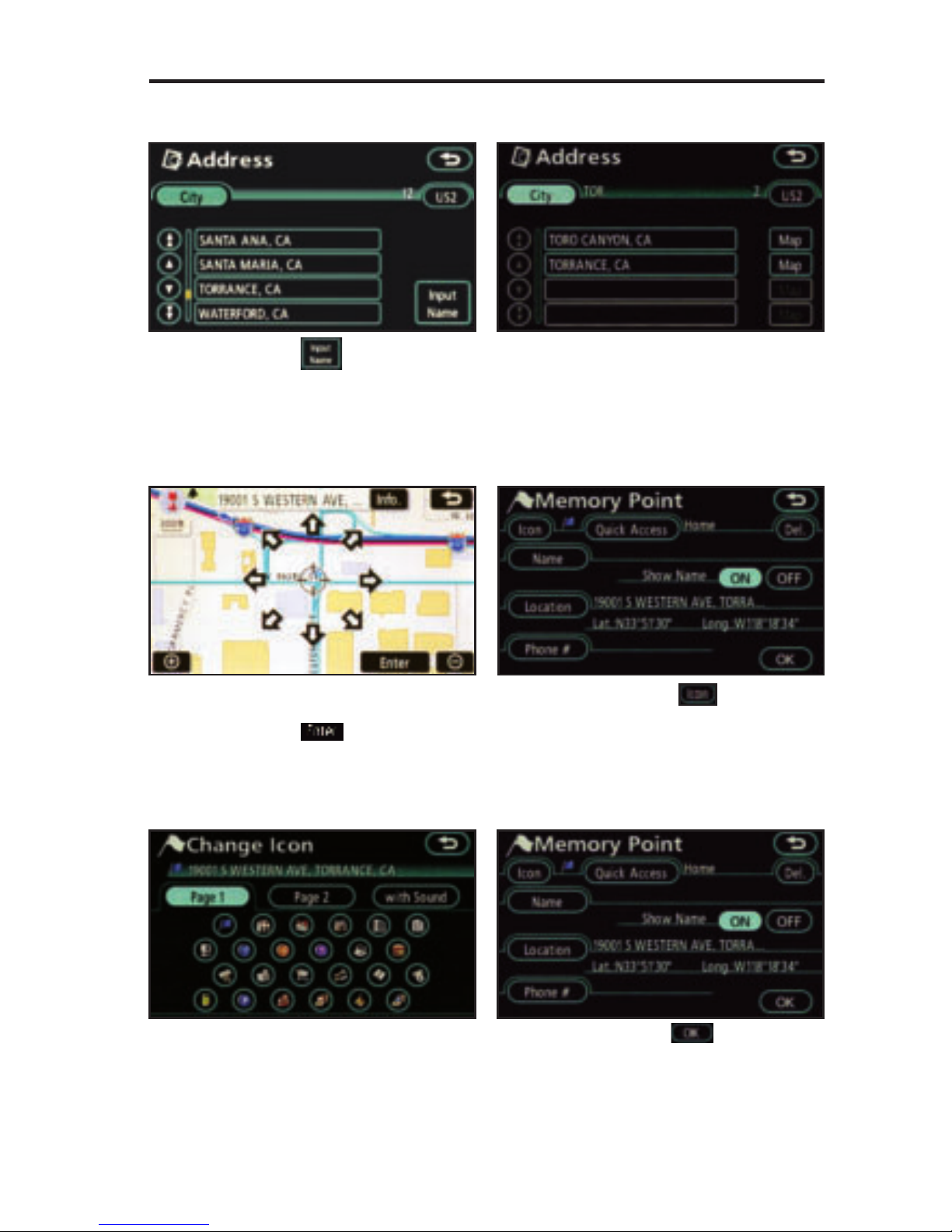

SET HOME

Touch the desired city. Select the

desired street.

Touch the desired icon for

your home.

Touch at the bottom of

the screen.

step 8

step 9

step 11 step 12

Touch to type in the city

name or select from a previously

selected city. If the city is not

available try the next largest city

in the vicinity.

step 7

If necessary use the arrow keys

to adjust the position on the map.

Touch to conﬁrm the

position.

Touch at the top left

of the screen to change the

home icon.

step 10
