Totevision LCD-400X4 Manuel utilisateur

4" LCD in Quad Rack Mount Kit

LCD- 400X4

The Biggest Thing

in Rack Mounted Monitors

• Broadcast quality display

• Space saving design - occupies only 2 RU

• Tilts 90° in the rack for optimum viewing

• Front controls for power, contrast, tint, color, brightness

and NTSC/PAL selection

• Composite video loop through capability for all 4 monitors

(always active regardless of power). Loop out termination is

provided by auto termination switch in the BNC connector

• Self-powered 3 color tally system

• For color and B&W applications

• Low power consumption

• Case made of durable aluminum & steel

• Active matrix technology allows wide viewing angle

• Active matrix technology eliminates distortion

• Single A/C adaptor power supply provides power

for all 4 monitors (included)

• Reponse Time: 10ms/10ms (Rising/Falling)

Display:

Back Light:

Input Signal:

Resolution:

Dot Pitch:

Brightness:

Contrast Ratio:

Viewing angle L/R/T/B:

Power Requirements:

Power Consumption:

Dimensions (WHD):

Actual visible screen size (WH):

Operating temperature:

Storage temperature:

Connectons:

Net Weight:

Gross Weight:

4" TFT LCD active matrix

Built-in LED

NTSC/PAL Switchable

480(H) x 234(V) dots

0.171(H) x 0.264(V)

300 cd/m² (Nit)

150:1

45/45/30/10

12VDC, 1.5A, + pin

60 W

482 x 89 x 50mm / 19" x 3.5" x 2"

82.1 x 61.8mm / 3.2" x 2.4"

50 ~ 104°F or 10 ~ 40°C

-13 ~ 140°F or -25 ~ 60°C

BNC video IN jack x 4

BNC video OUT jack x 4

2.1mm DC IN jack

Est. 2.3 kg. / 5 lbs.

Est. 2.4 kg. / 5.2 lbs.

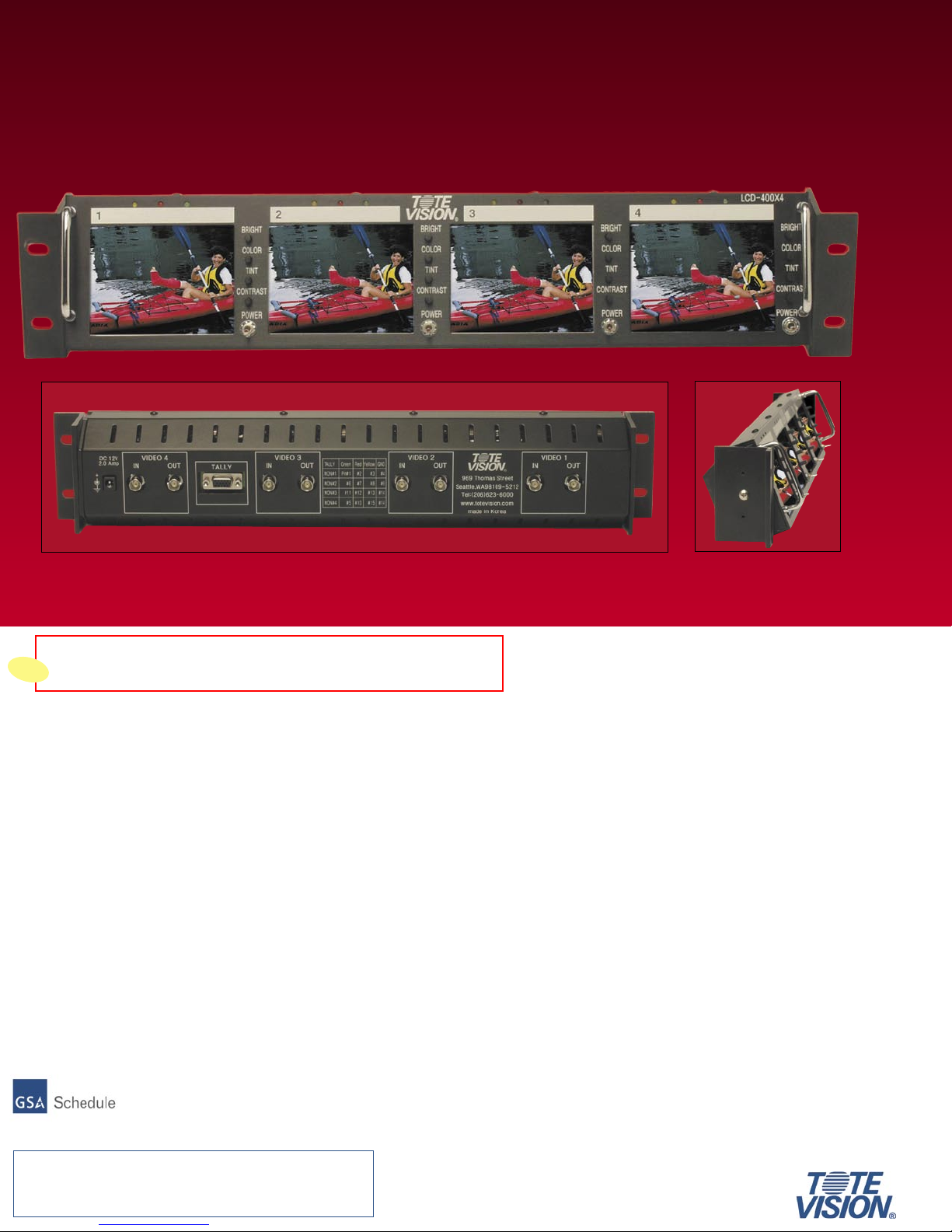

Side View

Back View

1319 Dexter Ave. N. • Ste. 020 • Seattle, WA 98109

Tel: 206-623-6000 • FAX: 206- 623-6609

E-mail: [email protected]

http://www.totevision.com

GS-07F-0069L, SIN: 246-42(1), 246-50

Speciﬁcations subject to change without notice 30K

Available through:

P.30

• LED

backlight provides longer life

, uses less

power and provides better color saturation
