Totevision LCD-1700V Manuel utilisateur

________________________________________ 17”LCD MONITOR

lLCD-1700V 17” LCD Monitor

Overall Dimension(HxWxD): 426 x 444 x 546 mm

Effective Display area(H/V): 337.92 x 270.34 mm

Display colors: 16M colors

Scan Frequencies:

Horizontal 31.47K to 80KHz

Vertical 60Hz to 75Hz

Number of Pixels: 1280x1024 pixels

Pixel pitch: 0.264x0.264 mm

Picture Tube: 17" TFT LCD panel

Power:

Input 110-240VAC(auto-sensing)

Frequency: 48-62Hz

Consumption 45Watts maximum (on)

3 Watts (Power saving off mode)

PC RGB Connector: 15pin Mini D-sub (Standard)

Audio connector 1 x stereo input

Speaker 2W x 2

RGB Signals:

Video Analog RGB 0.7Vp-p/75Ω

Sync Separate

Display Data Channel:

Compatibility VESA DDC 1/2B

Video connector input

S-connector x 1 (S-Video In)

AV connector x 3 ( one for video

Two for audio left/right)

Mini D type x 1 (for YcbCr/Component input)

BNC connector x 1 ( Composite Video In)

Video connector output

BNC connector x 1 ( Composite Video Out)

17” LCD MONITOR _____________________________________

Operations:

User Controls On/Off Power Button, source select

+/-and Up/down keys

On Screen Display Auto adjustment, Brightness, contrast

color temperature, Hue, Tint,

Source select, PIP setup

H-position, V-position, OSD position

Audio volume, bass, treble, mute

Load default

Control Type: Digital

Compatibility: IBM and compatible, Apple

Macintosh, NEC

Environmental Limits:

Operating Temp 32°to 103°F ( 0°to 40°C )

Storage Temp. -4°to 140°F ( -20°to 60°C )

Operating Humidity 10 to 85% without Condensation

Storage Humidity 10 to 95% without Condensation

Agency Approval

EMI FCC-B and CE

Emissions MPR-II

Energy Saving EPA energy star, VESA DPMS

Safety UL, TUV

__________________________________ 15”/17”/19”LCD MONITOR

PRECAUTIONS

HANDLING

lThe monitor must be treated with caution and not be exposed

to impact and shock. The monitor is made of fragile glass panel.

lDo not expose to sharp shock.

lNever touch the display area or rub on it with a hard, stiff object or

tools because the panel is easily scratched, even your monitor is

protected with one glass filter.

lEvery effort has been made to protect the panel, however the

monitor is an extremely fragile product.

CLEANING

lThe display area is highly prone to scratching. Do not use ketone

type material (ex. Acetone), Ethyl alcohol, toluene, ethyl acid or

Methyl chloride to clear the panel. It might permanently damage

the panel.

lThe desirable cleaners are water, IPA (Iso Prophyl Alcohol) or

Hexane.

lDon’t let water or oil penetrate the monitor. If the droplets are kept

for a long time, Staining and discoloration may occur.

lKeep food particles and fingerprints away from the display area.

15”/17”/19” LCD MONITOR

_____________________________________

STORAGE

lDo not store the monitor in temperature higher than 35 degree

Celsius or humidity higher than 70% and no condensation.

lStore in dark places away from sunlight and ultra violet (UV)

radiation.

lAir bubble may develop within the glass panel, if this is not

observed.

__________________________________ 15”/17”/19”LCD MONITOR

CHAPTER 2

PRODUCT PACKAGE

Open the shipping carton and check the contents. If any items are

missing or damaged, contact your dealer immediately.

The package should include the following items

lAnalog Color TFT LCD Monitor

lAccessory Box:

1. VGA cable x 1

2. AC to DC adapter x 1

3. Power Cord x 1

4. User’s manual/Warranty Card x 1

5. Audio cable x 1

6. Mini DIN/RCA cable (for Component Video In use)

INSTALLING THE MONITOR

The monitor is equipped

with a auto sensing

power supply for voltage

ranges from

110~240VAC, 60/50Hz.

Confirm the line voltage

designation on the rear

panel of the monitor.

Note: The drawing is used

for 17”and 19”monitor to

install the power adapter and

VGA cable.

15”/17”/19” LCD MONITOR

_____________________________________

FOLLOW THESE STEPS TO INSTALL THE

MONITOR

1. Before you connect the cables, make sure that the monitor

and the system unit power switches are OFF

2. Plug one end of the 15pin signal cable to the monitor and the

other end to the video signal connector at the rear of the

system. Tighten the two screws on the cable connector on

both ends, otherwise the screen will be abnormal and LED

light is yellow color, not the normal green color.

3. Connect the power to the monitor through the AC/DC adapter

4. Connect the power cord on the AC outlet, see the below

5. Connectivity of video cable as below

RGBDC IN Audio

YcbCr

Compoment

S-Video

Video

Audio L

Audio R

BNC INBNC Out

For LCD-1700V 17”and LCD-1900V 19”LCD monitor connection

15”/17”/19” LCD MONITOR

_____________________________________

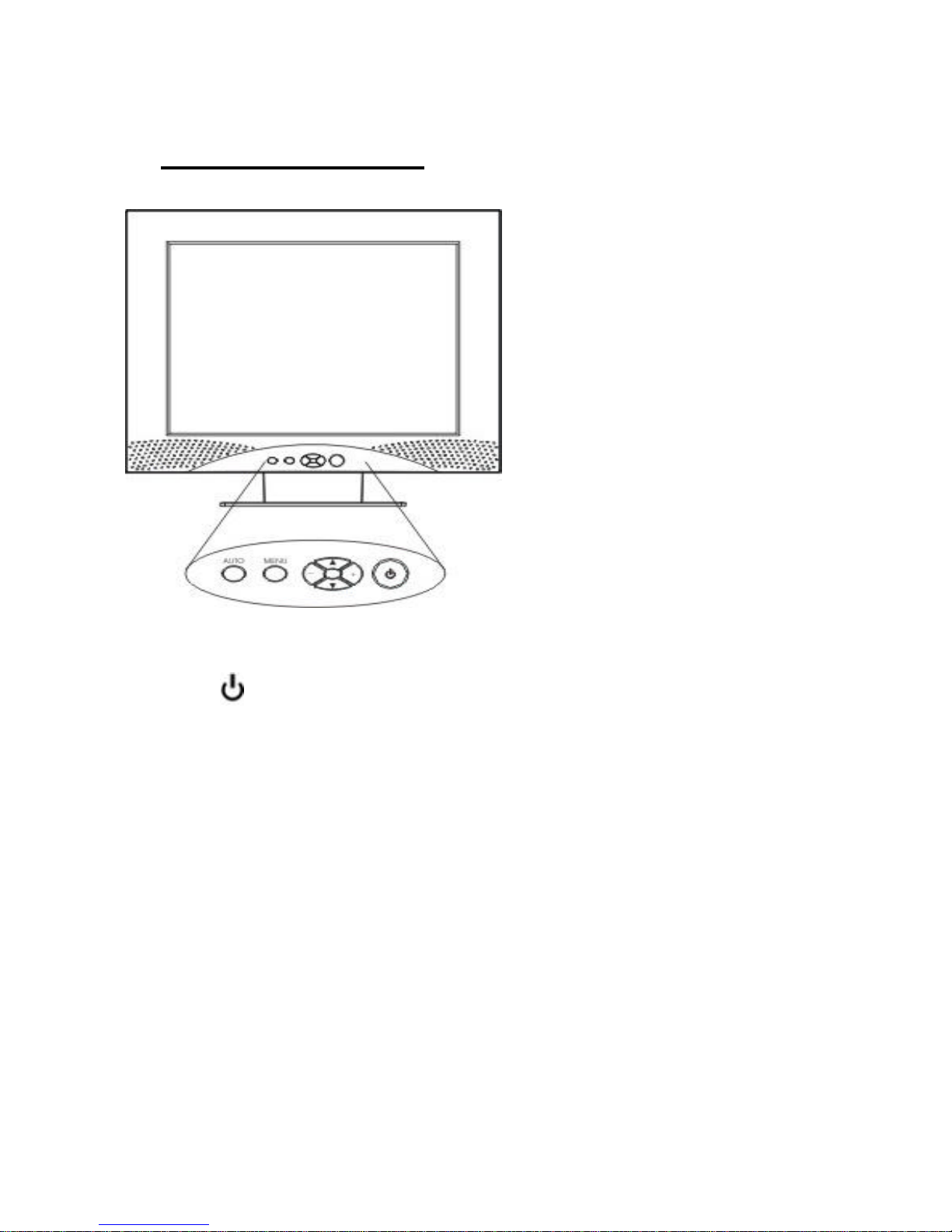

lLCD-1700V 17”Monitor

The control key description

1. : Power Switch

2. ﹣/+: Decrement/Increment or Volume control

3. ∇/∆: Cursor Up/Down or Brightness control

4. MENU : Activate the on screen display function

5. Auto : Auto adjustment

__________________________________ 15”/17”/19”LCD MONITOR

Descriptions

1. : Power switch

Use the power switch to turn ON or OFF power. We

recommend turning your system power on first, then the LCD

monitor

2. ﹣& +: decrement & increment/ Volume Control keys

The two keys have two functions, controlled by the MENU key.

When activating OSD screen, the two keys are defined to

decrement or increment the values of each selected items.

When de-activating OSD screen, these two keys are used to

change the speaker volume value.

3. ∇& ∆: Select down & up key / Brightness Control keys

The two keys have two functions, controlled by the MENU key.

When activating OSD screen, the two keys are used to select

the wanted adjustment items. When de-activating OSD

screen, these two keys are used to change the Brightness

value.

4. Menu

Press the Menu key to activate the on screen display screen. It

is a toggle key. Press twice to turn off the on screen display

screen. After 30 sec idle time, the OSD screen will

automatically turn off.

5.Auto adjustment

Pressing this key to select the input source.
