TOTALINE BASIC 1H Manuel utilisateur
®
Operating Manual
Mode d'emploi
Manual de Uso
Totaline ®Basic 1H/1C & 2H/1C
Programmable Thermostats
Thermostats programmables
Termostatos programables
570-208 IIIIIIIIIIIIIIIIIIIIIIII
69-2277EFS
Totaline Basic 1H/1C & 2H/1C
This manual covers the following models:
P310-1110: For 1-Heat/1-Cool systems
P310-1210: For 2-Heat /1-Cool heat pump systems
(Remove thermostat from wallplate and find model number on the wallplate.)
CAUTION: EQUIPMENT DAMAGE HAZARD.
To prevent possible compressor damage, do not use Cooling mode when the
outdoor temperature is below 50 °F (10 °C).
For assistance with this product please visit www.totaline.com.
Read and save these instructions.
® U.S. Registered Trademark. Patents pending.
Operating Manual 570-208
i_1qFJ__
Overview
Thermostat features ............................. 1
Quick start ............................................ 2
Quick reference to controls .................. 3
Quick reference to display .................... 4
Programming & Operation
Setting the clock ................................... 5
System switch (Heat/Cool) ................... 6
Fan switch (Auto/On) ............................ 7
Using the schedule .......................... 8-10
Temporary schedule override .............. 11
Permanent schedule override ............ 12
Early Recovery ................................... 13
Compressor protection ....................... 13
Appendices
Battery replacement ........................... 14
In case of difficulty .............................. 15
Customer assistance .......................... 16
Limited two-year warranty .................. 17
Your new thermostat ispre-programmed
and readyto go!
see page 2 for quick start.
Totaline Basic 1H/1C & 2H/1C
Your new Totaline thermostat has been designed to give you many years of reliable service
and easy-to-use, push-button climate control.
Features
Backlit display is easy to read
Displays ambient (measured) temperature at all times
One-touch access to setpoint temperature
Energy Star® compliant to greatly reduce your heating/cooling expenses
Separate programmable weekday/weekend schedules (5+2 day programming)
Temporary and permanent override of schedule
Early Recovery ensures right temperature at the right time
Built-in compressor protection
Operating Manual 570-208
Simply perform the three steps below and the thermostat is in operation:
Set the clock .................................................................................................. See page 5
Select whether to heat or cool ....................................................................... See page 6
_) Select whether to run the fan continuously or only when needed ................. See page 7
Your thermostat is pre-programmed with Energy Star® settings. If you do not wish to use
these settings, you can:
Modify the schedule .................................................................................... See page 10
Temporarily override the schedule .............................................................. See page 11
Permanently override the schedule ............................................................. See page 12
Press to set clock,
day or schedule
(see pages 5 & 10).
Press to override
schedule and hold
temperature (see
page 12).
Press to run
(follow) schedule
(see page 8).
Totaline Basic 1H/1C & 2H/1C
Screen
Lit for 12 seconds when
you press any button. Up/Down buttons
Press to adjust temperature.
System switch (see page 6)
•Cool: System is in Cooling mode.
• Off: System is off.
• Heat: System is in Heating mode.
•Em Heat: System is in
Emergency Heat mode,
Fan switch (see page 7)
• On: Fan runs continuously.
• Auto: Fan runs only when
heating or cooling is taking place.
Operating Manual 570-208
Clock Schedule period
System status
•Cool @:
Cooling is activated. *
• Heat _ :
Heating is activated. *
• Stg2:
Auxiliary heat is activated. **
Low-battery warning (see page 14)
*When Heat _ or Cool @is flashing, compressor protection is
engaged (see page 13).
** Applies to P310-1210 model only.
Temporary schedule
override (see page 11)
Permanent schedule
override (see page 12)
Setpoint indicator
Appears when the setpoint
temperature is displayed.
The ambient (measured)
temperature is normally
displayed. To view the setpoint
temperature, press either
temperature adjustment button
once. The setpoint temperature
will appear for five seconds.
Totaline Basic 1H/1C & 2H/1C
O Press the Set button. Set Time will appear on the screen
and the time display will flash.
O Press the Up or Down button to set the time.
Press the Set button again. Set Day will flash on the screen.
O Press the Up or Down button to select the day of the week.
Press the Run button to save the changes & exit. (The
changes are also saved if you do not press any button for 60
seconds.)
NOTE: The clock has lost its settings when the time display flashes. If the thermostat is
following the schedule, it will use the temperature settings programmed for Period 1 of the
weekdays until you readjust the clock.
Operating Manual 570-208

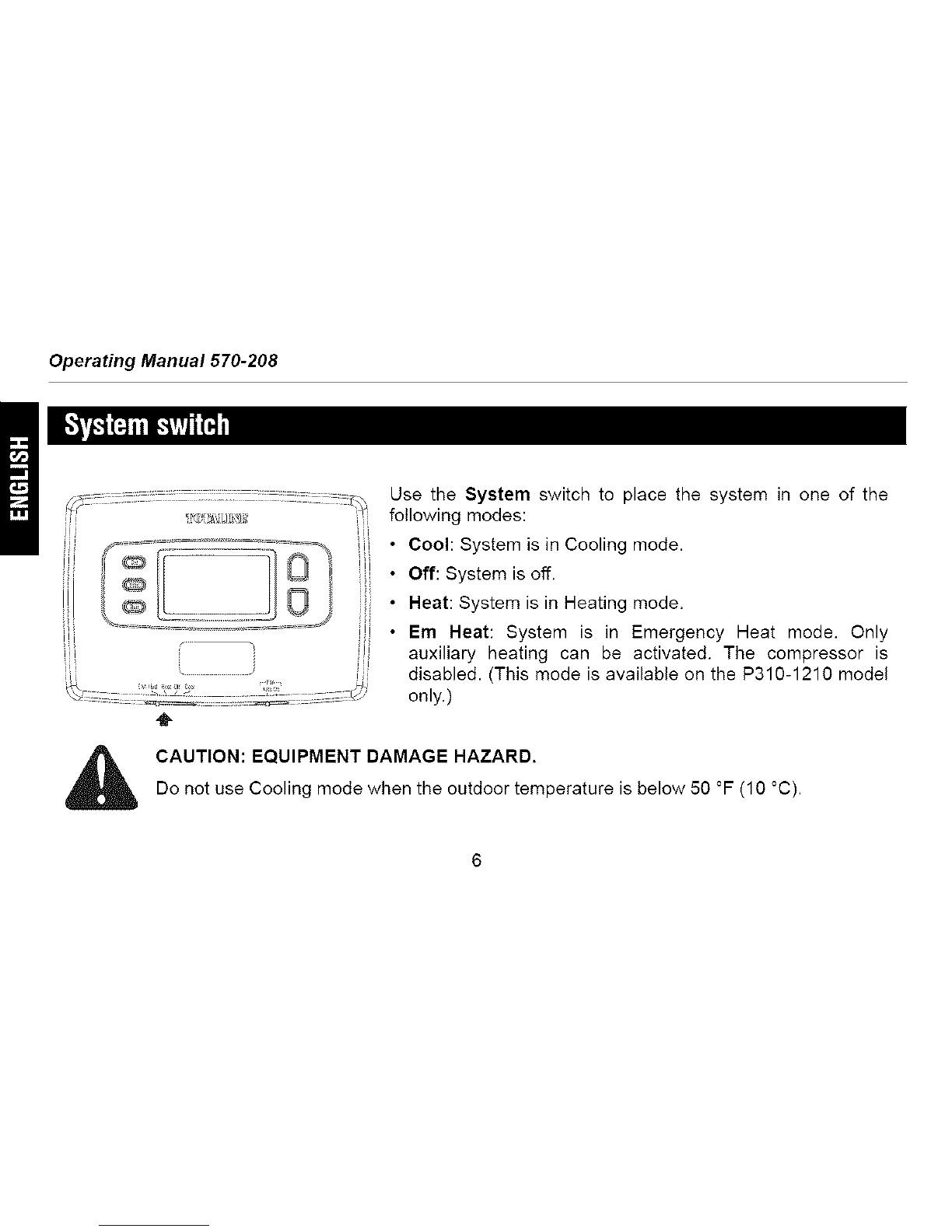

d; Use the System switch to place the system in one of the
ITij ,_ '_:_LJ_i; ....... _i following modes:
if"_ "_ i • Cool: System is in Cooling mode.
I II U •Off: System is off.
i _ 0 • Heat: System is in Heating mode.
•Em Heat: System is in Emergency Heat mode. Only
y.........................................._ ii auxiliary heating can be activated. The compressor is
:_, ............_;i[: _ ',:: iLdisabled. (This mode is available on the P310-1210 model
_c: ......... _ ...... _:: ¢_' only.)
CAUTION: EQUIPMENT DAMAGE HAZARD.
Do not use Cooling mode when the outdoor temperature is below 50 °F (10 °C).
Totaline Basic 1H/1C & 2H/1C
Use the Fan switch to select the fan operation.
• Auto: The fan runs only when heating or
cooling is activated (commonly used
setting).
• On: The fan runs continuously. Use this
setting for improved air circulation or for
more efficient air cleaning.
t
