OPERATING MANUAL

MANUAL WEIGHING PALLET TRUCK

TRW0009

Original operating

manual

06/2022 – V01

2/40

and TotalSource

No part of this publication may be reproduced or communicated in any form or by any means, electronic or mechanical, including copying,

recording or use in an information storage or retrieval system, without prior and explicit permission of TVH Parts Holding NV. Printing errors

reserved. Photographs and illustrations are included for reference purposes only.

Responsible editor: TVH Parts Holding NV, Brabantstraat 15, BE-8790 Waregem

TVH is a supplier of after-market spare parts and accessories that are suitable for the maintenance and repair of OEM equipment.

3/40

www.tvh.com/TRW0009_RV01

BG Bulgarian Можете да намерите това ръководство на Вашия език чрез линка, посочен по–

долу.

CS Czech Tento návod najdete ve svém jazyce prostřednictvím odkazu níže.

DA Danish Du kan finde denne vejledning på dit sprog via nedenstående link.

DE German Sie finden diese Bedienungsanleitung in Ihrer Sprache unter folgendem Link.

EL Greek Μπορείτε να βρείτε αυτό το εγχειρίδιο στη γλώσσα σας μέσω του παρακάτω

συνδέσμου.

EN English You can find this manual in your language via below link.

ES Spanish Encontrarás este manual en tu propio idioma a través del siguiente enlace.

ET Estonian Oma emakeelse juhendi leiate allolevalt lingilt.

FI Finnish Löydät tämän manuaalin omalla kielelläsi alla olevan linkin takaa.

FR French Vous trouverez ce manuel dans votre langue via le lien ci-dessous.

GA Irish Tá an lámhleabhar seo ar fáil i do theanga tríd an nasc thíos.

HR Croatian Ovaj prirucnik mozete pronaci na svom jeziku putem donjeg linka.

HU Hungarian Ez a kézikönyv az Ön nyelvén az alábbi link alatt található.

IS Icelandic Hægt er að finna þessa handbók á þínu tungumáli á tenglinum hér að neðan.

IT Italian Cliccando sul link sottostante troverai il manuale nella tua lingua.

LT Lithuanian Šį vadovlėlį savo kalba rasite spustelėję žemiau esančią nuorodą.

LV Latvian Rokasgrāmatu latviešu valodā Jūs varat atrast izmantojot zemāk esošo saiti.

MT Maltese Tista’ ssib dan il-manwal bil-lingwa tiegħek permezz tal-link ta’ hawn taħt.

NL Dutch Je vindt deze handleiding in jouw taal via onderstaande link.

NO Norwegian Du finner denne håndboken på ditt språk via linken nedenfor.

PL Polish Niniejsza instrukcja obsługi dostępna jest w Twoim języku za pośrednictwem

poniższego linku.

PT Portuguese Pode encontrar este manual no seu idioma através do link abaixo.

RO Romanian Puteți găsi acest manual în limba dvs. prin link-ul de mai jos.

SK Slovak Manuál vo vašom jazyku môžete nájst v priloženom vysvietenom riadku.

SL Slovenian Ta priročnik najdete v svojem jeziku preko spodnje povezave.

SV Swedish Du kan hitta denna manual på ditt språk via länken nedan.

TR Turkish Bu kılavuzu aşağıdaki bağlantıdan kendi dilinizde bulabilirsiniz.

4/40

Thank you for using our product. For your safety and to ensure a correct operation, we would

like to bring to your attention some aspects of this manual:

• This booklet supplies useful instructions for the correct operation and maintenance of the

product. It is therefore necessary to pay the utmost attention to all of the paragraphs that

illustrate the most simple and secure way to operate and use this product.

• This booklet must be considered an integral part of the machine and must be included

with the deed of sale.

• Neither this publication, nor part of it, can be reproduced without written authorisation on

the part of the manufacturer.

• All of the information reported herein is based on data available at the moment of printing;

the manufacturer reserves the right to carry out modifications to its own products at any

moment, without notice and without incurring in any sanction. It is therefore suggested to

always check for possible updates.

The person responsible for the use of the product must make sure that all of the safety rules

in force in the country of its use are applied, to guarantee that the equipment is used in

conformity with the use for which it is destined and to avoid any dangerous situation for the

user.

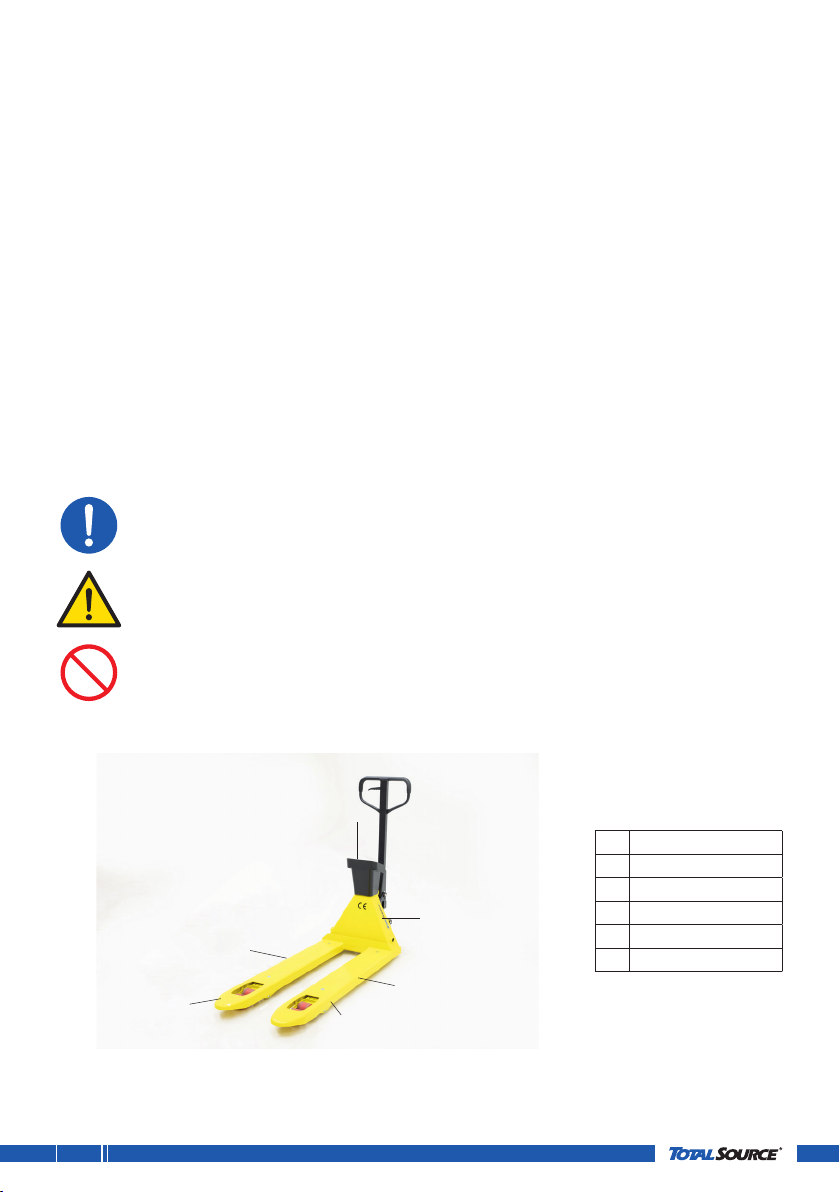

The following warning signs are used in this manual to warn you for dangers and risks:

Informative, be careful.

Warning, can lead to injury and damage if instructions aren’t followed.

Danger, can lead to serious or fatal injury and serious damage if instructions

aren’t followed.

The following conventions are used in this manual:

1 Right

2 Left

3Front

4 Back

5Top

6 Bottom

5/40

TABLE OF CONTENTS

1. INTRODUCTION..................................................................................... 6

2. DESCRIPTION....................................................................................... 7

2.1. Technical data .......................................................................................7

2.2. Main components of the product.................................................................8

2.3. Placement of the decals...........................................................................8

2.4. Type plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. SAFETY INSTRUCTIONS.........................................................................10

3.1. Explanation of the safety decals ................................................................10

3.2. General safety instructions ......................................................................11

3.3. Safety instructions for the use of batteries ...................................................12

4. TRANSPORT AND STORAGE ....................................................................13

4.1. Parking the pallet truck ..........................................................................13

4.2. Transporting the pallet truck ....................................................................13

5. ASSEMBLY AND INSTALLATION ...............................................................14

5.1. Packing list..........................................................................................14

5.2. Safety instructions for assembly and installation of the product .........................14

5.3. Required material for assembly.................................................................14

5.4. Assembly of the product..........................................................................14

6. OPERATION.........................................................................................15

6.1. Safety instructions for operating the product ................................................15

6.2. Operating instructions ............................................................................15

7. OPERATING THE WEIGHING SYSTEM ........................................................19

7.1. Touch panel display................................................................................19

7.2. Changing the batteries............................................................................20

7.3. Start-up..............................................................................................21

7.4. Zeroing...............................................................................................21

7.5. Using Tare ...........................................................................................21

7.6. Select Weighing Unit ..............................................................................21

7.7. Check weighing & Check counting .............................................................22

7.8. Accumulation.......................................................................................23

7.9. Parts Counting .....................................................................................24

7.10 Average Weighing..................................................................................24

7.11 Auto power off function ...........................................................................24

7.12. LED luminance adjusting.........................................................................25

7.13. Internal Counts Checking ........................................................................25

7.14. Local Gravity Setting ..............................................................................25

8. MAINTENANCE ....................................................................................26

8.1. Safety instructions for the maintenance of the pallet truck................................26

8.2. Maintenance schedule............................................................................26

8.3. Maintenance instructions ........................................................................26

9. TROUBLESHOOTING .............................................................................30

10. FINAL DECOMMISSIONING AND DISPOSAL ................................................31

10. ANNEXES ...........................................................................................32

10.1. CEcertificate .......................................................................................32

10.2. Parameters .........................................................................................34

10.3. Hydraulic diagram .................................................................................36

10.4. Spare parts list .....................................................................................37

10.5. Replacement of the wheels ......................................................................37

6/40

1. INTRODUCTION

This pallet truck is a manually operated pallet truck designed to lift and transport pallets

on hard and even surfaces. It can lift open-bottom or diagonal board pallets. This pallet

truck is also equipped with built-in weighing cells that weigh your goods while they’re being

transported on the pallet truck. Suitable ambient temperature is 5°C up to 40°C.

If the pallet truck is used for extended periods of time in ambient temperatures below 5°C,

cold storage, or in extreme conditions with temperature and humidity changes, you must

contact your dealer and obtain permission from the manufacturer.

We guarantee a long period of trouble-free operation if the unit is operated and maintained

correctly.

This manual contains all the necessary information on the installation and operation of the

pallet truck. Some of the maintenance operations should only be carried out by professional

technicians. If you require this information and the maintenance steps, please contact your

dealer.

This pallet truck may be unsafe/hazardous if adequate maintenance is neglected.

Therefore, adequate maintenance facilities, trained personnel and procedures

should be provided.

Maintenance and inspection shall be performed in conformity with the following

practices:

1. A scheduled planned maintenance, lubrication and inspection system should be

followed. (See maintenance instructions in chapter7)

2. Only qualified and authorised personnel shall be permitted to maintain, repair,

adjust, and inspect the pallet truck.

3. Modifications and additions which affect capacity and safe operation shall not

be performed by the customer or user without the manufacturer’s, prior written

approval. Capacity, operation and maintenance plates or decals shall be changed

accordingly.

4. If modifications are made without the written approval of the manufacturer,

thewarranty will no longer apply.

7/40

2. DESCRIPTION

2.1. Technical data

Always check the type plate for the correct information.

Model TRW0009

Load capacity (kg) 2000

Type of the pump Quicklift pump

Total length (L2) (mm) 1550

Length of the forks (L1) (mm) 1150

Width across the forks (W1/W3) (mm) 555

Minimum height (H1) (mm) 90

Lifting height (H2) (mm) 210

Material of the steering wheels Rubber

Material and number of fork wheels Tandem / Polyurethane

Material of the pallet truck Steel

Type of battery Rechargeable batteries

Battery capacity (Ah) 4

Type of charger External charger

Weight (kg) 110

Printer present No

Accuracy (%) 0,1

Scale division 0,5 kg

International protection marking IP65

100

AST

CG L4

H1 W2

W1/W3

8/40

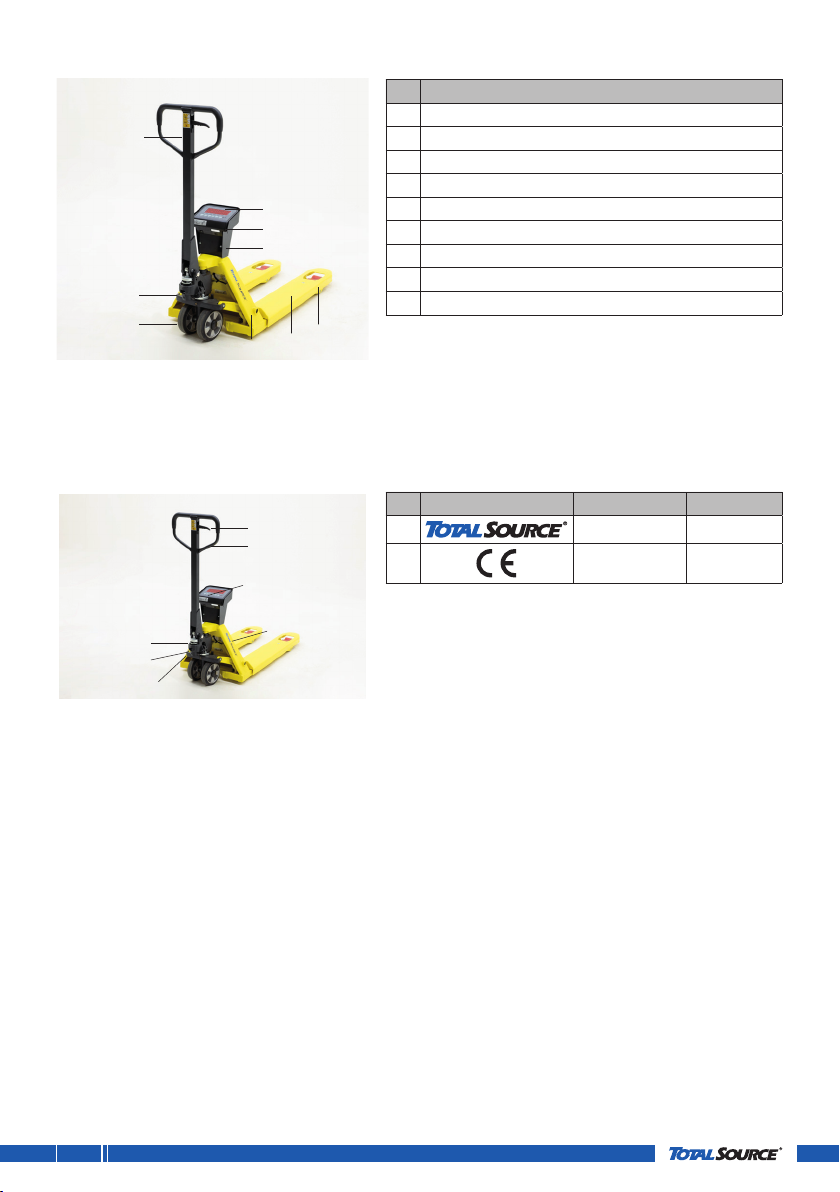

2.2. Main components of the product

N° Component

1Tiller with handle

2Weighing display

3Power connection

4On/Off button

5Fork wheels

6Upper frame

7Lower frame with built-in weighing cells

8Steering wheels

9Pump unit

2.3. Placement of the decals

The safety and warning labels should be placed as described in the pictures below.

Seechapter3 for the explanation of the safety warnings. If the decals are damaged or

missing, replace them.

N° Decal Explanation Reference

1Brand decal 166TA2311

2CElogo 151TA2190

9/40

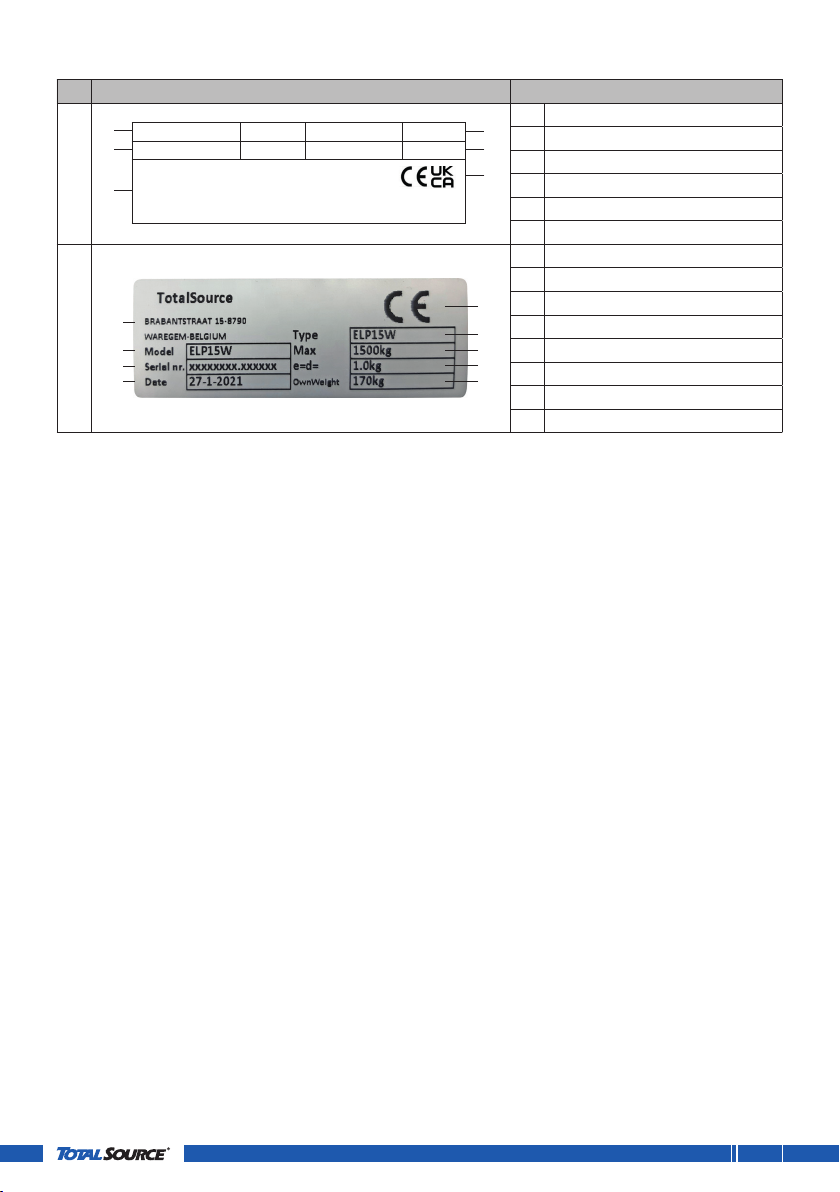

2.4. Type plate

N° Type plate Explanation

3 1 Type of product

2Type of wheels

3Manufacturer of the product

4Length of the forks

5Width across the forks

6CE and UKCA logo

1Manufacturer of the product

2Type of product

3Serial number

4Date of manufacture

5CE logo

6Capacity of the product

7Scale division

8Weight of the product

Type of Pallet truck TRPxxxx Fork length xxx mm

Wheels xxx Width over forks xxx mm

Manufactured in the EU for:

TVH Parts NV

Brabantstraat 15 8790 WAREGEM - Belgium

Imported in the UK by: TVH UK National distribution centre

Zortech avenue Kidderminster - Worcesterhire DY11 7DY

10/40

3. SAFETY INSTRUCTIONS

3.1. Explanation of the safety decals

If the decals are damaged or missing, please replace them.

N° Decal Explanation Reference

Operating instructions handle:

1. Handle up: lower the forks

2. Neutral: driving position

3. Handle down: pump up

163TA1676

6Maximum load capacity: 2000kg 138TA2564

1. Foot crushing hazard, wear safety shoes

2. Do not use on a slope

3. Do not use to lift or transport people

4. Keep other persons at a distance while

operating the pallet truck

5. Do not put feet in front of rolling wheels, wear

safety shoes

6. Keep other persons at a distance and be

aware of loading bridges and docks to prevent

the pallet truck or the load from falling down

7. Hand crushing hazard, wear safety gloves and

be careful where you put your hands

8. The load must cover the full length and width

of the forks

9. The load must be centred on the forks

10. The centre of gravity of the goods should be in

the centre of the two forks

11. Read the manual before using the pallet truck

166TA2313

Table des matières

Autres manuels Total Source Camion

Total Source

Total Source TRP0003 Manuel utilisateur

Total Source

Total Source TSP5500 Fiche technique

Total Source

Total Source TRSM0004 Manuel utilisateur

Total Source

Total Source TRP0007 Manuel utilisateur

Total Source

Total Source WRZ-ES Manuel utilisateur

Manuels Camion populaires d'autres marques

Sealey

Sealey CST801 Manuel utilisateur

RAM

RAM 1500 2019 Manuel utilisateur

BT Ergomover 620 AC-TT Manuel utilisateur

Still

Still EXU-16 Manuel utilisateur

Lift-Rite

Lift-Rite Titan Series Manuel

SAC

SAC TURBO-MAX 6046 Manuel utilisateur

Noblelift

Noblelift PS E12BSL Manuel

Noblelift

Noblelift PTE12N Manuel

Noblelift

Noblelift PT20H Manuel

Daewoo

Daewoo Novus M2SEF Manuel utilisateur

jcb

jcb 506-23 Manuel utilisateur

Tico

Tico Pro-Spotter Manuel utilisateur

Dawson

Dawson Truck Mate Manuel utilisateur

freightliner

freightliner Columbia Note de version

Mack

Mack M359 Manuel utilisateur

Super Products

Super Products Camel 1200 (Ejector Unloading) Manuel utilisateur

Vestil

Vestil CARPET-D Manuel utilisateur

STAXX

STAXX EPT15H Manuel utilisateur
