Total Control TCTRC1080 Manuel utilisateur

Owner's Manual

TRC-1080

Wi-Fi Remote Control

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

his remote control was Custom Programmed for you by:

For questions about your Custom Programming call:

Custom Programming of a complex home theater and/or a

multi-room system is one of the most challenging tasks within an

audio/video installation. It involves an intimate knowledge of how

the components interact and exact details on the proper

sequences of control.

Only a otal Control dealer has the requisite experience and

training to quickly and effectively customize a remote control for

true automated operation.

Congratulations on your choice!

he information in this manual is copyright protected. No part of this manual may be

copied or reproduced in any form without prior written consent from Universal

Remote Control, Inc.

UNIVERSAL REMO E CON ROL, INC. SHALL NO BE LIABLE FOR OPERA IONAL,

ECHNICAL OR EDI ORIAL ERRORS/OMISSIONS MADE IN HIS MANUAL.

he information in this manual may be subject to change without prior notice.

URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.

otal Control is a registered trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

T C-1080 TWO-WAY EMOTE

Congratulations! 1

Features and Benefits 1

Before Getting Started 2

Parts Guide 2

Connecting the Battery Pack 3

Using the Charging Base 3

Two-Way via Wi-Fi 3

Using the TRC-1080 4

Displaying the Settings Menu 5

Sleep Settings 6

Wireless Network Settings 6

Brightness 6

System 7

Button Light 7

Power 7

Date and Time 7

Sound 8

Pickup 8

Factory Default 8

Exit 8

Specifications 9

Limited Warranty Statement 10

End User Agreement 12

Precautions and Information Concerning Rechargeable

Lithium Polymer Batteries 13

Federal Communication Commission

Interference Statement 14

Declaration of Conformity 15

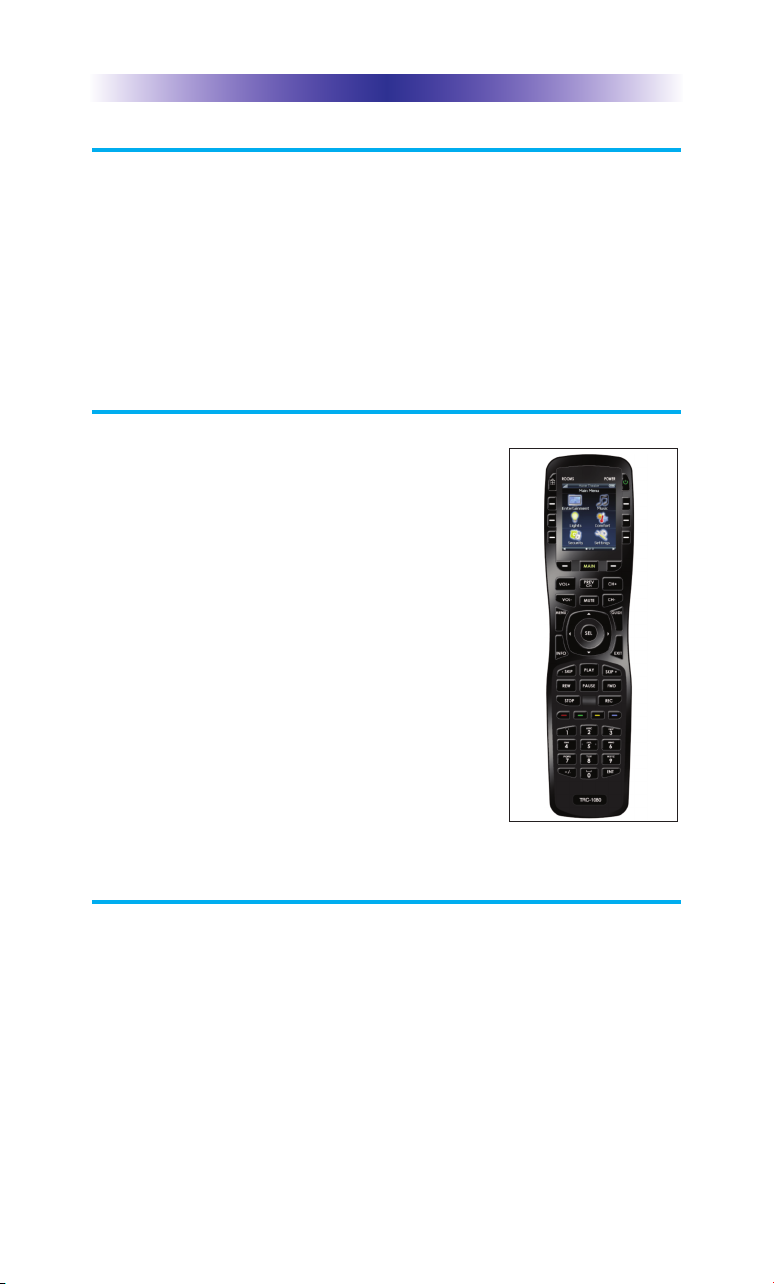

Page 1

T C-1080 TWO-WAY EMOTE

Congratulations!

Thank you for purchasing the TRC-1080 Wi-Fi remote control

for your Total Control system. This remote offers two-way

control of your connected devices throughout the home or

small office space. With the integrated Rooms Menu,

controlling devices in other areas is simple using the TRC-1080’s

Wi-Fi communication.

Features and Benefits

● Quick Connect Wi-Fi

When picked up, the TRC-1080 connect to Wi-Fi

within moments to control your Total Control system

and devices.

● Two-way meta-data feedback

Experience two-way feedback right on the remote's

screen when used with compatible devices like URC's

Music Streamer (SNP-1), iPod Dock (PSX-2), Thermostat

(THZ-100) or selection of IP Cameras. Enjoy the same

feedback when used in conjunction with an ever

expanding line of 3rd party products (speak with your

custom professional to learn more)

● Pick-up sensor

Lifting the remote immediately wakes it up, turns on the

backlight, the LCD screen, and quickly connects to the

local Wi-Fi for control of your Total Control system.

●echargeable Lithium Polymer Battery and charger base

Save money and the protect the environment by using

the included charging base and rechargeable lithium

polymer battery.

Page 2

Before Getting Started

● Only for use in a Total Control System

When used with an MRX Advanced Network System

Controller, the TRC-1080 can control your system

without being in line-of-sight of the equipment by

sending the commands over your home network.

● Programmable only by a U C certified professional

programmer onsite or offsite via the Internet

To fully automate your audio/video system, the

programmer must have detailed knowledge of each

component, LAN configuration, Wi-Fi optimization and

how the system is connected and operated. With the

ability to connect the TRC-1080 to an MRX Advanced

Network System Controller, your installer can program

the remote, with your permission, from a remote

location should the need arise. Only a trained and

certified professional audio/video installer can install a

TRC-1080 remote control in a timely and efficient manner.

Parts Guide

What’s included with the TRC-1080:

●TRC-1080 Wi-Fi Remote Control

●Rechargeable Battery

●Charging Cradle

●AC Power Adapter for Charging Cradle

●Owner’s Manual

T C-1080 TWO-WAY EMOTE

Page 3

T C-1080 TWO-WAY EMOTE

Connecting the Battery Pack

Press the spring lock down to unlock and remove the cover.

The battery is included in the box when shipped from the

factory. Place the battery into the battery compartment,

making sure to align the contacts on the battery to the

contacts on the TRC-1080. The battery will snap into place

when aligned properly. Replace the cover.

Using the Charging Base

Plug the 6V DC adapter into a power

outlet and into the rear of the charging

base. (Also plugs into the remote for direct

charging.) Gently place the TRC-1080 into

the cradle. The remote automatically aligns

itself to the contacts on the charging base.

The status light should immediately

illuminate.

●Red indicates that it is charging.

●Blue shows that it is fully charged.

There is no harm in leaving the TRC-1080

on its charging base when it is not in use.

Two-Way via Wi-Fi

To use the TRC-1080 with any two-way companion product,

it must be configured by your installer to be part of a LAN

(local area network) via a Wi-Fi b/g access point or router.

This is not user configurable. If you have any questions,

consult your custom installer.

Page 4

Using the T C-1080

The TRC-1080’s Main Menu pages display the activities and

devices in your system. Press the Main page button to view

your activities and devices. Large systems may have more

than one page. Press either of the Page buttons to view

additional pages.

Once within a Device or Activity, the Page buttons may

reveal additional buttons. Press any button adjacent to the

screen, to select an activity or device.

Press the Main button to return to that page and select a new

device or activity.

T C-1080 TWO-WAY EMOTE

The 5-way cursor

buttons are used to

navigate through a

device's menu

with ease.

The Main button

always displays the

Main menu

pages.

The Page buttons

display additional

pages of controls,

devices or activities.

The Volume and

Mute buttons are

always available

regardless of what

screen is displayed.

Page 5

Displaying the Settings Menu

You can enter the Settings menu by pressing and holding the

Main and Enter buttons for three seconds. When the Settings

menu appears, any further action must be completed within

60 seconds, at which point the remote will revert back to the

Main Menu screen.

Use the Page buttons to navigate between the two Settings

pages. To select a setting, press the button on the LCD screen.

To go back a step or to get out of the Settings menu, press

the Main button.

T C-1080 TWO-WAY EMOTE

Page buttons reveal the

rest of the settings.

Page 2 of the Settings

Screen

Sleep Settings

You can adjust the amount of time the LCD

remains ON when the remote is not in use.

The time can be set independently based on

whether the remote is using battery power or

sitting on the cradle.

Once the Sleep Timers are adjusted, press the

Ok button. Pressing the Cancel button will revert to the

remotes last saved setting.

Wireless Network Settings

WARNING! Only use this button when

instructed to by Technical Support or your

Custom Professional. The screen displays

network information about your TRC-1080 and

the wireless network it is connected to. Do not

make any changes on this screen!

Brightness

Adjust the screen brightness by pressing the

adjacent hardbuttons to increase or decrease

the brightness level.

Once the brightness is adjusted, press the Ok

button. Pressing the Cancel button will revert

to the remotes last saved setting.

Note: he higher the brightness, the faster the batteries will deplete.

Page 6

T C-1080 TWO-WAY EMOTE

Page 7

System

The System Information screen displays data

about your TRC-1080's Operating System,

Memory etc.

Press the More button to view further system

information. Pressing the Cancel button will

exit to the remote’s settings menu.

Button Light

You can adjust the brightness of the LEDs that

backlight the buttons of the TRC-1080. Press

the adjacent hardbuttons to increase or

decrease the button light level.

Once the button light is adjusted, press the Ok

button. Pressing the Cancel button will revert

to the remote’s last saved setting.

Power

You can display the remaining battery level by

selecting Power. You can also adjust when the

Low Battery warning screen will appear.

Once the power is adjusted, press the Ok

button. Pressing the Cancel button will revert

to the remote’s last saved setting.

Date and Time

The TRC-1080’s date and time has been

previously set. If you need to, you can adjust

the date and time by changing the settings on

this screen.

After adjusting the date and time, press the Ok

button. Pressing the Cancel button will revert

to the remote’s last saved setting.

T C-1080 TWO-WAY EMOTE
